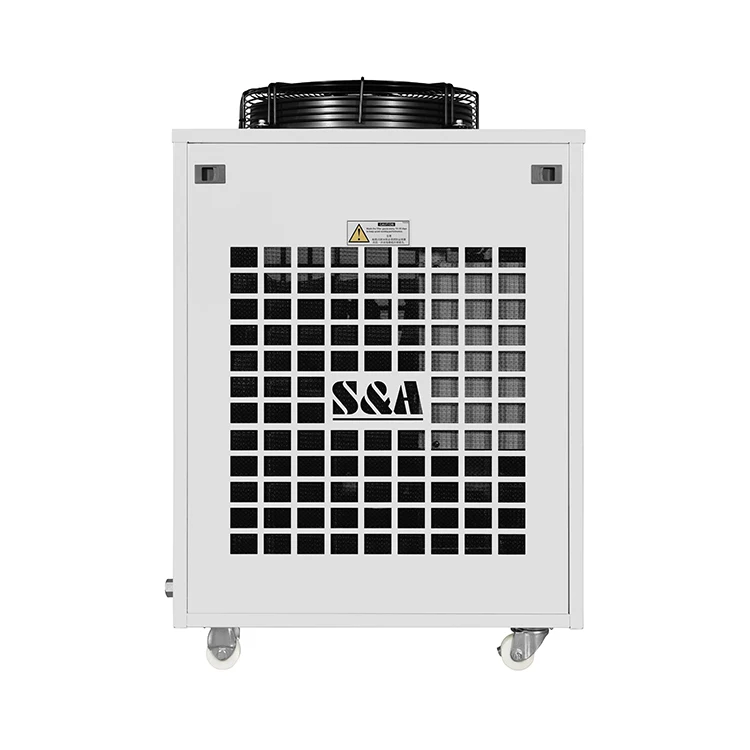

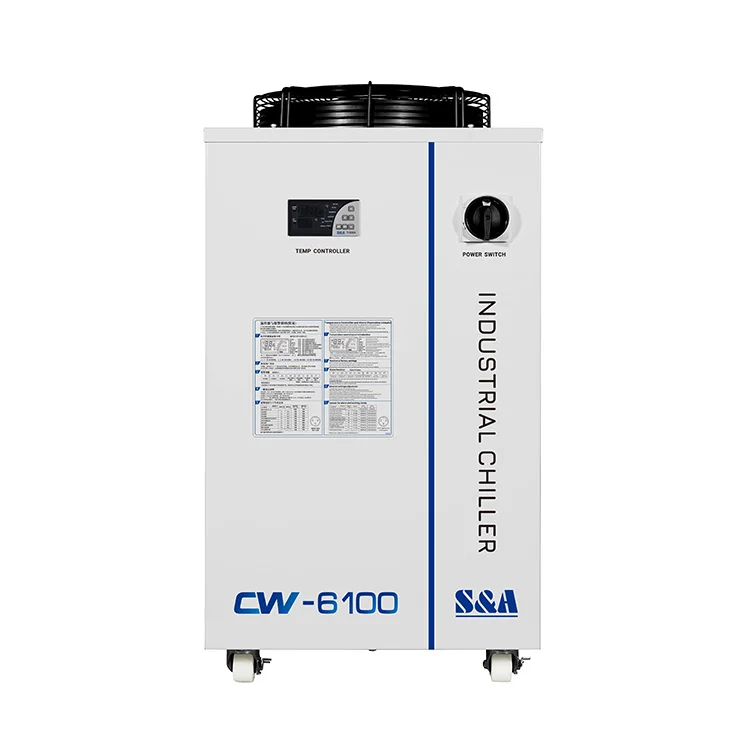

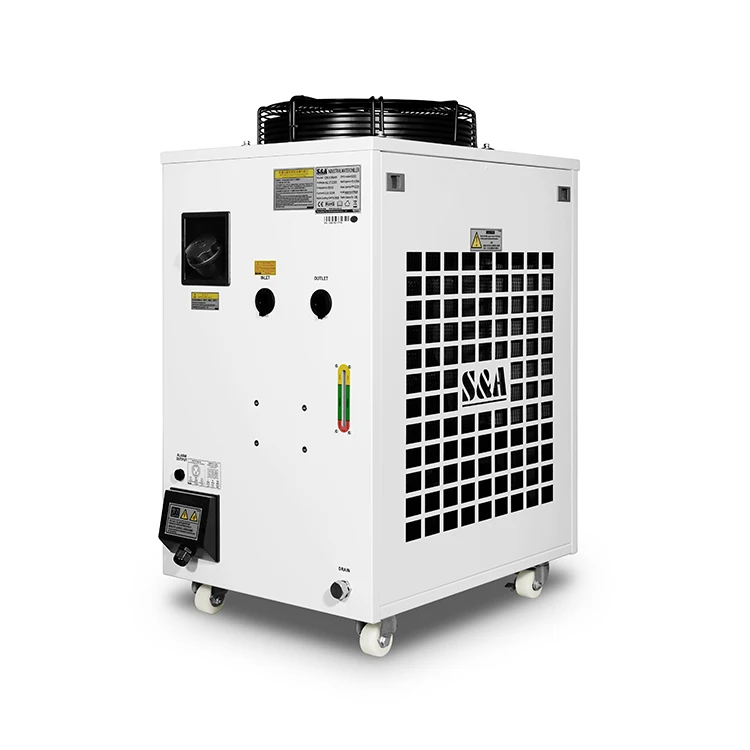

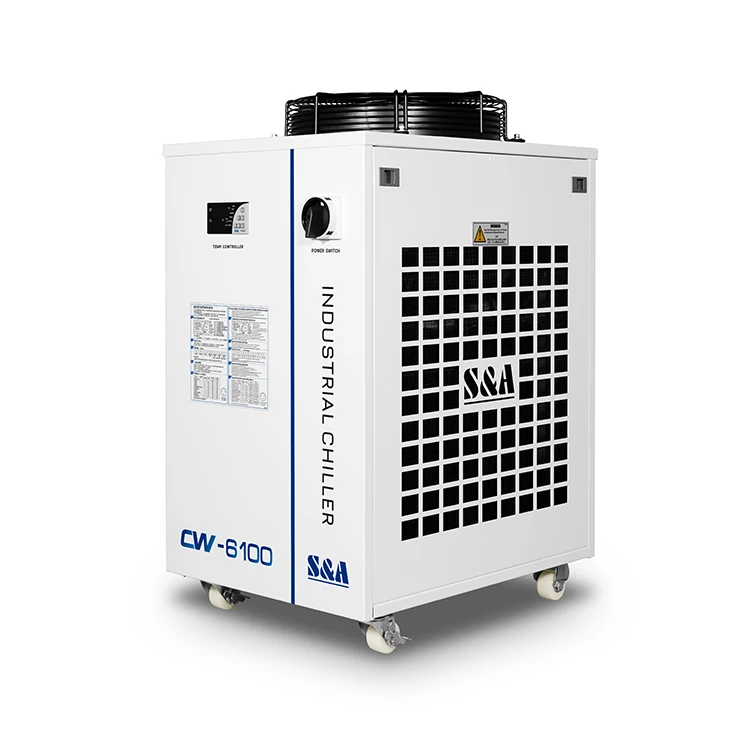

S&A CW 6100 Intelligent Temperature Control Safty 4.08kW/4.24kW Industrial CNC Spindles Laser Chiller
- Category: Refrigeration & Heat Exchange Equipment >>>
- Supplier: Guangzhou Teyu Electromechanical Co. Ltd.
Share on (1600476609075):
Product Overview
Description
Products Description

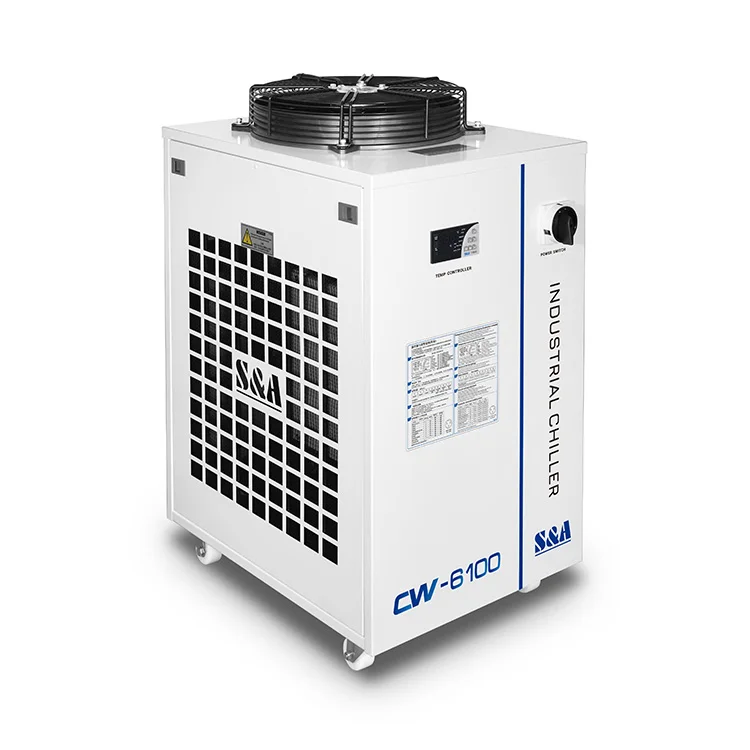

CNC Spindle Chiller
CNC spindle water cooling system CW-6100 is a technically perfected alternative to air cooling or oil cooling for cooling 36kW machining spindle. A key advantage of this chiller is that it reduces thermal growth in spindle by using process cooling which features intelligent temperature control and multiple safety mechanisms. By keeping the spindle at a suitable temperature, refrigerated recirculating chiller CW-6100 can help prevent the spindle from overheating problem. A built-in visual water level indicator ensures the safety of the water pump (to prevent dry running) and helps monitor the water quality. The chiller is also available for adding mixtures of water and anti-rusting agent or anti-freezer up to 30%.
The temperature controller offers high precision temperature control of ±0.5°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.

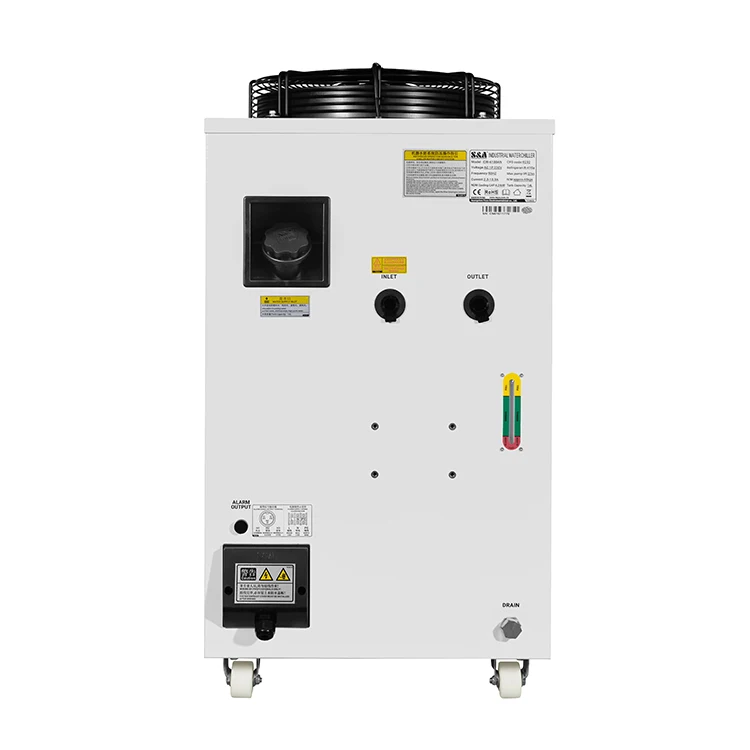

The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.
Four caster wheels offer easy mobility and unmatched flexibility.
PRODUCT SPECIFICATIONS
Model | CW-6100AI | CW-6100BI | CW-6100AN | CW-6100BN | |||
Voltage | AC 1P 220V | AC 1P 220V | AC 1P 220V | AC 1P 220V | |||
Frequency | 50Hz | 60Hz | 50Hz | 60Hz | |||
Current | 0.8~12.4 A | 0.8~10.1 A | 2.3~13.9A | 2.1~11.4A | |||
Machine power | 2.03 kW | 1.66 kW | 2.43 kW | 1.93 kW | |||
Compressor power | 1.75 kW | 1.38 kW | 1.75 kW | 1.38 kW | |||
2.38 HP | 1.88 HP | 2.38 HP | 1.88 HP | ||||
Nominal cooling capacity | 14466Btu/h | 13925 Btu/h | 14466Btu/h | 13925 Btu/h | |||
4.24kW | 4.08kW | 4.24kW | 4.08kW | ||||
3645 Kcal/h | 3508 Kcal/h | 3645Kcal/h | 3508 Kcal/h | ||||
Refrigerant charge | 870g | 920g | 870g | 920g | |||
Pump power | 0.1kW | 0.37 kW | |||||
Max. lift | 25M | 27 M | |||||
Max. flow | 16L/min | 70L/min | |||||
Refrigerant | R-410a | ||||||
Precision | ±0.5℃ | ||||||
Reducer | Capillary | ||||||
Tank capacity | 14L | ||||||
Inlet and outlet | Rp1/2" | ||||||
N.W | 62Kgs | 60Kgs | 68 Kgs | 63Kgs | |||
G.W | 72Kgs | 70 Kgs | 75 Kgs | 73Kgs | |||
Dimension | 67 X 47 X 89 cm (L X W X H) | ||||||
Package dimension | 74 X 61 X 103 cm (L X W X H) | ||||||
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
About Us

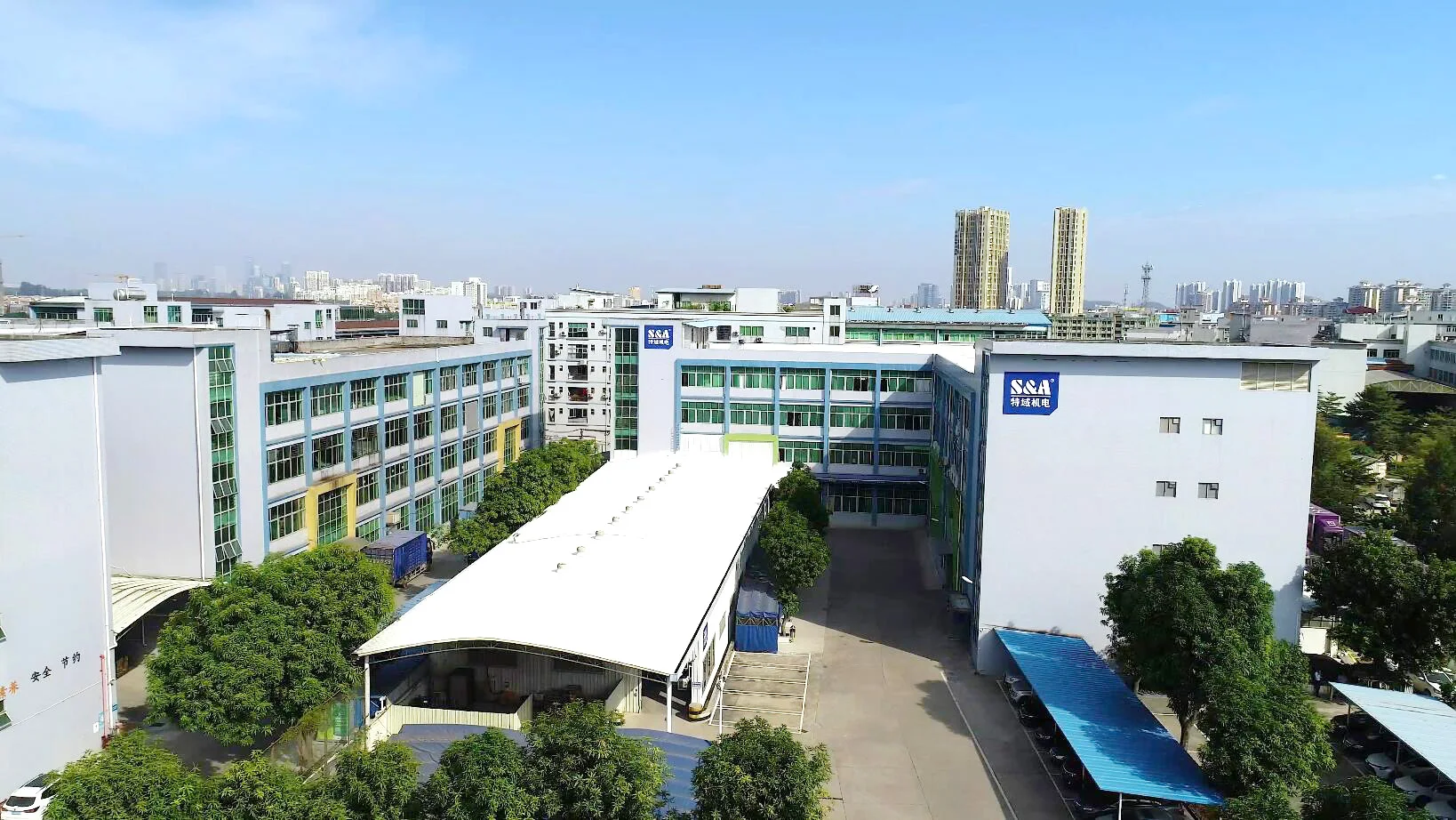

Company Profile
S&A Chiller was founded in 2002 with 20 years of chiller manufacturing experience, and now is recognized as a cooling technology pioneer and reliable partner in laser industry. S&A Chiller delivers what it promises - providing high performance, highly reliable and energy efficient industrial water chillers with superior quality.
Our recirculating water chillers are ideal for a wide variety of industrial applications. And for laser application in particular,we develop a complete line of laser water chillers, ranging from stand-alone unit to rack mount unit, from low power to high power series, from ±1℃ to ±0.1℃ stability technique applied.
We have been helping customers in more than 50 countries to solve the overheating problems in their machines with our constant commitment to stable product quality, continuous innovat-ion and understanding of customer needs. Operating with latest technology and advanced production lines in 18,000m2 ISO qualified production facilities with 400 employees, our production capacity now reaches 100,000+ units per year. All S&A industrial water chiller systems are REACH, RoHS and CE certified.
Our recirculating water chillers are ideal for a wide variety of industrial applications. And for laser application in particular,we develop a complete line of laser water chillers, ranging from stand-alone unit to rack mount unit, from low power to high power series, from ±1℃ to ±0.1℃ stability technique applied.
We have been helping customers in more than 50 countries to solve the overheating problems in their machines with our constant commitment to stable product quality, continuous innovat-ion and understanding of customer needs. Operating with latest technology and advanced production lines in 18,000m2 ISO qualified production facilities with 400 employees, our production capacity now reaches 100,000+ units per year. All S&A industrial water chiller systems are REACH, RoHS and CE certified.
Certifications

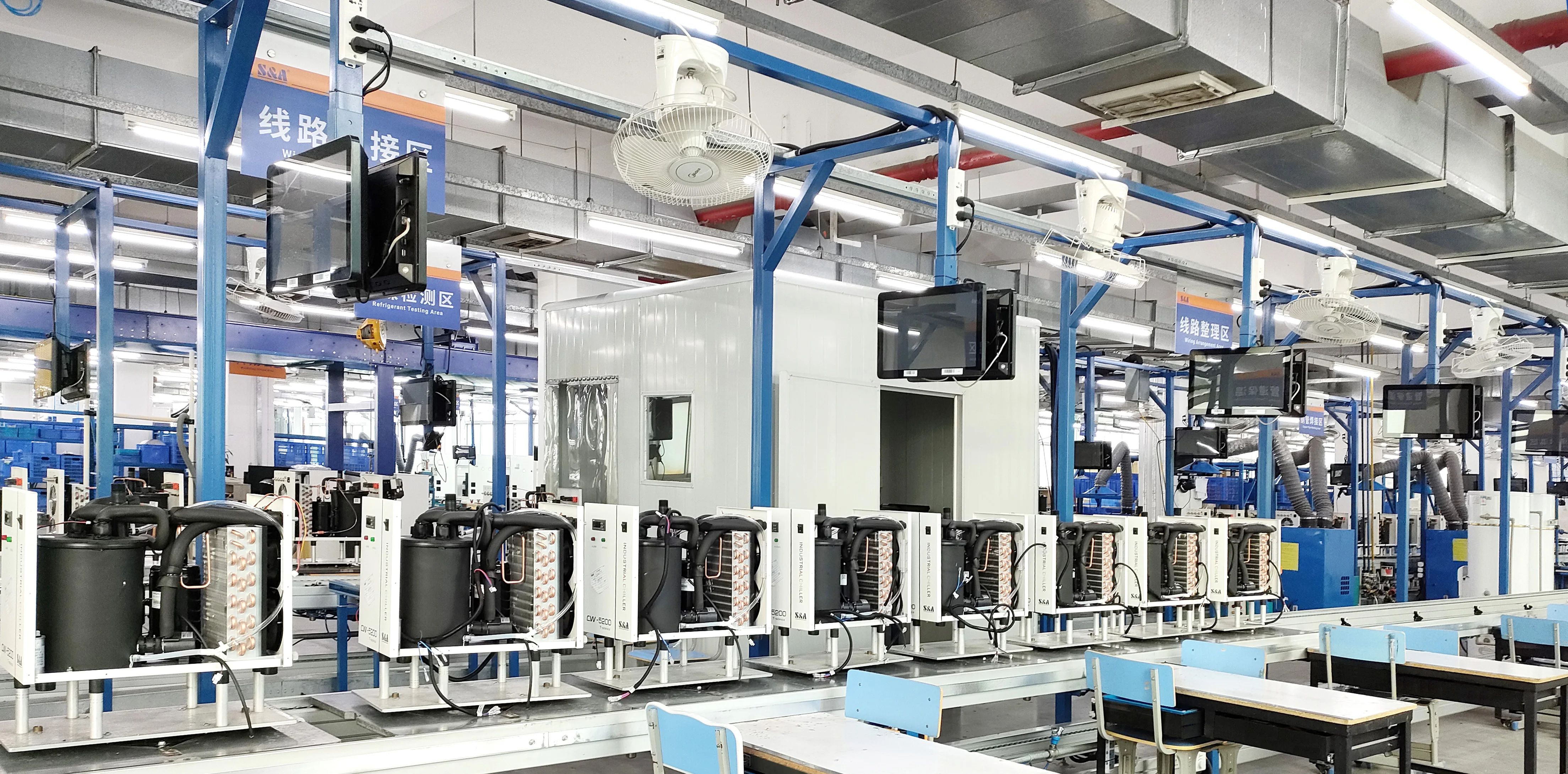

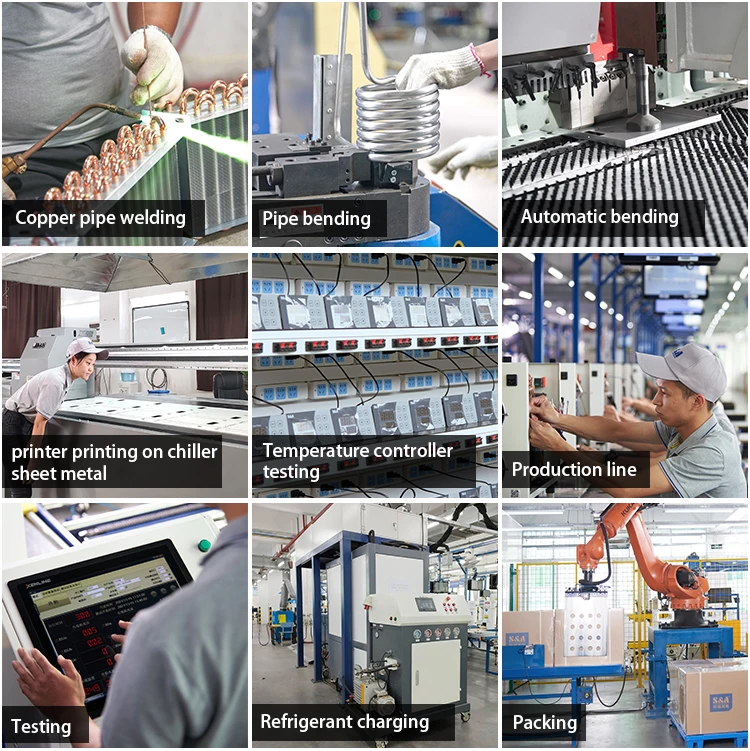

Factory Show
FAQ
Q1.Is S&A Chiller a trading company or a manufacturer?
We are professional industrial chiller manufacturer since 2002.
Q2.What is the recommended water used in the industrial water chiller?
The ideal water should be deionised water, distilled water or purified water.
Q3.How often should I change out the water?
Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.
Q4.What is the ideal room temperature for the chiller?
The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.
Q5.How to prevent my chiller from freezing?
For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team
We are professional industrial chiller manufacturer since 2002.
Q2.What is the recommended water used in the industrial water chiller?
The ideal water should be deionised water, distilled water or purified water.
Q3.How often should I change out the water?
Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.
Q4.What is the ideal room temperature for the chiller?
The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.
Q5.How to prevent my chiller from freezing?
For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team
