24V/36V 250W High Quality Motor Ebike Conversion Kit Accessories Electric Mountain Bike Bicycle Conversion Kit
- Category: Electric Bicycle Part >>>
- Supplier: Zhejiang Beilong Tool Co. Ltd.
Share on (1600484063992):
Product Overview
Description
24V/36V 250W High Quality Motor Ebike Conversion Kit Accessories Electric Mountain Bike Bicycle Conversion Kit

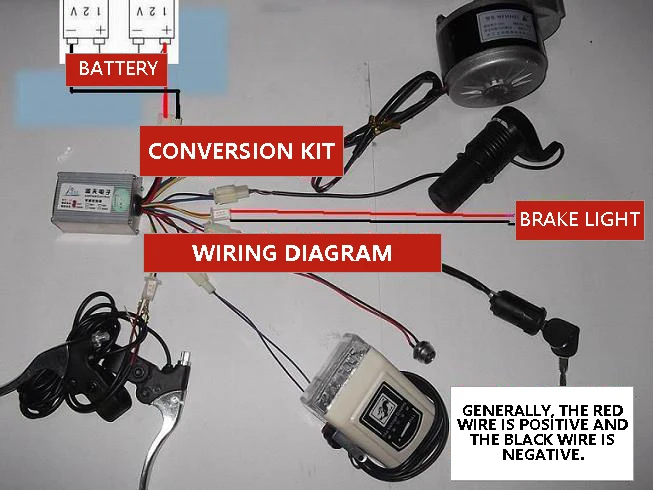

Wiring Instructions
1. The two thicker wires on the controller are blue and white wires to connect to the motor. The blue wire is connected to the red wire of the motor, and the white wire is connected to the black wire of the motor.
2. The two thicker red and black wires of the controller are connected to the battery, the red wire is connected to the positive electrode of the battery, and the black wire is connected to the negative electrode of the battery.
3. Connect the speed control handle connector. (the speed control handle has three lines, the red line must be connected to the red line, and the black line to the black line)
4. Connect the electric lock, open the electric lock, turn the handle and the motor can run.

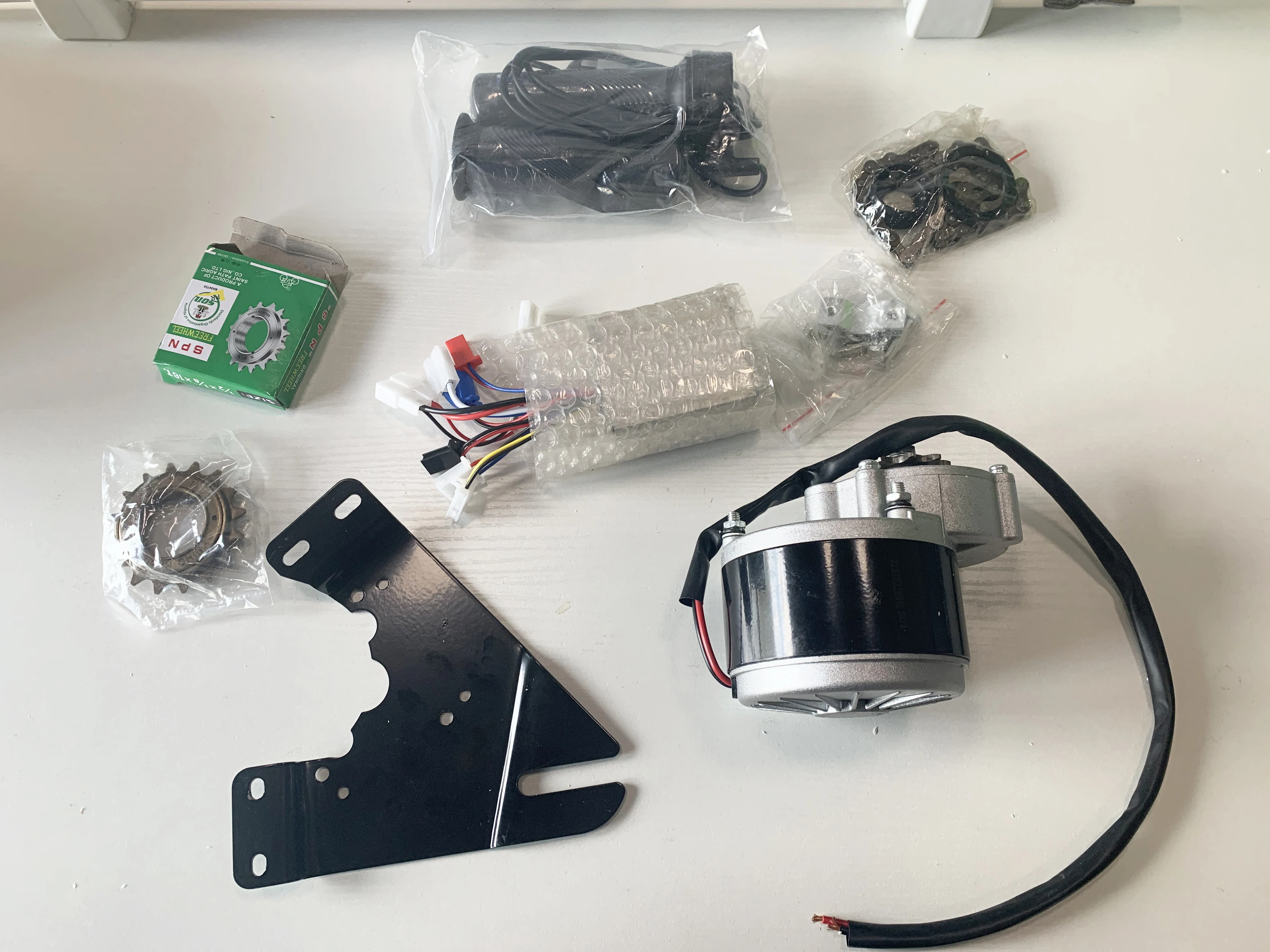

Included parts
1.Handlebar
2.freewheel
3.controller
4.Bracket
5.Chains
6.Motor
7.Screw
Attention: The charger in this kit is only suitable for use with lead-acid batteries below 14AH(including 14AH). It cannot be charged with lithium batteries
Products Description

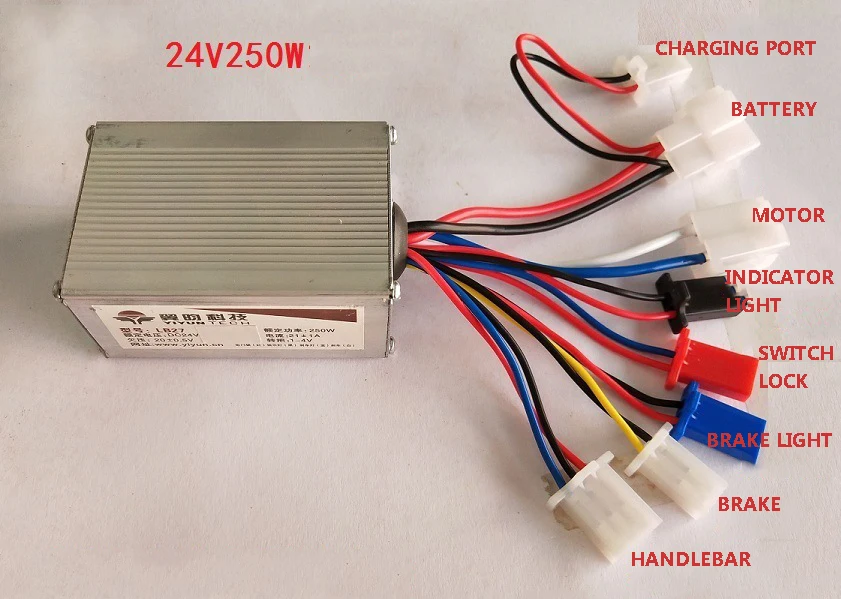

There are also four other connectors on the controller, one is the charging port, the other is the brake light, the third is the brake, and the fourth is the indicator light. The charging port is the charging port in the kit. Since the kit does not have a brake light, the brake light interface can be omitted. The brake interface is connected to the brake lever, because there are two brake levers in the kit, and the controller has only one brake interface, so the two brake levers must be connected to the red wire and the red wire, and the black wire and the black wire to form a head.
The batteries used in the 24V retrofit kit generally use two 12V lead-acid batteries of 10A to 14A.(36V kits need 3 batteries, pay attention to use special batteries for electric bicycle) The charger in this kit is only suitable for charging lead-acid batteries below 14A (including 14AH), not lithium batteries.
CHRAGING
When charging, when the charger turns from red to green, the power of the charger can be turned off, indicating that the battery is fully charged. Note that the charging time should not exceed 12 hours, in case the charging time is too long and the battery will be affected.

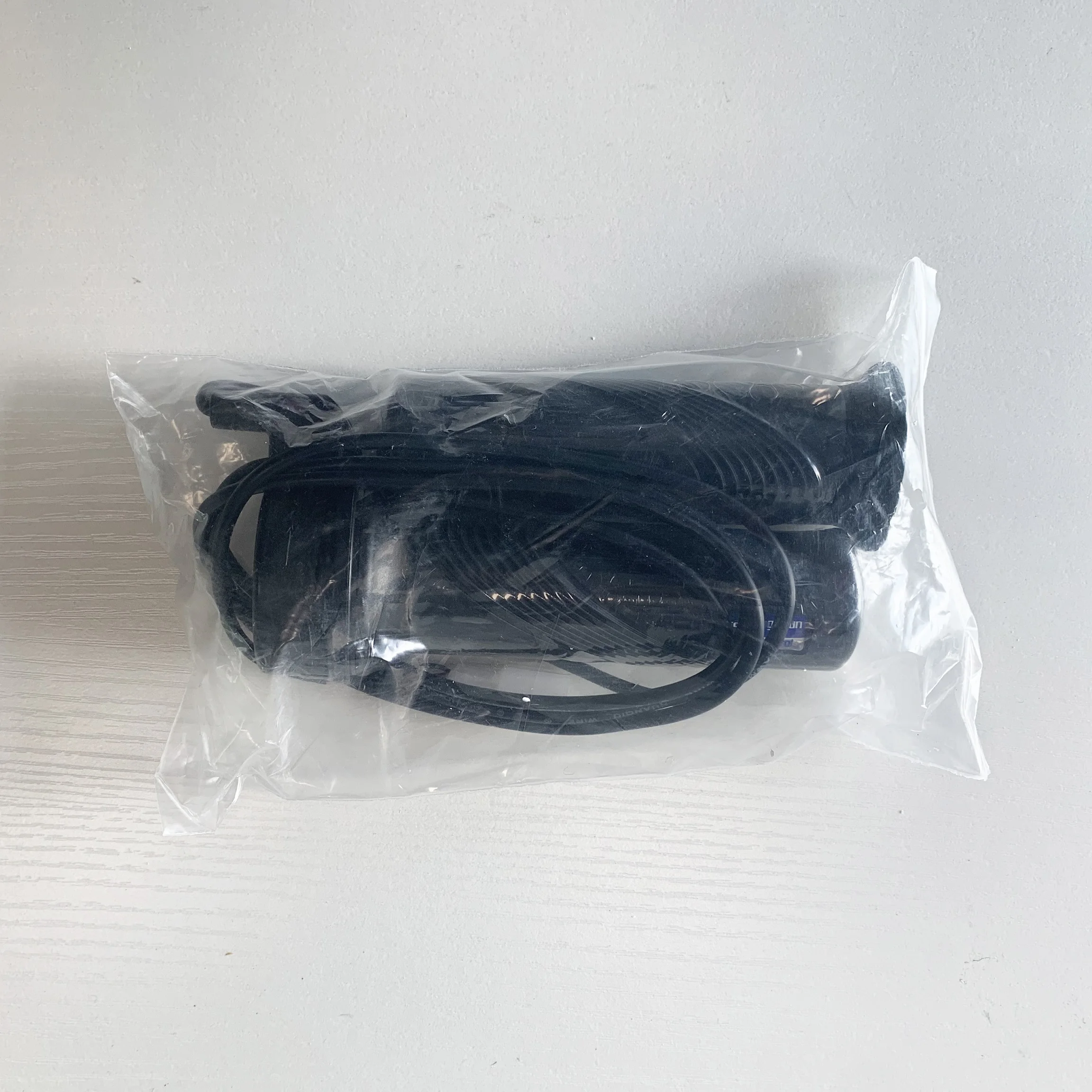

HANDLEBARS

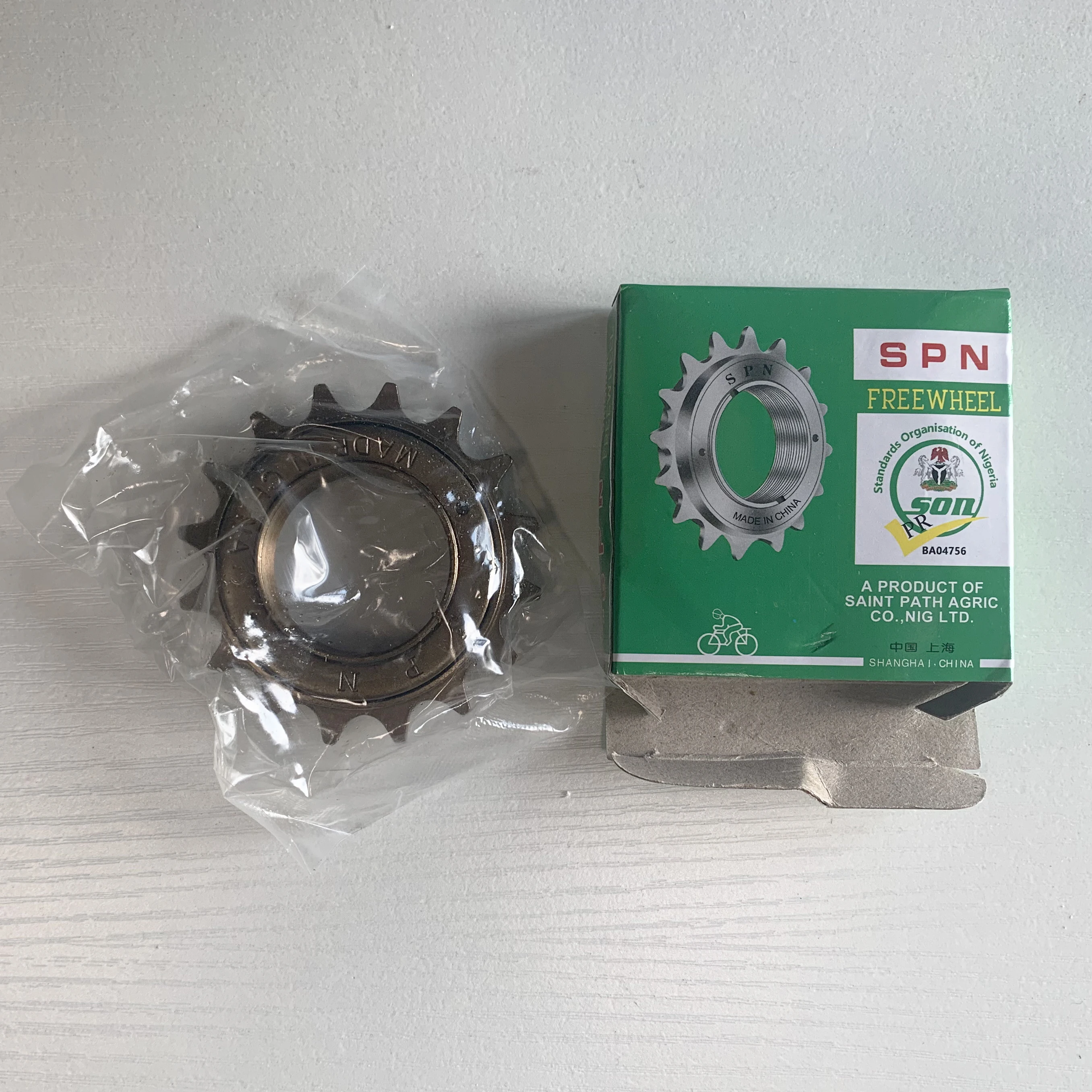

FREEWHEEL

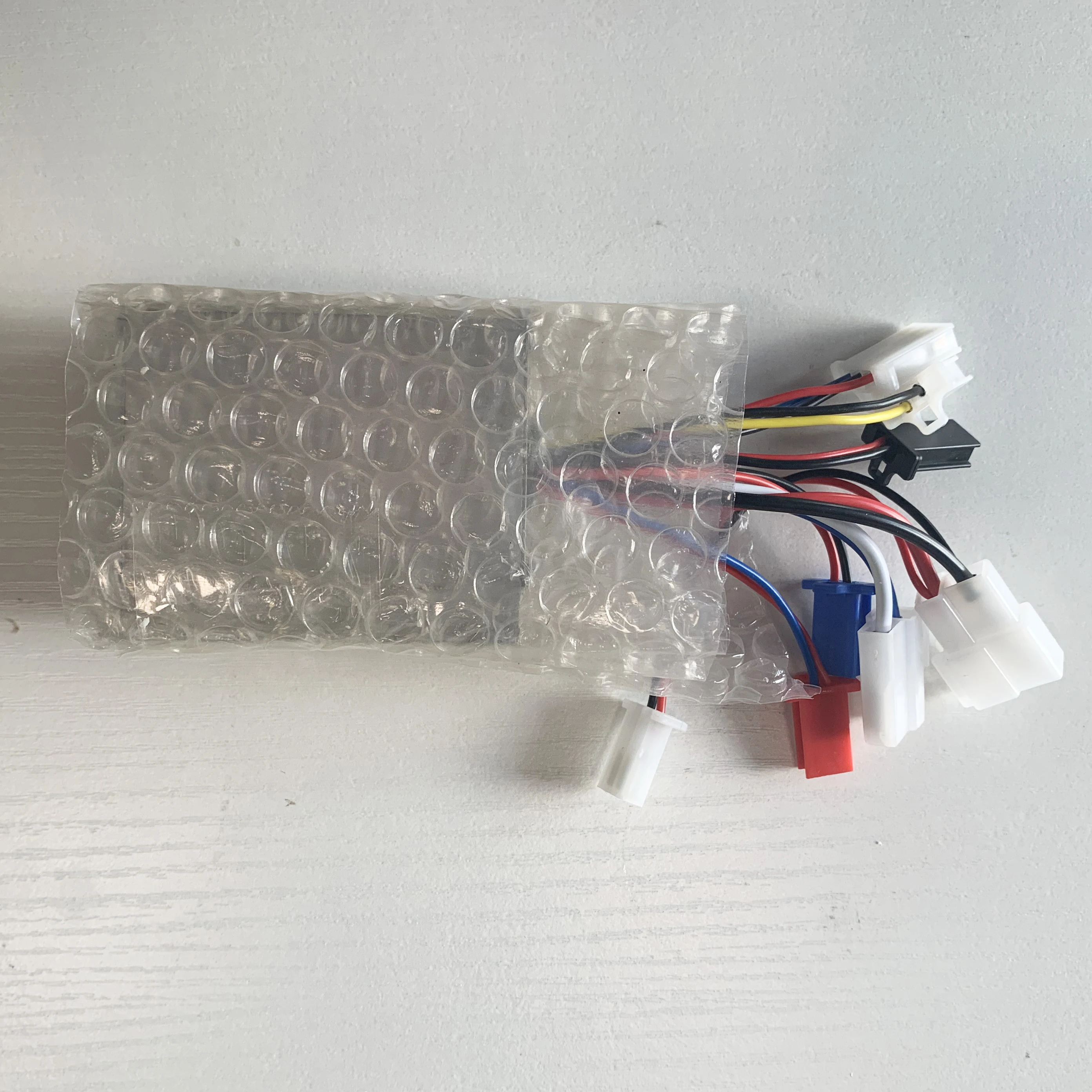

CONTROLLER

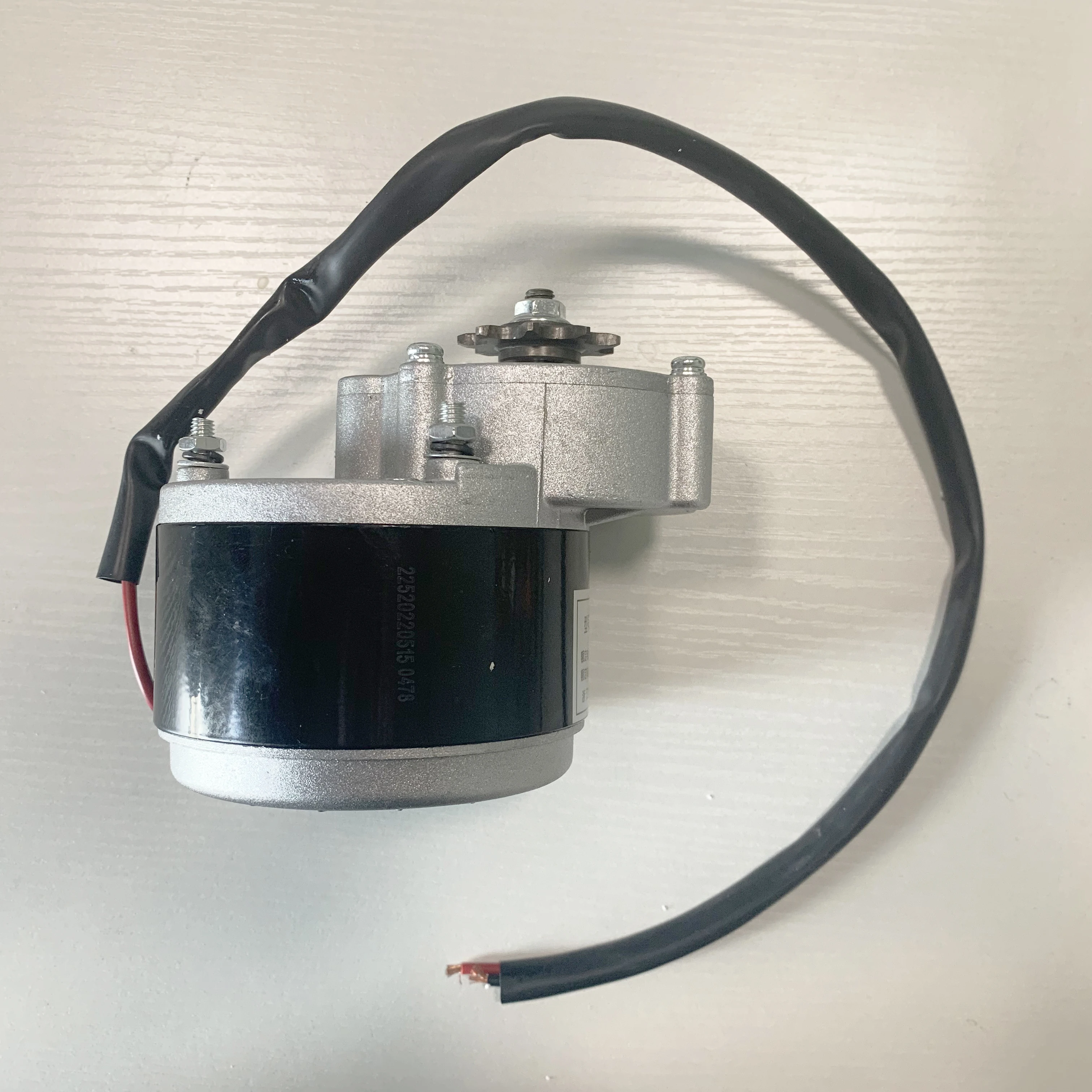

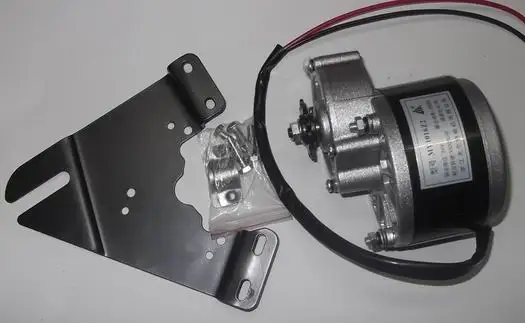

MOTOR

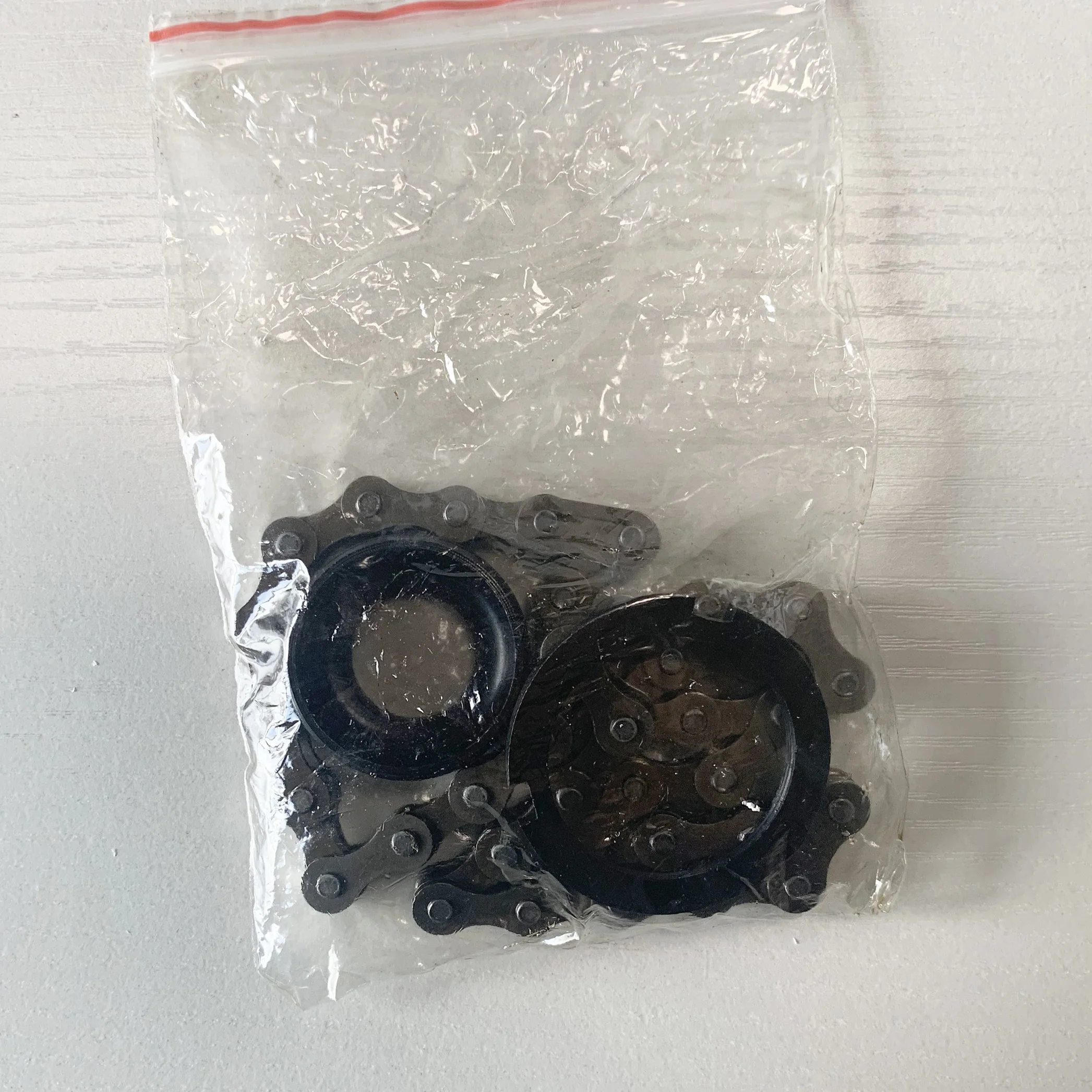

CHAINS

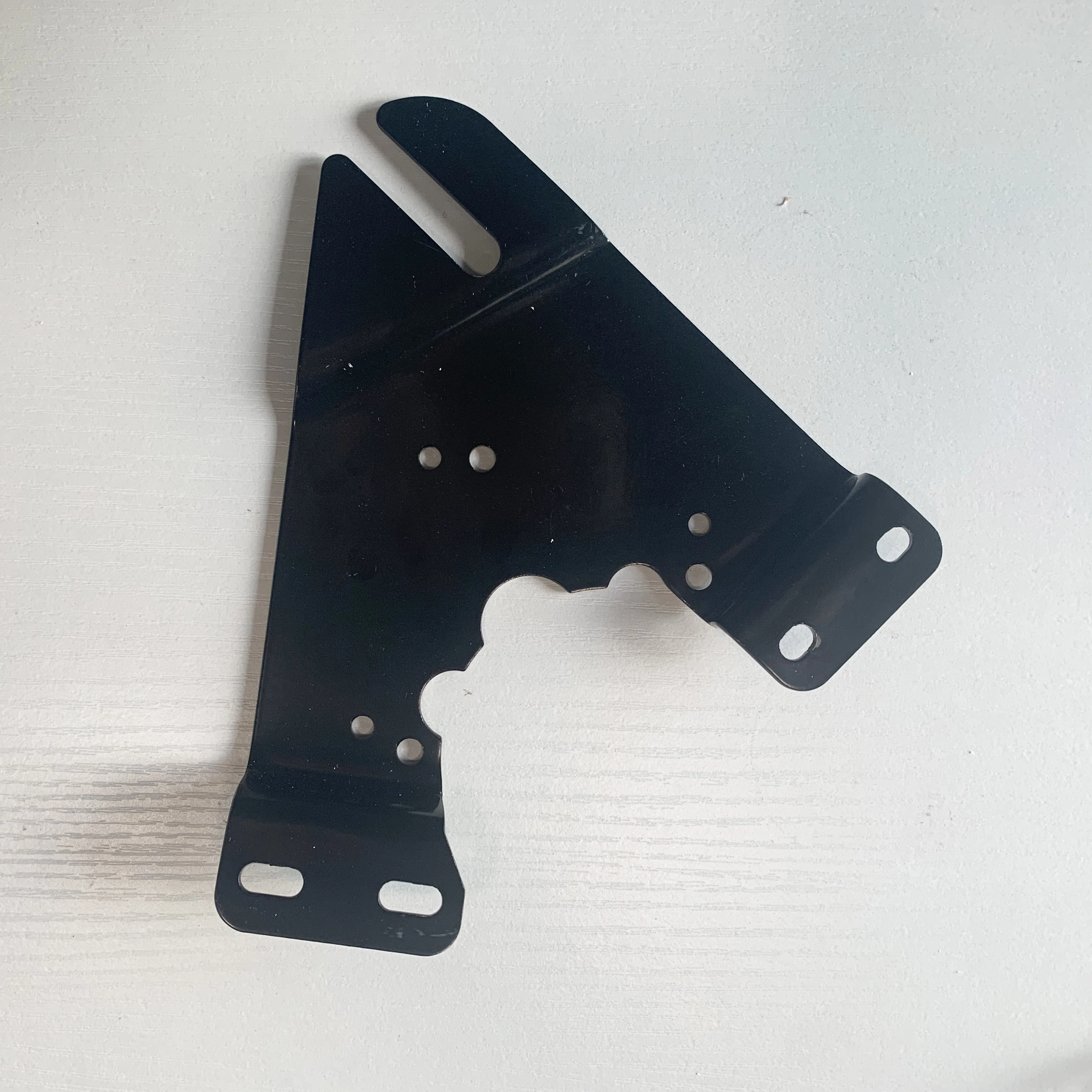

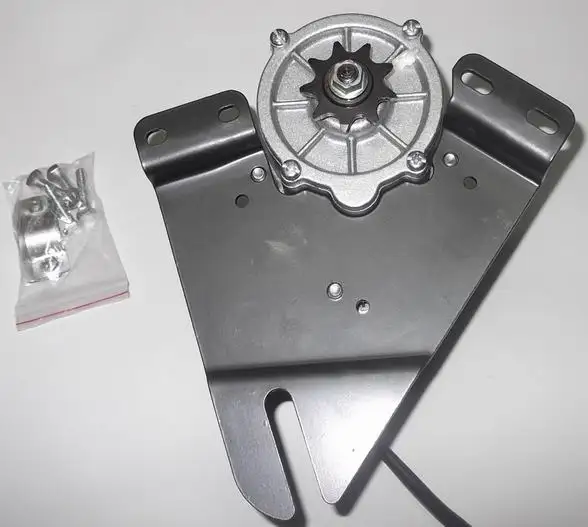

BRACKET

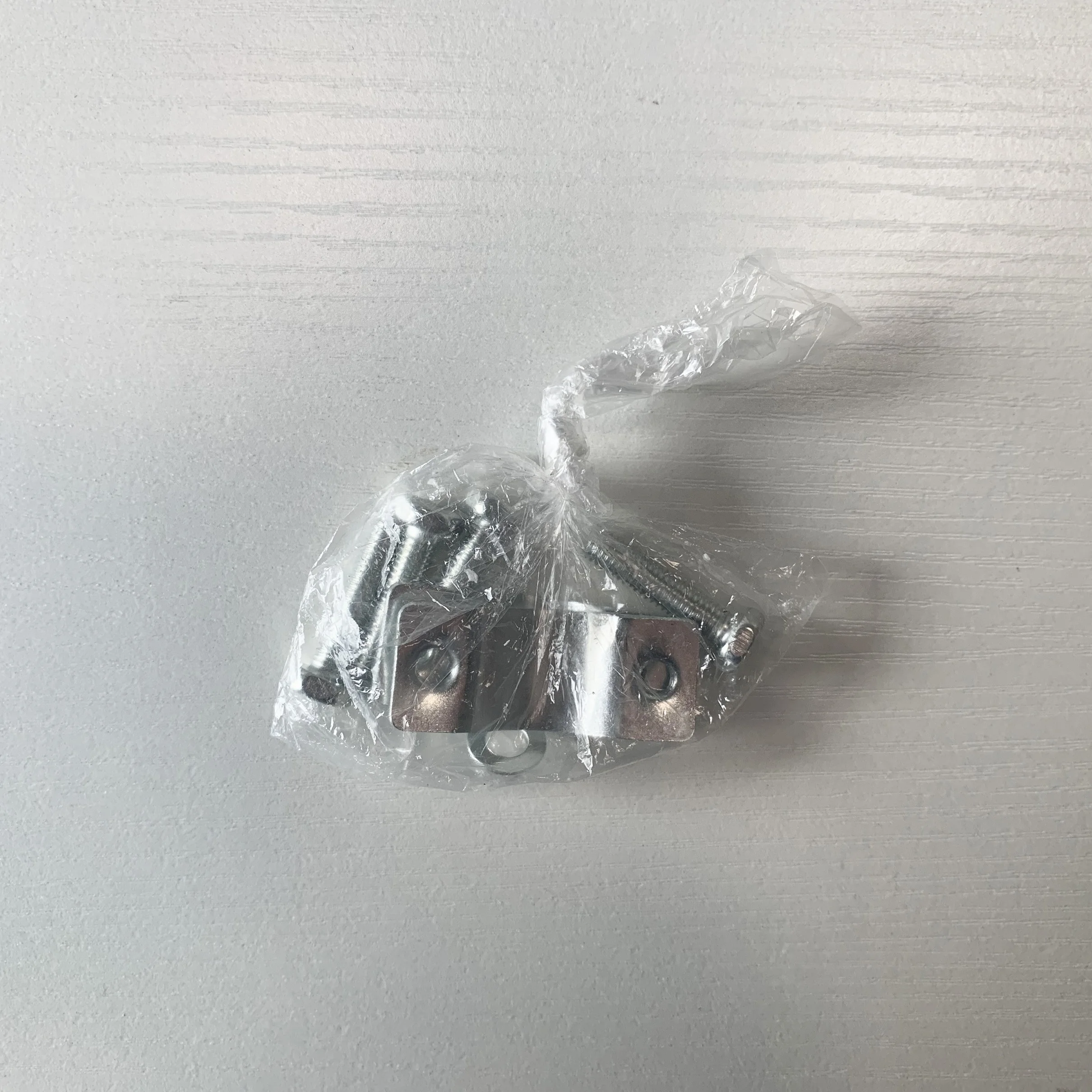

ACCESSORIES
