QS 180 90H 8000W 72V / 96V High Speed 140KPH Encoder Mid Drive Motor Conversion Kit with Fardriver Controller

Product Overview

Description

QS 180 90H 8000W 72V / 96V High Speed 140KPH Encoder Mid Drive Motor Conversion Kit with Fardriver Controller For Offroad Dirtbike Adult Electric Motorcycle

For 180 8000W motor powertrain kits, it could be used for electric motorcycle, which could be 72V 140KPH.

e.g. Electric Motorcycle

E-motorcycle weight, approx 120kg+2*80kg

Speed: peak 140km/h

Gear ratio: 1:3.7

Climbing slope: 15°@70kph280kg

Tire: 150/70-17

One set including below kits

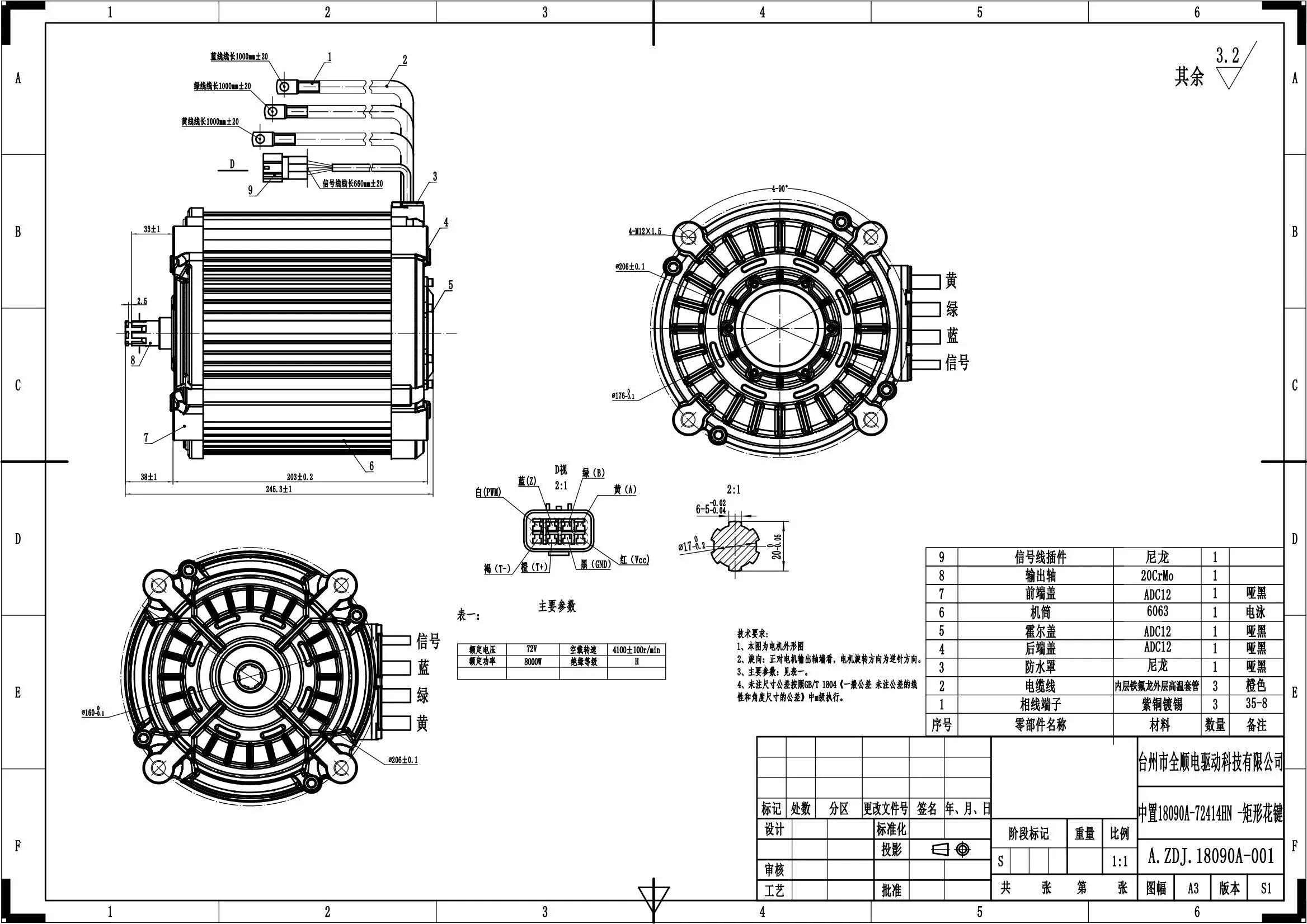

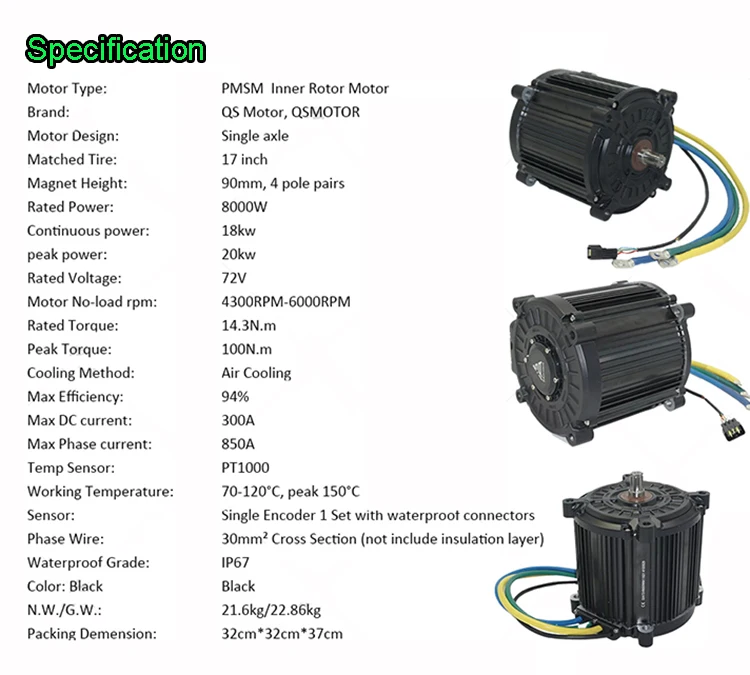

1pc X QS 180 8000W Encoder Mid drive motor with 428 sprocket

1pc X Encoder motor controller ND72850B / ND96850B / ND721200B

1pc X Blue-tooth adapter

1pc X DKD speedometer

1pc X Multi-throttle

Fardriver Controller ND72850B ND96850B ND721200B with Bluetooth

The Controller package included parts as below,

1 piece Controller

1 piece Programmable Cable for PC or Bluetooth module(as default) for Cell Phone

1 piece Complete wiring

1 piece Software(Will be sent by Email)

Product Description

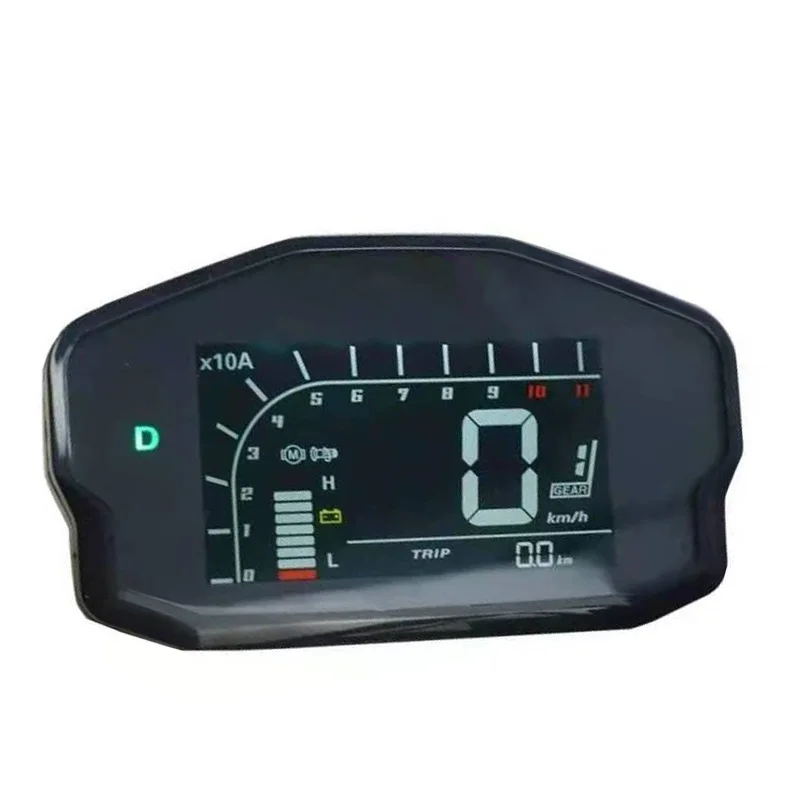

DKD display

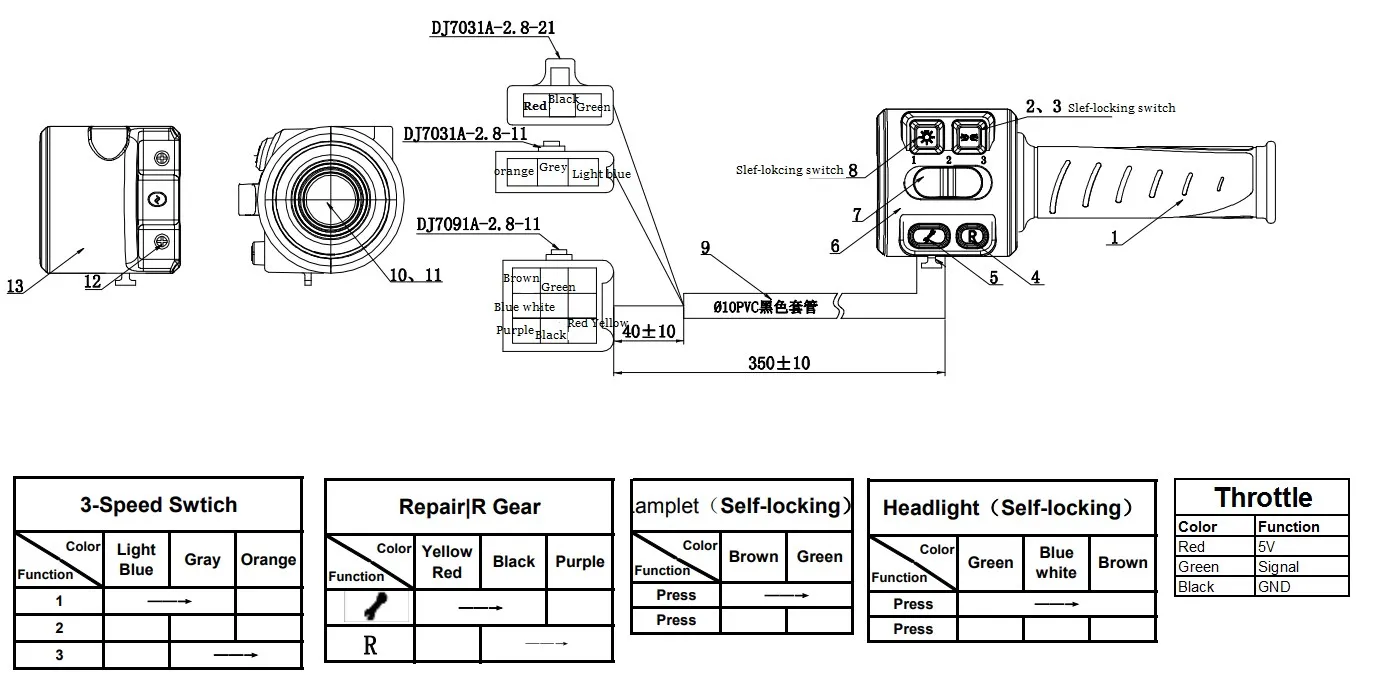

Multi-Throttle
