Factory Supply Computer Control 10KN Rubber Pull Force Tensile Strength Test Machine
- Category: Testing Equipment >>>
- Supplier: Dongguan Best Instrument Technology Co. Ltd.
Share on (1600484197846):
Product Overview
Description
Products Description
Double-Column Servo Universal Material Tensile Test Machine
Model: BST-MS-1000 S1. Product introduction
Servo universal tensile test machine is suitable for rubber and plastic materials for stretching, compression, bending, shearing,
tearing, stripping, etc. It is widely used in building materials, aerospace, machinery manufacturing, wire and cable, rubber,
plastics, textile, home appliances and other industries of material inspection and analysis.
2. Test standards
* GB/T 1040-2006 Test mothod for tensile properties
* GB/T 9341-2008 Test method for bending properties of plastics
* ISO 527-1993 Plastics - determination of tensile properties
* GB/T 13022-91 Methods of tensile test for plastic films
* ISO 178-2004 Plastics bending test
* ASTM D 638-2008 Standard test method for tensile properties of plastics
3. Specifications
Model | BST-WS-1000S |
Type | Double column (gantry-type) |
Load range | 0~20KN(0-2000KG optional ) |
Control motor | AC Servo Motor |
Servo drivers | AC drive |
Test speed | 0.01~500mm/min |
Power accuracy | ≤0.5% |
Resolution | 1/250000 |
Power unit | N、kg、Lb、KN... |
Extensometer | Professional Large Deformation Extensometer (optional) |
Extensometer accuracy | ±0.01mm（optional） |
Test stroke | 800mm(optional) |
Test width | 400mm(optional) |
Control mode | Computer software control |

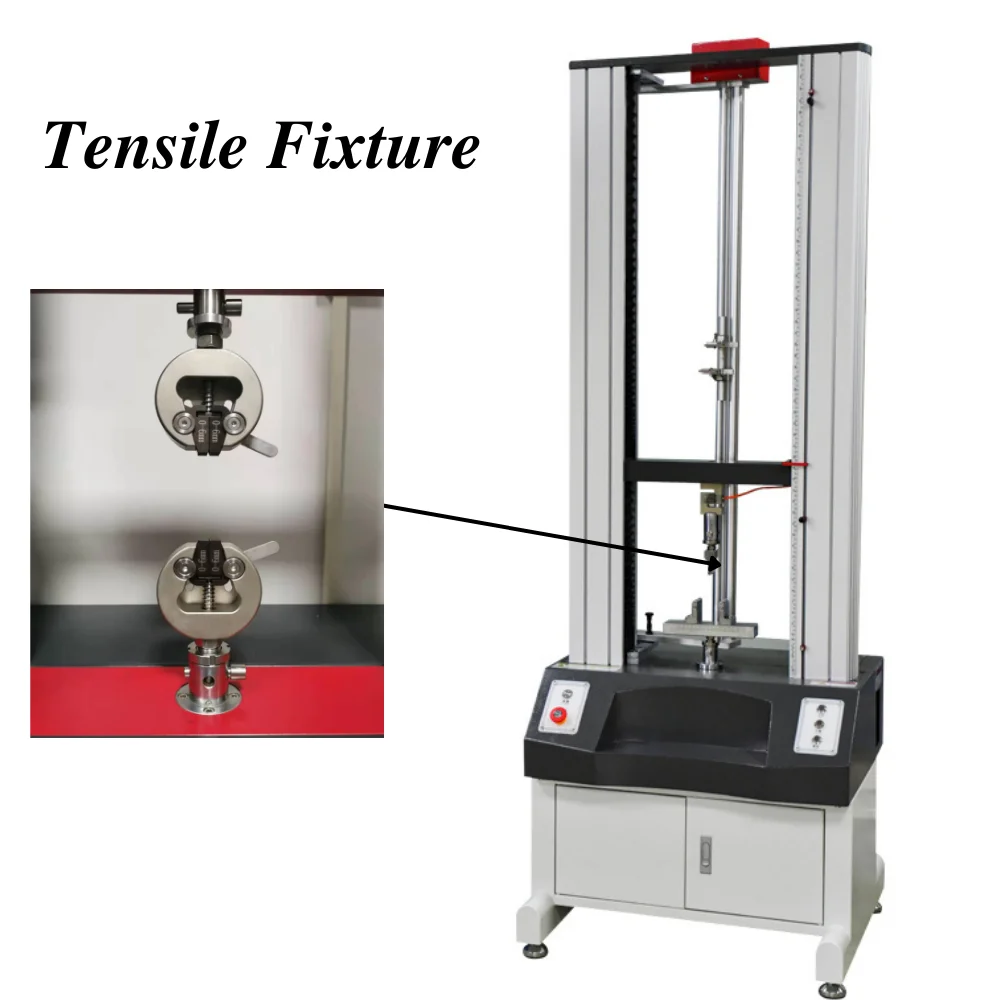

Fixture configuration | Including a set of conventional limit test fixture |
Protective device | Leakage protection, overload automatic shutdown protection, travel switch protection, etc |
Protected mode | Computer printout |
Power | 220V/50HZ |
Related Products
About Us
Our Company Information:
Dongguan Best Instrument Technology Co., Ltd. established in 2018, is a private enterprise located in Dongguan, Guangdong province with convenient transportation access. The company has been specialized in physical property testing of engineering plastics for 13 years, focusing on plastic material mechanics, melt index, impact strength testing and thermal deformation vicat, moisture testing, aging, flame retardant and other plastic test machine. We are also proficient in the production, research and development, upgrading and transformation of various non-standard instruments and automated instruments in the testing of properties.
Dongguan Best Instrument Technology Co., Ltd. is a professional OEM manufacturer that covers an area of about 2000 square meters and has more than 30 staff members, including 4 R&D personnel and 5 professional technicians. Since the establishment of the company, we have accumulated more than 2 ,000 customers, 70 % of which are engaged in the production of plastic, wire and cable and other peripheral products, and the products have won unanimous praise from customers. Besides, we are making great efforts to develop new products to meet different requirements. Adhering to the business principle of mutual benefits, we have had a reliable reputation among our customers because of our professional services, quality products and competitive prices. If you have any new ideas or concepts for the products, please contact us. We are glad to cooperate with you for common success in the future.
