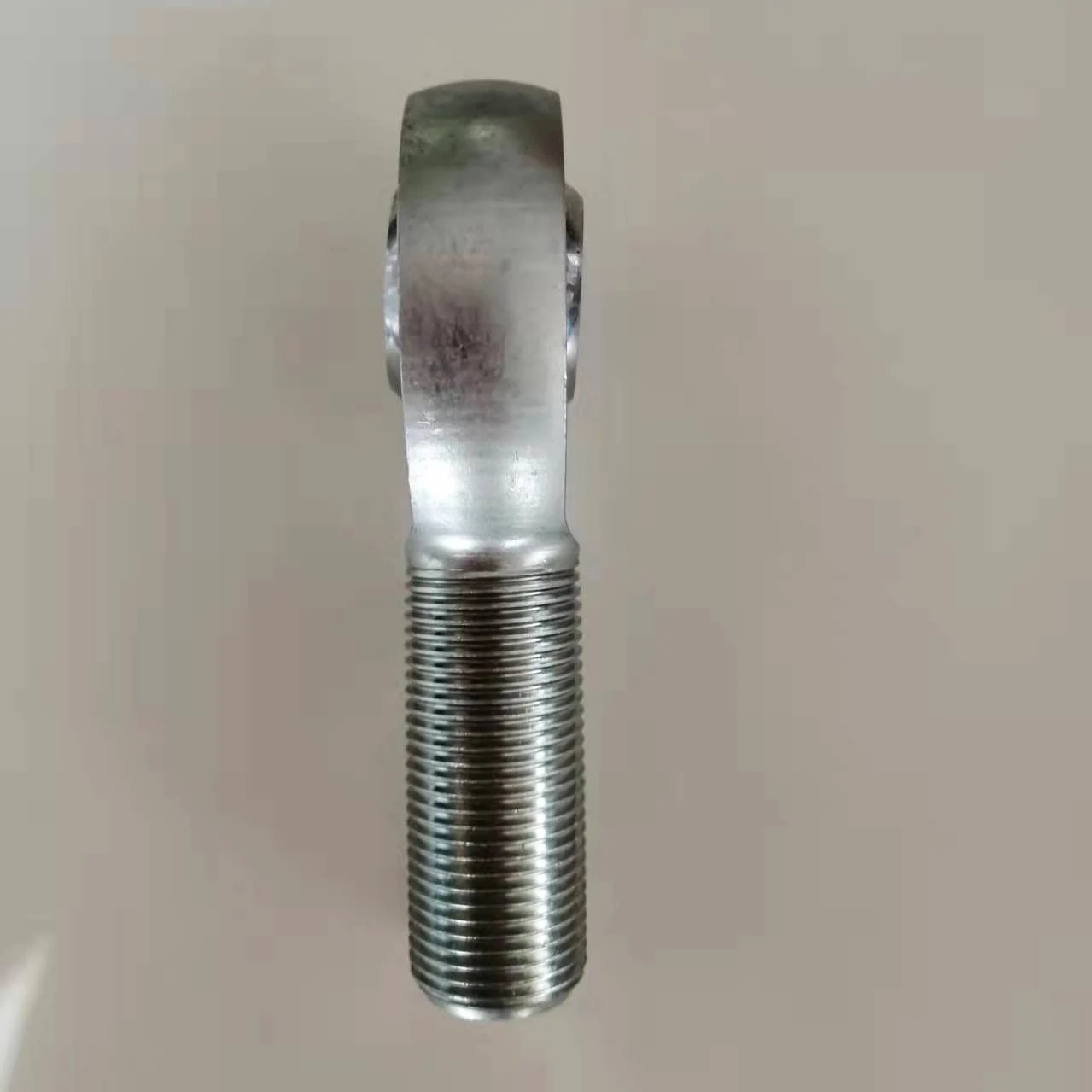

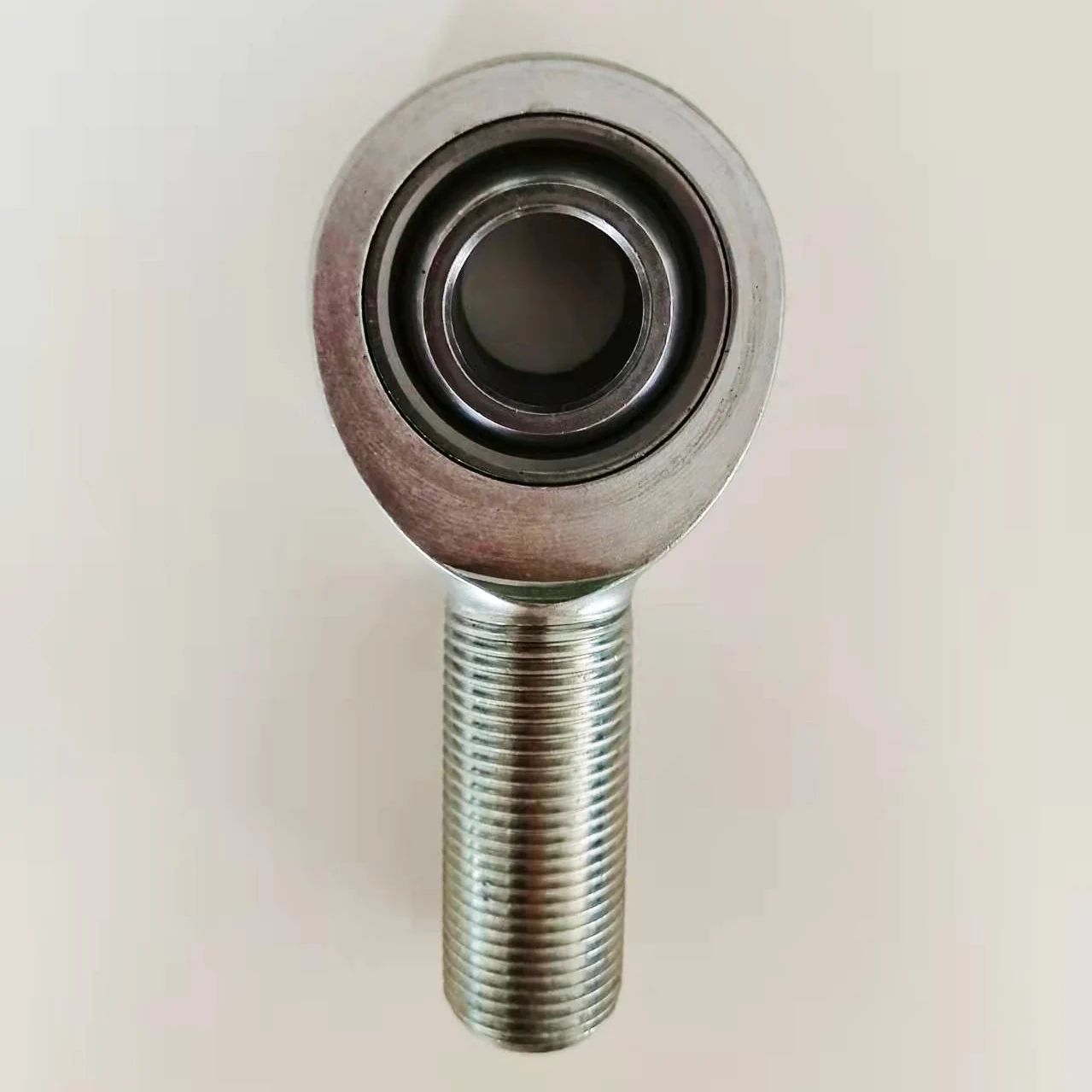

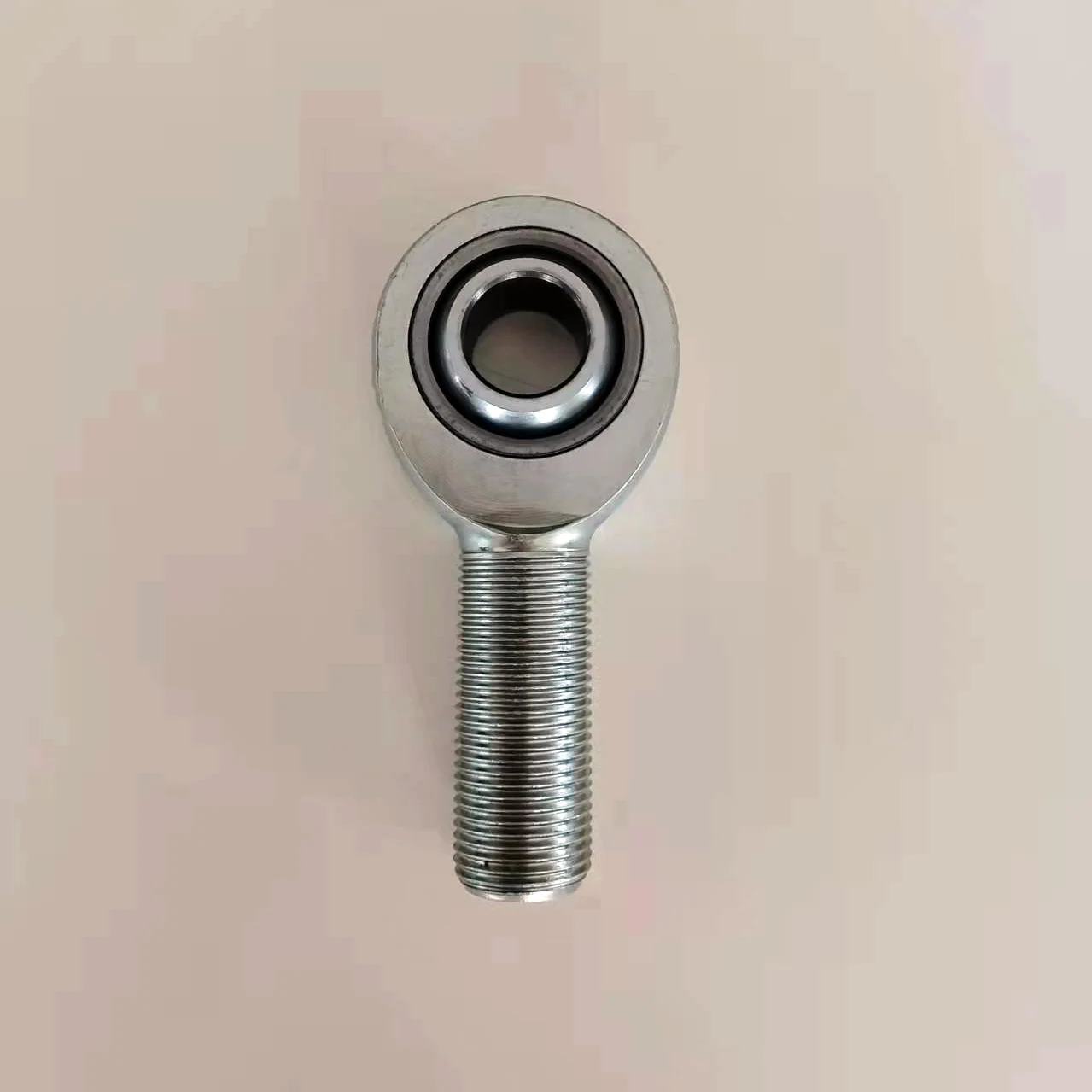

chromoly heim JMX10 male thread
- Category: Rod End Bearings >>>
- Supplier: Changzhi Huayang Machinery & Electric Co. Ltd.
Share on (1600484521187):
Product Overview
Description
Product discrtiption
| MALE ROD END | B | D | W | T | AM | N | CM | aª | STATIC | APPROX | |
| RIGHT | LEFT | DIA. | DIA. | WIDTH | WIDTH | LENGTH | THREAD | LENGTH | MIS. | RADIAL | WEIGHT |
| HAND | HAND | +0.0025 | +0.010 | +0.005 | REF. | +0.015 | UNF | +0.062 | ANGLE | LOAD | (LBS) |
| PART NO. | PART NO. | -0.0005 | -0.010 | -0.005 | 3A | -0.031 | REF. | (LBS) | |||
| JMXR3(T) | JMXL3(T) | 0.1900 | 0.625 | 0.312 | 0.250 | 1.250 | 10-32 | 0.750 | 13 | 2,851 | 0.03 |
| JMXR3-4(T) | JMXL3-4(T) | 0.1900 | 0.750 | 0.312 | 0.250 | 1.562 | 1/4-28 | 1.000 | 10 | 5,260 | 0.04 |
| JMXR4(T) | JMXL4(T) | 0.2500 | 0.750 | 0.375 | 0.281 | 1.562 | 1/4-28 | 1.000 | 16 | 5,260 | 0.04 |
| JMXR4-5(T) | JMXL4-5(T) | 0.2500 | 0.875 | 0.375 | 0.281 | 1.875 | 5/16-24 | 1.250 | 13 | 8,452 | 0.07 |
| JMXR5(T) | JMXL5(T) | 0.3125 | 0.875 | 0.437 | 0.344 | 1.875 | 5/16-24 | 1.250 | 14 | 7,639 | 0.07 |
| JMXR5-6(T) | JMXL5-6(T) | 0.3125 | 1.000 | 0.437 | 0.344 | 1.938 | 3/8-24 | 1.250 | 12 | 12,978 | 0.11 |
| JMXR6(T) | JMXL6(T) | 0.3750 | 1.000 | 0.500 | 0.406 | 1.938 | 3/8-24 | 1.250 | 12 | 9,544 | 0.11 |
| JMXR6-7(T) | JMXR6-7(T) | 0.3750 | 1.125 | 0.500 | 0.406 | 2.125 | 7/16-20 | 1.375 | 10 | 17,508 | 0.16 |
| JMXR7(T) | JMXL7(T) | 0.4375 | 1.125 | 0.562 | 0.437 | 2.125 | 7/16-20 | 1.375 | 14 | 10,285 | 0.16 |
| JMXR7-8(T) | JMXL7-8(T) | 0.4375 | 1.312 | 0.562 | 0.437 | 2.438 | 1/2-20 | 1.500 | 12 | 23,452 | 0.24 |
| JMXR8(T) | JMXL8(T) | 0.5000 | 1.312 | 0.625 | 0.500 | 2.438 | 1/2-20 | 1.500 | 12 | 16,238 | 0.25 |
| JMXR8H(T) | JMXL8H(T) | 0.5000 | 1.500 | 0.625 | 0.500 | 2.625 | 1/2-20 | 1.625 | 12 | 31,390 | 0.34 |
| JMXR8-10(T) | JMXL8-10(T) | 0.5000 | 1.500 | 0.625 | 0.500 | 2.625 | 5/8-18 | 1.625 | 10 | 31,390 | 0.37 |
| JMXR10(T) | JMXL10(T) | 0.6250 | 1.500 | 0.750 | 0.562 | 2.625 | 5/8-18 | 1.625 | 16 | 17,995 | 0.38 |
| JMXR10H(T) | JMXL10H(T) | 0.6250 | 1.750 | 0.750 | 0.562 | 2.875 | 5/8-18 | 1.750 | 16 | 40,572 | 0.52 |
| JMXR10-12(T) | JMXL10-12(T) | 0.6250 | 1.750 | 0.750 | 0.562 | 2.875 | 3/4-16 | 1.750 | 13 | 40,572 | 0.57 |
| JMXR12(T) | JMXL12(T) | 0.7500 | 1.750 | 0.875 | 0.687 | 2.875 | 3/4-16 | 1.750 | 14 | 28,081 | 0.60 |
| JMXR12H(T) | JMXL12H(T) | 0.7500 | 2.000 | 0.875 | 0.687 | 3.375 | 3/4-16 | 1.875 | 12 | 55,692 | 0.92 |
| JMXR12-14(T) | JMXL12-14(T) | 0.7500 | 2.000 | 0.875 | 0.687 | 3.375 | 7/8-14 | 1.875 | 12 | 55,692 | 0.92 |
| JMXR14(T) | JMXL14(T) | 0.8750 | 2.000 | 0.875 | 0.765 | 3.375 | 7/8-14 | 2.000 | 7 | 45,051 | 0.92 |
| JMXR16(T) | JMXL16(T) | 1.0000 | 2.750 | 1.375 | 1.000 | 4.125 | 1 1/4-12 | 2.125 | 17 | 76,200 | 2.41 |
| JMXR16-1(T) | JMXL16-1(T) | 1.0000 | 2.750 | 1.375 | 1.000 | 4.125 | 1-14 | 2.125 | 17 | 76,200 | 2.13 |
| JMXR16-2(T) | JMXL16-2(T) | 1.0000 | 2.750 | 1.375 | 1.000 | 4.125 | 1-12 | 2.125 | 17 | 76,200 | 2.130 |
| JMXR16H(T) | JMXL16H(T) | 1.0000 | 2.950 | 1.375 | 1.000 | 4.500 | 1 1/4-12 | 2.500 | 17 | 107,182 | 2.736 |
| JMXR20(T) | JMXL20(T) | 1.2500 | 2.950 | 1.375 | 1.000 | 4.500 | 1 1/4-12 | 2.500 | 11 | 107,182 | 2.736 |
Packaging
Company Information
Changzhi Huayang Machinery&Electric Co., Ltd, is one of the leading manufacturers specilized in R&D, production and sales of bearing for many years.
Our company is committed to develop newest material bearing, such as plastic, ceramic, stainless steel bearing and higher standards and specifications Chrome bearings. Also can supply you with all kinds of bearing housing which is classified by material, Thermolastic Housings, Chrome Steel bearing housings and Stainless steel bearing housings.
Our Services
A. Full technical support from concept design to final product delivery
B. On-time delivery with no compromise on quality
C. Lower cost(medium-size factory, 3000 square meters), but high-end quality only(the same quality control system as per big factory)
D. Any questions to be sent will get response within 24 hours
E. Samples provided for free charge .
F. Strict Inspection ,and the best quality price with reasonable price bearings provided .
G. OEM service provided.
H. Warranty for 6 months
I. After sale service at any time
