Product Overview
Description
Name | Every part name | No. | |

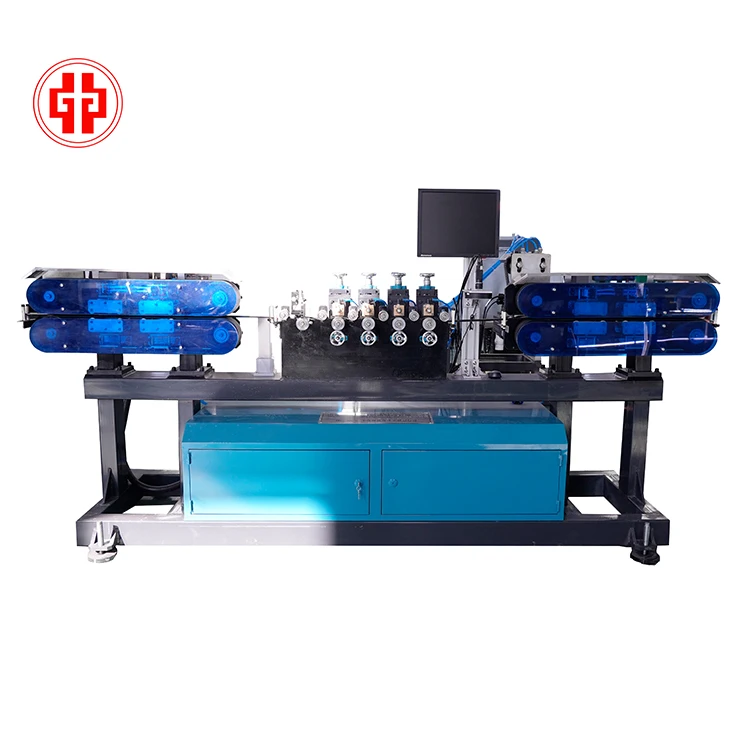

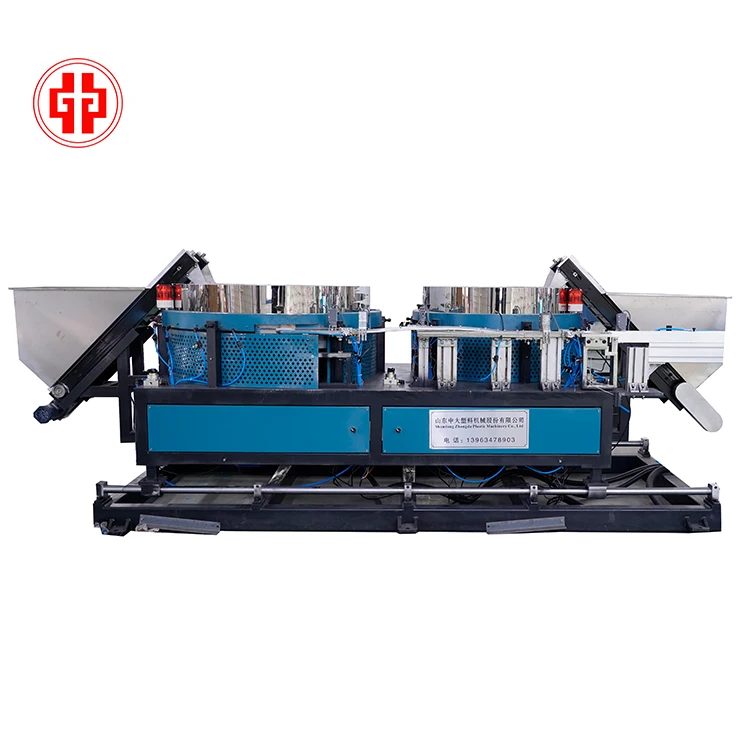

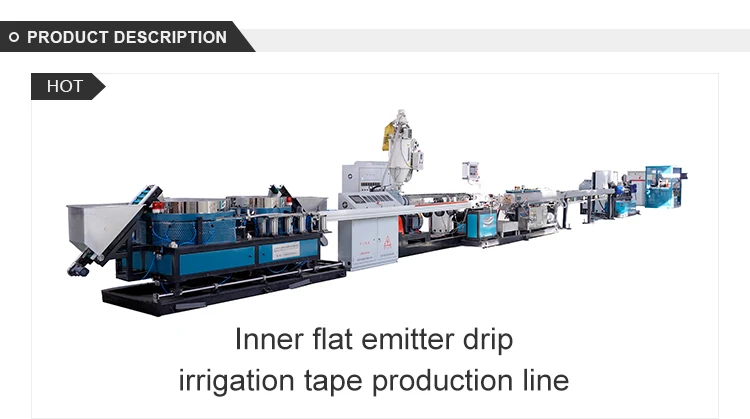

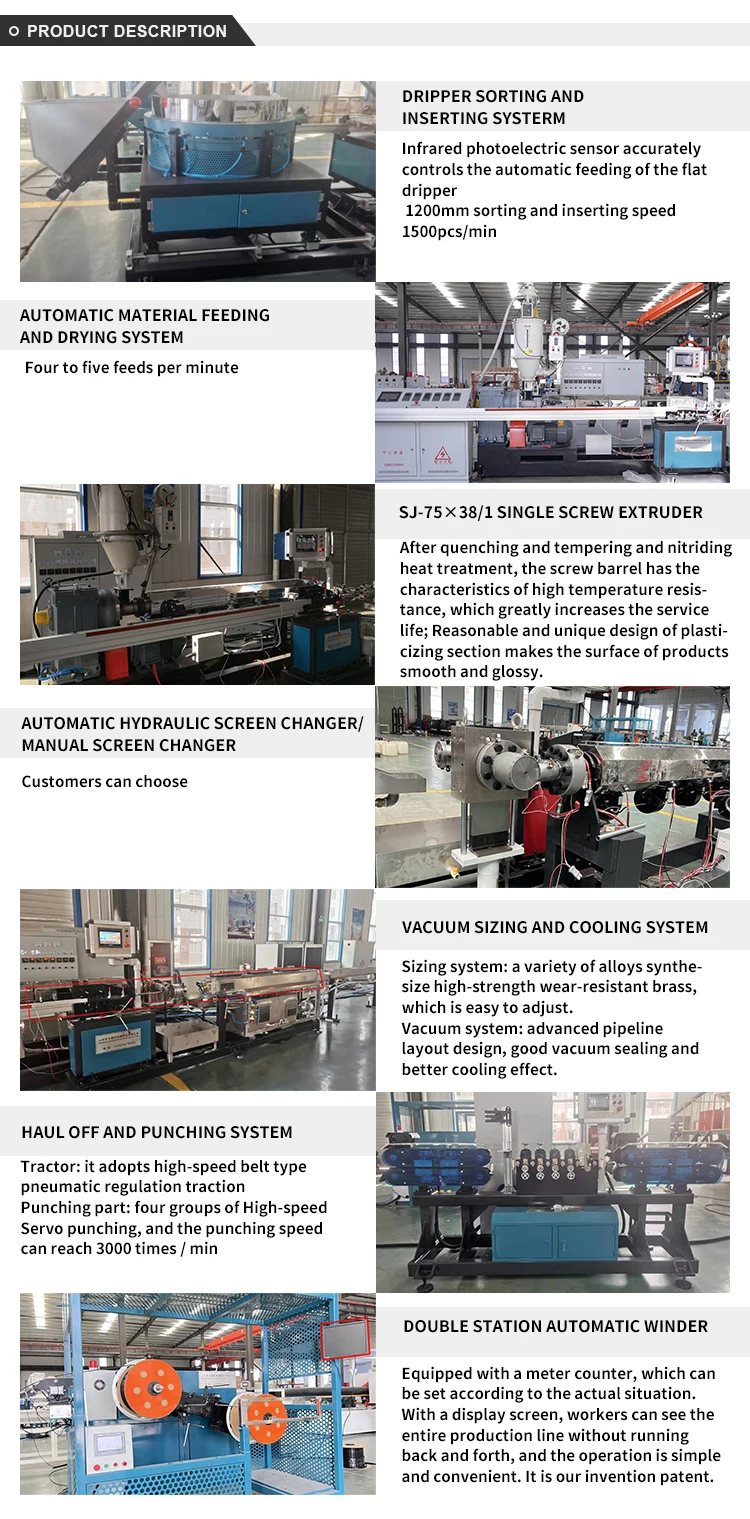

Inner flat emitter drip irrigation tape production line | 1 | Dripper sorting and inserting systerm | 1 |
2 | Automatic material feeding and drying system | 1 | |

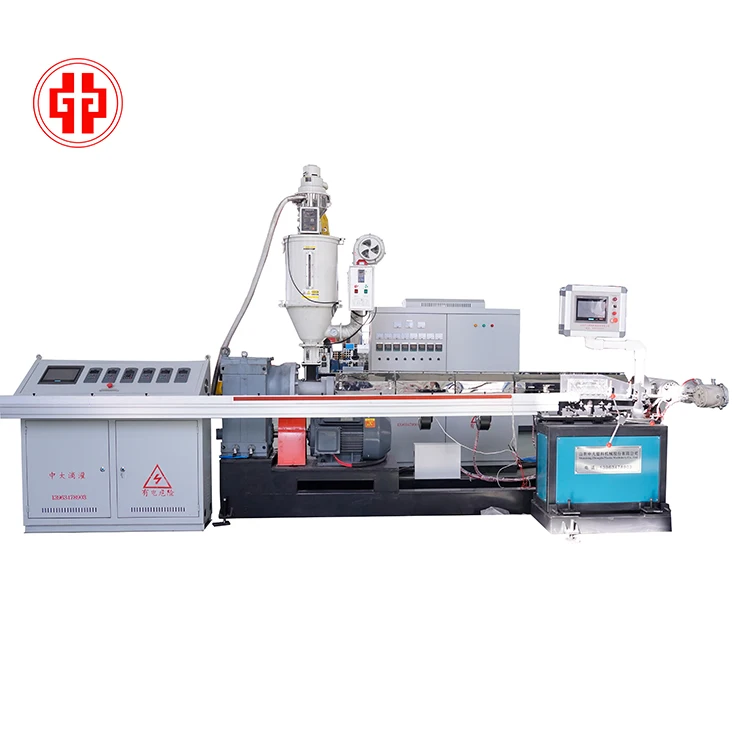

3 | SJ-75×38/1 single screw extruder | 1 | |
4 | Die-head | 1 | |
5 | Vacuum sizing tank | 1 | |
6 | Cooling water tank | 1 | |
7 | Haul off and punching systerm | 1 | |

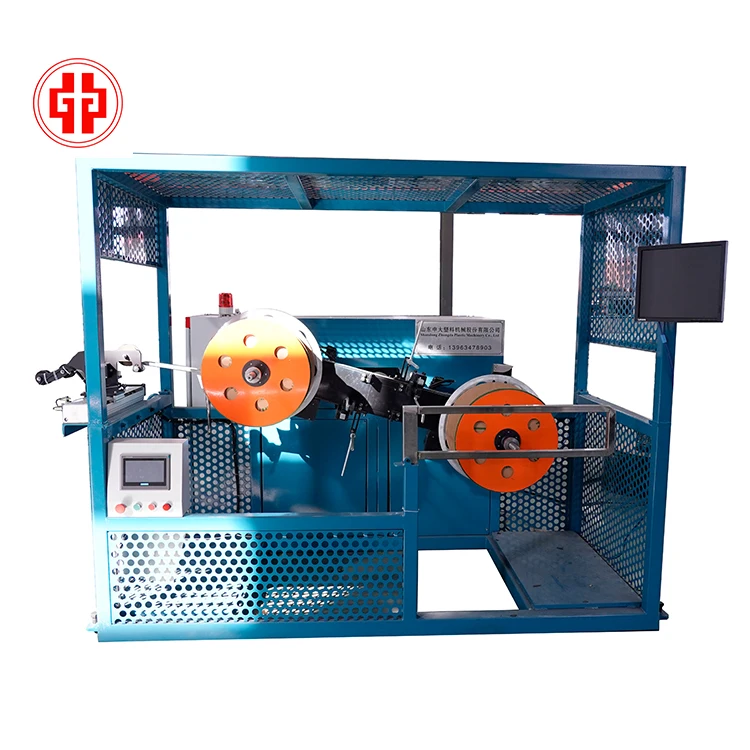

8 | Winding machine | 1 | |
9 | Electric cabinet | 1 | |

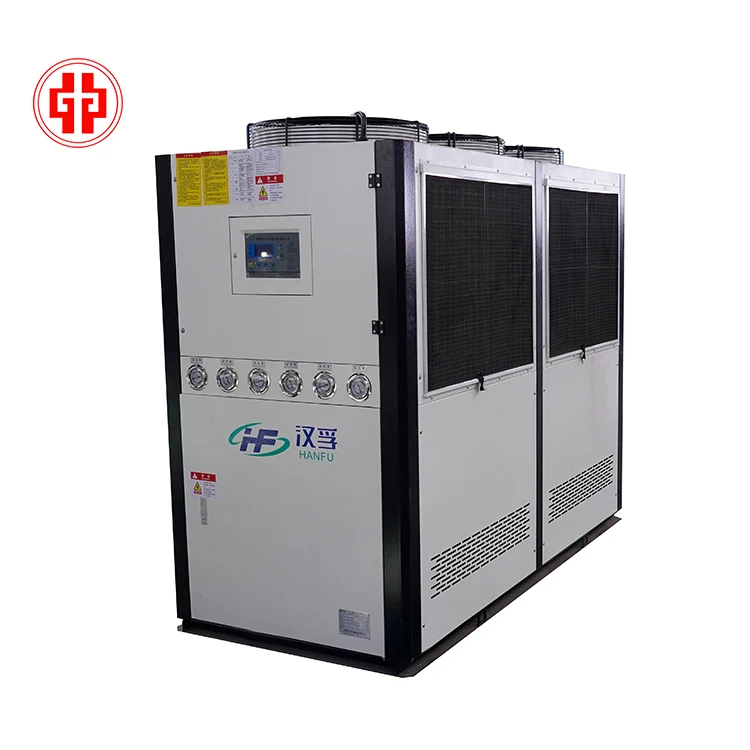

10 | chiller | 1 |
Device parameters | Tape diameter（mm） | 16mm |
thickness（mm） | 0.2-0.6mm | |
Dripper space(cm) | 10-100cm |
Wroking condition | humidity | 0-40℃ |
Power source | 3 phase 380v, 50Hz | |
Installation power | About 100kw | |
Cooling water | ≤15℃ ≥0.3Mpa ～100L/min | |
Compressor air | 5m³/h 0.4-0.6Mpa | |
size | 30*3*2.6m（l*w*h） | |
Line speed | 0-300m/min |
