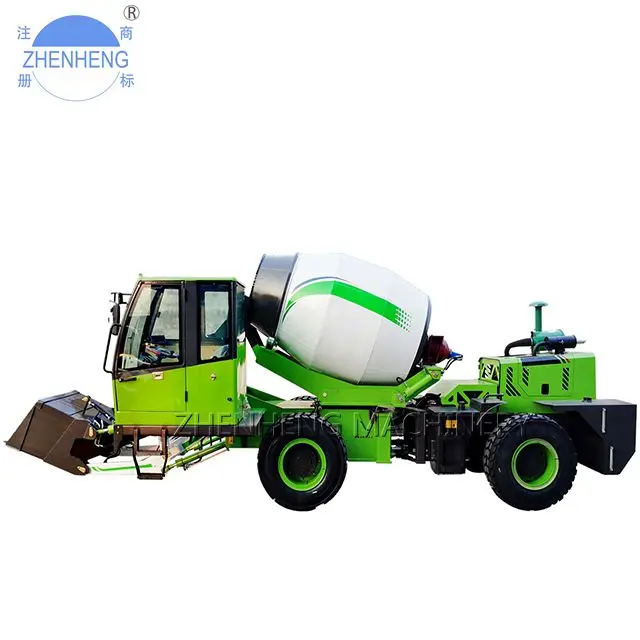

Automatic Concrete Mixer Truck Weight and Self Loading Concrete Truck Mixer Drum Price
- Category: Concrete Machinery >>>
- Supplier: Zhengzhou Zhenheng Construction Equipment Co. Ltd.
Share on (1600486159986):
Product Overview
Description
Brand New Small Mobile Auto Self Loading Drum Roller Cement Beton Concrete Mixer Truck Machine For Empty Weight Sale Of Price
Products Description

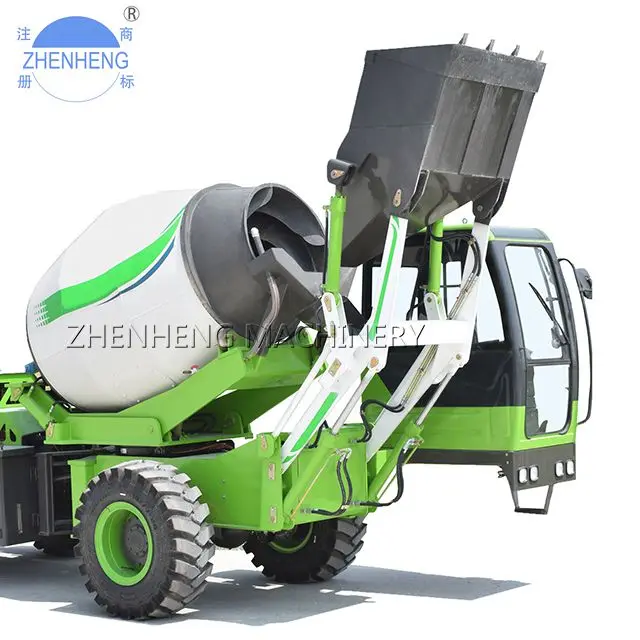

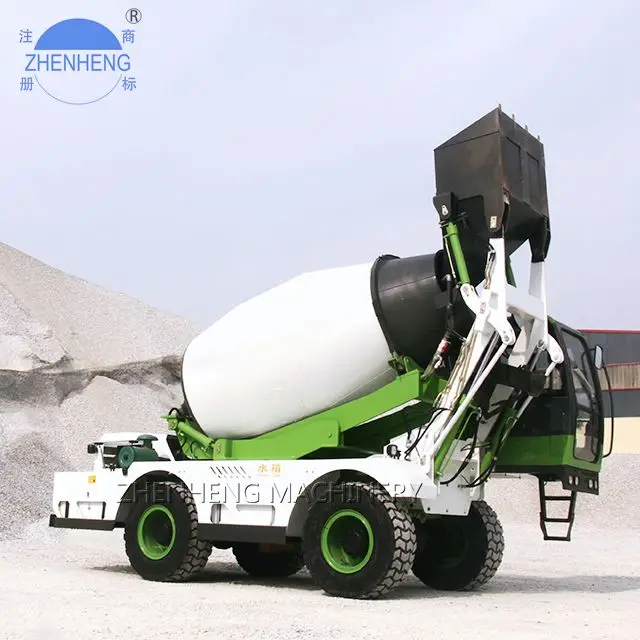

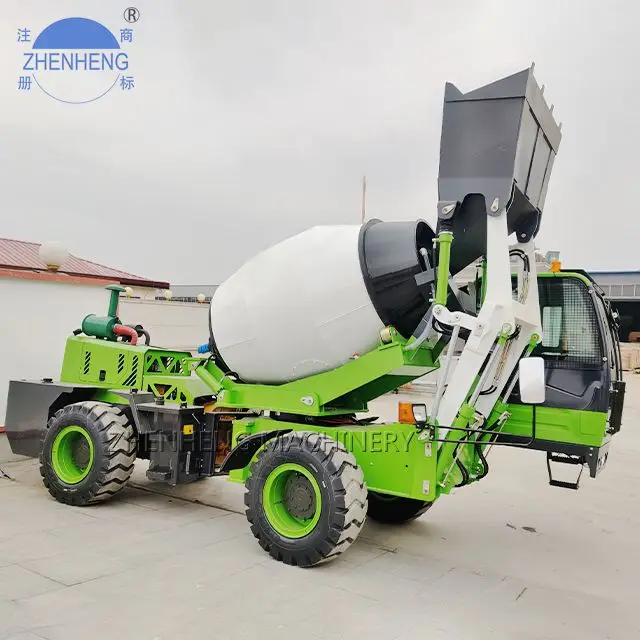

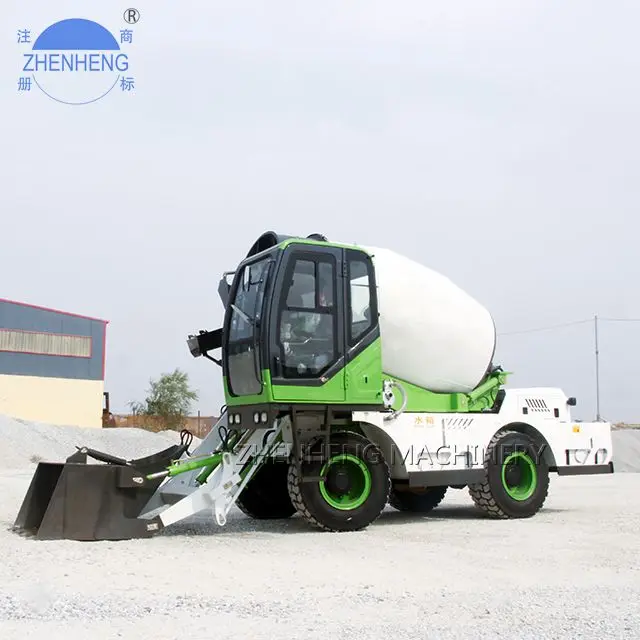

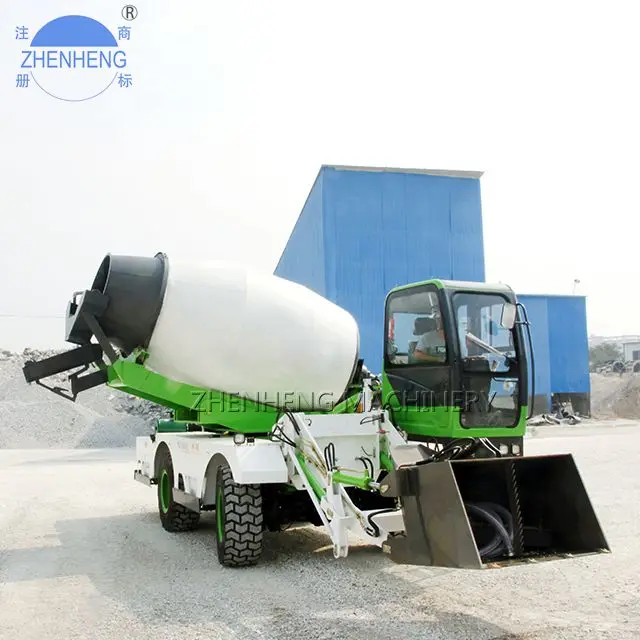

Brief Introduction of Self loading concrete cement mixer
Self loading concrete cement mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site.
Advantage
1. Saving time and labor
2. Saving concrete transporting cost
3. Mobile and highly motorized on site, more efficient
4. Low maintenance cost
5. High reliable and durable
6. Easy operation and high intelligent
7. Closed circuit hydraulic system, more powerful and reliable.
2. Saving concrete transporting cost
3. Mobile and highly motorized on site, more efficient
4. Low maintenance cost
5. High reliable and durable
6. Easy operation and high intelligent
7. Closed circuit hydraulic system, more powerful and reliable.
8. Stirring speed is faster, 5-8 containers/h.
9. Equipped with hydraulic oil cooler which can stop the oil temperature from rising ---- ensure 24 hours non-stop work stably.
10.Remotely water-- more flexible and convenient.
9. Equipped with hydraulic oil cooler which can stop the oil temperature from rising ---- ensure 24 hours non-stop work stably.
10.Remotely water-- more flexible and convenient.
Feature
1.The big loading arm can rotate with the tank at the same time without affecting the discharge of the tank.
2. Operate simply and no considerations.Additionally, the company will responsible for the problems caused by improper operation of the machine.
3. Using heavier axle to avoid shaft breakage.
4. The tank is welded by ourselves the tank thickness is promised. Hydraulic cylinders and key parts are produced independently by our factory as well and the sealing and quality of hydraulic cylinders are strictly controlled according to the standards of excavators and loaders .
Specification
Mixing volume | 4.0 M3 |
Concrete output | 4.0 M3 / batch, 16 M3 / hour |
Drum rotation speed | 16 rpm |
Fuel tank volume | 100L |
Loading times to full drum | 3 times |
Total hydraulic system capacity | 120 L |
Water tank capacity | 900 L |
Max. travel speed | 35 km/h |
Gradeability | 30° |
88Operating weight | 8800KG |
Overall Dimension (L×W×H) | 6900x2850x3400mm |
Parameters
Whole Performance | Model | SLM4 | SLM3.5 |
Drum Volume | 6,000 L | 4,740 L | |
Mixing Capacity Per Batch | 4 m3 | 3.5 m3 | |
Productivity | 16 m3/h | 14 m3/h | |
Drum Rotation Angle | 270º | 270º | |
Drum Rotary Speed | 18-21 r/min | 13-20 r/min | |
Wheelbase | 2,480 mm | 2,900 mm | |
Drive Form | Torque Converter | Torque Converter | |
Max. Speed | 35 km/h | 30 km/h | |
Max. Gradeability | 45º | 30º | |
Mini. Turning Radius | 4,800 mm | 5,300 mm | |
Mini. Ground Clearance | 330 mm | 380 mm | |
Total Weight | 7,500 kg | 7,500 kg |

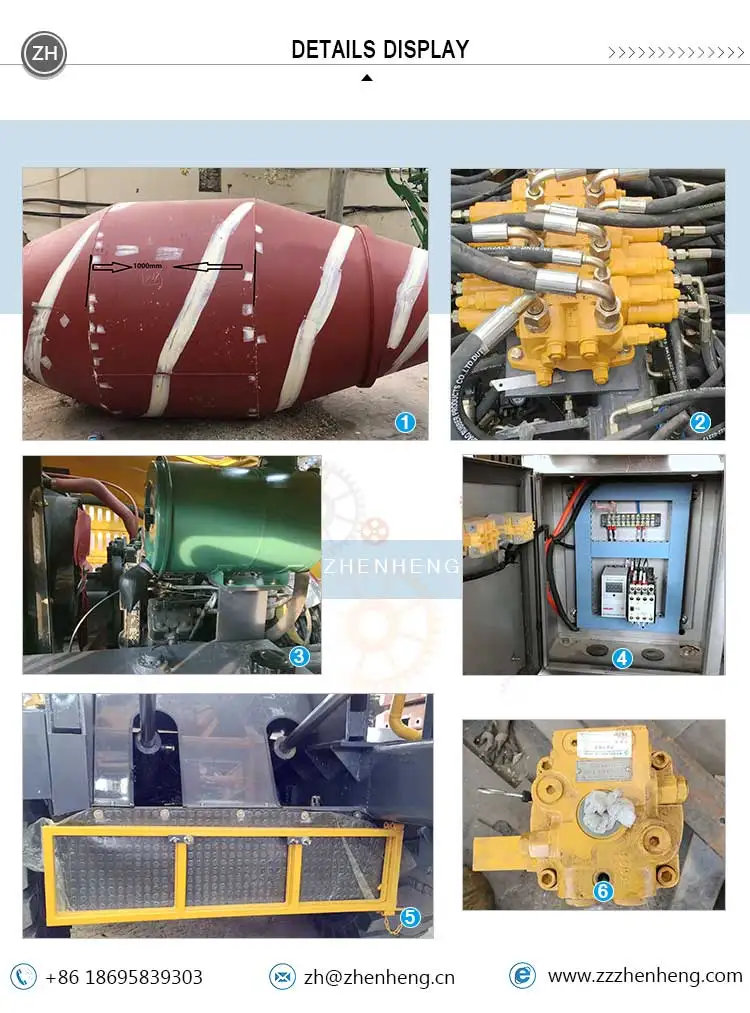

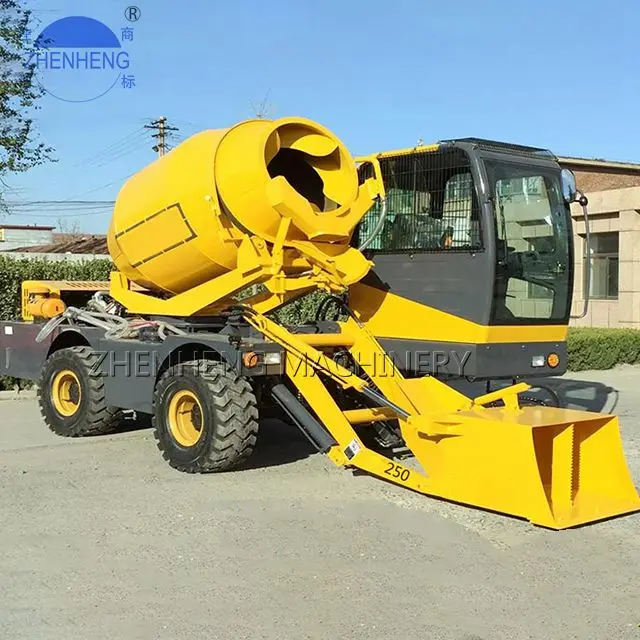

Detailed Images
Product packaging

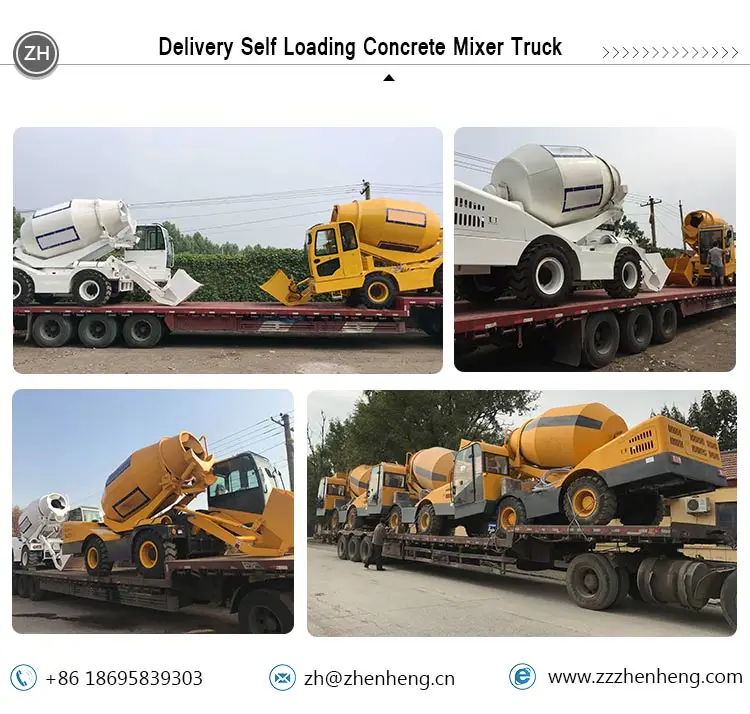

Export standard container: 20GP or 40GP, 40HQ, FR container in bulk, the spare parts in wooden or iron case according to the size and weight. (Automatic Concrete Batcher Plant)
Transactions
Company Profile
Zhenheng was established in zhengzhou city in 1982,cover an area of 73370 square meters, have three production bases, have over 300 employees. we produce 3 series of nearly hundreds of varieties construction machines including concrete batching plant, concrete block production line and concrete pump etc. We have attained ISO9001 certificate, CE certificate, and more than 20 patents in the construction machinery line. Zhenheng is well equipped with facilities and strict quality control system. We have a variety of processing lathes and precision machining centers.Advanced laser cutting machines, laser welding machine, Robot welding machines CNC lathing,wire cutting machines and other equipment. leading technology and advanced manufacturing equipment have made zhenheng a leaving level in construction machines industry.
our team
Customer Photos
FAQ
Q1. Why Choose Us?
A:1.For end users, we are the manufacturer; the product quality has strict control, and for the same reason, the price is also competitive.
2.For the dealer, except first one, our company also has more than 30 years of sales & service experience, which can solve a variety of complex technical problems, and provide a full range of pre and after-sales service
3.For different area customers, we have an unique product, installed design accordingly to make sure you have a better using experience; for rainy, sandy areas, we will use a fully enclosed system to protect your equipment normal operation to reduce the impact of the environment; for wet climate areas, we have special processing techniques to reduce the probability of rusting the equipment and so on.
4.Delivery ability
We have rich experience engineers and professional team to solve different kinds of questions and promise the goods will be shipped as soon as possible when you confirm the order within 15 days
Q2. Which kind of concrete it can mix?
A:Heavy concrete, common concrete, light concrete. Light concrete we recommend our JSS series, it adds spiral blade and can mix more evenly.
Q3. What is the discharging mode of your concrete mixer?
A:Both hydraulic and pneumatic discharging modes are available. Hydraulic is more advanced and popular than pneumatic type. However we supply as per customer's requirement.
Q4. What is the material do you use for milling blades and lining board?
A:High chromium alloy wear resistant plate and high manganese alloy lining board.
A:1.For end users, we are the manufacturer; the product quality has strict control, and for the same reason, the price is also competitive.
2.For the dealer, except first one, our company also has more than 30 years of sales & service experience, which can solve a variety of complex technical problems, and provide a full range of pre and after-sales service
3.For different area customers, we have an unique product, installed design accordingly to make sure you have a better using experience; for rainy, sandy areas, we will use a fully enclosed system to protect your equipment normal operation to reduce the impact of the environment; for wet climate areas, we have special processing techniques to reduce the probability of rusting the equipment and so on.
4.Delivery ability
We have rich experience engineers and professional team to solve different kinds of questions and promise the goods will be shipped as soon as possible when you confirm the order within 15 days
Q2. Which kind of concrete it can mix?
A:Heavy concrete, common concrete, light concrete. Light concrete we recommend our JSS series, it adds spiral blade and can mix more evenly.
Q3. What is the discharging mode of your concrete mixer?
A:Both hydraulic and pneumatic discharging modes are available. Hydraulic is more advanced and popular than pneumatic type. However we supply as per customer's requirement.
Q4. What is the material do you use for milling blades and lining board?
A:High chromium alloy wear resistant plate and high manganese alloy lining board.
