Low Price Lider Sensor TOF 320 degree 30 meters Scanning range Navigation Laser Sensor for AGV AMR
- Category: Sensors >>>
- Supplier: Foshan Hinson Robot Technology Co. Ltd.
Share on (1600486199558):
Product Overview
Description
Product Description

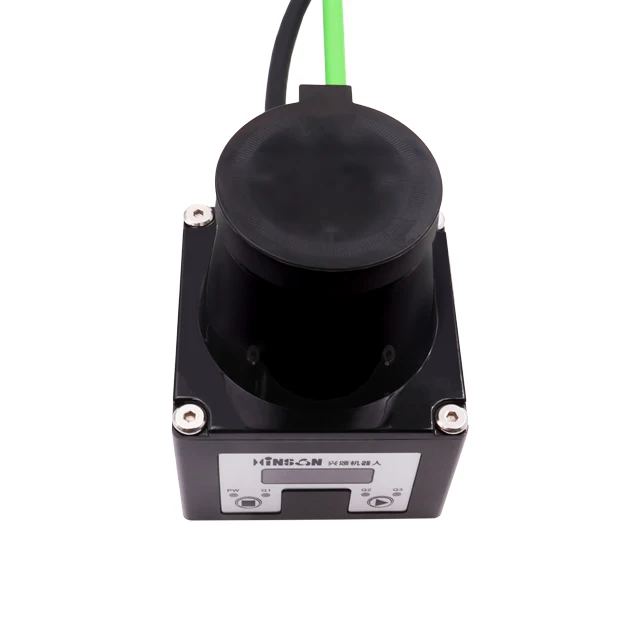

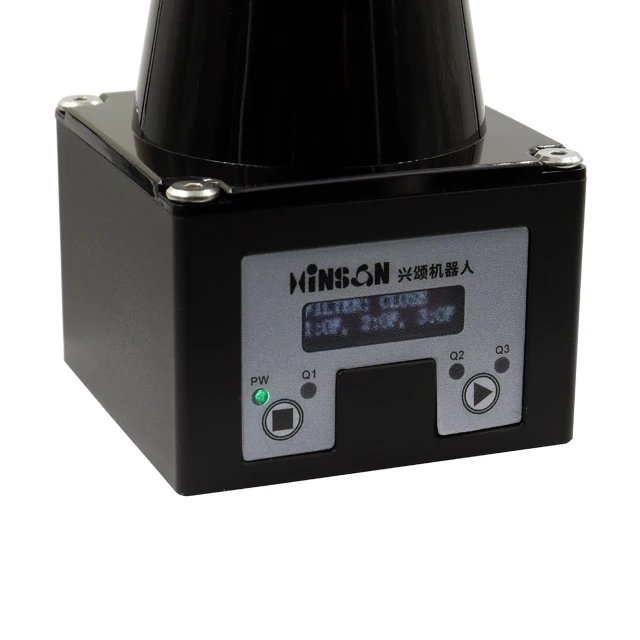

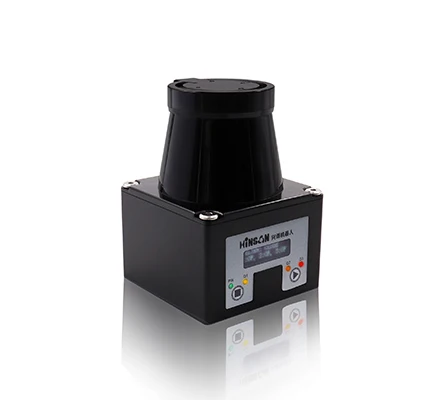

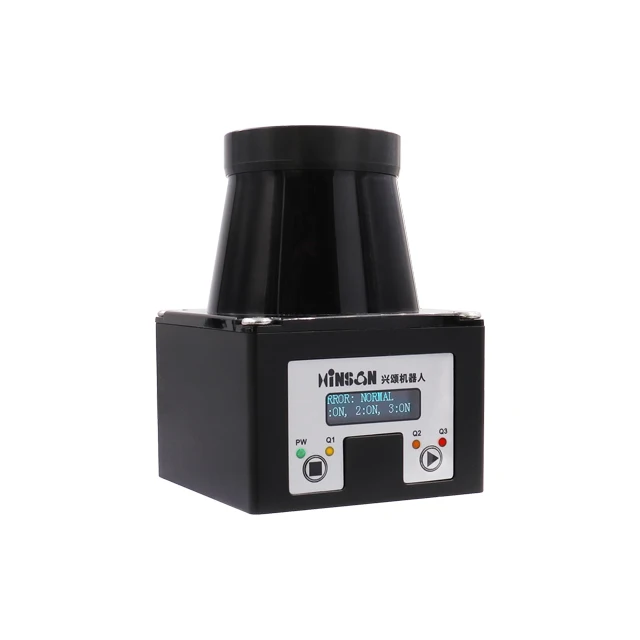

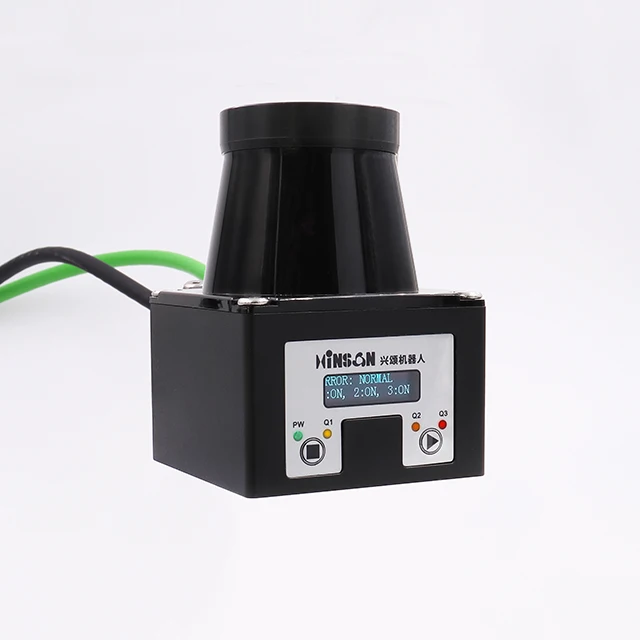

320°laser sensor HE-3031
Features
1.Ranging method based on TOF
2.320°detection for object distance and angle
3.Detection range up to 30m
4.small size
4.small size
5.AGV route planning
6.Support for multiple communication methods
7.Obstacle-avoidance channels 64
7.Obstacle-avoidance channels 64
8.customizable data format
9.SLAM mapping
Cable charge extra
Cable type：H8X4L20AE+H8X8L15AX
Specification
Model Number | HE-3031 | |
Type | Laser Sensor | |
Place of Origin | China | |
Provice | Guangdong | |
Brand Name | Hinson | |
Basic characteristics | ||
Operating voltage | DC12-30V | |
Rated power | about2.4W | |
Light source | laser wavelength 905nm | |
Laser class | 1(IEC60825-1:2014,EN60825-1:2014) | |
Detection distance | 0.05m~10m（Reflectivity 10%） | |
0.05m~30m（Reflectivity 90%） | ||
Detection angle | 320° | |
Measuring points | 144KHz | |
Angular resolution | 0.5° | |
Laser scanning frequency | 20Hz | |
Identify object shape | any shape, reflectivity calculated by detection distance | |
Output raw test data | √ | |
Obstacle-avoidance channels | 64 | |
Protecting areas | 3(Warningzone 1,warning zone 2, protecting zone) | |
Switch input | × | |
Switch output | 4NPN | |
Ethernet port | Type-C | |
Rs232 port | Do no support | |
Rs485 port | Do no support | |
CAN BUS port | Do no support | |
Systematic error | ＜30mm | |
Statistical error | ＜20mm | |
Detection output time-delay | 0ms-500ms can configure within range | |
Detection hold time-delay | 0ms-500ms can configure within range | |
Object reflectivity | 2-1000% | |
Ambient light limit | Resistant to sunlight （<80000 Lux） | |
Operating environment | indoor,-10℃~+50℃，＜85%RH non-condensation,no dew | |
Company Profile
Packing & Delivery
To better ensure the security of your goods, will provide the professional, environmental protection, convenient and efficient packaging service
FAQ
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Domestic Market(95.00%),Southeast Asia(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Laser sensor,magnetic navigation sensor,optical communication sensor,RFID sensor,servo driver gyroscope encoder and other AGV core components
4. why should you buy from us not from other suppliers?
Hinson Robot is an independent innovation technology enterprise integrating R&D, production and sales. It not only has more than 10 years of agv experience, but also has rich experience in agv development and application.
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Cash;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2017,sell to Domestic Market(95.00%),Southeast Asia(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Laser sensor,magnetic navigation sensor,optical communication sensor,RFID sensor,servo driver gyroscope encoder and other AGV core components
4. why should you buy from us not from other suppliers?
Hinson Robot is an independent innovation technology enterprise integrating R&D, production and sales. It not only has more than 10 years of agv experience, but also has rich experience in agv development and application.
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Cash;
Language Spoken:English,Chinese
