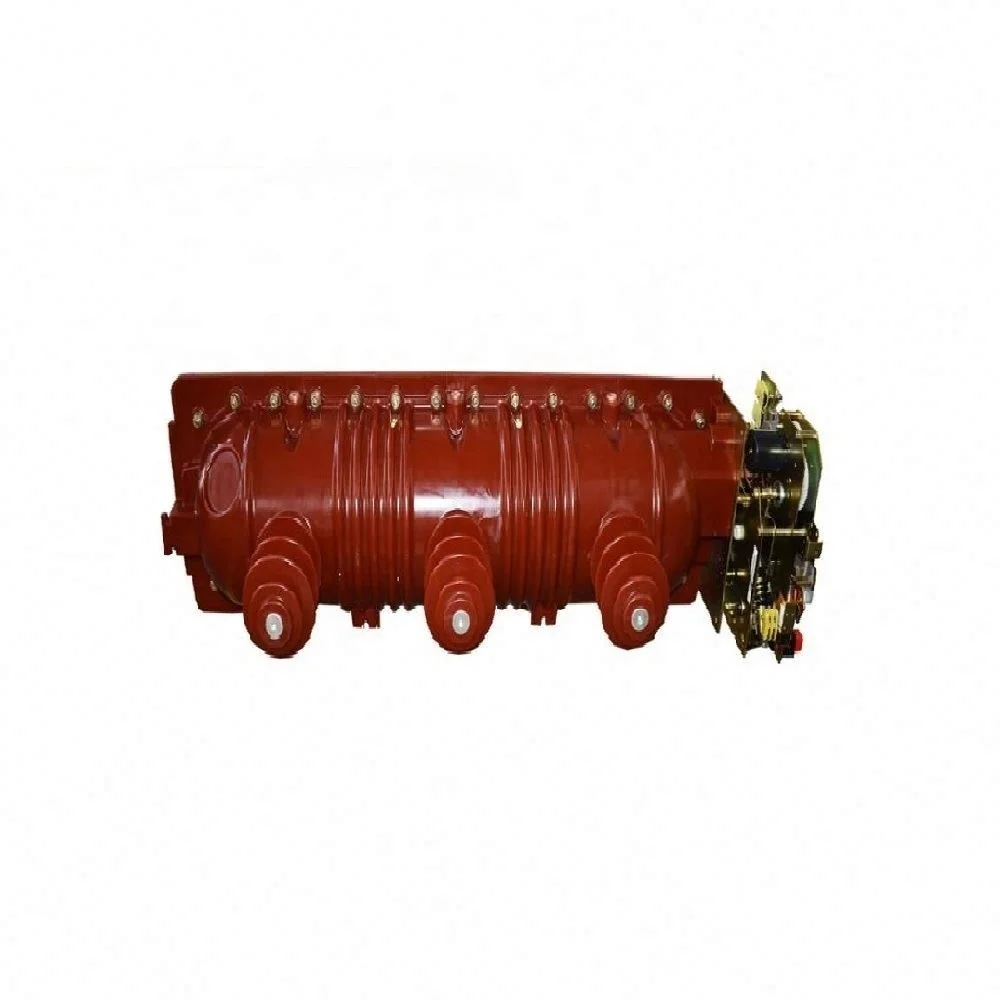

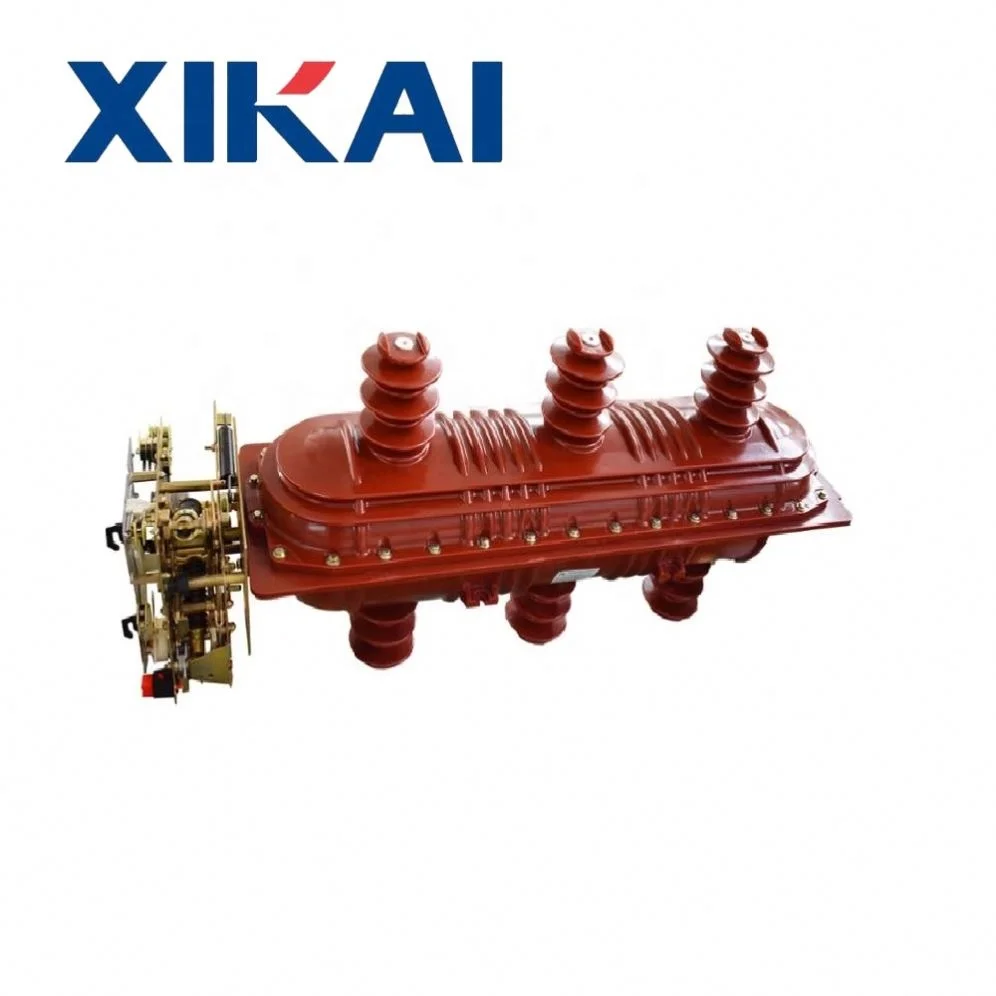

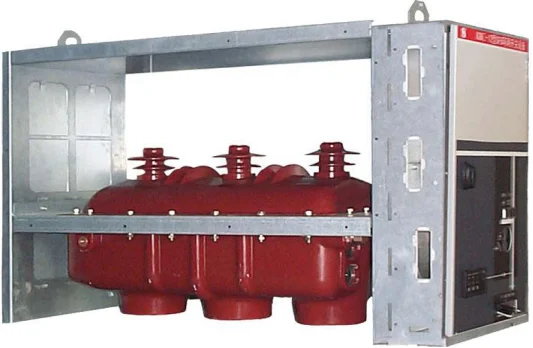

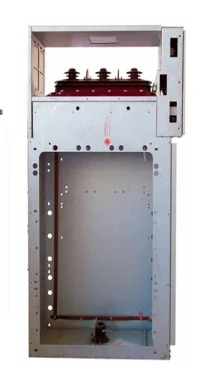

33KV 35KV 36KV 630A Indoor SF6 Gas Insulated Load Break Switch LBS Interrupeteur de charge

Arc extinction

BRFLN36-36 load break switch adopts SF6 gas as the medium of arc extinction, when switch on and off, arc occurs and will spin under the magnetic field effect ion by the permanent magnet, cooled by the SF6 gas and extricated finally.

This indoor SF6 load break switch and its fuse combination works with spring type operating mechanisms A and K, BRFLN36-36 load break switch equipped with the K spring operating mechanism is applied as the incoming control unit, while that equipped with A mechanism is applied as the outgoing protective unit and transformer unit.

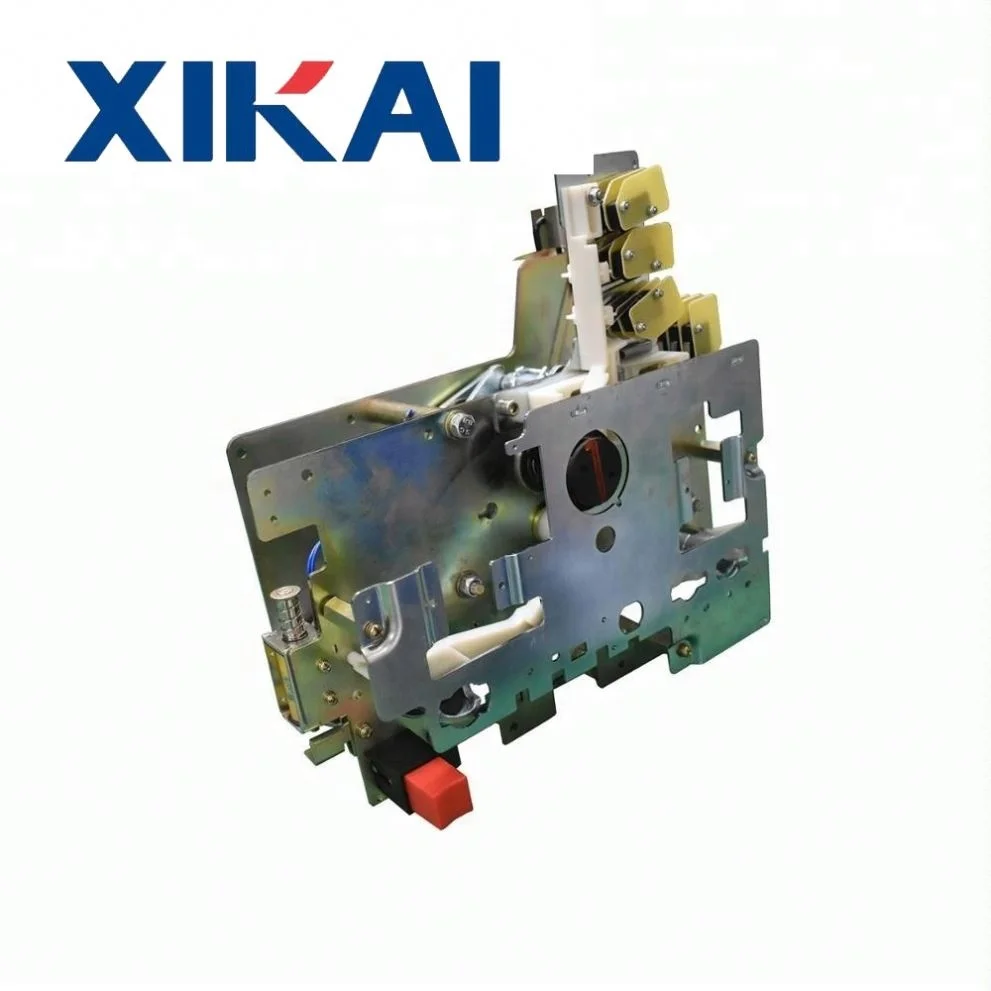

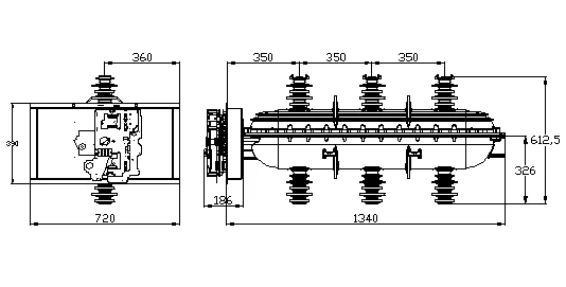

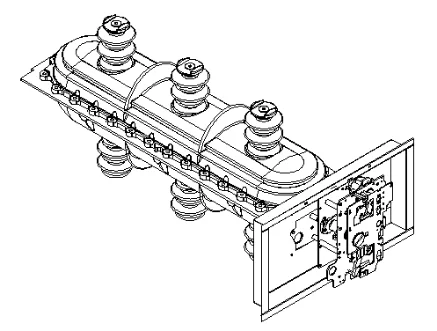

1) "K" Type Spring Operating Mechanism

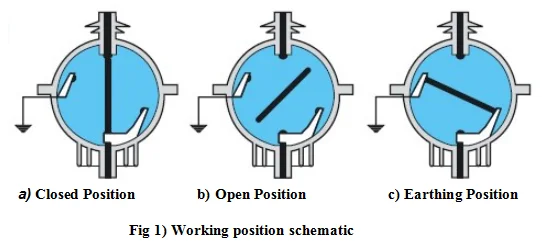

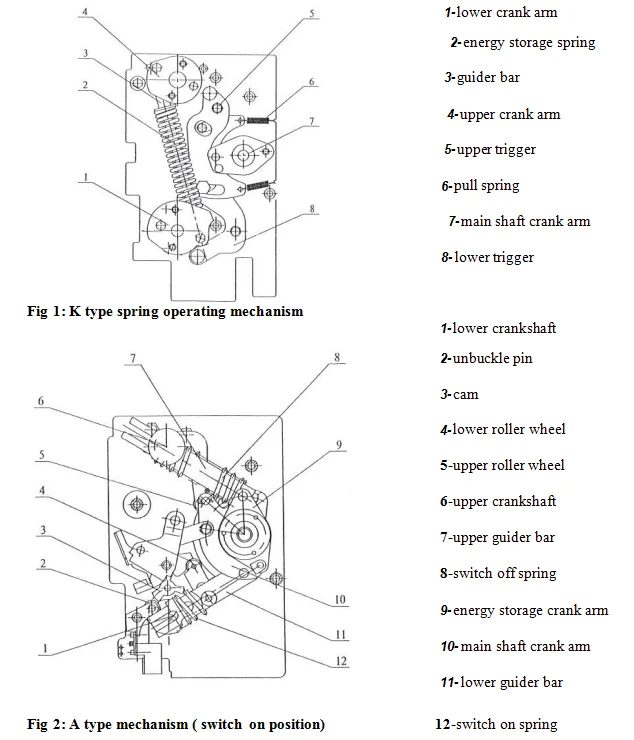

Working principle of K type spring operating mechanism is spring press and release( see fig 1. it's in off position)

A) Earthing operation

Driven by the handle, upper crank arm 4 rotates and presses spring 2 to store energy, when the max energy reached continue rotate the crank arm, the energy storage spring starts to release energy and drive the upper trigger, enables the connecting bar to drive the crank arm, crank arm rotates and drives the moving contactor for earthing.

B) Switch on operation

Driven by the handle, lower crank arm 1 rotates, presses spring 2 to store energy, when the energy released, it drives the trigger 8,enables connecting bar to drive the crank arm, crank arm rotates and drives the moving contactor and load break switch turns on.

C) Switch off operation

Rotate the main shaft crank arm counterclockwise by the handle, release the energy storage spring and the load break switch turns off.

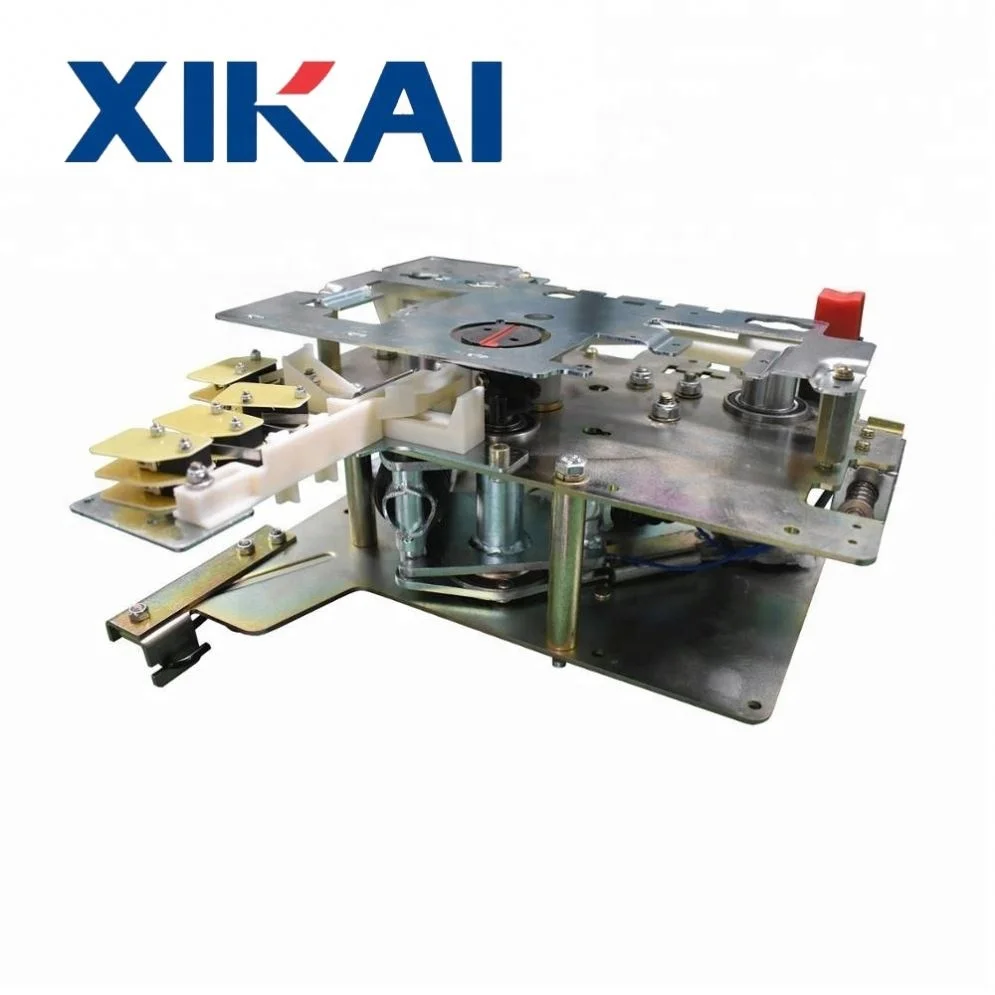

2) "A" Type Spring Mechanism

Working principle of A type mechanism is same as K type, in addition, it has fuse striker unbuckle function. For A type mechanism, electromagnetic unbuckle is also available on customers requirement.(see fig 2)

Switch on operation.

A) Switch off operation

Press the switch off button or push the unbuckle pin 2 by the fuse striker, release the spring and load switch turns off.

B) Earthing operation

Earthing operation of A type mechanism is same as that of K type.

3) K type and A type operating mechanism can be operated manually or motorized on request.

♦Notice: only when the load break turns off, can turning on and earthing operation be done.

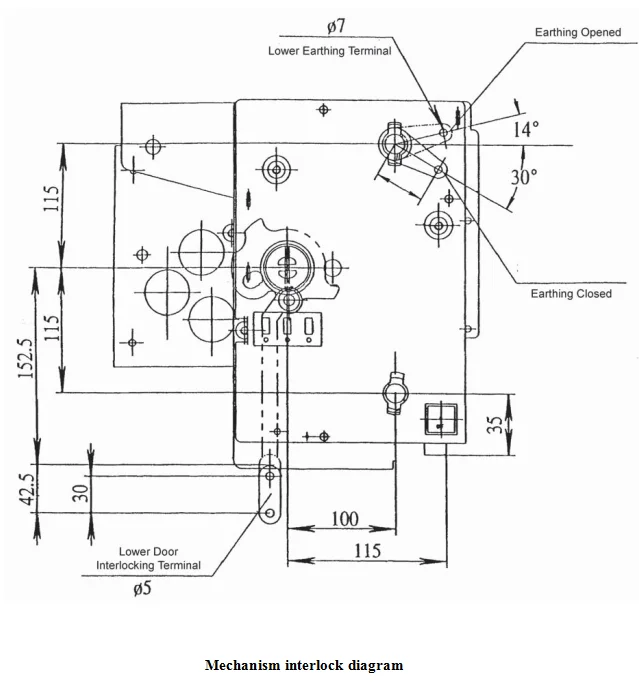

Operating Mechanism & Interlock

♦Mechanism interlock

BRFLN36-36 indoor type medium voltage SF6 load break switch and its fuse combination has below interlocks:

A) When load break switch turns on, earthing operation can't be done

B) When earthing switch turns on, load break switch turns on/off operation can't be done

C) Interlock outlet of mishandling pretension is equipped.

Installation, Maintenance & Service.

♦Installation, Adjustment

BRFLN36-36 type load break switch has been strictly tested before outgoing from the factory, and fully meet the technical standards, must carefully read the installation manual and prepare as below before the installation and adjustment.

Check the external appearance, any damage product is not allowed to use.

Clean the equipment and get rid of the dust and dirt may caused by the transportation or other causes.

After installation, be sure the load break switch is turned off, insert the handle to the earthing operating hole in the up part of operating panel, rotate the handle clockwise in 180o to earth the switch, rotate counterclockwise in 180o to switch off the earth.

For switching on, turns off the load break switch firstly, insert the handle to the load break switch operating hole in the lower part of panel and turn on the load switch.

From the switch on to switch off, for K type mechanism, insert the handle to the load switch operating hole and rotate it in 180o to switch off; for A type mechanism, press the "switch off" button to switch off the load break switch, observe from the winder to confirm it, check whether the on/off indication plate works properly.

Notice: only when the load break turns off, can turning on and earthing operation be done!

♦Maintenance & Service

On condition of installing in environment as this manual required and normal operations, product guaranteed to be fault free for 10 years and has a running life of 25 years, but regular check per 6 months is required.

Keep the external appearance away from dust ,dirt and damp.

Lubricate and operate the mechanism for 3-5 times, check whether it acts properly.

Check with the pressure meter regularly, in case of meter data lower than 0.01MPa, should reload gas.

When the malfunction happens in the load break switch and fuse combination, and one of the three phase immediately, gas charging should be done by professional personnel from or trained by the manufacturer. uses burns out, all three fuses should be replaced at one time, must earth the switch before the replacement.

♦Matters need attention

It is NOT allowed to disassembly the self-sealed valve in front of switch( connecting end of meter).

It is NOT allowed to unload the seal screws on switch at any time.

Ordering Instructions

1. Belowing terms should be marked while ordering: Model number, product name and quantity.

Model of operating mechanism ( A,K ).

Provide the rated voltage specification if motorization operating is required.

For load break switch + fuse combination, fuse model and specification is required.

Other special requirements.

2. Documents with product from manufacturer: Certificate of qualification.

Testing report for products.

Packing list.

Other technical documents.
