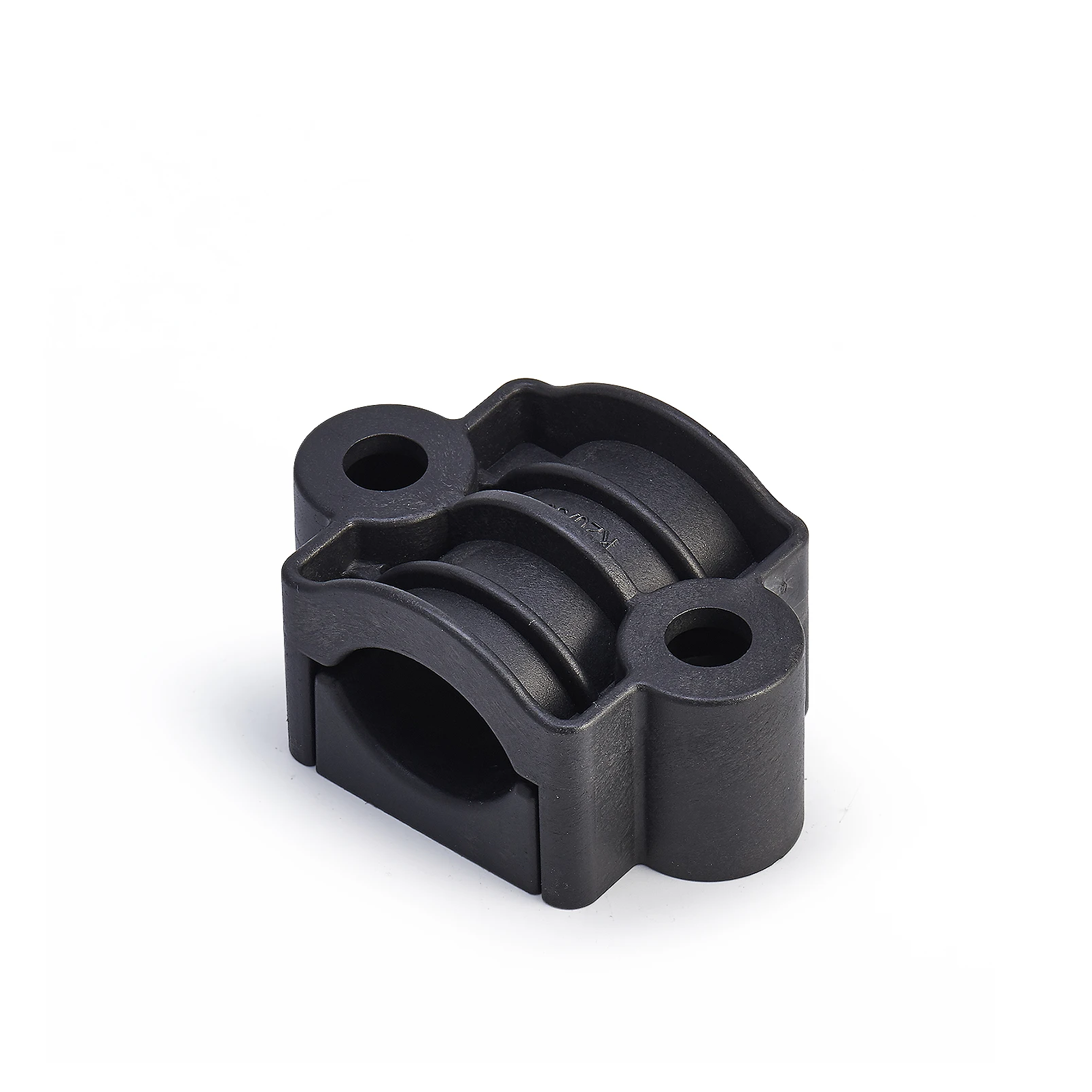

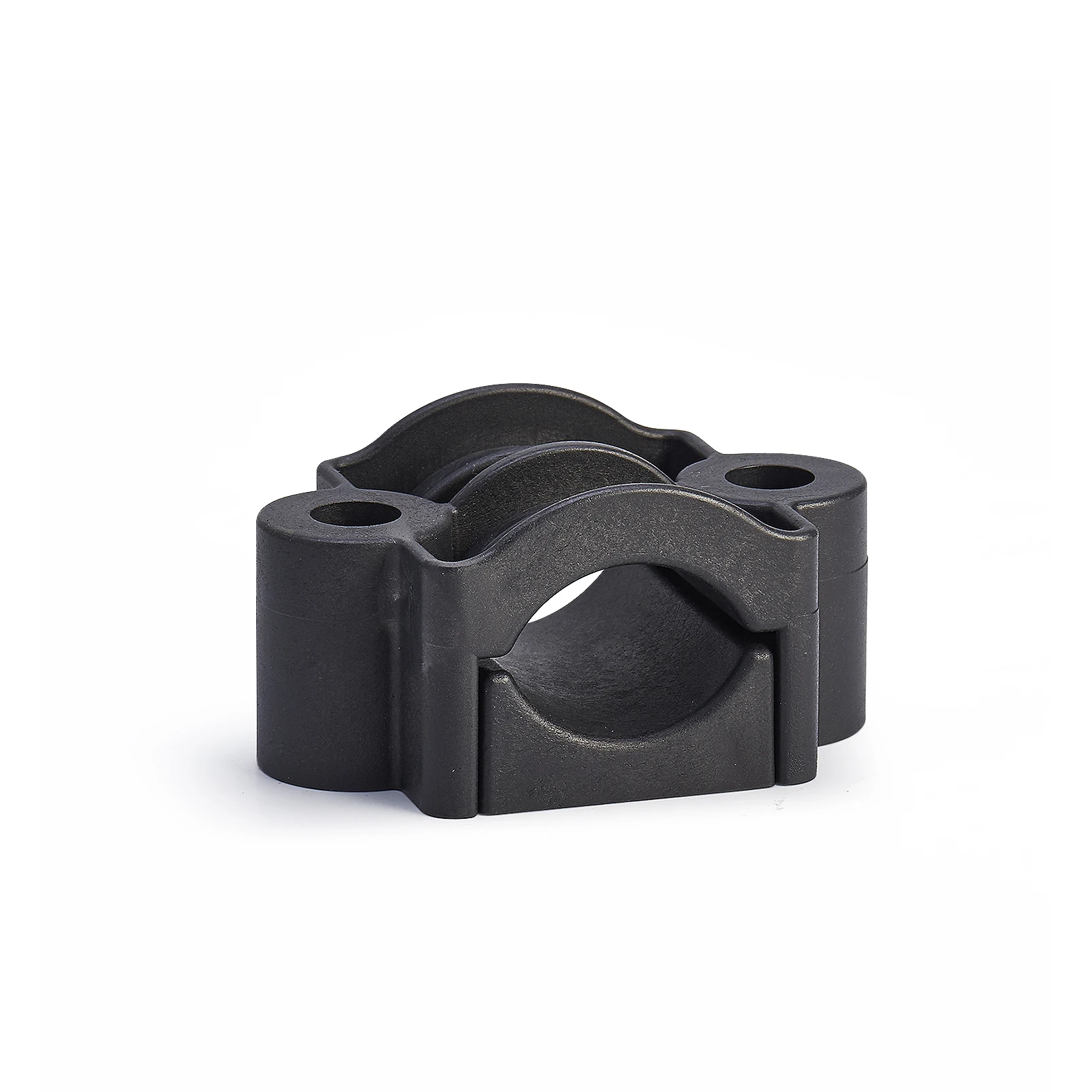

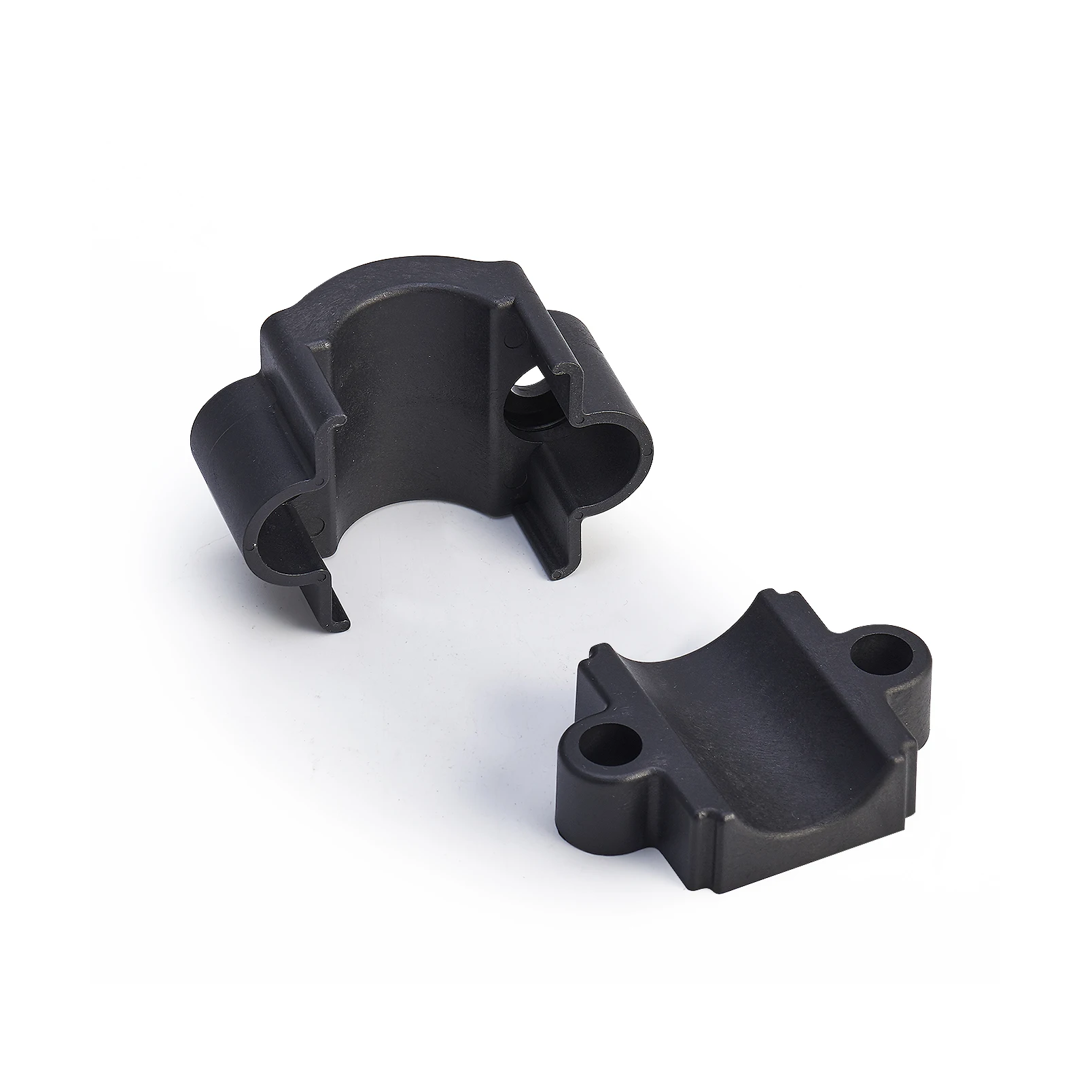

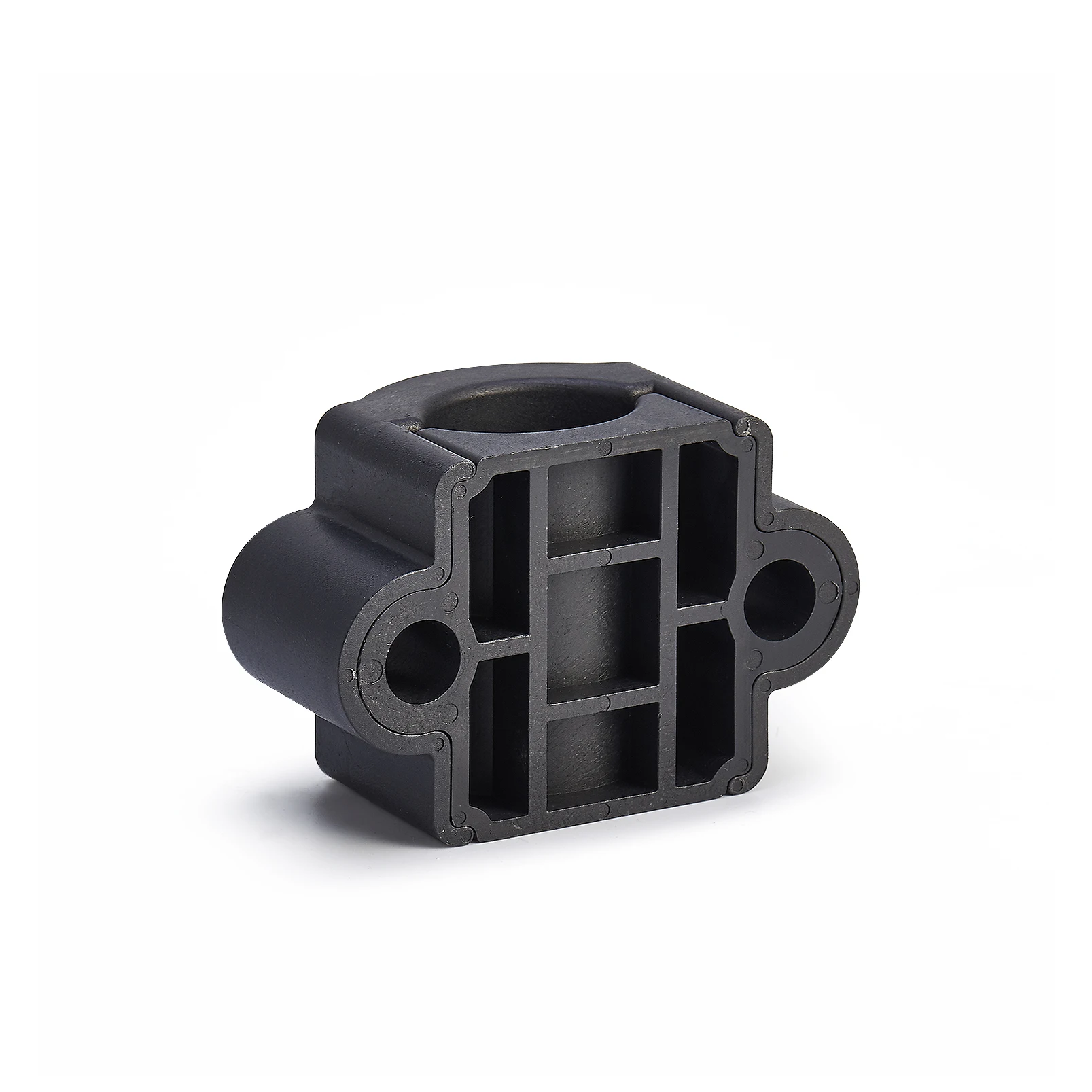

Hot selling JKCN Cable Clamps
- Category: Cable Clips >>>
- Supplier: Zhejiang Jiukang Electric Co. Ltd.
Share on (1600487549895):
Product Overview
Description
Why choose us
1. More than 20 years' production experience in capacitors-- our company was establised in 1993.
2. A wide range of products, including motor running capacitor, fan capacitor, low voltage shunt capacitor, float switch , contactor for switching capacitor , reactive power compensation installation etc.
3. A good image: first class automaatic rolling machines, advanced production environment, and advanced production technology etc.
4. Certification: passed the ISO9001 quality management system certificate, ISO14000 environment management system, CBB series capacitors have attained CQC, CE, Roh and UL certificates; low voltage reactive power compensation device have got CCC certificate.
With years of export experience along with excellent quality, advanced services and competitive prices, Electrical accessories has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Electrical accessories has won numerous customers' trust and support.
Certifications
Products Description
Specifications:20-36mm2, 36-52mm2, 55-75mm2, 75-95mm2, 90-150mm2
Material: Nylon PA66
Fire rating: VO
Working temperature:-40℃ to +120℃ Color:BLACK
Process:injection molding/injection Size:XS,S,M,L,XL
Working temperature:-40℃ to +120℃ Color:BLACK
Process:injection molding/injection Size:XS,S,M,L,XL
Application: For fastening a single high and low voltage cables，it may be made of polyethylene and the fastening of insulating
cable.To ensure the stability of the cable on a plane or a triangle.
cable.To ensure the stability of the cable on a plane or a triangle.

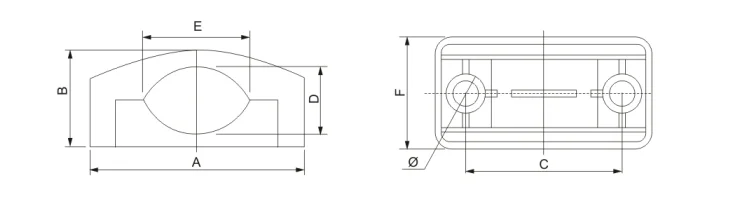

Main technical parameter
Specifications | A | B | C | D | E | F | ∅ |
20-36M㎡ | 89 | 44 | 60 | 24 | 36 | 58 | 12 |
36-52M㎡ | 108 | 50 | 75 | 34 | 50 | 59 | 13 |
55-75M㎡ | 115 | 52 | 84 | 37 | 58 | 59 | 13 |
75-95M㎡ | 128 | 66 | 96 | 48 | 68 | 60 | 14 |
90-150M㎡ | 150 | 87 | 120 | 66 | 102 | 60 | 14 |
