Product Overview
Description
Product Description
cable pulling grip
Wire Mesh Safety Grips are built tough to provide the strength, reliability and gripping force required for today's demanding wire management applications. They are designed to distribute stress over a large area so they can securely hold, pull or support the wire, rope, tubing or fiber optic cable to which they are applied.
Wire Mesh Safety Grip products offer a wide selection of style, weave, attachment and wire options designed to meet the highest standards for strength, flexibility, durability and longevity.
Wire Mesh Safety Grips are flexible holding devices used to pull cable, rope,or tubing into place; to support it after it has been installed, to prevent cable pullout;or to provide strain-relief that reduces the arc of bend at points of wire connections or terminations.

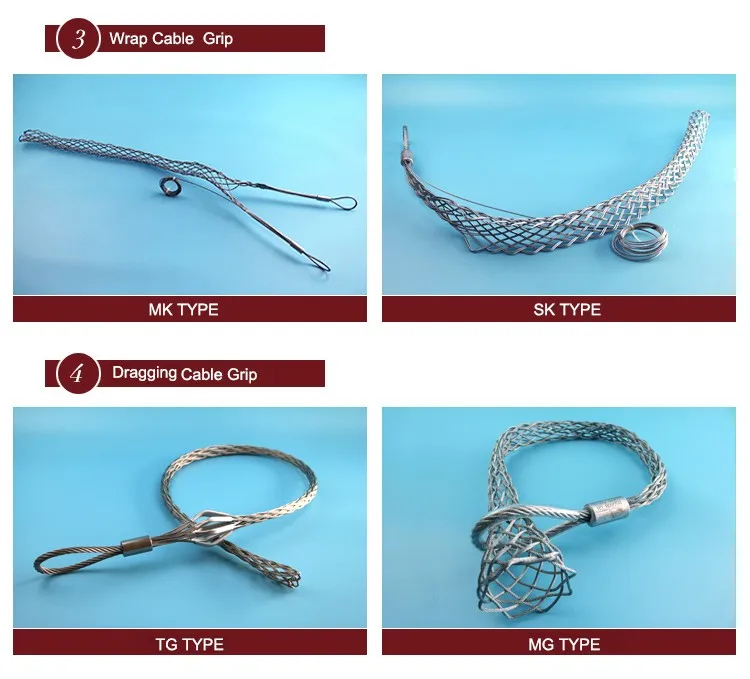

Cable Grip Series
Product Features
Single strand multistrand weave,cable head can wear out,convenient installation and connection,double sides dragging cable grip,unitable for drag and drap on moderateof severe cable
Specification
Size Range (mm) | Mesh Length (mm) | Total Length (mm) | Breaking (KN) | Strength (KG) |
4-6 | 140 | 200 | 0.981 | 100 |
7-12 | 200 | 270 | 5.88 | 600 |
13-18 | 270 | 350 | 8.82 | 900 |
19-24 | 300 | 400 | 11.8 | 1200 |
25-34 | 420 | 550 | 15.6 | 1592 |
35-48 | 520 | 650 | 29.4 | 3000 |
49-60 | 680 | 820 | 39.2 | 4000 |
60-75 | 800 | 950 | 43.2 | 4408 |
75-90 | 950 | 1120 | 49 | 5000 |
90-105 | 970 | 1290 | 49 | 5000 |
110-135 | 1200 | 1350 | 58.8 | 6000 |
130-150 | 1320 | 1500 | 58.8 | 6000 |
150-180 | 1500 | 1750 | 78.4 | 8000 |
180-230 | 1850 | 2100 | 78.4 | 8000 |
230-280 | 1950 | 2200 | 88.2 | 9000 |
280-320 | 2000 | 2300 | 88.2 | 9000 |
Application
1.Telecom cable
2. Fiber cable
3. Coaxial cable
4. Feeder cable
5. Hybrid cable
6. Corrugated cable
7. Smooth cable
8. Braid cable
Packing & Delivery
