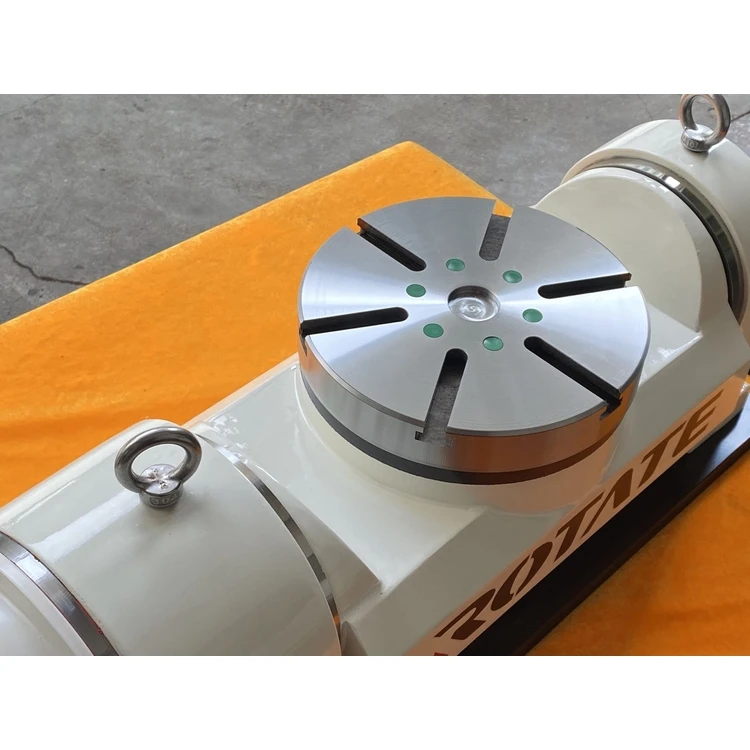

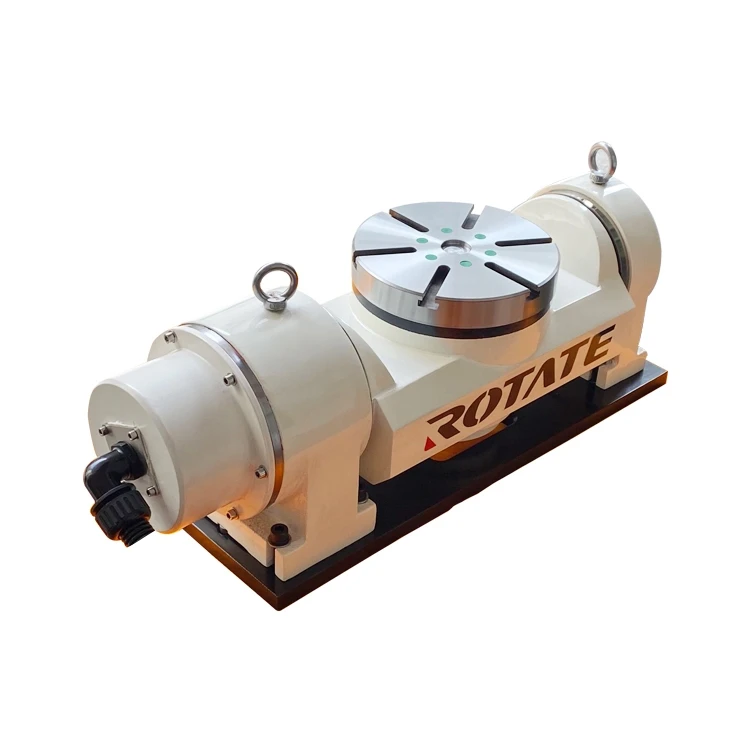

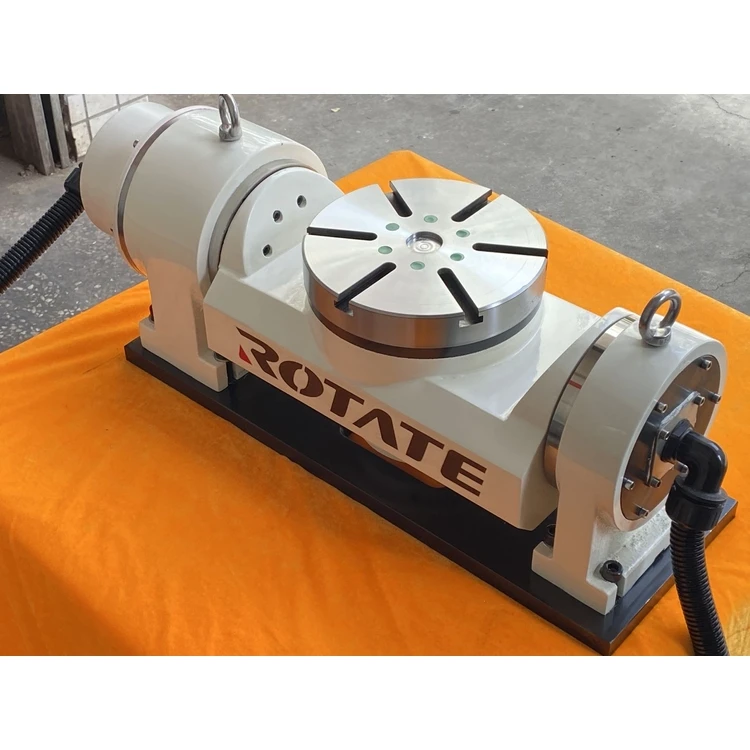

Low Price New Rtb250 Rotary Table Machine Cnc Milling Machine 5th Axis Cnc Turntable
Low Price New Rtb250 Rotary Table Machine Cnc Milling Machine 5th Axis Cnc Turntable
Low Price New Rtb250 Rotary Table Machine Cnc Milling Machine 5th Axis Cnc Turntable
Low Price New Rtb250 Rotary Table Machine Cnc Milling Machine 5th Axis Cnc Turntable
Low Price New Rtb250 Rotary Table Machine Cnc Milling Machine 5th Axis Cnc Turntable
Low Price New Rtb250 Rotary Table Machine Cnc Milling Machine 5th Axis Cnc Turntable
Low Price New Rtb250 Rotary Table Machine Cnc Milling Machine 5th Axis Cnc Turntable

Low Price New Rtb250 Rotary Table Machine Cnc Milling Machine 5th Axis Cnc Turntable

Share on (1600489104646):


Price:$11,000.00

Quantity:


Product Overview

Description



Product Description

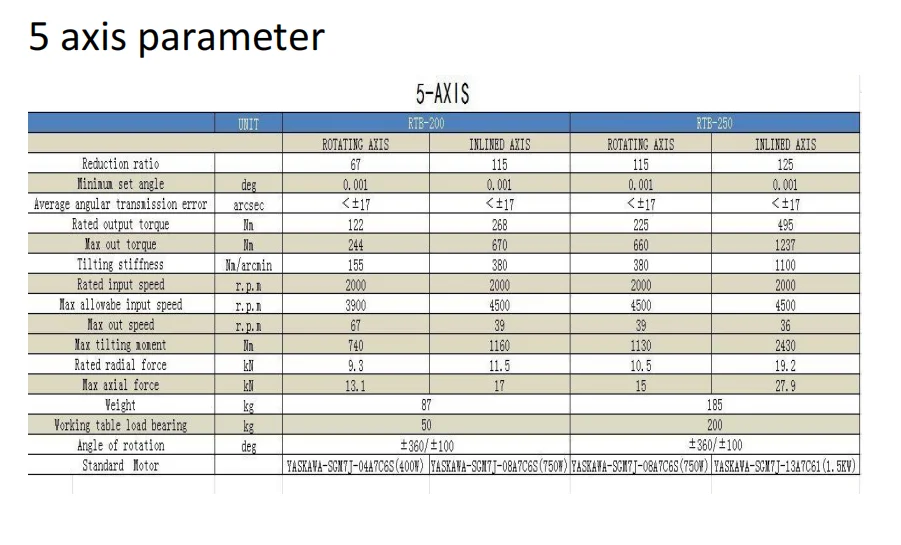

Specification


Turntable diameter
250mm
Reouct1on ratlo
ROTATING AXIS:115 INLINED AXIS:125
Minlnun set angle(deg)
ROTATING AXIS:0.001 INLINED AXIS:0.001
Average angular transnisslon error（arcsec）
ROTATING AXIS:<±17 INLINED AXIS:<±17
Rated output torgue(Nm)
ROTATING AXIS:225 INLINED AXIS:495
Max out torque(Nm)
ROTATING AXIS:660 INLINED AXIS:1237
Tllting stIffness(Nm/arcnin)
ROTATING AXIS:380 INLINED AXIS:1100
Rated Input speed(r.p.m)
ROTATING AXIS:2000 INLINED AXIS:2000
May allowabe Input speed(r.p.m)
ROTATING AXIS:4500 INLINED AXIS:4500
Max out speed(r.p.m)
ROTATING AXIS:39 INLINED AXIS:36
Max tillting moment(Nm)
ROTATING AXIS:1130 INLINED AXIS:2430
Rated radial force(kN)
ROTATING AXIS:10.5 INLINED AXIS:19.2
Max axial force(kN)
ROTATING AXIS:15 INLINED AXIS:27.9
Weight(kg)
185
Working table load bearing(kg)
200
Angle of rotation(deg)
±360/±100
