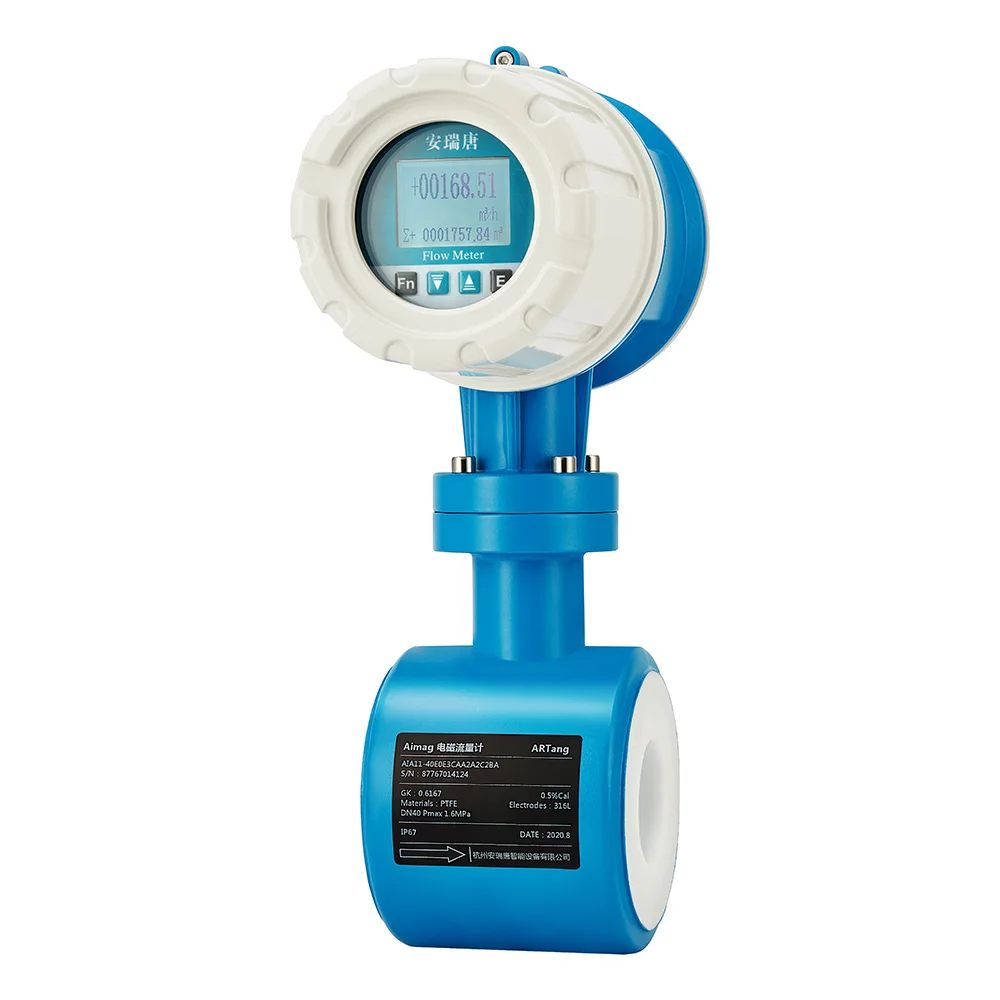

Professional Manufacturers DN15 DN20 DN25 DN40 DN50 Easy Installation emf Wastewater Magnetic Flow Meter For Water
- Category: Flow Meters >>>
- Supplier: Hangzhou Jingtu Technology Co. Ltd.
Share on (1600498749822):
Product Overview
Description
Principles

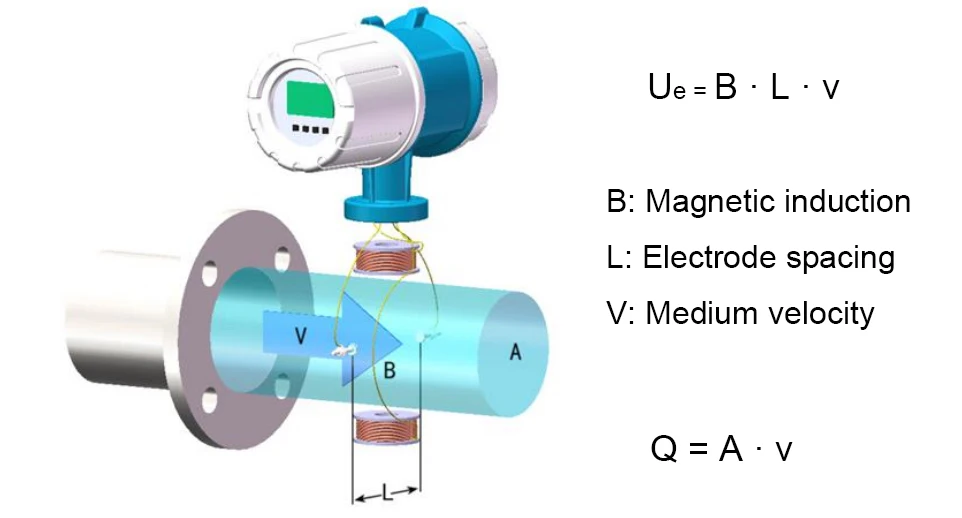

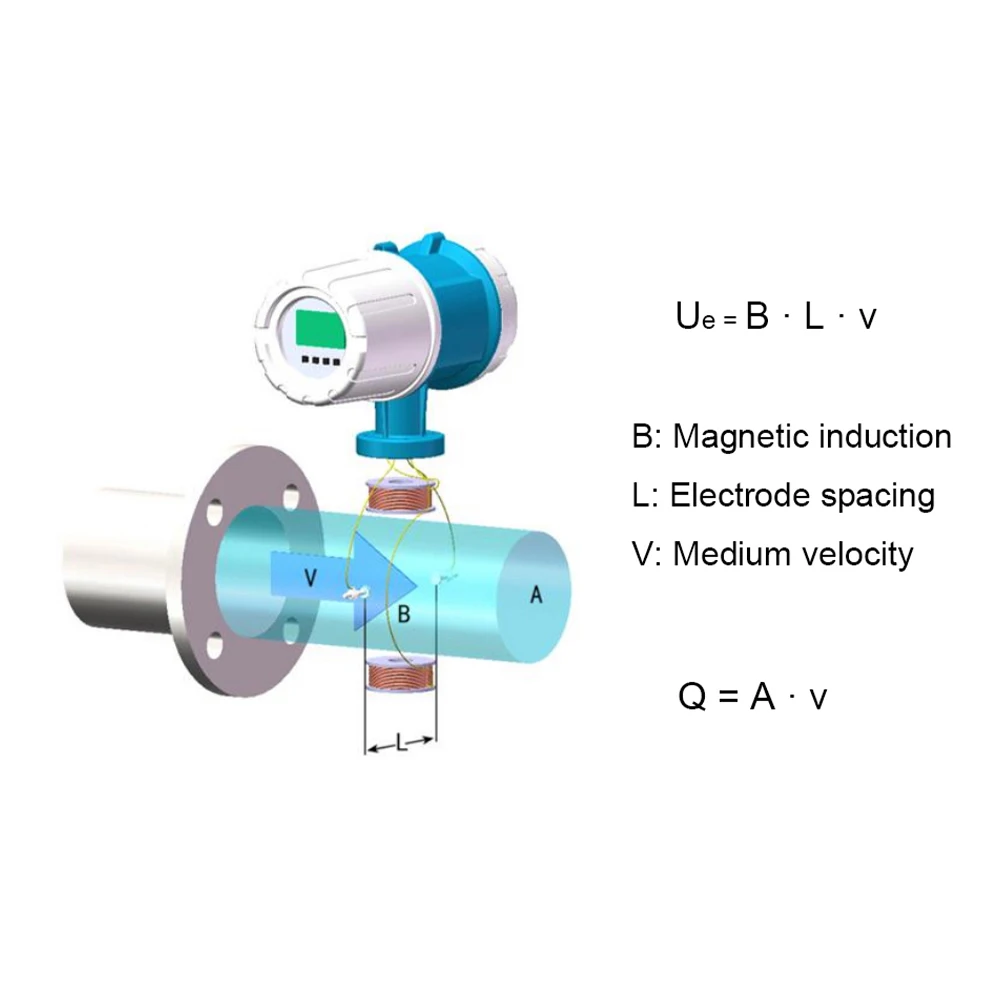

The measurement principle of electromagnetic flowmeter is based on Faraday's electromagnetic induction law, and the conductor moves in the magnetic field to produce induced voltage. The electromagnetic flowmeter generates a constant alternating magnetic field through switching DC I with alternating polarity, and the magnetic field
direction is perpendicular to the medium flow direction.When measuring the flow rate, the medium flows through the magnetic field, and the flowing medium is equivalent to a moving conductor, inducing an electromotive force Ue proportional to the flow rate of the medium, as shown in Figure.
The electromagnetic flowmeter detects the induced electromotive force through two measuring electrodes and transmits it to the converter for processing. Based on the cross- sectional area A of the measuring pipeline, the volume flow Q of the fluid can be calculated.
Products Description

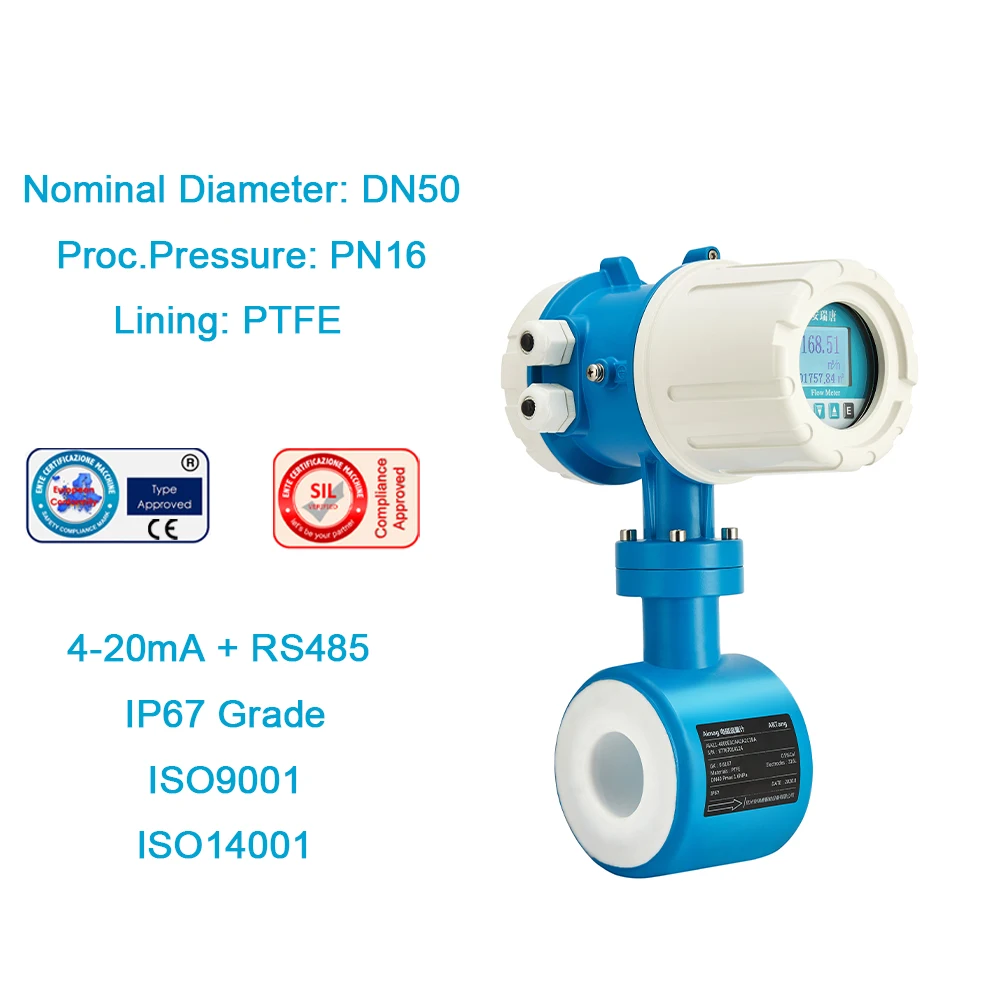

Model Number | RTS-Aim-D |
Application | Water / Sewage |
Diameter Nominal | DN15, DN20, DN25, DN32, DN40, DN50 (Notes: Only 6 Options for your Reference) |
Electrode Material | Stainless Steel 316L |
Lining Material | PTFE or Rubber |
Process Connection | Clamp |
Process Pressure | PN16 |
Accuracy | ± 0.5% |
Output Signal | 4~20mA Frequency / Pulse |
Communication | Modbus RS485 |
Explosion Certification | CQEx |
Protection Grade | IP67 |
Features
● The measurement is not affected by pressure, density and temperature.
● The sensor adopts the integral welding process, which is strong and durable.
● No moving parts, maintenance-free.
● Standard application products of water treatment industry.
● Various types of linings and electrodes are available.
● The sensor adopts the integral welding process, which is strong and durable.
● No moving parts, maintenance-free.
● Standard application products of water treatment industry.
● Various types of linings and electrodes are available.
Application
Aimag D electromagnetic flowmeters is researched and developed for the water treatment industry, which is suitable for various basic applications in water, wastewater and other industries. This type of electromagnetic flowmeter is widely used in the flow measurement of raw water, drinking water, process water and wastewater, etc.
Industrial Wastewater Treatment
Network of Water Supply Pipes
Desalination of Seawater
Monitoring of Water
Municipal Sewage Treatment
Treatment of Drinking Water

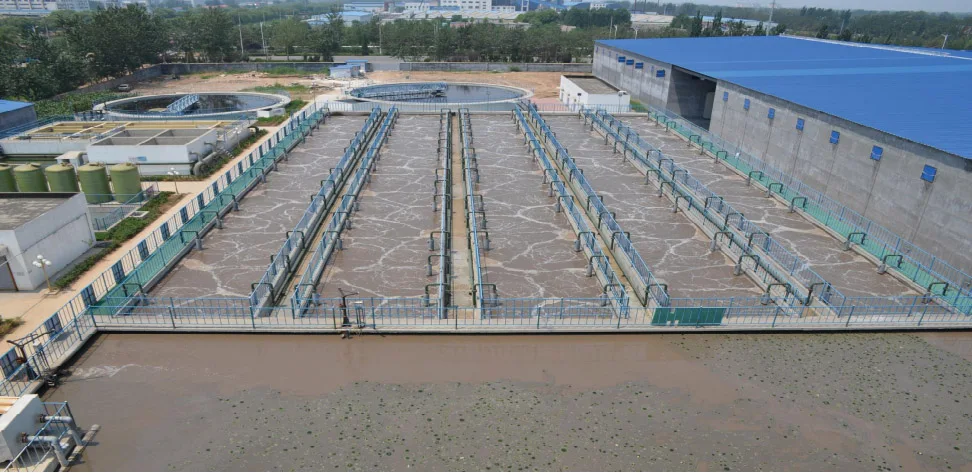

Aimag A electromagnetic flowmeters can fully meet the requirements of wastewater treatment in various application scenarios, such as standard working conditions, harsh working conditions and the installation of narrow space.
What We Have to Know before Quotation?
:In order to purchase magnetic flow meter accurately, please confirm the following parameters in advance
● The flow range: the normal flow range can be estimated from the rated flow of the on-site pump.
● The flow range: the normal flow range can be estimated from the rated flow of the on-site pump.
● The temperature & pressure: different process environments require different standards.
● The connection method: such as flange, clamp, threaded.
● The medium: such as water, sewage, acid, alkali, ammonia, brine, sea water, sulfuric acid.
Recommend Products
Company Profile
Jingtu Tech-Chinese Instrument Manufacturer
Focus on customer value, climb the peak of science and technology, Hangzhou Jingtu Technology Co., Ltd. is a technology-based enterprise that provides customers with instruments for the automation industry.
Hangzhou Jingtu Tech concentrates on independent R&D and self- innovation. The tenet of the company is R&D, Quality First, Excellent Service. We strive to provide customers with one-stop measurement solution for the process automation industry. These services include technical consultation, product application, parameter calibration and personnel training, etc.
Hangzhou Jingtu Tech concentrates on independent R&D and self- innovation. The tenet of the company is R&D, Quality First, Excellent Service. We strive to provide customers with one-stop measurement solution for the process automation industry. These services include technical consultation, product application, parameter calibration and personnel training, etc.

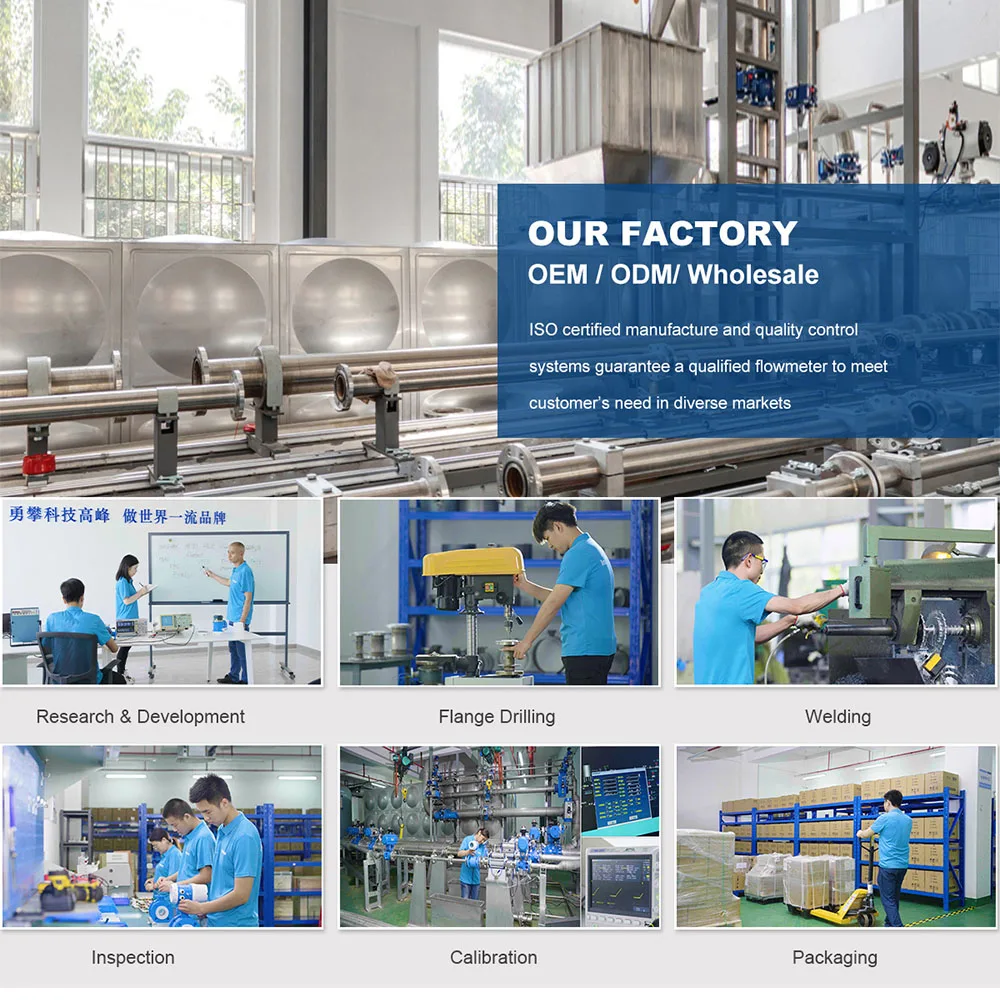

Automatic Calibration Line
Endress+Hauser Master Calibration
Gravimetric Calibration
Welding Proccess
Machining Workshop
Flange Process
Accuracy Calibration
Packaging
FAQ
1.Q:How to intallation our instruments ?
A:We can provide manual of flowmeter, kindly contacts us freely.
2.Q:How can I choose this flow diameter ?
A:Yes.that's according to your pipe diameter and flow range.
3.Q:Could I get samples?
A:Yes,We have materials in stock to help you to get the samples as sooon as we can.
4.Q::Could you provide me the shortest lead time?
A:We have materials in our stock, if you really need, you can tell us and we will try our best to satisfy you.
5.Q:How about the quality of the magnets?
A:We have the certification of ISO and CE, we could send the certification test of our company to you.
6.Q:Could I visit your factory?
A:Of course, if you need we will help you to visit our factory.
7.Q:If I have paid,when will you help me to produce?
A:When we have received the money in our account, we will give you the receipt and arrange to produce immediately.
A:We can provide manual of flowmeter, kindly contacts us freely.
2.Q:How can I choose this flow diameter ?
A:Yes.that's according to your pipe diameter and flow range.
3.Q:Could I get samples?
A:Yes,We have materials in stock to help you to get the samples as sooon as we can.
4.Q::Could you provide me the shortest lead time?
A:We have materials in our stock, if you really need, you can tell us and we will try our best to satisfy you.
5.Q:How about the quality of the magnets?
A:We have the certification of ISO and CE, we could send the certification test of our company to you.
6.Q:Could I visit your factory?
A:Of course, if you need we will help you to visit our factory.
7.Q:If I have paid,when will you help me to produce?
A:When we have received the money in our account, we will give you the receipt and arrange to produce immediately.
