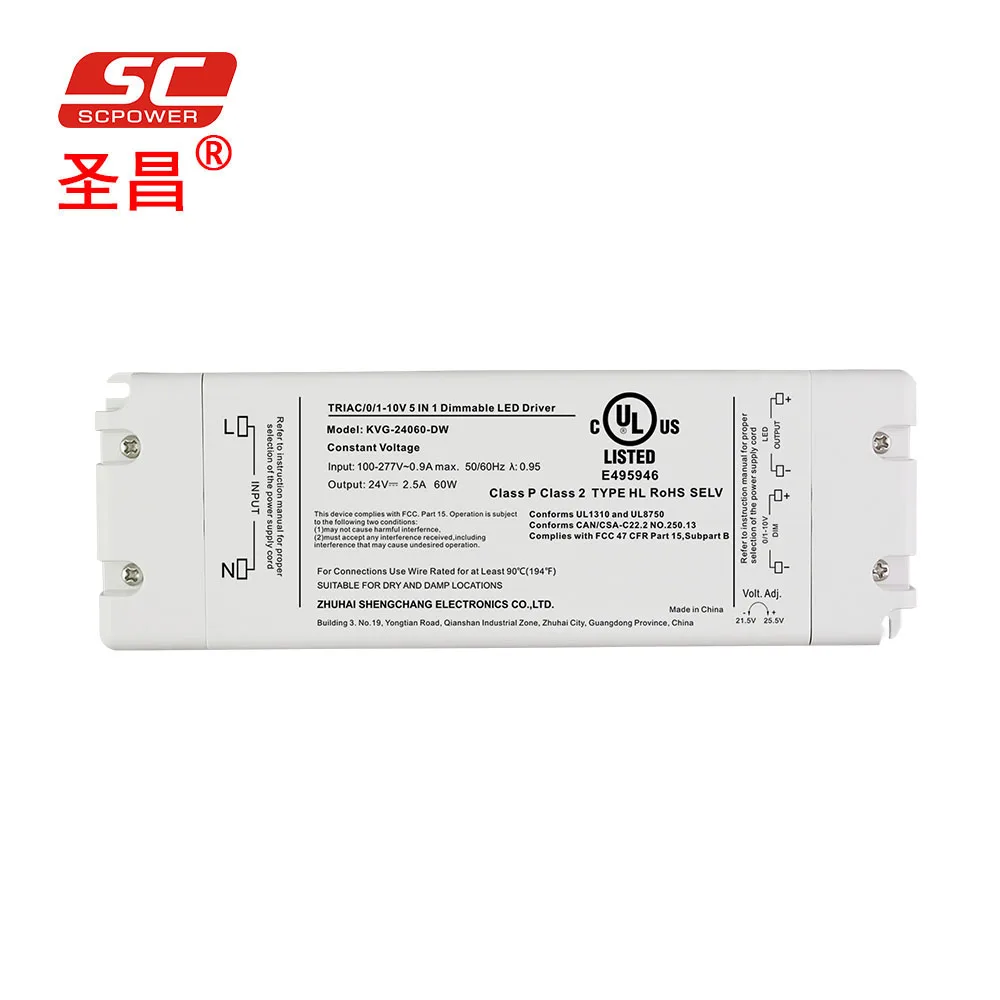

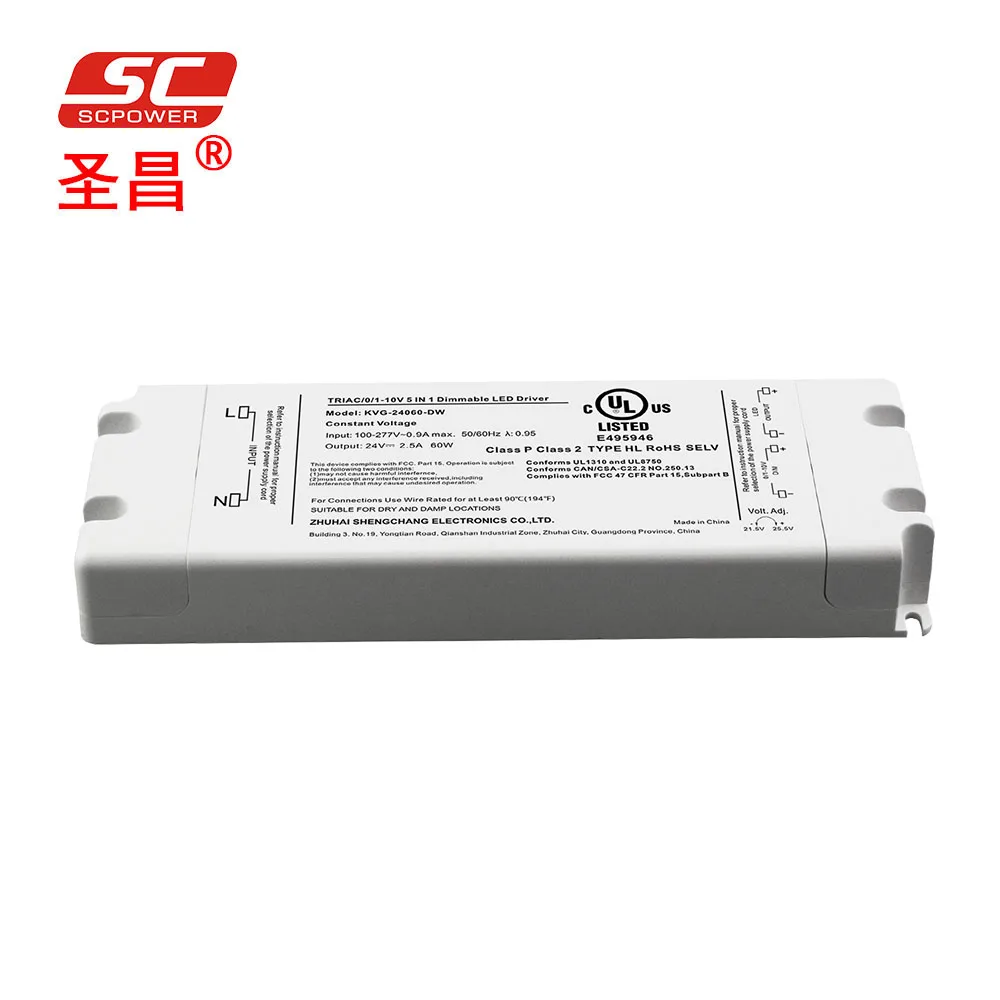

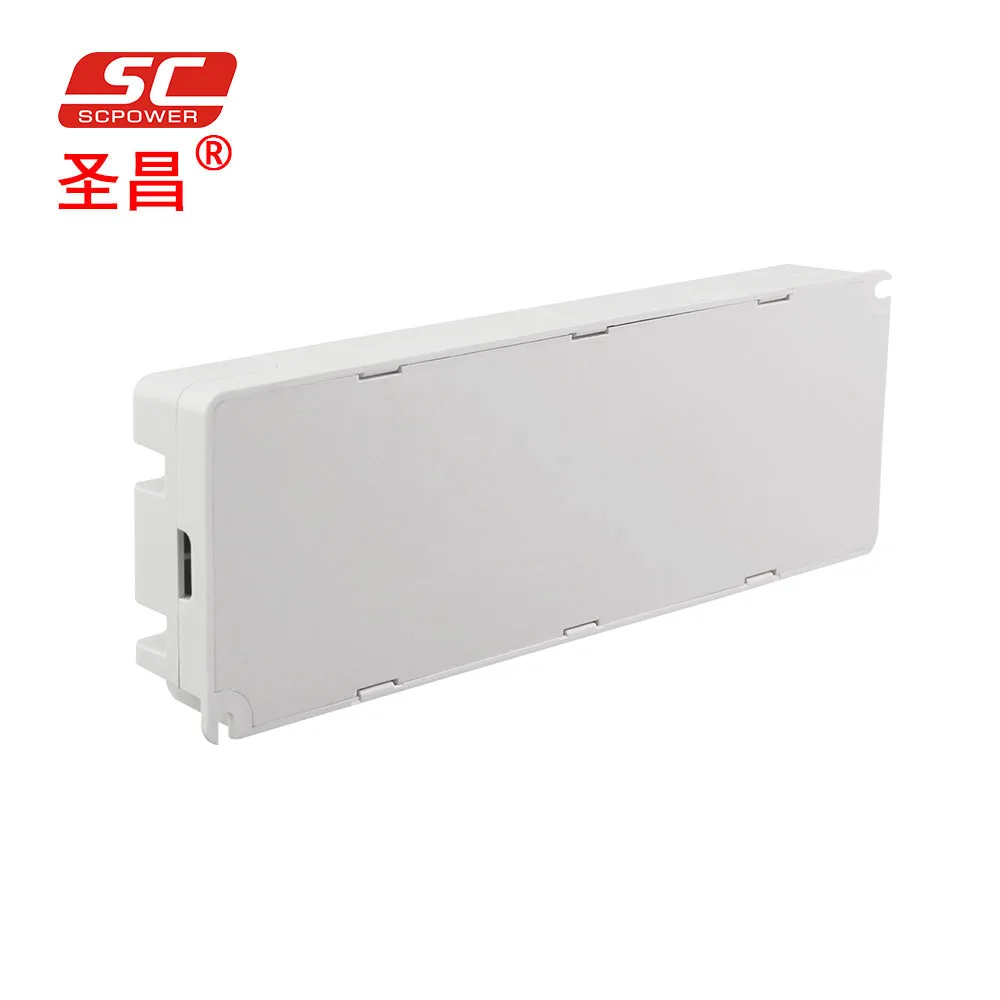

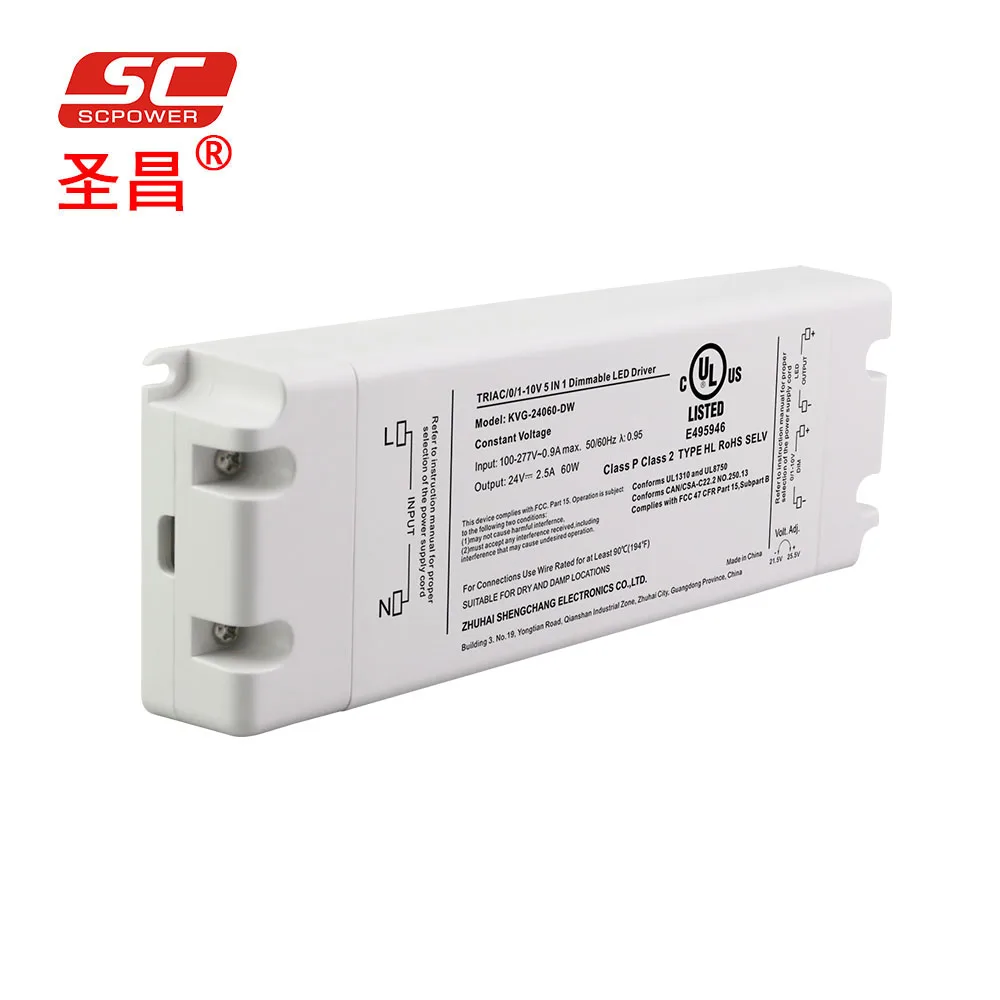

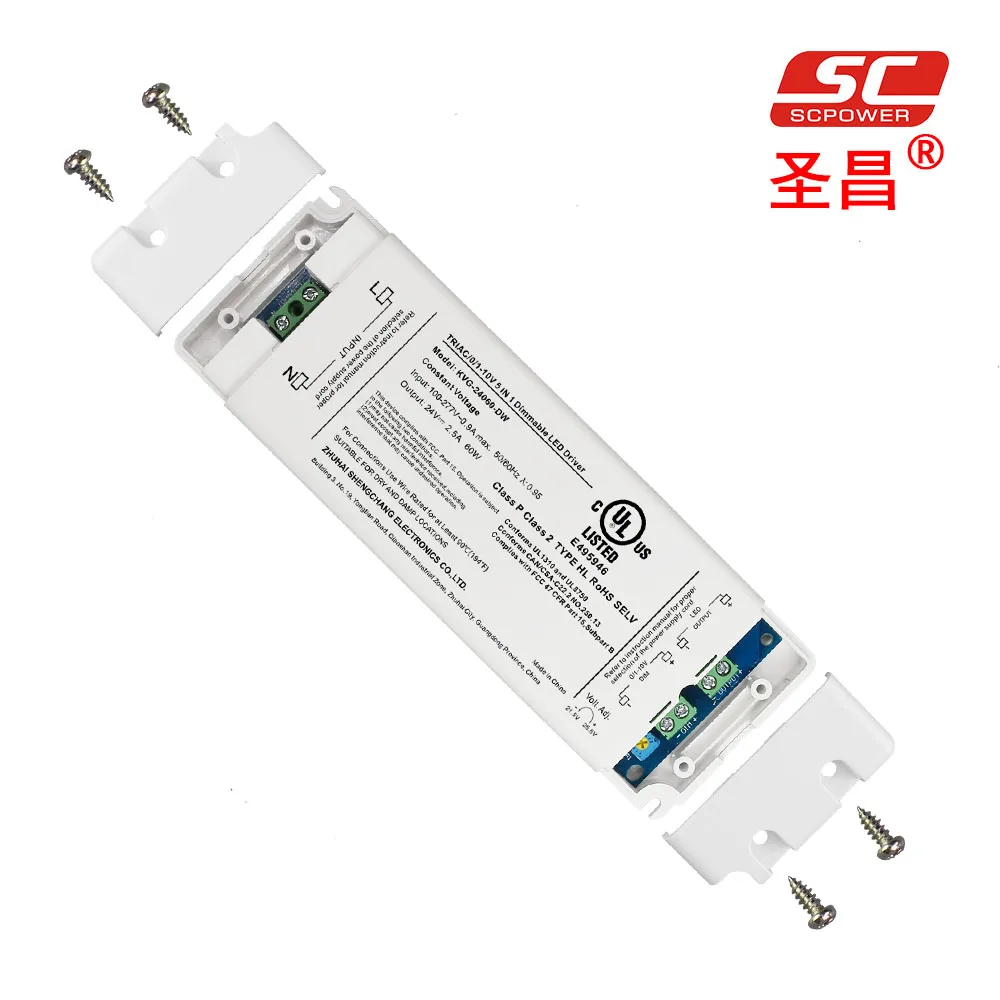

Диммируемый светодиодный драйвер Triac 0 10 в 1 10 в 60 Вт 12 в 24 в постоянное напряжение Профессиональное светодиодное освещение

AC Current(Max.)

0.9A

Inrush Current (Typ.)

14A, 50%, 780us @120VAC;   15A, 50% , 660us @277VAC

Leakage current

<0.5mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition removed

Over Load

≤120% Hiccup mode,recovers automatically after fault condition is removed

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Others

Net Weight

0.35Kg

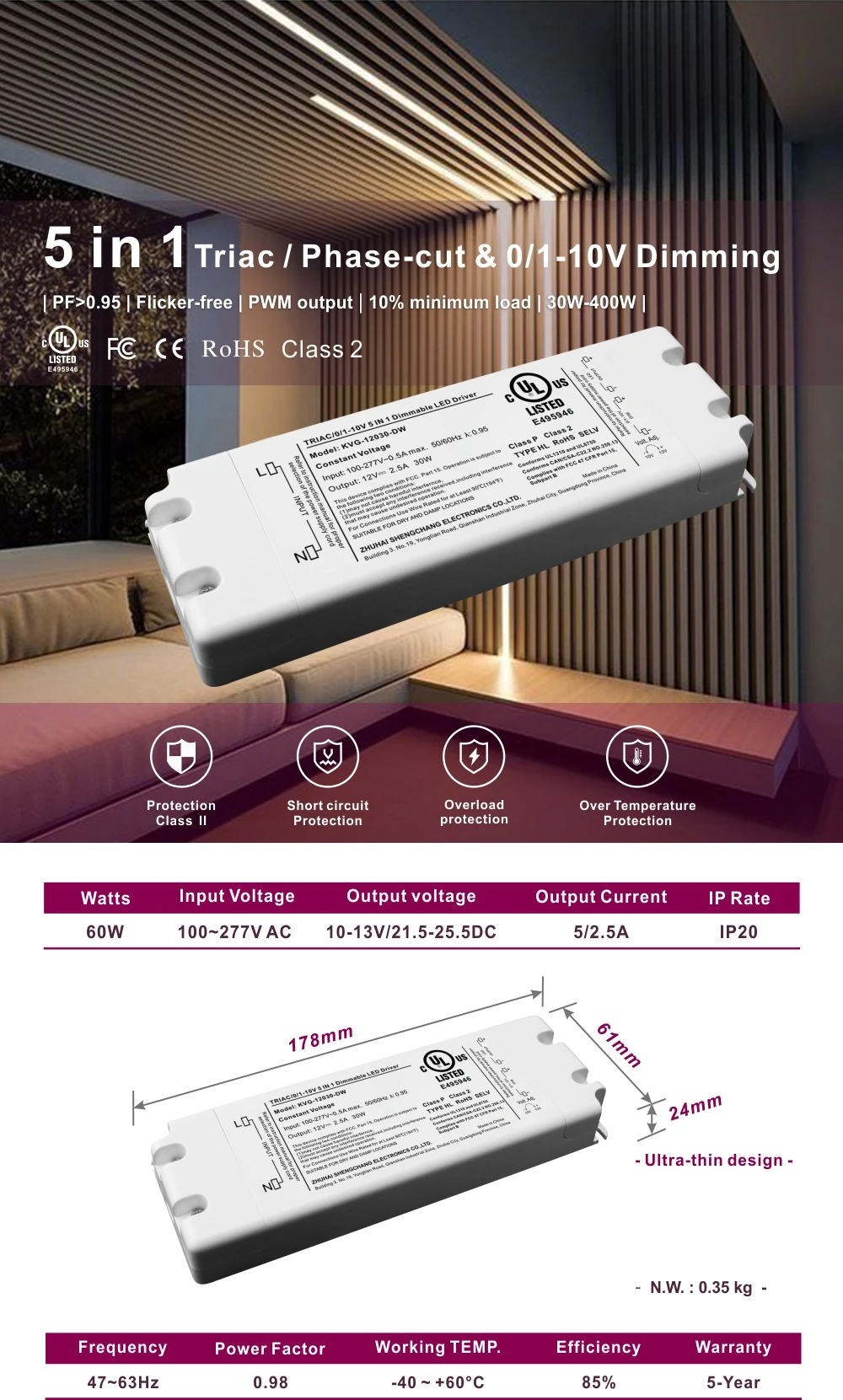

Dimension

178*61*24mm(L*W*H)

packing

290*215*140mm    20pcs /CTN

Notes

1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

Constant Voltage

Constant Current

Certification

Triac / Phase-cut ELV MLV Dimmable

Triac / Phase-cut Dimming

ISO9001:2015

UL,cUL,ETL,cETL,FCC,

ENEC,TUV,CB,CE,

SAA,RoSH,CCC,

DALI-1,DALI-2 certificated
