Factory direct supply AZ31B magnesium sacrificial alloys round anode rod,Magnesium anode rod,sacrificial anode for water heater

Product Overview

Description

AZ31B magnesium sacrificial alloys round anode rod,Magnesium anode rod,sacrificial anode for water heater



Feature:
Magnesium anode rod for water heater, or sacrificial anode is the important component part, aim to protect metal tank from corrosion. Extruded Alumnium anodes and Magnesium anodes have high current to weight ratio,are suitable to be used in where a small diameter anode is required to give enough cathodic current.

We can supply various extruded anodes in both high potential (Mg-Mn alloy),standard potential (AZ31,AZ63 alloy) and Alumnium Alloy. Our extruded anodes are widely suitable for all kinds of water storage tanks or in prepolarization of offshore structure and so on.

When you order, please tell us your demand details as follows:
1. The diameter and length size of your demand Magnesium anode rod

2. Inner steel core size, and screw thread size type of the head flange if you need to fit together

3. Your demand quantity

Our Advantages:
1. Professional R&D team and QC team
2. Advanced machine tools, CAD/CAM programming software.
3. strict production process control
4. advanced testing facilities, and inspection before cargo leave factory
5. Professional design, modifying drawing making and technical consult.
6. Satisfactory after sales service
7. Adopt high purity raw material, and with over 20 years export history







Specification:

Alloy		AZ31B	Mg-Mn	Aluminum
Chemical Composition	Aluminum	2.50-3.50%	0.01%   Max	Balance
	Manganese	0.20-1.00%	0.50-1.30%	- -
	Zinc	0.60-1.40%	- -	4.00-5.00%   Max
	Calcium	0.04%   Max	- -	-   -
	Silicon	0.10%   Max	- -	0.25%   Max
	Copper	0.01%   Max	0.02% Max	- -
	Nickel	0.001%   Max	0.001% Max	- -
	Fe	0.005%   Max	0.03%   Max	0.25%   Max
	Sn	--	-   -	0.05-0.25%   Max
	Other purity(each)	--	0.05%   max	- -
	Total purity	0.30%   Max	0.30%   Max	0.15%   Max
	Remaining	Magnesium	Magnesium

Dimension and Weight

Diameter(inch)	Core eccentric(inch)	Core diameter(inch)	Straightness (inch/2 ft length)	Weight(lbs/inch)
Magnesium Extruded rod
0.0675-0.020	0.050	0.135	0.060	0.025
0.750-0.020	1/16	0.135	0.040	0.031
0.800-0.020	1/16	0.135	0.040	0.035
0.840-0.020	1/16	0.135	0.040	0.038
0.900-0.020	1/16	0.135	0.040	0.043
1.050-0.020	1/16	0.135	0.040	0.057
1.315-0.020	1/16	0.135	0.040	0.089
Aluminum Extruded rod
0.576-0.020	0.050	0.135	0.060	0.038
0.750-0.020	1/16	0.135	0.050	0.048

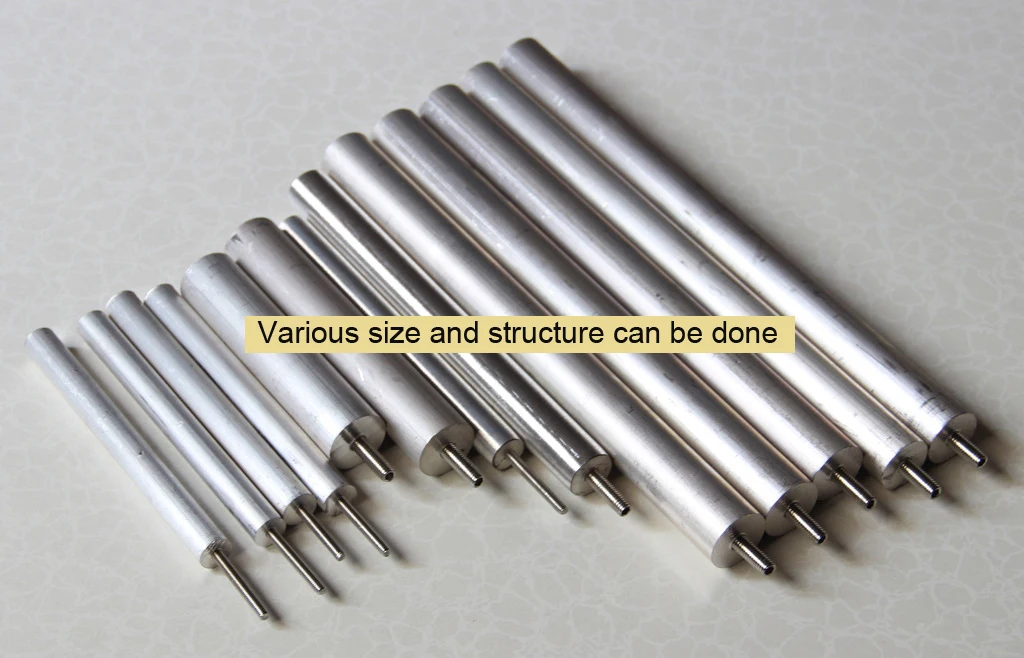

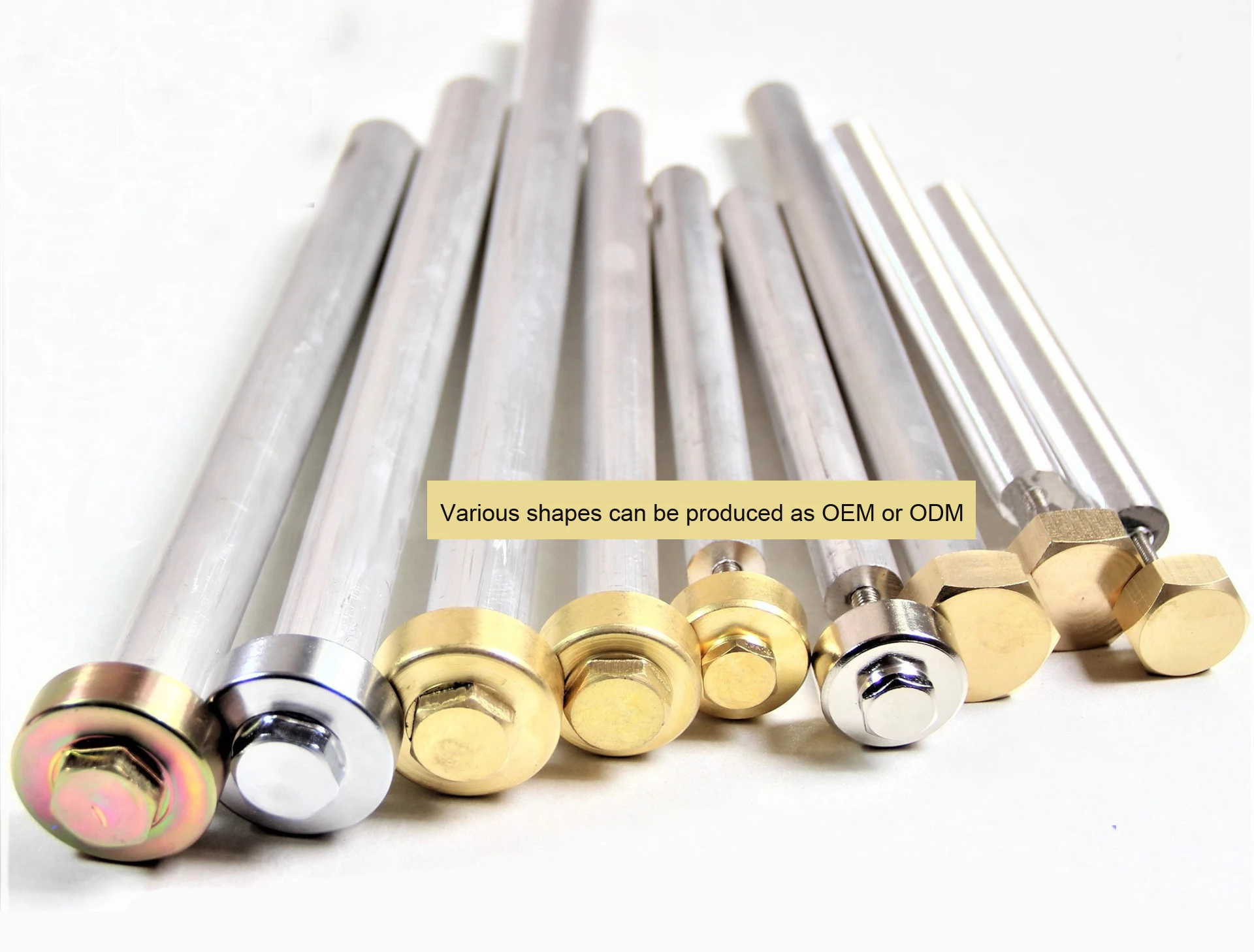

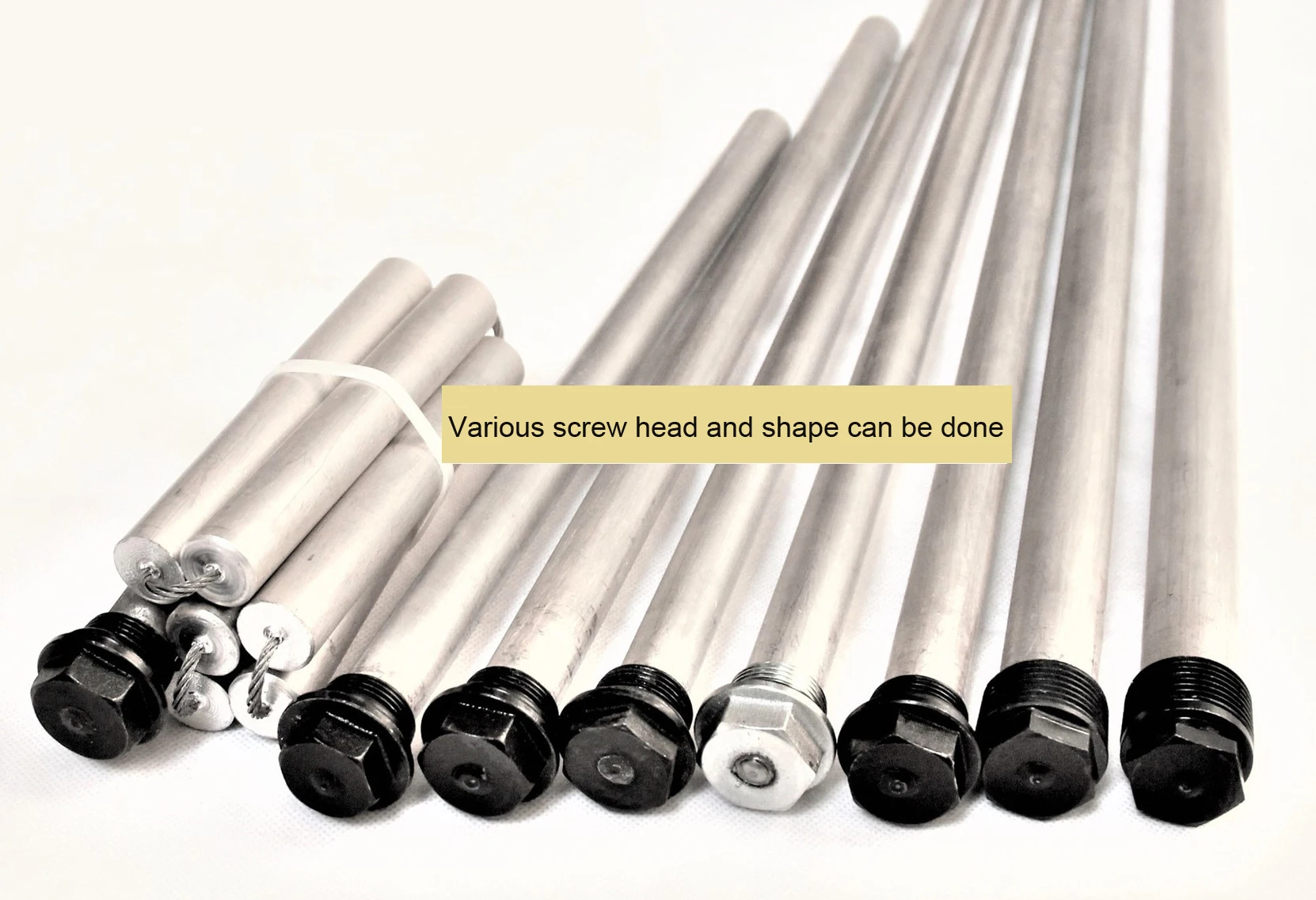

Remark: Above size is just s small part, more various size or shape can be produced according to buyer's request.
Welcome to contact us when you demand, our staff will reply you in time according to your specification request.
