TY63003 Triple Head Hand Held Air Scabbler ramping large slab differences, texturing parking deck and wheelchair ramps asphalt

Product Overview

Description

MODEL	TY63003
MODEL NUMBERING DESIGNATION	6, Percussive Tools 3, Bush Hammers 003, Head Qty (3 piece)
BUSH HEAD	34mm(1-3/4”)*3pc
SCABBLING DEPTH	3.0 mm - 5.0 mm
SCABBLING CAPACITY	5.0-10 m2/hour
BLOWS/MIN	7,200
WEIGHT	5.2 kg(11.4 lb)
AIR CONSUMPTION	8 CFM @ 90PSI

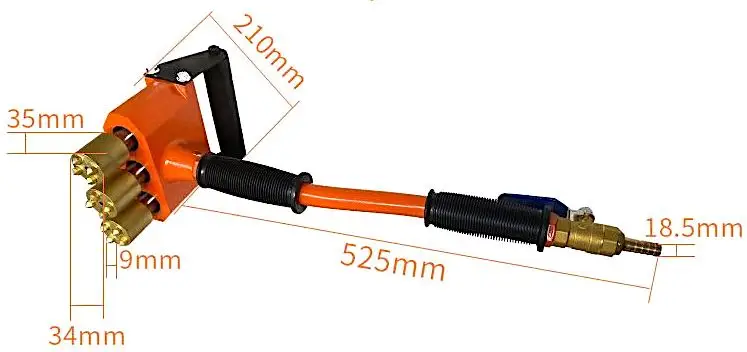

LENGTH	525 mm (20.7 in.)
AIR INLET	1/4”
REC AIR HOSE	3/8”
SOUND POWER LEVEL	106.9 dB(A)
SOUND PRESSURE LEVEL	93.9 dB(A)
VIBRATION LEVEL CONCRETE BUSH PRIMARY	6.96 m/s2(K=+40%-0%)
VIBRATION LEVEL CONCRETE BUSH SECONDARY	26.0 m/s2(K=+40%-0%)
SKU	353228





Overview

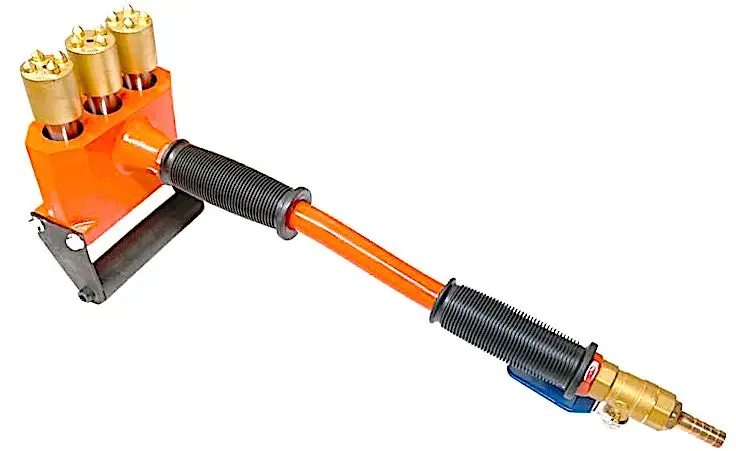

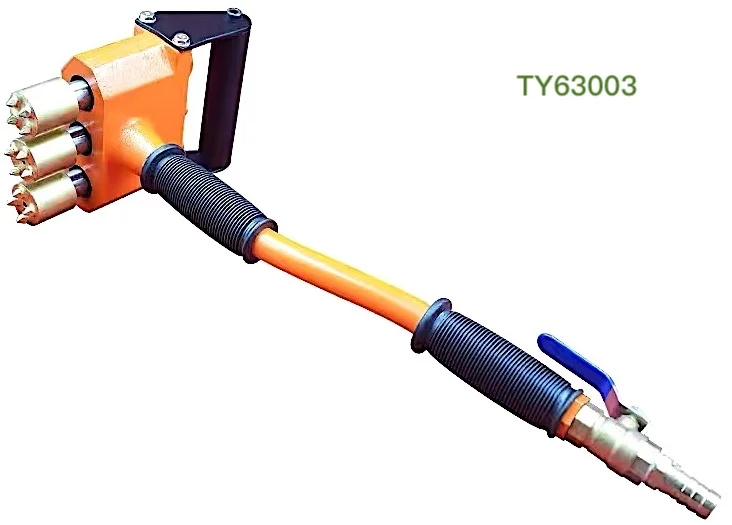

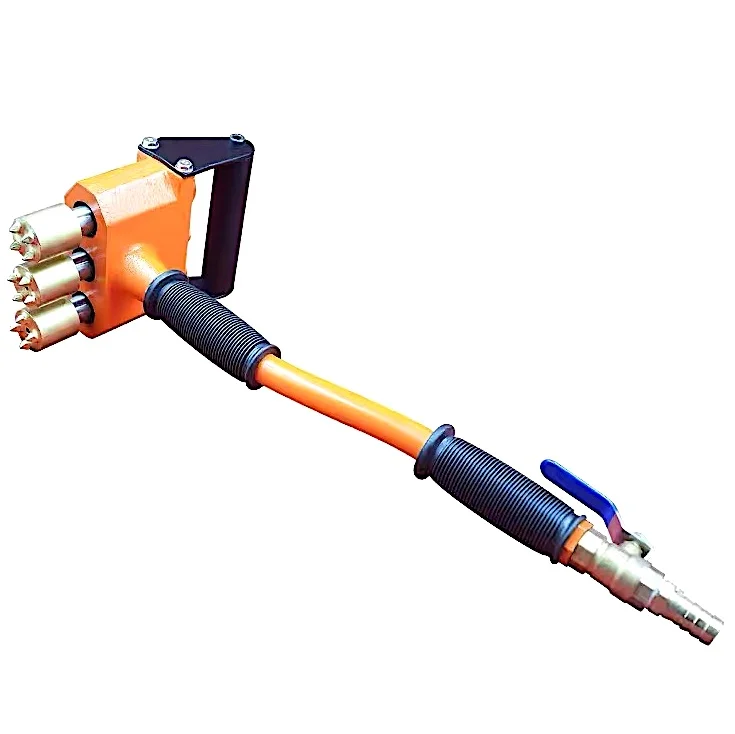

TY63003 scabbler is lightweight and compact, equipped with three carbide tipped Bush Head and cushion grip to last longer. The piston oscillate inside the cylinder of the scabbler and the bush head strike the surface of the material being worked on.This model, hand-held type , is ideal for more demanding scabbling applications such as cleaning and roughing concrete and construction joints. It can be used to produce ornamental or contrasting finishes on building structures.



Application

- Prepare concrete cracks for repair

- Texturing, roughing, reducing and leveling concrete

- Scabbling concrete to expose aggregate

- Preparing for coatings and waterproofing compounds



Function

TY63003 can be used both horizontally and vertically. No other use is permitted.



Tarboya Percussive Tools brochure could be downloaded from www.tarboya.com



At Tarboya, we bring you only two things: great products and exceptional service. Whenever you are using your pneumatic tools , we make sure you have the technology you need to be safe and efficient. Tarboya supplies both Russia pneumatics and ordinary air tools. Our team, capable of designing, developing, CNC modification and production, supports multiple industries with innovative, high quality air tools and accessories for the most demanding applications. Tarboya’s export starts in Mid 2018, our Alibaba shop was incepted in 2019 but we   a-r-e   d-i-f-f-e-r-e-n-t !

Wait.. Are you kidding me? What the f**k Tarboya, you are only 2 years old and even do not know the ABCs of air tools.

Before 2018, we are doing inland sales. That is the point. Our production and marketing team have been in air tools line for more than 10 years. These backbones have in-depth knowledge and knows air tools very well.

You will find Tarboya owner’s manual, here in Tarboya we name it Passport, is not the simply exploded view or general safety rules translated by Google, but the detailed technical description and operating instructions accurately written.

We assure you only the best designs, materials and production methods are used to make the tools that carry the Tarboya Name.

Quality tool, favorable price, professional papers, swift after-sale service. These are the very four Tarboya wanna to put in your hand.

Tarboya warrants TY63003 pneumatic bush hammer will not have any material or manufacturing defects for the period of 6 months from the date of delivery. The warranty for flawless function of the goods and the materials used is granted for the period of 6 months from the date of delivery of the goods.

Tarboya undertakes to remove any possible defects covered by the warranty free of charge and without undue delay, so that the buyer of the goods can use the product properly. Should the buyer exercise rights arising form the liability for the defects which are not covered by the warranty, he/she shall pay all related costs.

Tarboya’s  warranty shall be deemed void in the event of:

• Improper use of the machine,


• Use contrary to national or international standards,


• Incorrect installation,


• Faulty supply of compressed air or its poor quality


• Serious deficiencies in maintenance,


• Unauthorized modifications and/or interventions,


• Total or partial non-compliance with the instructions included in the manual


• Exceptional events, natural disasters and others.
