Brake and Cut off Power Signal Sensor 1F/1R for Electric Bicycle Scooter Intelligent Bike MTB for Linear Type Brake
price of this link is for one piece of sensor, if need two , please order two, thanks
v brake disc brakeinvisible brake
-this one fit for controller brake line 3 wires
work for v brake, disc brake, drum brake,Roller brake and many kinds of brake way .
there are two models
1F --install on brake disc position
1R --INSTALL on handlebar position
parameter
VOLTAGE 5v-24v
supply current 10mA ,
output current : max 20mA
compatible brake cable 1.5mm-1.8mm
indicator LED
SIZE L*W*H:36*12*16MM
Cable type 3pin, 400mm or customized
connector type: SM3

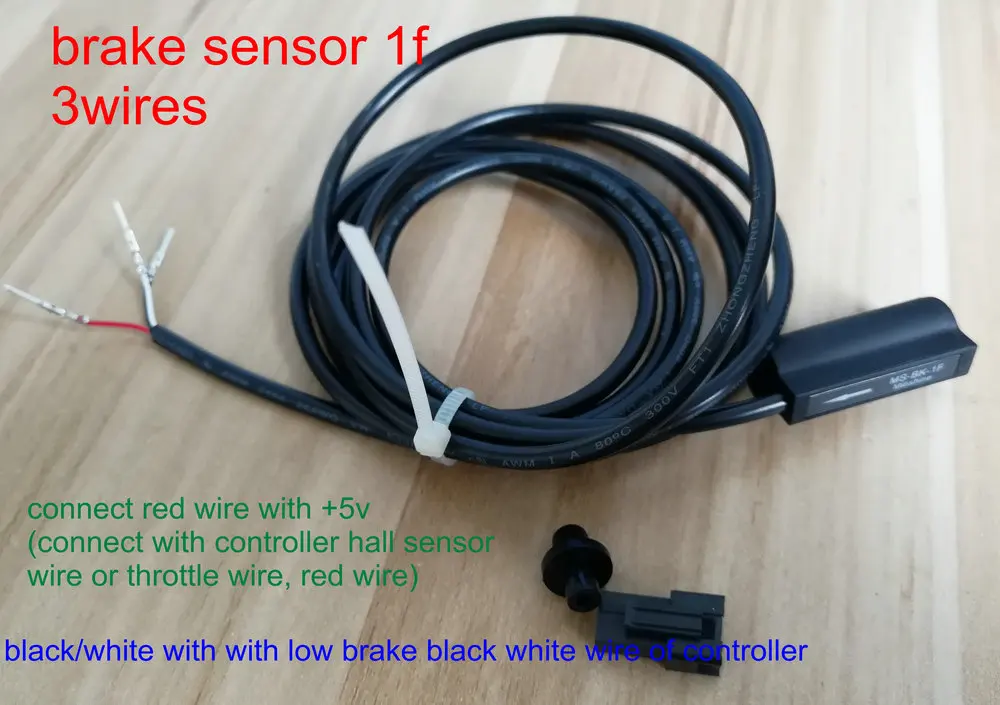

RED-VCC
BLACK-GND
WHITE-Signal
it applys for any bike that has mechanical brake, and use brake line/cable. has two models you can choose from.
INTRODUCTION FOR THIS SENSOR
THE SERIALS ofBrake sensor is a new patented profucts that can
install at any position of the brake cable. smaller size and better
stability , suitable for all kind of E-Bikes.)
2. Before Install
1.Please distinguish the difference of brake sensor between
Model:MS-BK-1R and Model:MS-BK-1F before mounting.
MAINLY depends on the different moving direction of brake lever and install position,
check bellow for the different install location for 1F OR 1R.
1R--THE SENSOR IS AT REAR of brake wire
1F- the sensor is at front of brake wire





Specification


item
value
Place of Origin
China
Shanghai
Brand Name
PHOEBEVPARTSTOLS
Model Number
Type:
Cut Off Power Brake


Packing & Delivery






each in pp bag bubble sheet
