Powerful 5000w 8000w 72V 100A sabvoton controller without bluetooth
US $25.00-$45.00
Good performance ebike fat tire electric bike kenda tyre electric bike frame 170mm electric bike frame
- Category: Other Electric Bicycle Parts >>>
- Supplier: Changzhou,The,Chun,Electronics,Co.,LTD
Share on:
Product Overview
Description
Product Description
3000W/5000W/8000W
1) Samsung/Panasonic cells battery
2) DNM rear suspension
3) Tektro Hydraulic breaks
4) Zoom Front Fork
48V 3000W Electric bicycle | ||
Motor | 3000W | |
Max speed | 65km/h | |
Max Range | 70-80km | |
Controller | 60A | |
Battery | 48V 29Ah lithium battery | |
LCD Display | SW900/UKC1 | |
TIRE | 26*2.6 | |
Charger | 48V 3A charger | |
72V 5000W Electric bicycle | ||
Motor | 5000W | |
Max speed | 80km/h | |
Max Range | 70-80KM | |
Controller | 80A | |
Battery | 72V 26.1Ah Sumsung lithium battery | |
LCD Display | SW900/UKC1 | |
TIRE | 26*2.6 | |
Charger | 72V 3A charger | |
72V 8000W Electric bicycle | ||
Motor | QS 8000w | |
Max speed | 110km/h | |
Max Range | 90-100KM | |
Controller | Sabvoton 150A | |
Battery | 72V 40.6Ah Panasonic lithium battery | |
LCD Display | SW900/UKC1 | |
TIRE | 19/21inch motorcycle,26*4.0 fat tire | |
Charger | 72V 5A charger | |
Detailed Images

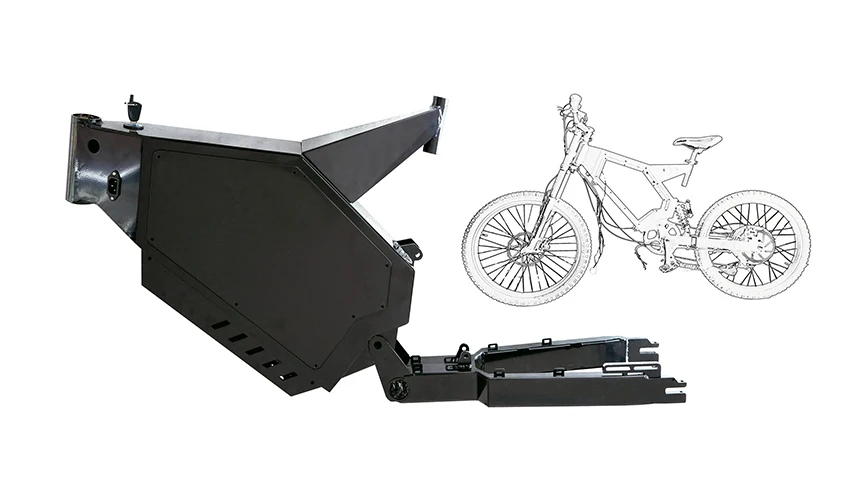

Frame
Steel frame is included frame body, swing gram, torque arms, Vp headset bearing, top and down side plastic covers, bolts and washers for assembling, bottom bracket and set postand seat clamp.Material:steel frame and plastic cover (hidden battery and controller)
Bicycle seat
Standard configuration, can upgrade to motorcycle seat
Motorcycle seat
PU motorcycle seat
19/21 motorcycle tire
Standard Fitted to 8000w ebike, can change to other kinds of tire
19/21 turtle tire
can change to 19/21 motorcycle tire with same price

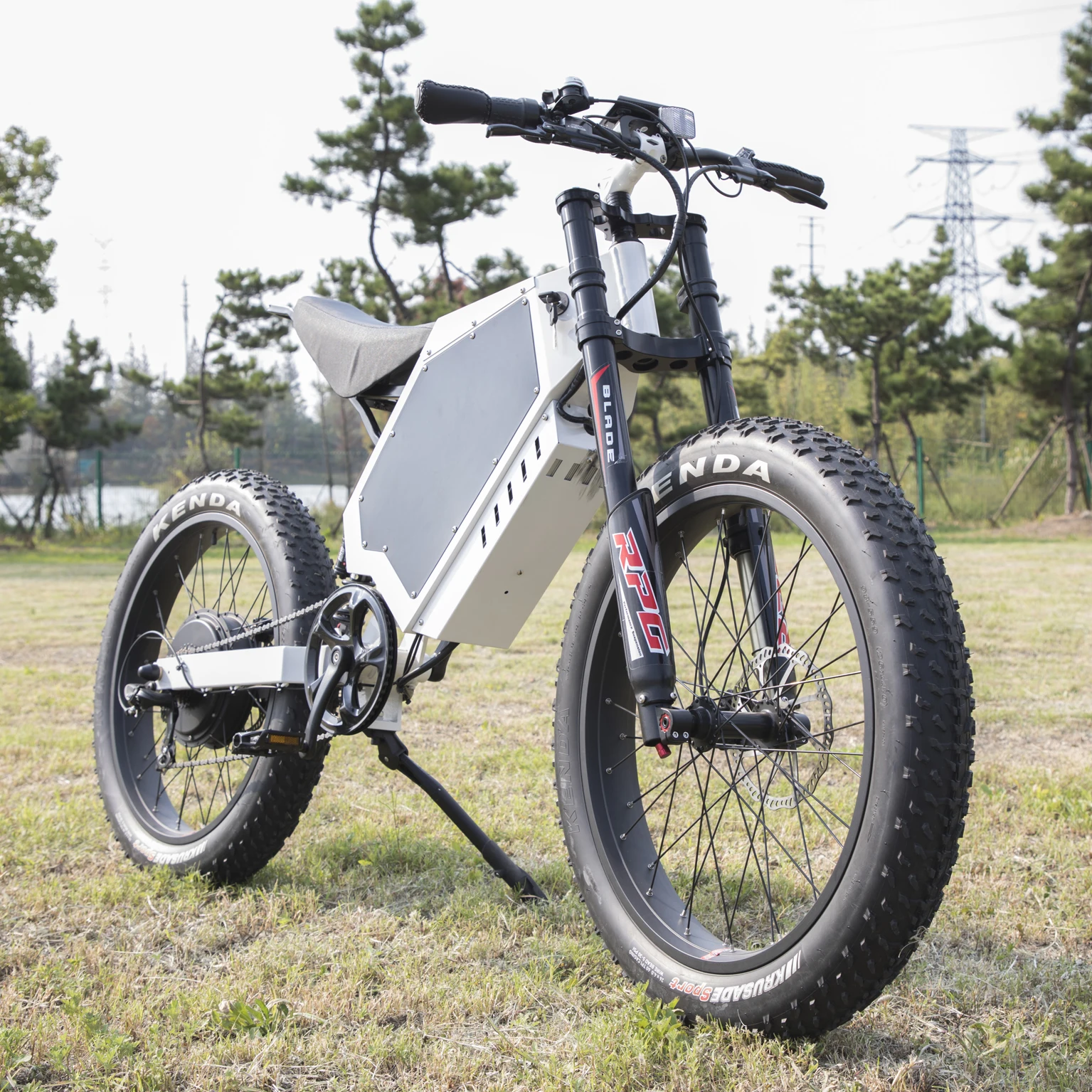

26*4.0 KENDA fat tire
3000w/5000w/8000w all can come with fat tire.
Controller
Smart Sabvoton controller 72V 150A
1. The advanced FOC vector algorithm is used to drive the DC brushless motor.
2. Automatic matching of motor Hall angle in 2 minutes
3. Various built-in protections of the controller to ensure the safe and stable operation of the vehicle: anti runaway protection, over-voltage and under voltage protection, over-current protection, controller overheat protection
2. Automatic matching of motor Hall angle in 2 minutes
3. Various built-in protections of the controller to ensure the safe and stable operation of the vehicle: anti runaway protection, over-voltage and under voltage protection, over-current protection, controller overheat protection
Handlebar +Brake system
TEKTRO E725 Hydraulic BrakeStandard FinishBarrel Lever / Black Bracket
Available In Painted ColorsMaterialCast Aluminum Lever & BracketLever Blade3 Finger Lever BladeAlso AvailableTS325AP - Nylon
Composite BracketWeight182 Grams / PairStandard FinishBarrel Lever / Black Bracket
Available In Painted ColorsMaterialCast Aluminum Lever & BracketLever Blade3 Finger Lever BladeAlso AvailableTS325AP - Nylon
Composite BracketWeight182 Grams / PairStandard FinishBarrel Lever / Black Bracket
DISPLAY
UKC1 Colorful display
3.5 inch IPS screen
24V/36V/48V/52V/60V/72V battery supply
Rated operating power : 1W
Max operating power : 5W
USB charging port : 5V 500mA
Off leakage current < 1uA
Support current to controller : 100mA
Operating temperature : -20～70℃, Storage temperature : -30～80℃
24V/36V/48V/52V/60V/72V battery supply
Rated operating power : 1W
Max operating power : 5W
USB charging port : 5V 500mA
Off leakage current < 1uA
Support current to controller : 100mA
Operating temperature : -20～70℃, Storage temperature : -30～80℃
Optional parts
Company Profile
Changzhou Zhongchun Electrical Appliances Co., Ltd.is specialized in manufacturing electric bike parts, such us BLDC motors, lithium batteries, and DIY conversion kits. With an experienced and professional team, we have exported our products to many countries and regions around the world, especially America and Europe. Our products enjoy a good reputation among our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
Our service
1. Focus on the production of electric bicycle and electric bicycle kit, professional and reliable.
2. Welcome to inquire.
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
FAQ
Q1: Will the conversion kit fit my bicycle?
A: The conversion was designed to fit 90% of the bicycles, and you can check your bicycle fork(the two metal pieces that attach the wheel to the bicycle) to be sure. You will need at least 100mm for front wheel and 135mm for rear wheel.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. How about your delivery time?
A: Generally, it will take 7 to 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Can you produce according to the Drawings or samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How about your Warranty?
A: Motor: 2 year Charger: 1 year Controller: 1 year Battery: 18 months
A: The conversion was designed to fit 90% of the bicycles, and you can check your bicycle fork(the two metal pieces that attach the wheel to the bicycle) to be sure. You will need at least 100mm for front wheel and 135mm for rear wheel.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. How about your delivery time?
A: Generally, it will take 7 to 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Can you produce according to the Drawings or samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How about your Warranty?
A: Motor: 2 year Charger: 1 year Controller: 1 year Battery: 18 months
