china 3d print heater 6mm 20mm 12v 24v 30w 40w custom small electric 3d printer cartridge heater
- Category: Heating Equipment >>>
- Supplier: Taizhou Luertai Electric Heating Appliance Co. Ltd.
Share on (1600507979945):
Product Overview
Description
Product Description
Cartridge heater introduction
Electric heater cartridge is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080),High temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form,that is used in heating applications.by way of insertion into metal blocks via a series of drilled holes.
Cartridge heaters are manufactured in two basic forms - high density and low density. High density cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.
Cartridge Heater for 3D Printer Parameter | ||
Resistance heating wire material | Cr20Ni80 | |
Tube material | SS304,SS316,SS310S,SS321,INCOLOY 800,INCOLOY 840 | |
Tube diameter | 4-6mm | |
Diameter tolerance | -0.02~0.2mm (as your request) | |
Tube length | 15-20mm | |
Length tolerance | ±1mm | |
Max. Temperature | 500℃ | |
Wattage tolerance | -6%~6% | |
Voltages | 12V/24V | |
Standard cold zone | 5-10mm | |
Insulation resistance (cold) | ≥500MΩ | |
Max. leakage current | ≤0.5mA | |
Thermocouple | Type J , Type K ,Type E | |
Details Images
Wattage tolerance -6%~6%
Add tips available
Customized Length
Standard Product Parameter
Special diameter, length of cartridge, length of lead, and extra features are availabe on request
Size | Power | Length | ||
6*20 | 24v 30w | 1m | ||
6*20 | 24v 40w | 1m | ||
6*20 | 12v 30w | 1m | ||
6*20 | 12v 40w | 1m | ||
Other specification customized | ||||
Certifications
We have CE,ROHS and letters patent
Company Profile
About us

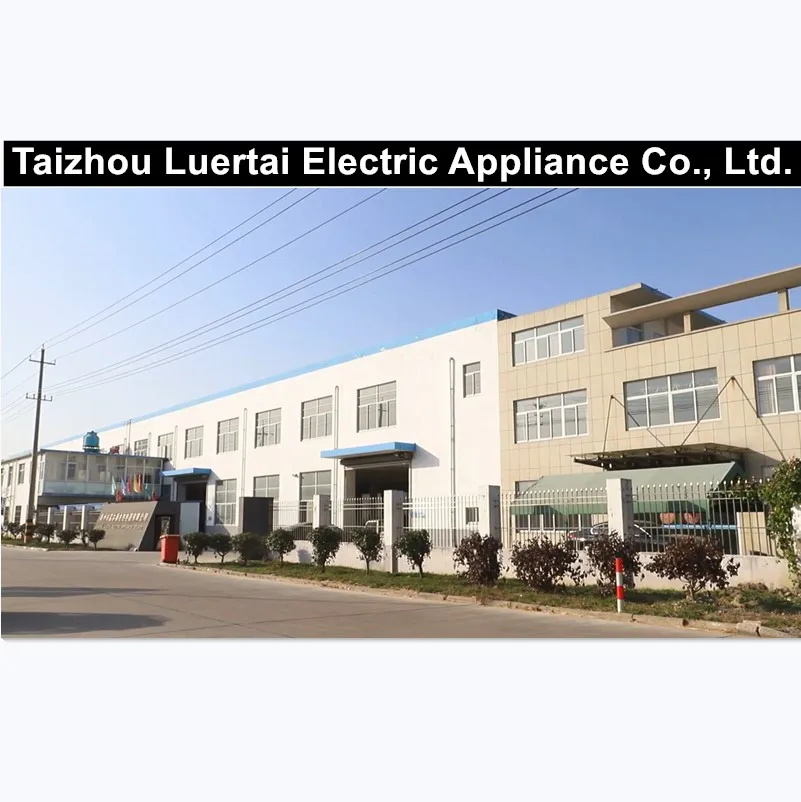

Taizhou Luertai Electric Appliance Co., Ltd. was founded in 2003.We have got strong capability of technology development and complete production equipment. We take the product quality as the foundation of our company and build customers' relationship with quality service. Satisfied, persisting in continuous improvement, our policy of 'Quality First, Customer First, Honesty, and Service", and gradually grow into a manufacturing enterprise with product development and large-scale production capacity.

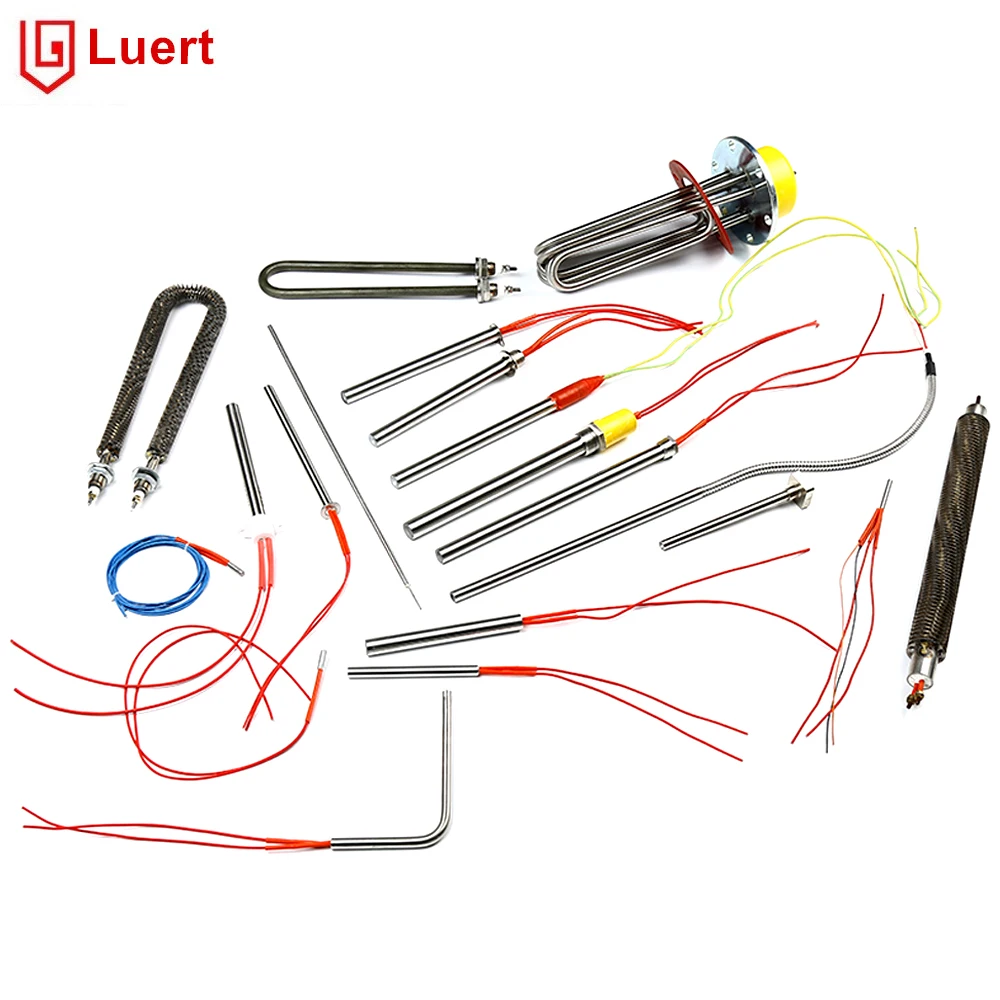

Our main products are: cartridge heaters, mold heaters, double-head eheaters, radiator heaters, filter housing single-head heaters, micro single-head heaters, 3D printing heaters, water heaters, steaming rice heaters, sauna electric heaters, civil purpose heaters, industrial heaters, finned heaters, finned electric heaters, titanium electric heating pipe, flange electric heating pipe, cast aluminum heater, heating ring and other stainless sheath products.
Our main products are: cartridge heaters, mold heaters, double-head eheaters, radiator heaters, filter housing single-head heaters, micro single-head heaters, 3D printing heaters, water heaters, steaming rice heaters, sauna electric heaters, civil purpose heaters, industrial heaters, finned heaters, finned electric heaters, titanium electric heating pipe, flange electric heating pipe, cast aluminum heater, heating ring and other stainless sheath products.

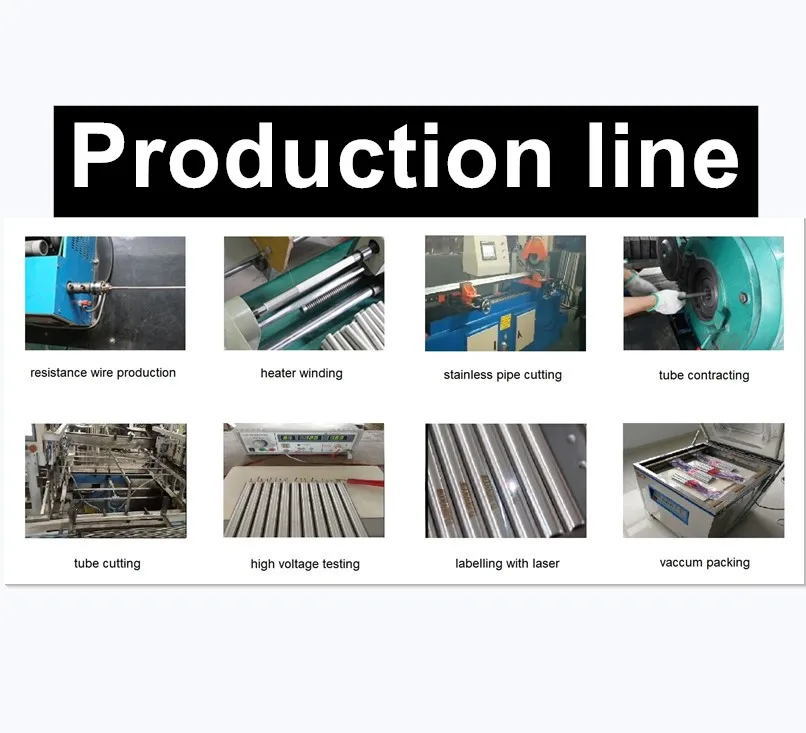

Process Introduction
High Quality Testing Equipments
QC Standards
Packaging & Shipping
Our Service
