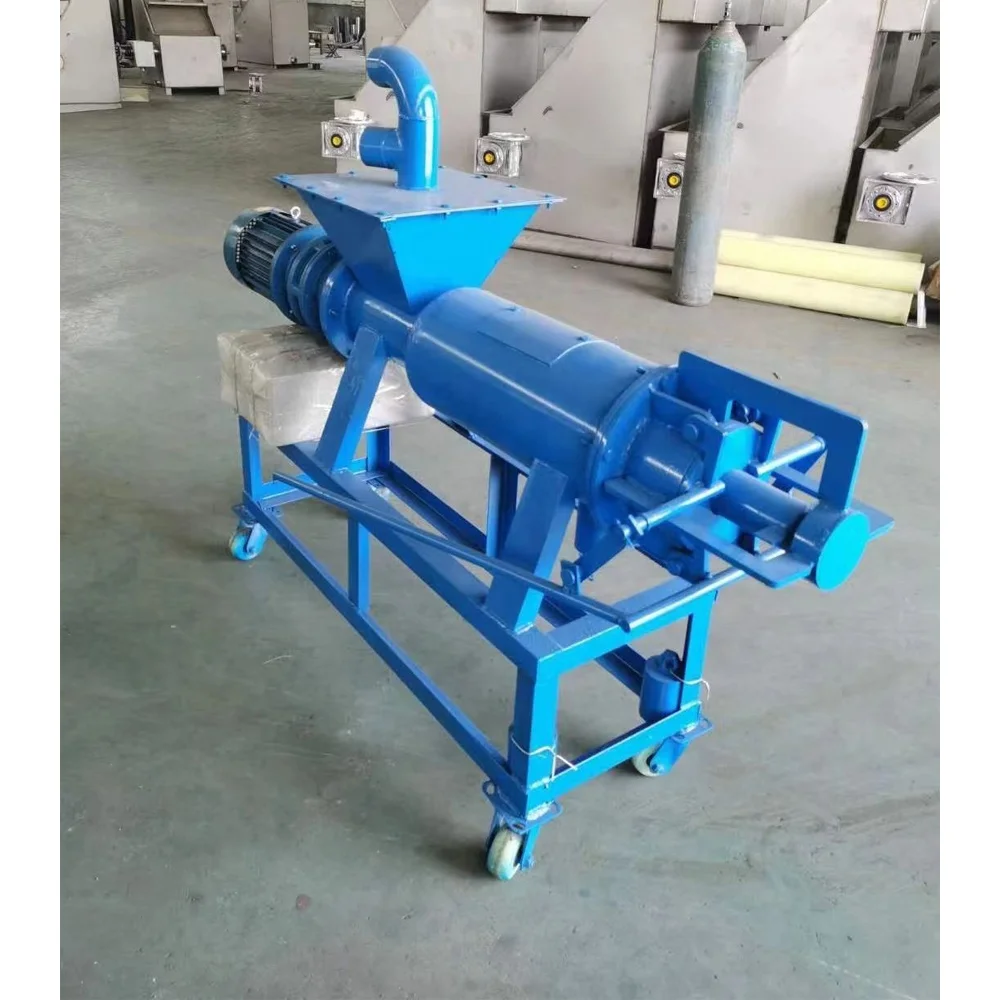

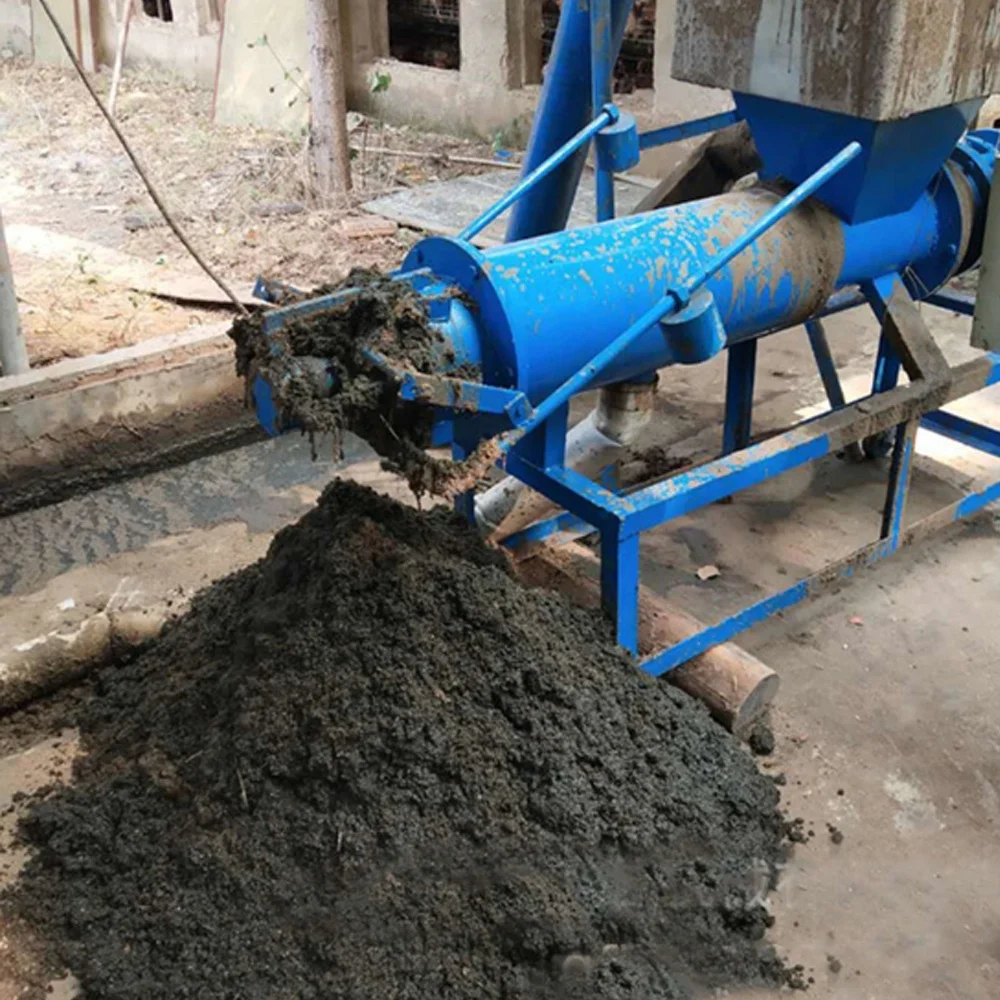

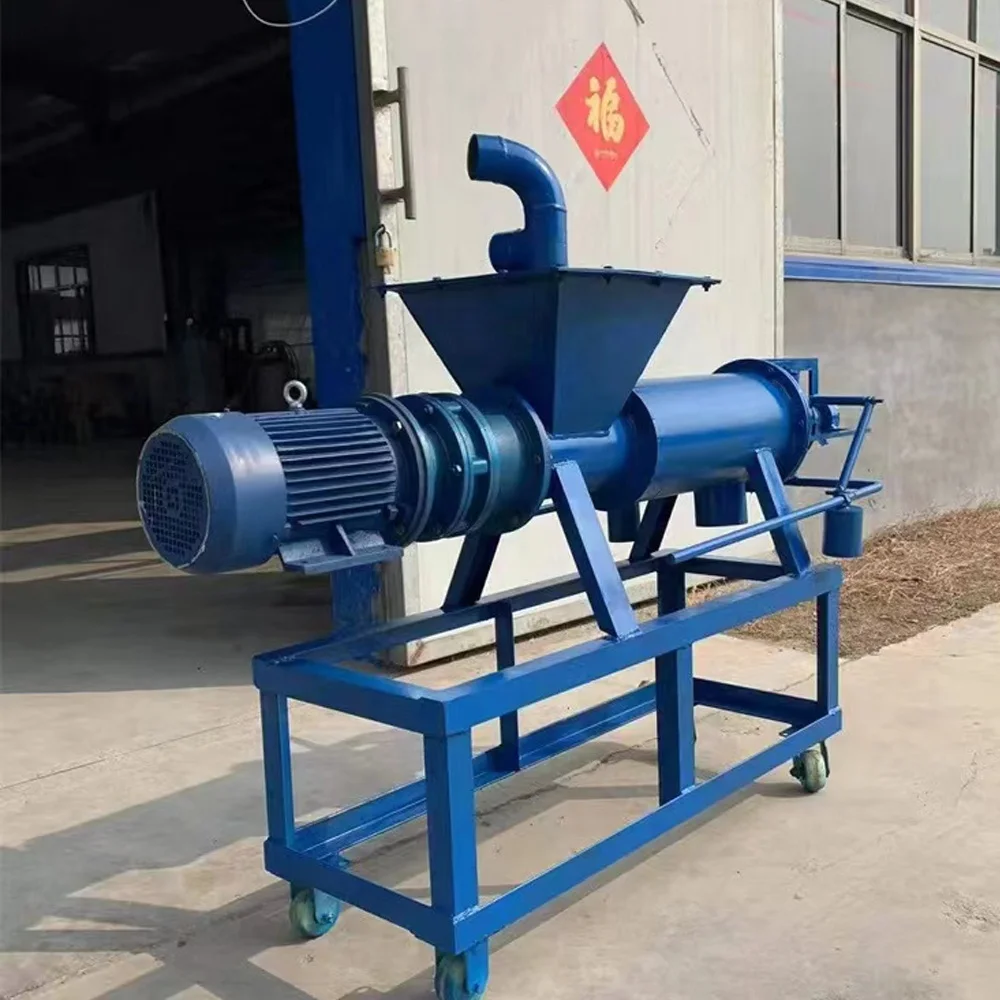

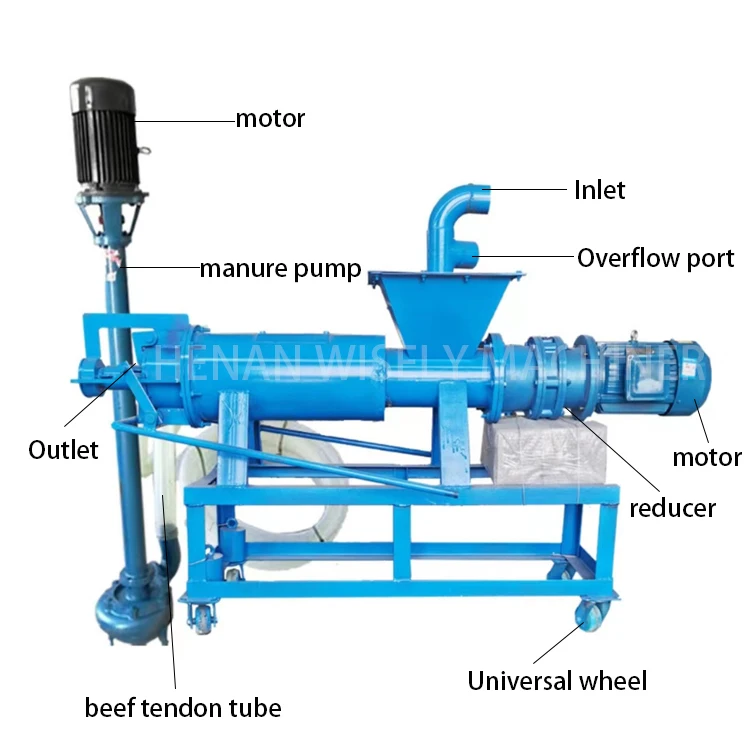

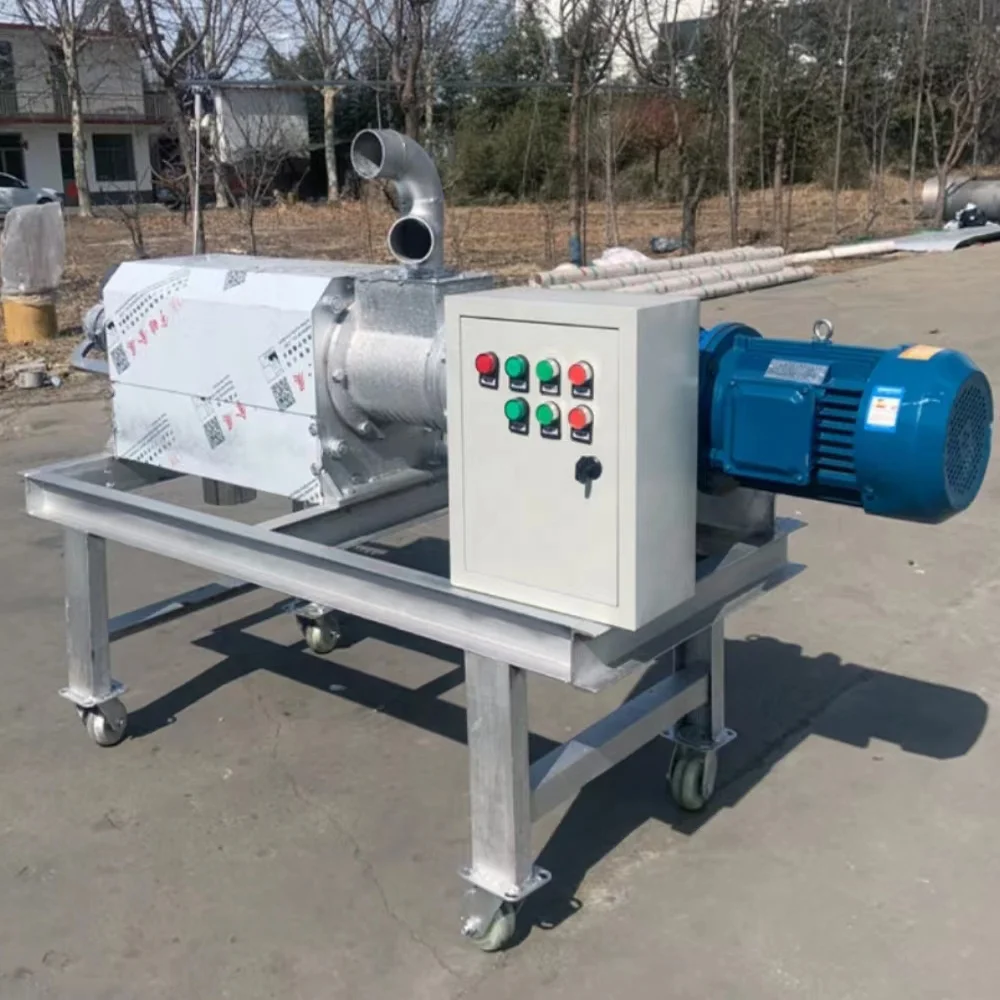

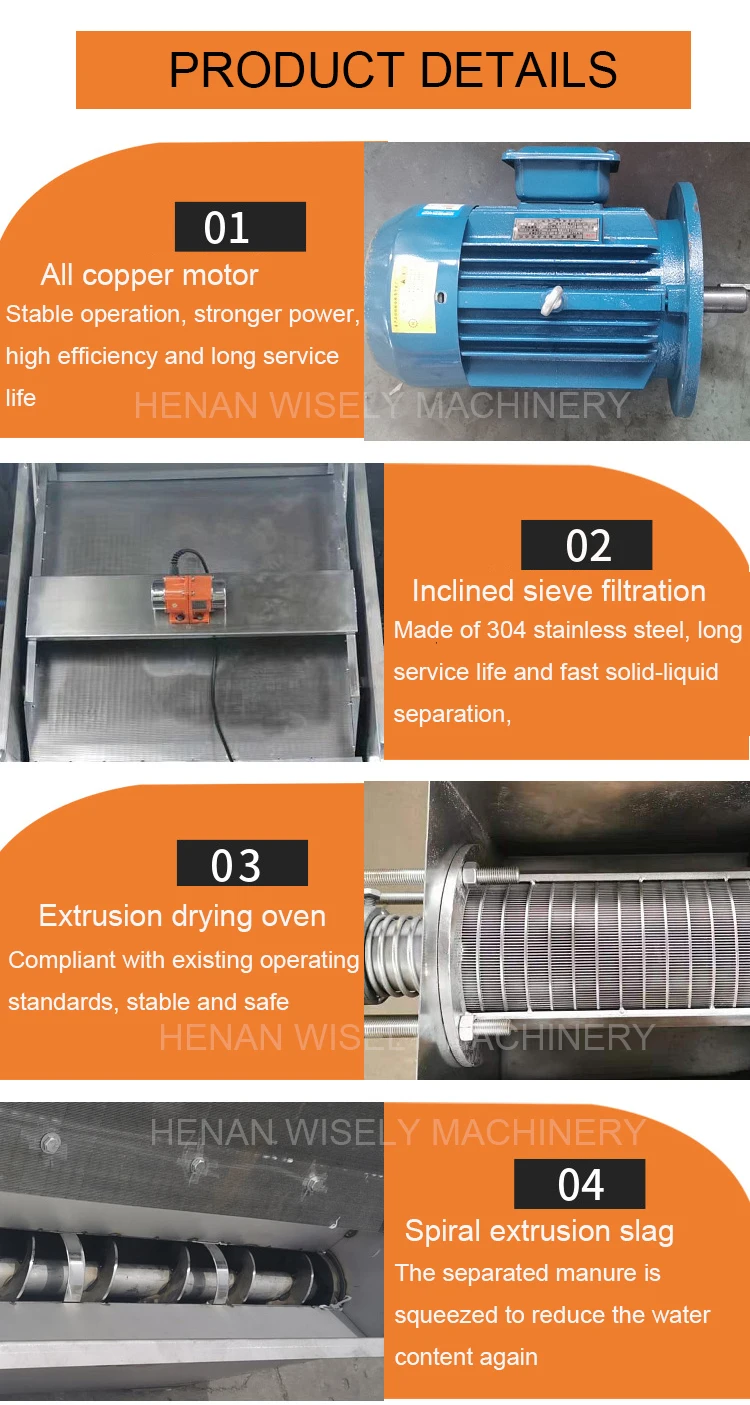

The machine adopts the physical principle of screw extrusion, which can freely control the discharge speed and water content, so that the water in the material is squeezed out of the mesh screen and flows out of the drainage pipe, and the solid-liquid separation is completed by quick reading, with high efficiency and good effect.


| model | 180 | 200/stainless steel/extended | 200/stainless steel/extended | 400 |
| power supply | 380V/220V | 380V/220V | 380V/220V | 380V/220V |
| monitor rate(kw) | 4 | 5.5 | 7.5 | 11 |
| Pump power(kw) | 3 | 3 | 3 | 3 |
| Inlet (overflow) material port(mm) | 76 | 76 | 76 | 76 |
| drain(mm) | 102 | 102 | 102 | 102 |
| Dimensions(mm) | 1800*1300*500 | 1900*1400*500 | 2400*1400*600 | 2700*1400*800 |
| weight(kg) | 230 | 360 | 420 | 600 |
| material | 450 Steel#/Stainless Steel | |||
| Net barrel size(mm) | Hole 180*600 long | 200*600 | Hole 300*600 long | Hole 400*600 long |

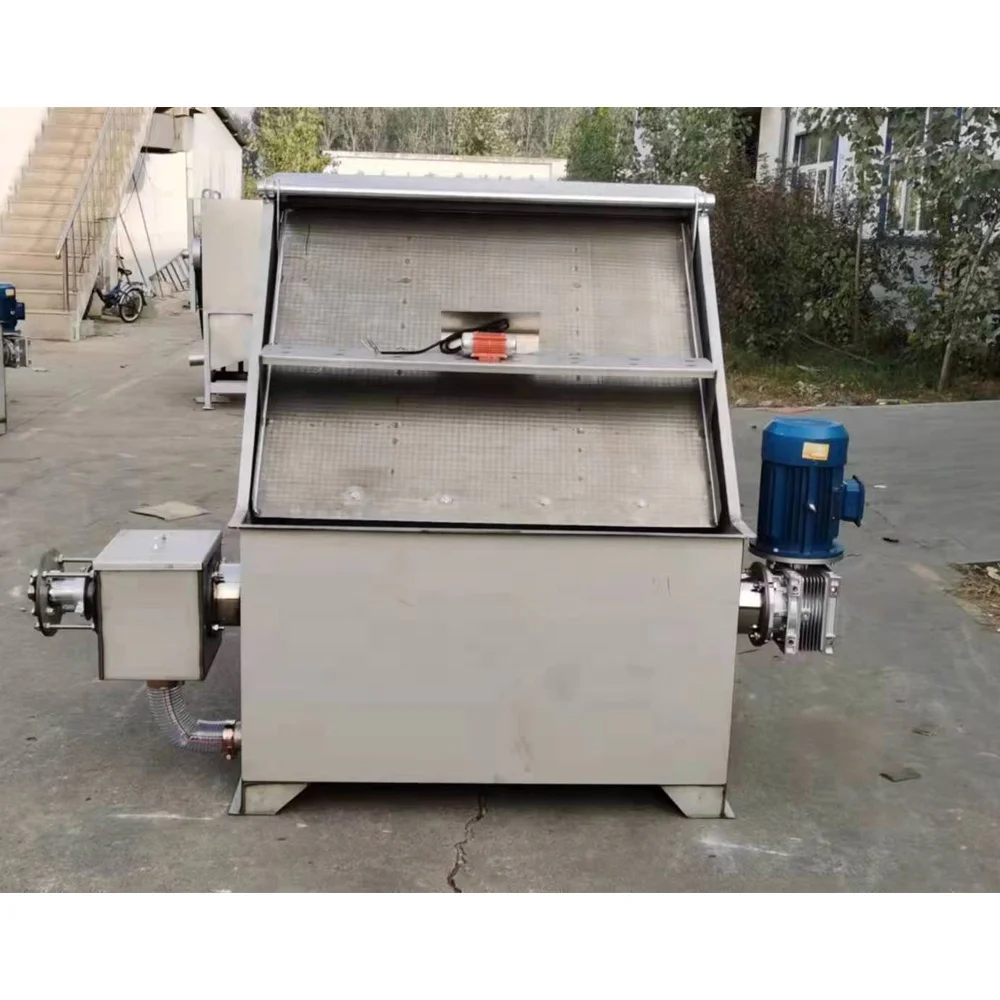

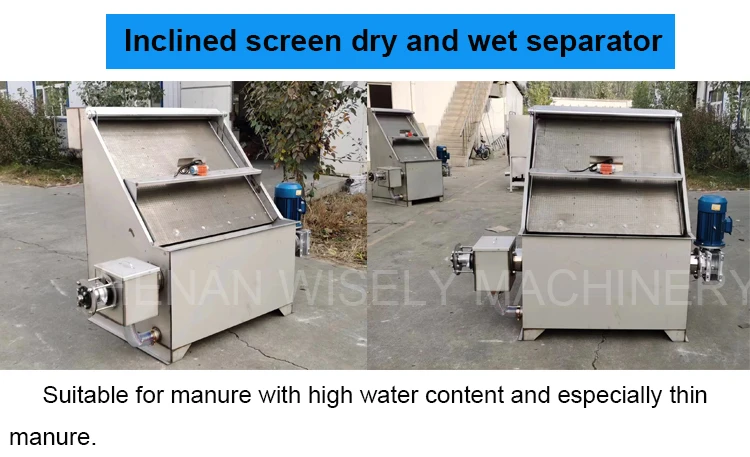

model | Inclined screen 800 | Inclined screen 1200 |
| power supply | 380V/220V | 380V/220V |
| monitor rate(kw) | 3 | 4 |
| Pump power(kw) | 1.8 | 1.8 |
| Inlet (overflow) material port(mm) | 45 | 45 |
| drain(mm) | 100 | 100 |
| Dimensions(mm) | 1800*1300*1600 | 2200*1300*1600 |
| weight(kg) | 320 | 380 |
| material | Stainless Steel | |
| pumping raw feces | 15/40 | 15/40 |
| Dried manure | 6 | 8 |

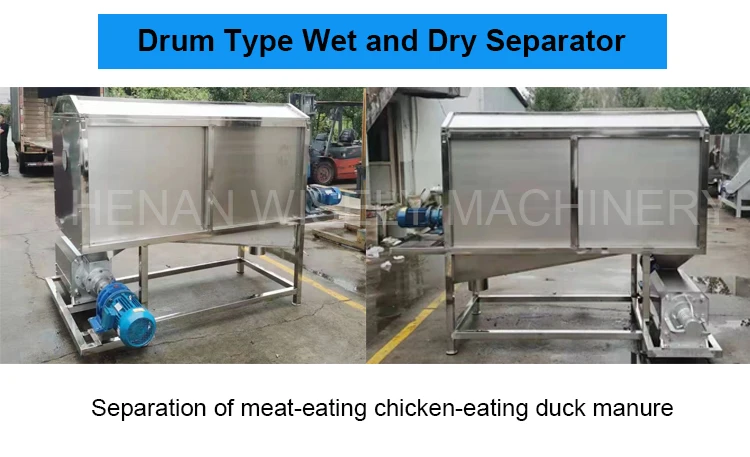

| model | Drum 1500 | Drum 2000 |
| size | 2100*1800*1600 | 2500*900*1800 |
| Roller size | Φ700*1500 | Φ700*2000 |
| filter mesh | 20-160 | 20-160 |
| power | 5.5kw | 7.5kw |
| suction pump | 3kw | 4kw |
| roller | 2.2kw | 3kw |
| efficiency | 15-20m³/hour | 20-40m³/hour |
| Rotating speed | frequency conversion | frequency conversion |




Q:1.Are you a factory or a trading company?
A:We are a factory mainly produces the machinery for 12 years.We have our own professional research team to develop products.using "Self-produced
Self-marketing" business model, reducing the cost of intermediate links.
Q:2.Where is your factory located ? How can I visit there?
A:Our factory is located in Kaifeng city ,Henan province ,China.1 hour drive from nearest zhengzhou xinzheng airport.
Q:3.How long is your delivery time?
A:All machines can be 10 working day after receive the deposit.
Q:4.What should I do if there is some trouble while using?
A:We will supply English manual book and take a video to show how to resolve the problems or dispatch our engineer to your factory.
Q:5.Can we buy one sample?
A:Yes, one sample order is welcome. However, we need to add sample fee to the price and will return it back to you after receiving your large order in future.
Q: 6.How do you control your quality?
A:To guarantee high quality and efficient management, our whole manufacturing processes are under a very serious and strict system, and we have passed ISO9001 quality management system certificate. All of our products are 100% inspected before shipment.
Q:7.What’s the Payment term?
A:30% deposit, 70 % before delivery or Trade Assurance.L/C,T/T,PayPal,and so on.
