Product Overview

Description



Product Description

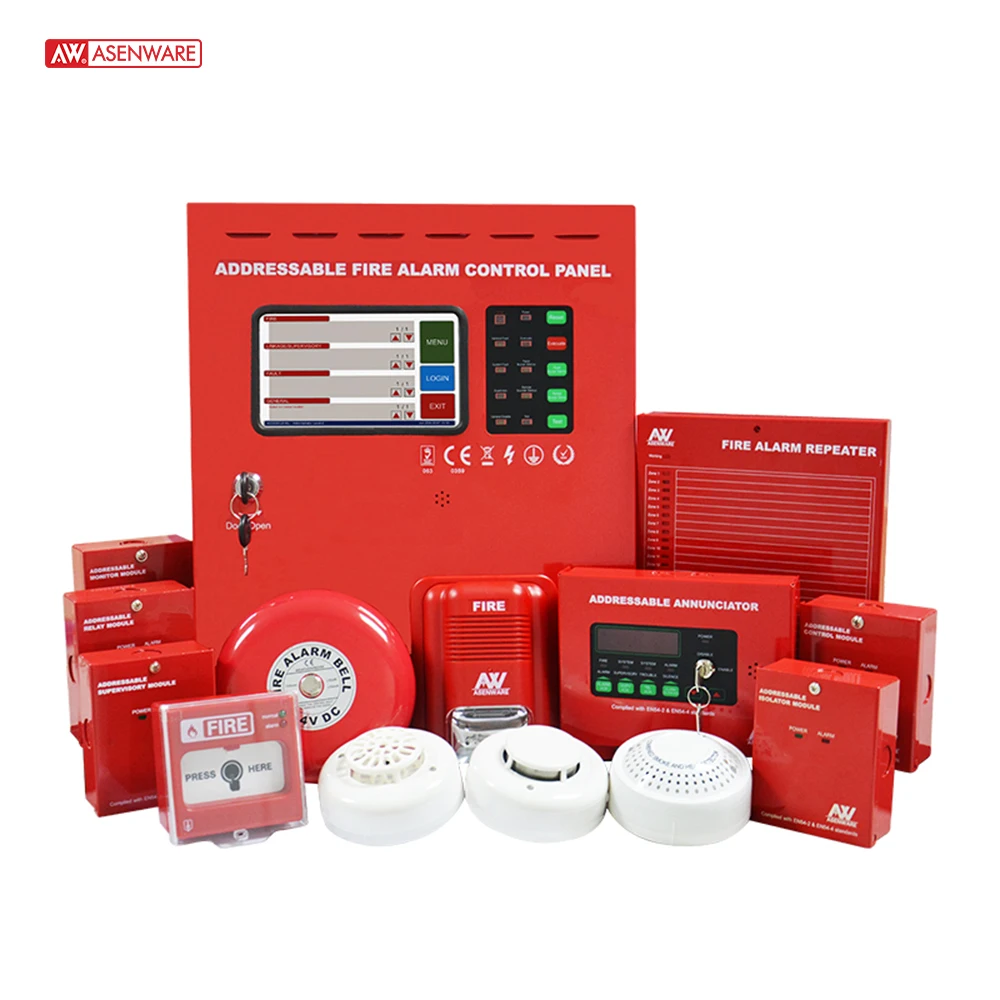

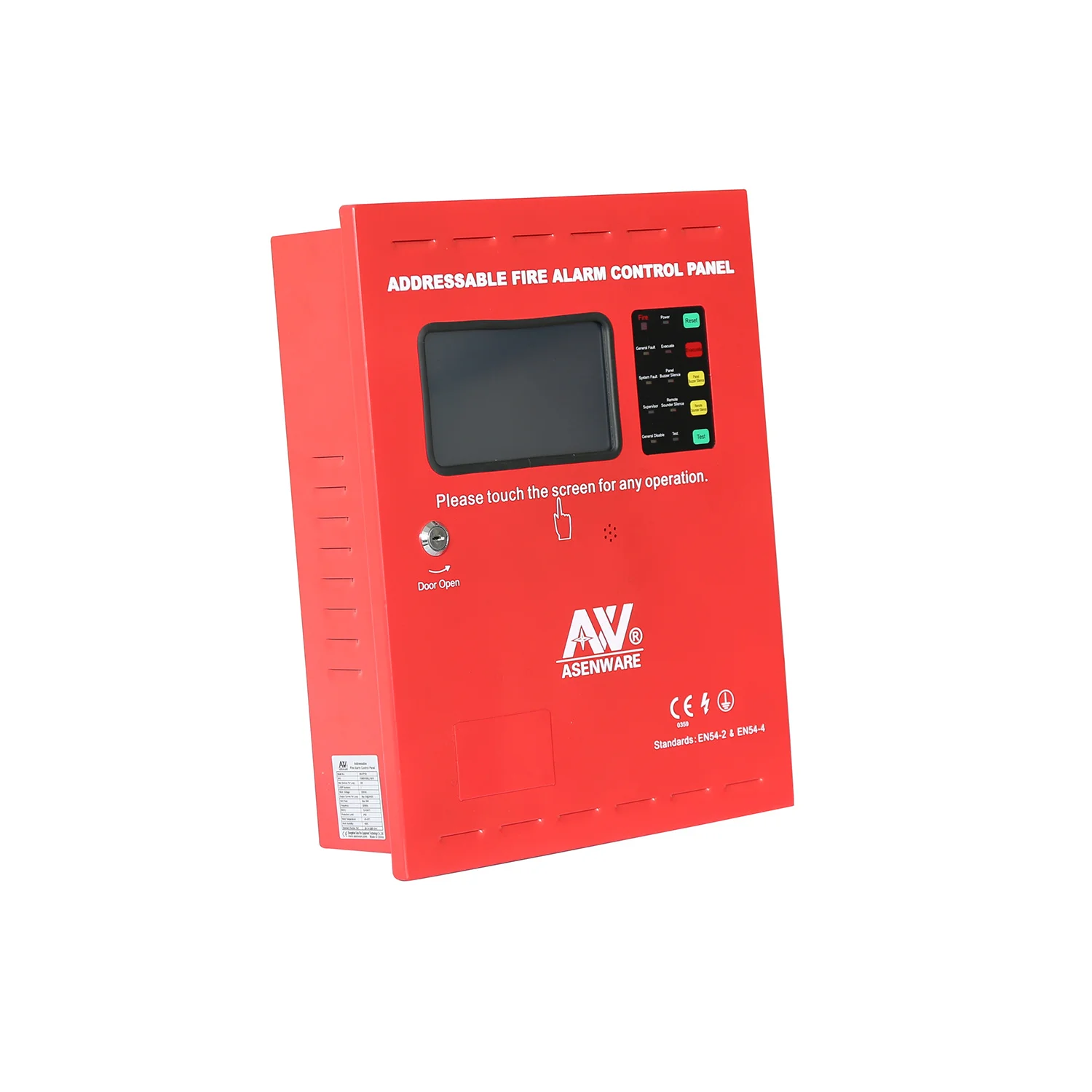

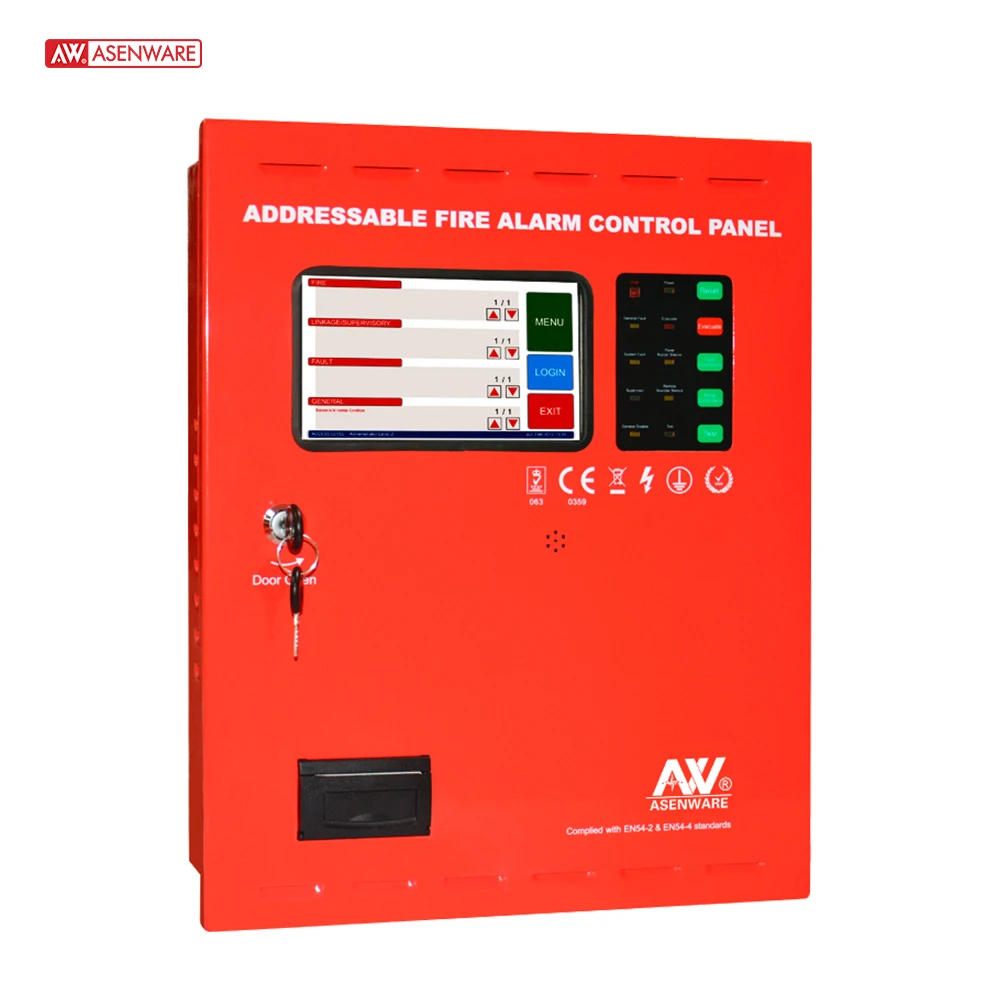

AW-FP100 series fire alarm control panel is intelligent panel which are carefully designed to make it suitable for most of applications. It can be configured with other panels or control systems.
Its user friendly functionality makes it suitable to program and configure the devices. 7'' touch-screen display gives the information for fire alarm, trouble, supervisory and other related information all the time.




Specification


Brand Name
Asenware
Model Number
AW-FP103
Product name
Addressable fire alarm control panel
Main power
110 VAC or 220VAC (±20%) 50Hz/60Hz
Batteries
2*12V,17Ah Lead acid batteries
Battery low-voltage protection
21V
Number of points on each loop
250 pcs
Environmental
Temperature range: -10 to 55°C (14~134°F);
Relative humidity:5 to 95%,non-condensing
Network available options
GSM/IP/Cloud/Mobile Apps
Fuse for AC power
5A/250V glass tube fuse,slow blow,5*20mm
Fuse for DC power
25A/250V ceramics tube fuse slow blow 5*20mm
Terminal blocks rating
All terminals rated for 12 to 18 AWG(0.75 to 2.5 mm2)
Size（L*W*H）
605mm* 460mm* 131mm
