Product Overview

Description


Special Features:
* Fout to Sixteen Style B (Class B) Initiating Device Circuits (IDCs).
* All zones accept two-wire smoke detectors and any normally-open contact devices.
* Four built-in, Style Y (Class B) Notification Appliance (Signal) Circuits (NACs).
* Alarm, Trouble and Supervisory, Form-C relays standard.
* 24-volt operation.
* Resettable four-wire smoke detector power @ 500 mA.
* Non-resettable power @ 500 mA.
* One-man walk-test programmable for silent or audible test.
* Disable/Enable control per IDC.
* Reverse polarity protection





Specifications



1. 16-zone fire alarm control panel (FACP).
2.Designed with standby batteries and space provision for two sealed lead-acid batteries.



1.AC Power
     220 VAC, 50 Hz, 2.3 amps
    Wire size: minimum #14 AWG (2.0 mm2) with 600V insulation
2.Battery (lead acid only)
     Maximum Charging Circuit: Normal Flat Charge—27.6V @ 0.8 amp
     Maximum Charger Capacity: 18 Amp Hour batter
3.Sound Output Device Circuits
      General Alarm Zones 1 through 16
      Operation: All zones Class B
      Normal Operating Voltage: Nominal 24 VDC (ripple = 100 mV maximum)
      Alarm Current: 15 mA threshold
      Short Circuit Current: 42 mA maximum
       Maximum Loop Resistance: 100 ohms
       End-of-Line Resistor: 4.7K, ½ watt
       Detector Loop Current is sufficient to ensure operation of two alarmed detectors per zone
       Standby Current: 7.26 mA
4.Three Relays Output
Relay contact rating: 2.0 amps @ 30 VDC (resistive), 2.0 amps @ 30 VAC (resistive)
5.Nonresettable 24 VDC Power
     Maximum ripple voltage: 10 mVRMS Operating Voltage nominal 24 volts
     Total DC current available from this output is up to 500 mA
     Recommended maximum Standby current is 150 mA





Conventional Fire Alarm System CK1004.jpg

Conventional Fire Alarm System architecture.jpg

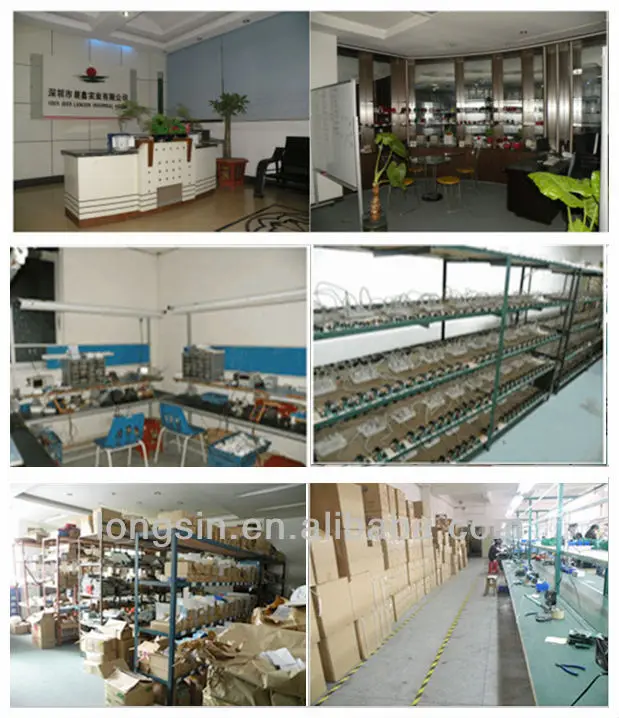

Company Information
