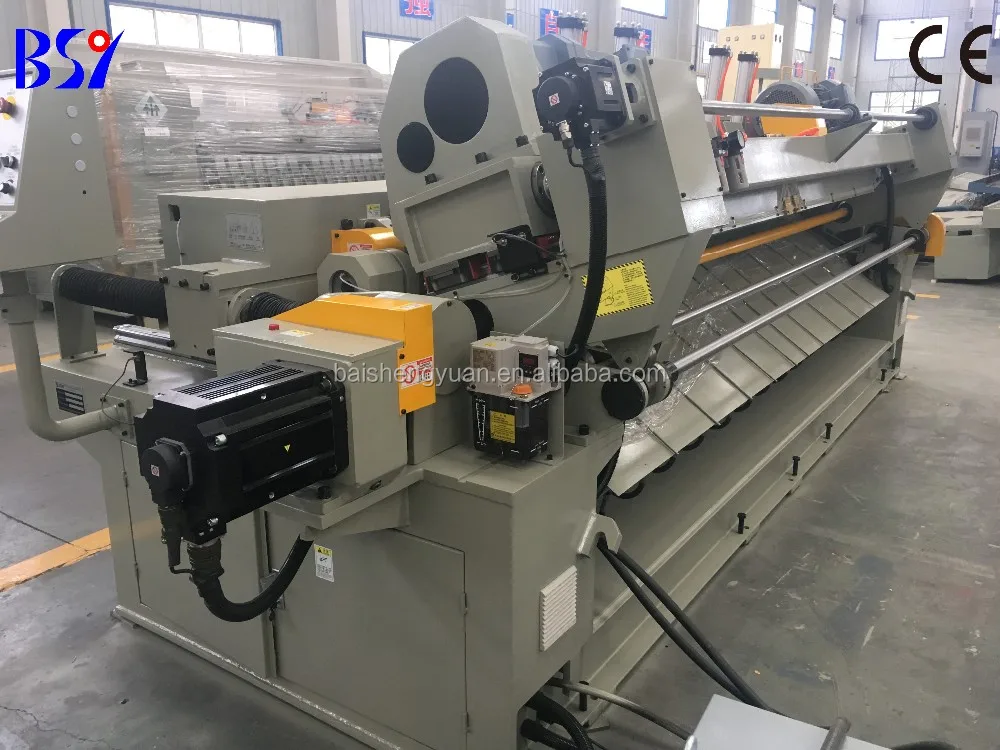

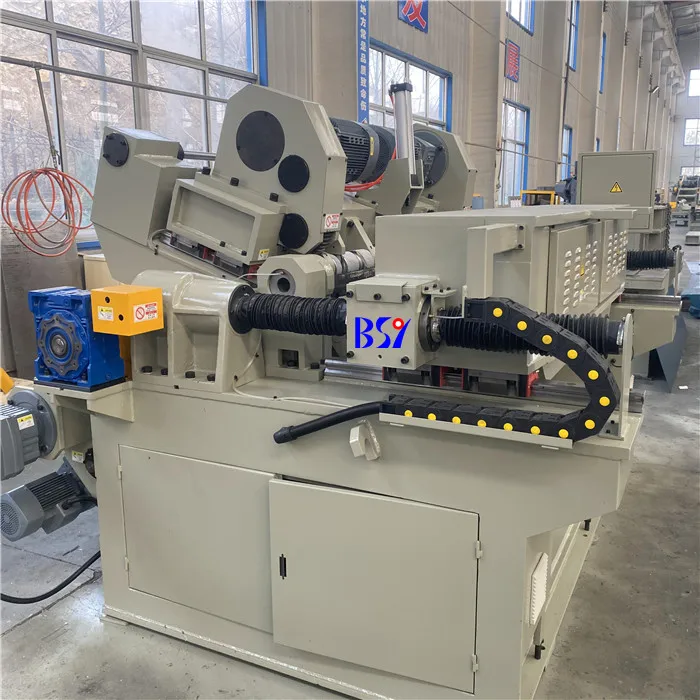

Automatic 4feet and 8feet spindless veneer rotary peeling lathe for osb/wood veneer shaving machinery
- Category: Woodworking Machinery >>>
- Supplier: Shandong BSY Group Co. Ltd.
Share on (1600510764830):
Product Overview
Description
Production Description
Spindleless wood veneer peeling machine is mainly used for producing veneer from the wood (log),it's the main machine in
processing plywood.It can peel diameter less than 360mm,high efficiency,improve wood utilization
processing plywood.It can peel diameter less than 360mm,high efficiency,improve wood utilization
Product Name | Automatic spindless 4feet and 8feet wood veneer rotary peeling lathe machinery |
Material of roller | high quality 45# steel |
Control system | CNC automatic control,brand:Mitsubishi |
Feeding system | Ball screw and linear guide |
Knife carriage and knife gap | With two servo motor |
Knife assembling | By hydraulic |
Trasmission | By gear |
Model | SL1350/5B | SL2600/5B |
Max.rotary cutting length | 1350mm | 2600mm |
Max.peeling diameter | 480mm | 480mm |
The final diameter | 40mm | 40mm |
Veneer thickness | 0.8-3.0mm | 0.8-3.0mm |
Peeling speed | 30-80m/min | 30-80m/min |
Roller transmission motor power | 30kw | 44kw |
Feeding servo motor power | 7kw | 11kw |
Total motor power | 40kw | 58kw |
Size | 3520x2150x1870mm | 5370x2150x1870mm |
Weight | 10000kg | 13500kg |

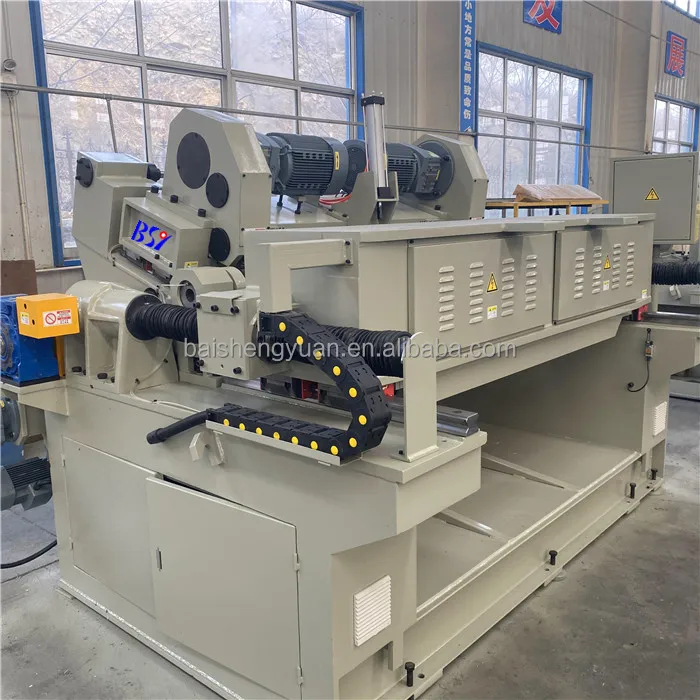

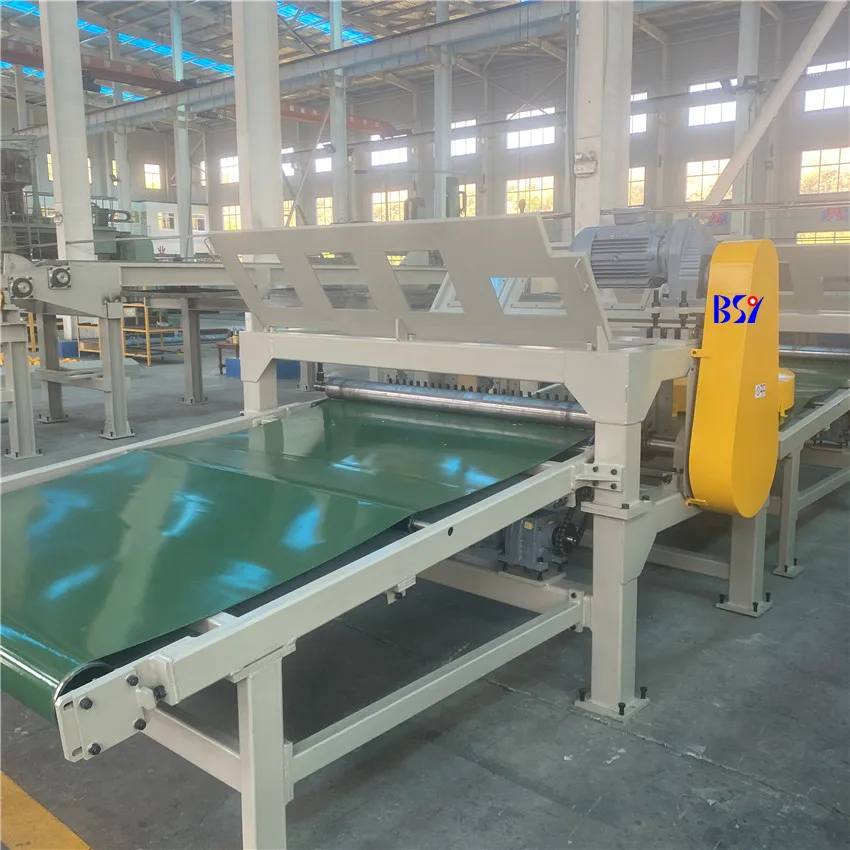

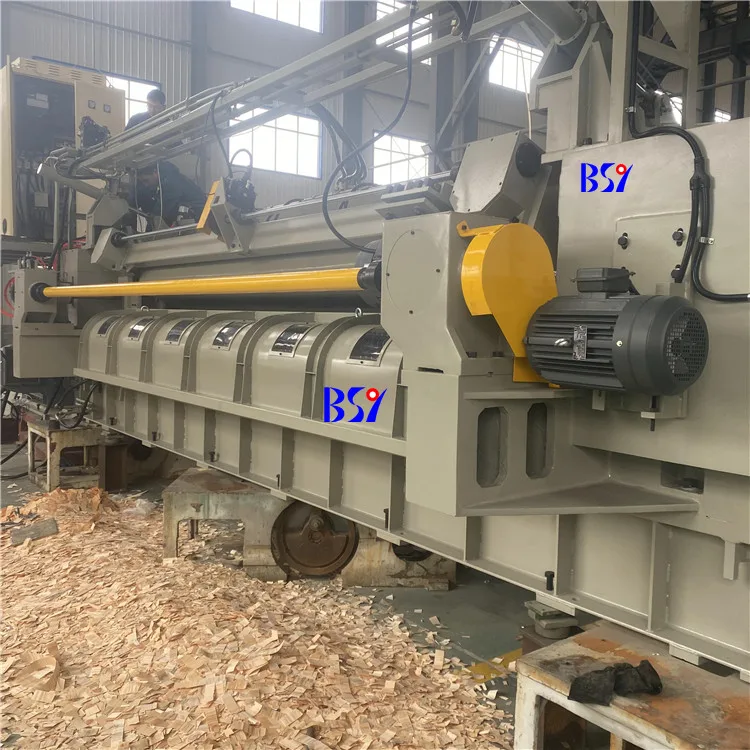

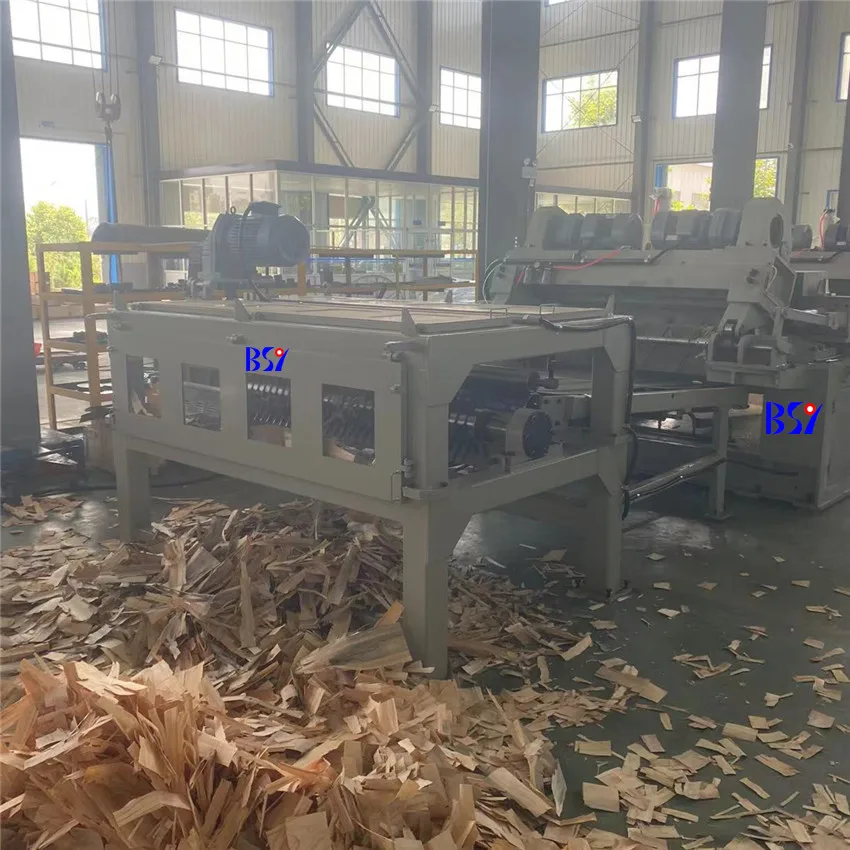

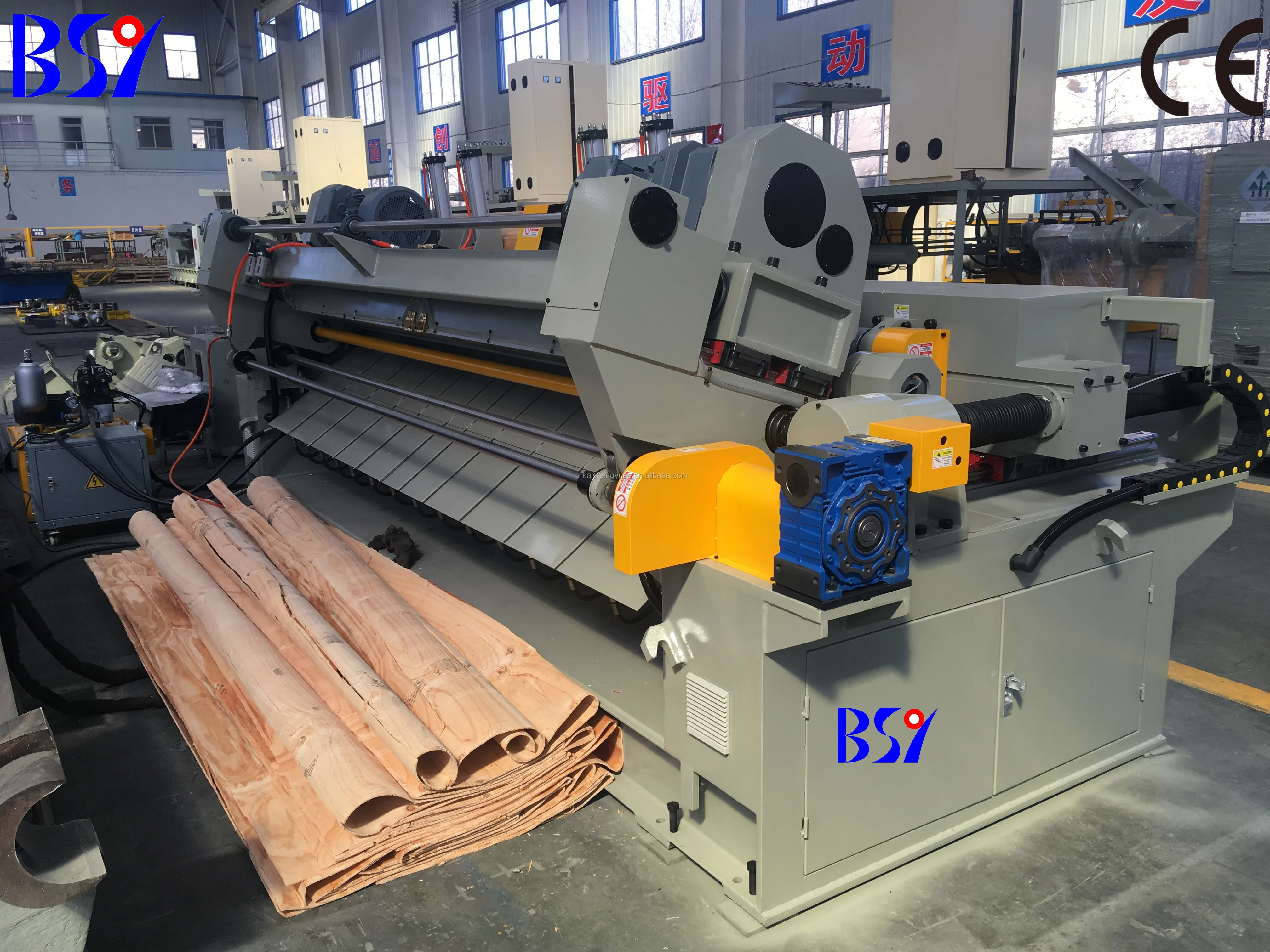

Product show
features
Features:
1.CNC system to control the main parts work,with good processing precision
2.Servo motor control the tool carriage ahead and back.(guaranted the veneer evenness and minimized) Brand: Mitsubishi
3.The knife assembling system is by hydraulic,with hydraulic system for knife installation which makes easy to change knife when
need to grind and save time.
4. The transmission is gear box driving screw,the material of gear:high quality alloy.
5. The main structure is welded by thick steel plate and do special surface dealing.
6. With servo motor control knife-gap, the knife-gap automatic adjustment,with high precision
7.With ball screw and linear guide,with high positioning accuracy and high transmission efficiency
8.The material of roller with 45# steel,the surface with chroming,it improve the hardness and wear-resistant,the roller with long
using life.
1.CNC system to control the main parts work,with good processing precision
2.Servo motor control the tool carriage ahead and back.(guaranted the veneer evenness and minimized) Brand: Mitsubishi
3.The knife assembling system is by hydraulic,with hydraulic system for knife installation which makes easy to change knife when
need to grind and save time.
4. The transmission is gear box driving screw,the material of gear:high quality alloy.
5. The main structure is welded by thick steel plate and do special surface dealing.
6. With servo motor control knife-gap, the knife-gap automatic adjustment,with high precision
7.With ball screw and linear guide,with high positioning accuracy and high transmission efficiency
8.The material of roller with 45# steel,the surface with chroming,it improve the hardness and wear-resistant,the roller with long
using life.
Details Images

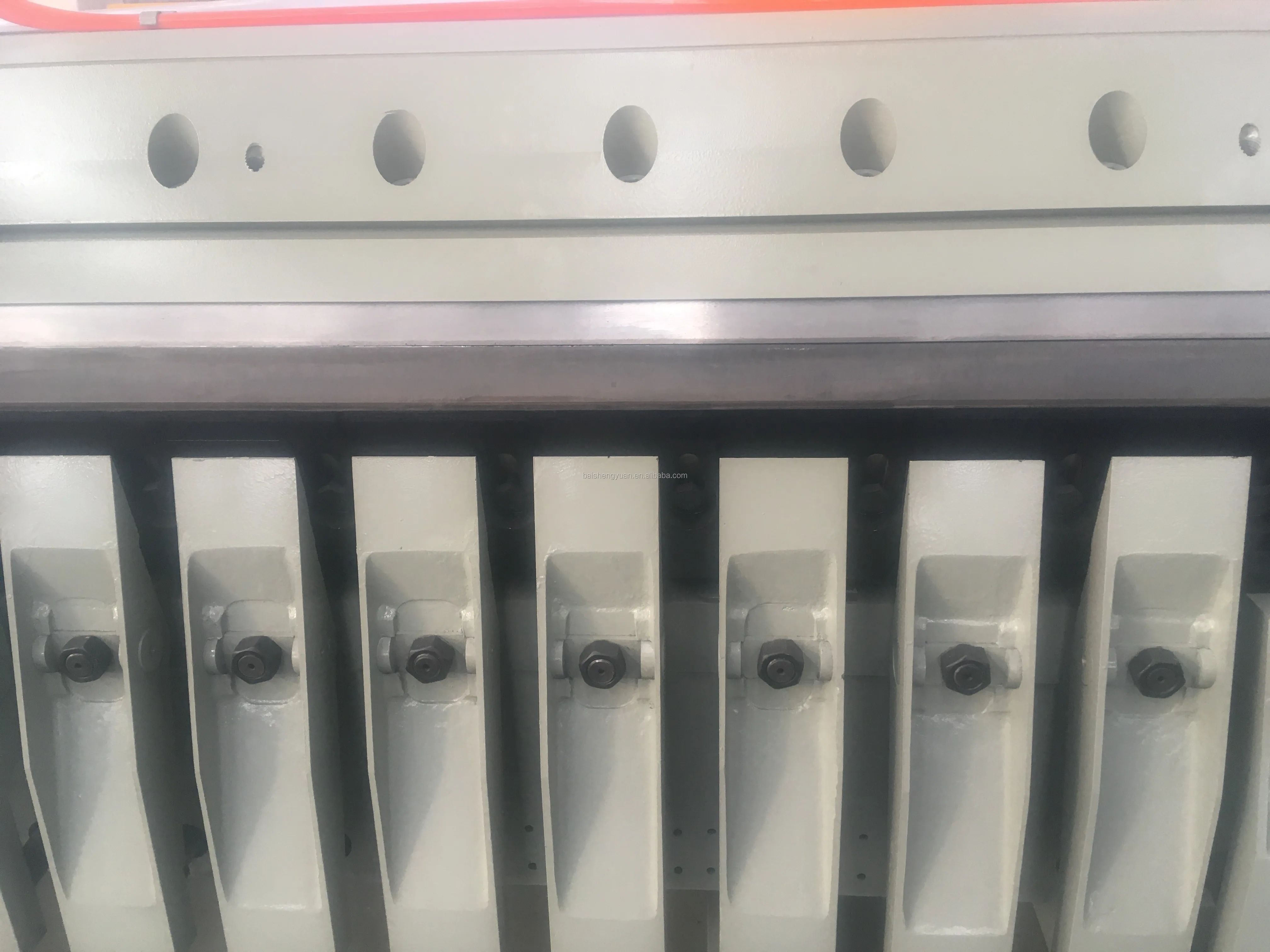

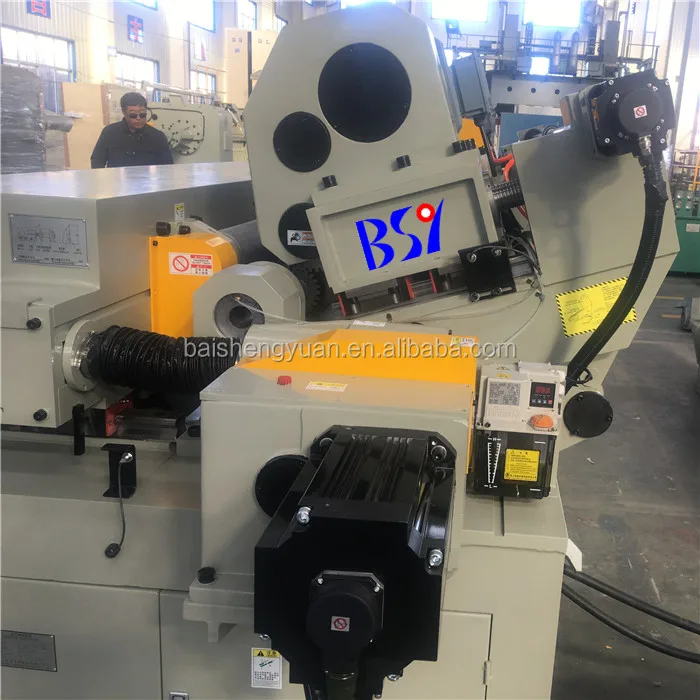

The knife assembling by hydraulic system,with hydraulic system for knife installation which makes easy to change knife when need
to grind and save time.
to grind and save time.
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Certifications
Company Profile
Our factory
workshop 01
workshop 02
SHANDONG BAISHENGYUAN GROUP CO.,LTD
1. Leading manufacturer of woodworking machinery in China, found in 1956. specialize in this field for more than 60 years.
2. Almost 30 year export experience, exported dozens of countries in Asia, Europe, Africa and America. All products are quite
popular among clients.
3.Specializing in plywood production line and finger joint board production line. We have our own designers to meet any of your
requirement.
4. Having own after –sale maintenance center, our engineer can go to overseas for installation and commissioning.
1. Leading manufacturer of woodworking machinery in China, found in 1956. specialize in this field for more than 60 years.
2. Almost 30 year export experience, exported dozens of countries in Asia, Europe, Africa and America. All products are quite
popular among clients.
3.Specializing in plywood production line and finger joint board production line. We have our own designers to meet any of your
requirement.
4. Having own after –sale maintenance center, our engineer can go to overseas for installation and commissioning.
333
Packing&Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 25-35 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment. Or L/C
If you have another question, pls feel free to contact us as below:
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 25-35 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment. Or L/C
If you have another question, pls feel free to contact us as below:
