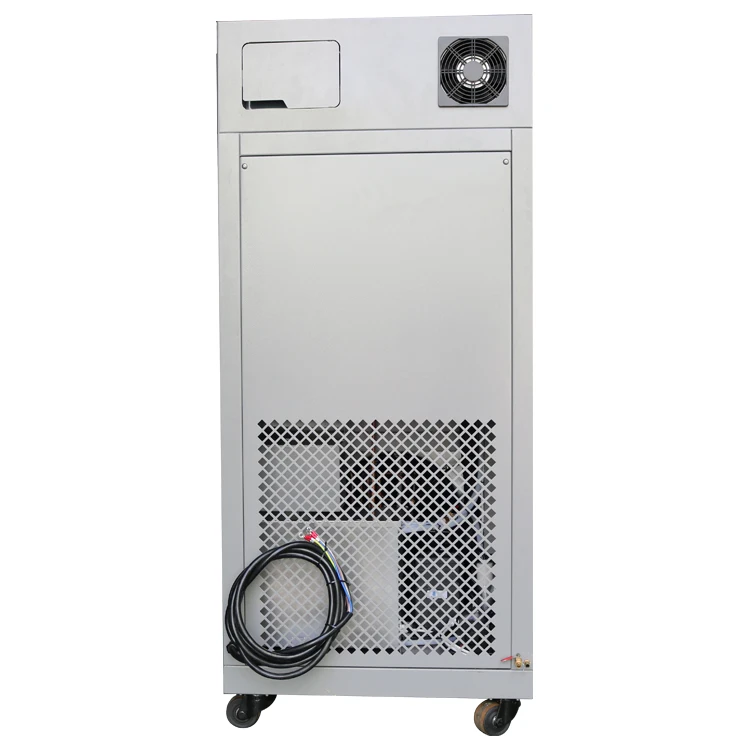

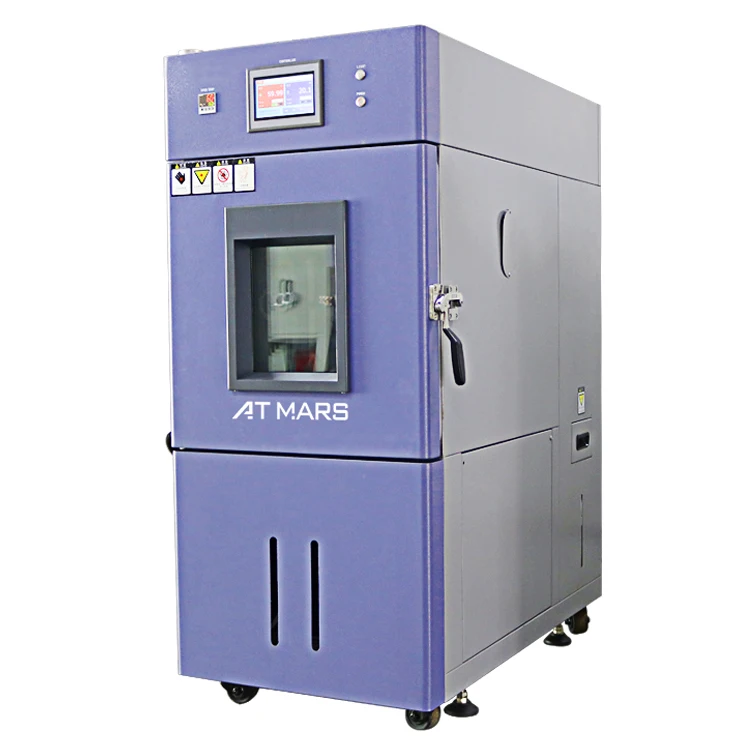

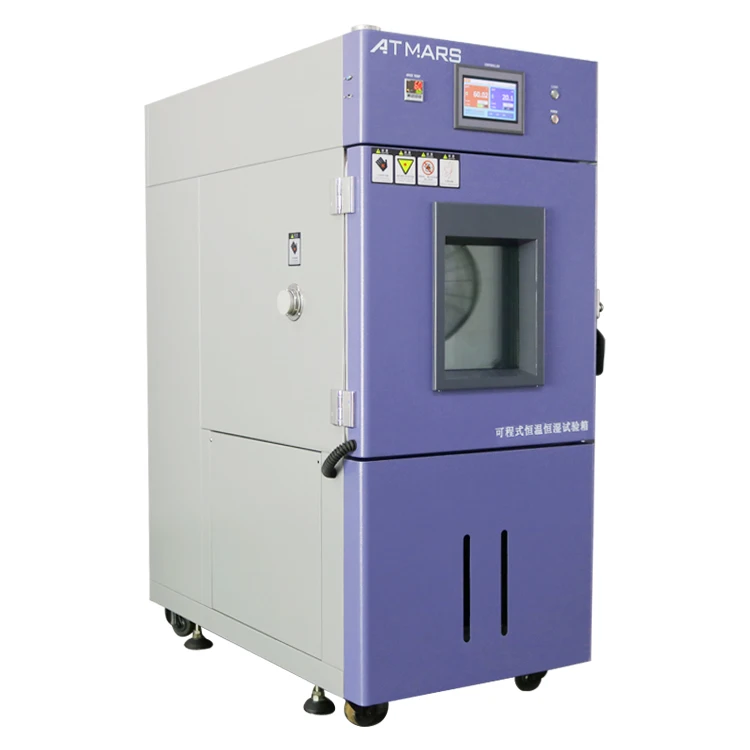

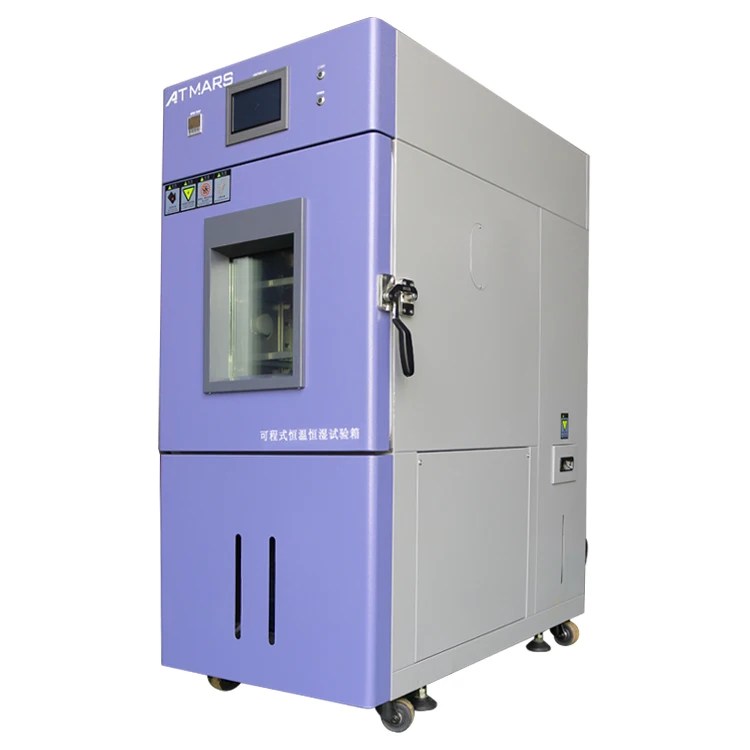

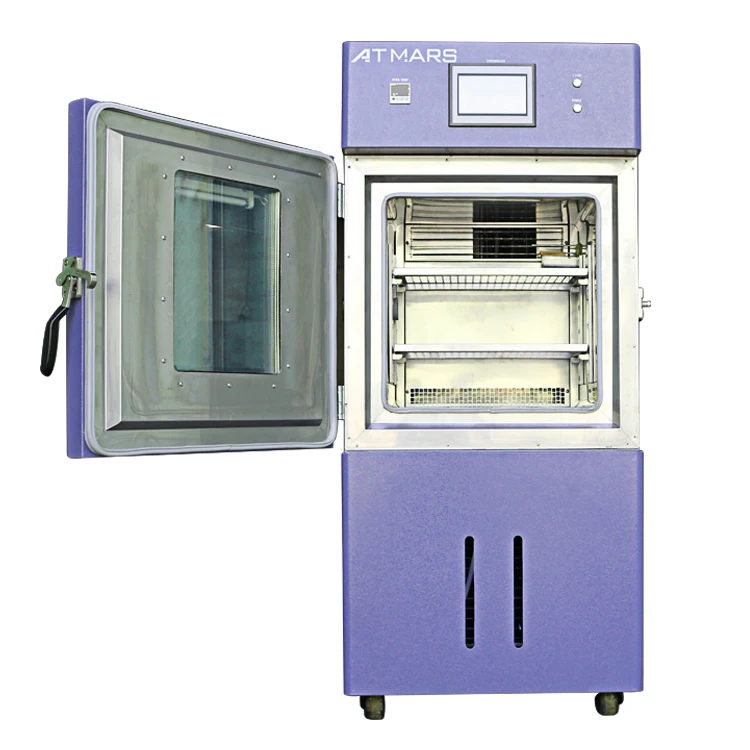

Lab Machine Test Equipment Constant Temperature Humidity Test Chamber Climatic Test Chamber With LED Controller
Lab Machine Test Equipment Constant Temperature Humidity Test Chamber Climatic Test Chamber With LED Controller
Lab Machine Test Equipment Constant Temperature Humidity Test Chamber Climatic Test Chamber With LED Controller
Lab Machine Test Equipment Constant Temperature Humidity Test Chamber Climatic Test Chamber With LED Controller
Lab Machine Test Equipment Constant Temperature Humidity Test Chamber Climatic Test Chamber With LED Controller
Lab Machine Test Equipment Constant Temperature Humidity Test Chamber Climatic Test Chamber With LED Controller
Lab Machine Test Equipment Constant Temperature Humidity Test Chamber Climatic Test Chamber With LED Controller

Lab Machine Test Equipment Constant Temperature Humidity Test Chamber Climatic Test Chamber With LED Controller

Share on (1600511446057):


Price:$3,500.00 - $10,000.00

Quantity:


Product Overview

Description





Products Description




Product Name
Temperature  humidity test chamber-100L
Brand
ATMARS
colour
Blue , white , red , customized
MOQ
1Pieces




Specifications of AH-408 Series Temperature Humidity Test Chamber
*Performance is based on ambient temperature +25 ℃ or circulating water temperature +25 ℃, empty load.


Model
ATH-100A
ATH-100B
ATH-100D
T&H adjustment mode
Smart balanced temperature (humidity) control - BT(H)C
Perfomance
Temperature range
-20℃ to +150℃
-40℃ to +150℃
-70℃ to +150℃
Temperature fluctuation
≤±0.5℃
Temperature uniformity
≤±2.0℃
Temperature deviation
≤±2.0℃
Heat-up rate
Non-linear
From -20℃ to +150℃
3℃/min.
From -40℃ to +150℃
3℃/min.
From -70℃ to +150℃
3℃/min.
Cool-down rate
Non-linear
From +20℃ to -20℃
1℃/min.
From +20℃ to -40℃
1℃/min.
From +20℃ to -70℃
1℃/min.
Humidity range
20％RH to 98％RH
Humidity fluctuation
±2.0％RH
Humidity unformity
±3.0％RH
Humidity deviation
±3.0％RH when Humidity＞75％RH
±5.0％RH when Humidity≤75％RH
Noise level
≤70dB
Workspace volume
100L
Workspace dimensions (WxDxH)mm
500*400*500
Exterior dimensions (WxDxH)mm
750*1400*1500
Material
Interior
Matte SUS #304 Stainless Steel Plates
Exterior
Powder Coated Carbon Steel Plates
Seal
Imported Silicone Seal
Insulation
Hard Polyurethane Foam Insulation and Glass Wool
System
Heating
Nichrome Wire Electric Heater
Humidification
Stainless Steel Armoured Humidifier (Vapor Generator System)
Air circulation
Centrifugal Blower Fan
Refrigeration
France TECUMSEH Hermetic Compressor or Other Brands
Air-cooled or Water-cooled Cooling Mode for Option
Zero Ozone Depletion Potential (ODP) Refrigerant - R404A / R23
Controller
Display
7 inch 65535 true color, LED backlit display screen, resolution 800 x 480.
Operating modes
Program or set point
Setting method
Man-machine dialogue mode, touch-screen input and control.
Program capacity
Up to 269 groups, a total of 13,450 segments.
Control accuracy
Temperature: ±0.01℃; Humidity: ±0.1%RH; Time: 0.01min.
Communication interface
USB, RS-232, RS-485, or Ethernet.
Standard configurations
1 x Multi-pane viewing window; 1 x cable access port;
1 x internal light; 4 x casters & leveling legs; 1 x power cable;
2 x stainless steel shelves.
Allowable ambient conditions
Temperature: +5℃ to +35℃;
Relative humidity: ≤85％RH (No condensation);
Air pressure: 86kPa to 106kPa.
Electrical supply
AC 380 (1±10％)V (50±0.5)Hz 3 Phase 4 Wire plus Earth Wire
▲Custom options available


Recommend Products




Company Profile




Production Line




Certifications




Logistics&Transportation




FAQ




1.Are your company a factory or a trading company ?
-- We are a manufacturer, factory + trading company
2.What are the payment methods?
- Payment methods are T/T, Paypal, LC, VISA
3.Do you accept customization service? Can I have my logo on the machine?
--Yes, of course. We can not only offer standard machines, but also customized.
4.How do you calibrate the equipment?
--We have our own calibration and third-party calibration such as ISO17025.
5.What's the delivery term?
--At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 7-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
6.What about the services and product' quality?
-Service: ,Design service ,Buyer service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
7.Can we come to your factory to study and train?
- Welcome to our factory for study and training, we provide this service free of charge.
8.Do you have an agent?
- Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.
9.How to provide after sales service?
- At first, our test chambers are produced based on 20 years product lifetime. Normally once test chambers have problems, we judge the problems, and send spare parts to our customers, and teach them how to change new parts on by email or video. Within 3 years, all spare parts and shipping cost (by DHL, INT, and FedEx) paid by our company.
- If customers need our engineers on site service, the company only need pay the ticket accommodation to our engineers, service is for free.
- If Products still can't use after our engineers repair, we will produce 2 new test chamber (same as the old one) to our customers with no charge.
- You can contact our local service center in overseas market to get service and product.
