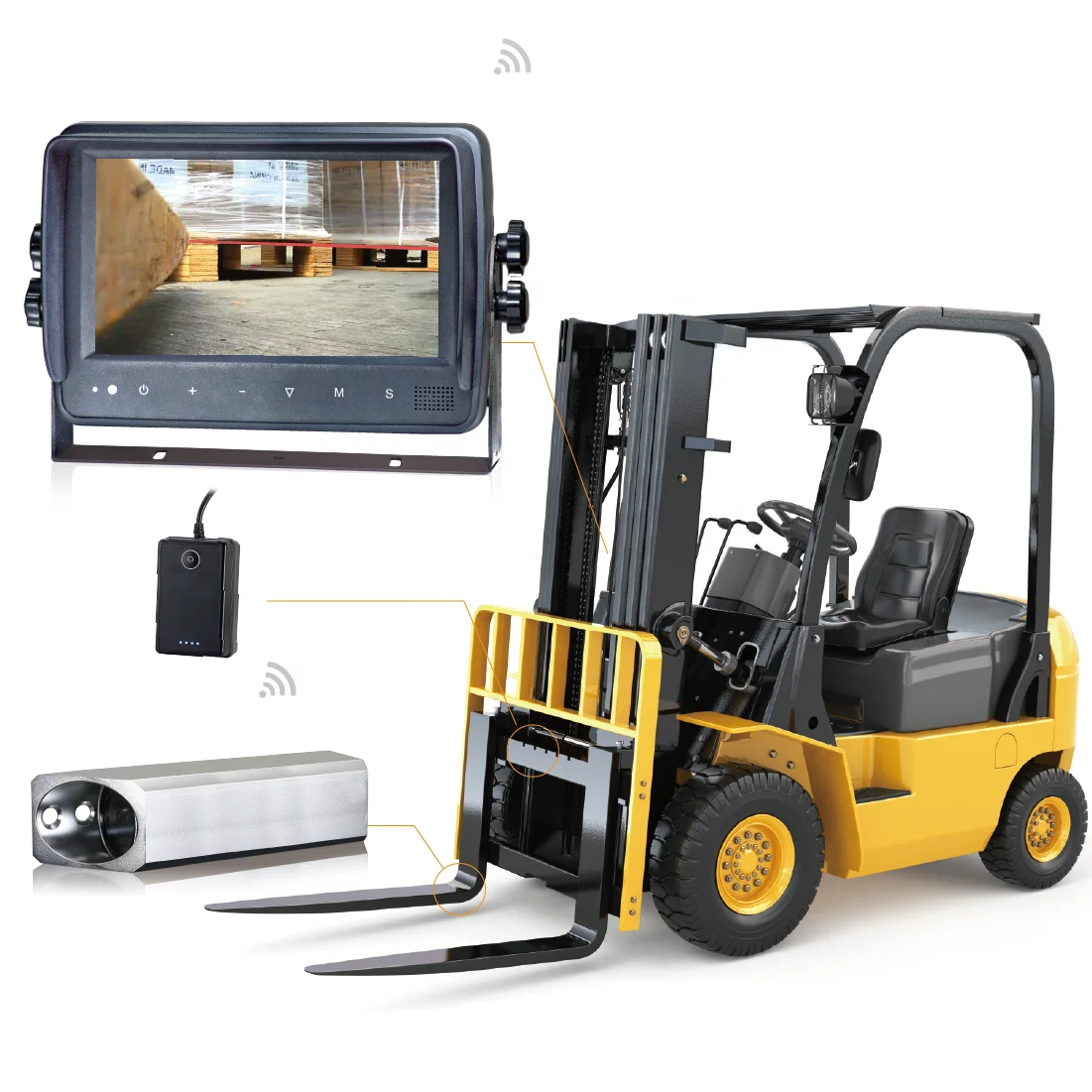

Battery operated 7 inch Digital wireless forklift camera system with wire free installation
- Category: Auto Electronics >>>
- Supplier: Stonkam Co. Ltd.
Share on (1600511872154):
Product Overview
Description
Product Description

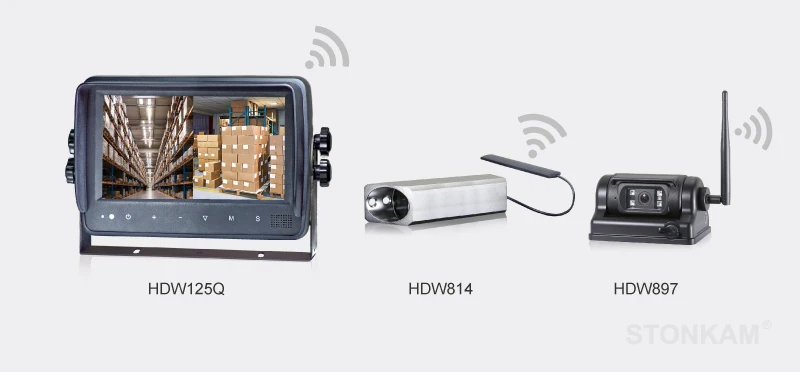

STONKAM 7 inch Digital wireless forklift camera system with Split Screen wireless monitor is easy to install. It offers clear front view, helping you to avoid blind spots and secure safety.
* Support 4CH wireless camera and wireless transmitter.
* Waterproof; with built-in antenna.
* Support multiple display modes, such as quad-view mode, split-view mode, single view mode, and the channels for the quad-view and split-view can be set flexibly.
* Supports both manual and automatic pairing.
* Supporting 1080P/720P camera input.
* Touch screen optional.
* Support 5 trigger input-wires, includes 4 channel single view trigger display and 1 channel split view trigger display, and the split view image can be set flexibly. In addition, the trigger for time to return the main display and triggering priority of 5 trigger input-wires can be configurable.
* Auto-dim lighting control; screen brightness decreases automatically after the environment gets dark for 3 seconds.
* Auto scan function available, each channel can turn on or off auto scan function and adjust the scan time from 5 to 60 seconds.
* Rear view parking lines can be configured.720P high definition
* Waterproof; with built-in antenna.
* Support multiple display modes, such as quad-view mode, split-view mode, single view mode, and the channels for the quad-view and split-view can be set flexibly.
* Supports both manual and automatic pairing.
* Supporting 1080P/720P camera input.
* Touch screen optional.
* Support 5 trigger input-wires, includes 4 channel single view trigger display and 1 channel split view trigger display, and the split view image can be set flexibly. In addition, the trigger for time to return the main display and triggering priority of 5 trigger input-wires can be configurable.
* Auto-dim lighting control; screen brightness decreases automatically after the environment gets dark for 3 seconds.
* Auto scan function available, each channel can turn on or off auto scan function and adjust the scan time from 5 to 60 seconds.
* Rear view parking lines can be configured.720P high definition
Effective Pixels | 1920 x 1080 pixels | ||||||
Video Output | 8 bits YUV | ||||||
Gamma Consumption | 0.45 | ||||||
AGC | Auto | ||||||
S/N Ratio | 38dB | ||||||
White Balance | Auto | ||||||
BLC | Auto | ||||||

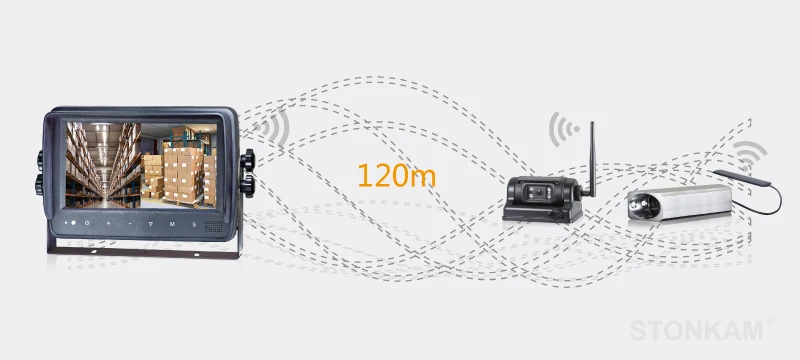

Transmission Distance (barrier free) | 120m（Max） | ||||||
Receiving Sensitivity | -78dBm | ||||||
Video Codec | H.264 | ||||||
Transmission Power | FCC：≤26dBm CE：≤20dBm MIC：≤10dBm | ||||||
Delay | 130ms | ||||||
RF Bit Rate | 12Mbps | ||||||
Operating Temperature | -20℃～70℃, RH 95% MAX. | ||||||
Storage Temperature | -30℃～80℃, RH 95% MAX. | ||||||
Minimum Illumination | 0Lux | ||||||
Power Supply | DC10~32V | ||||||
Waterproof rating | IP69K | ||||||
Audio | No | ||||||
Viewing Angle | 62° | ||||||
How to avoid accidents in warehousing operations caused by limited visibility?
How to improve the working efficiency of the forklifts with safety being guaranteed?
How to prevent secondary damage by the collapsed goods or shelves resulted from the vision error of forklifts?
......
STONKAM 7 inch Digital wireless forklift camera system with Split Screen wireless monitor can help you solve your worries！
Can’t be easier——How to install STONKAM 1080p Digital forklift waterproof wireless camera system kit with Split Screen wireless monitor?

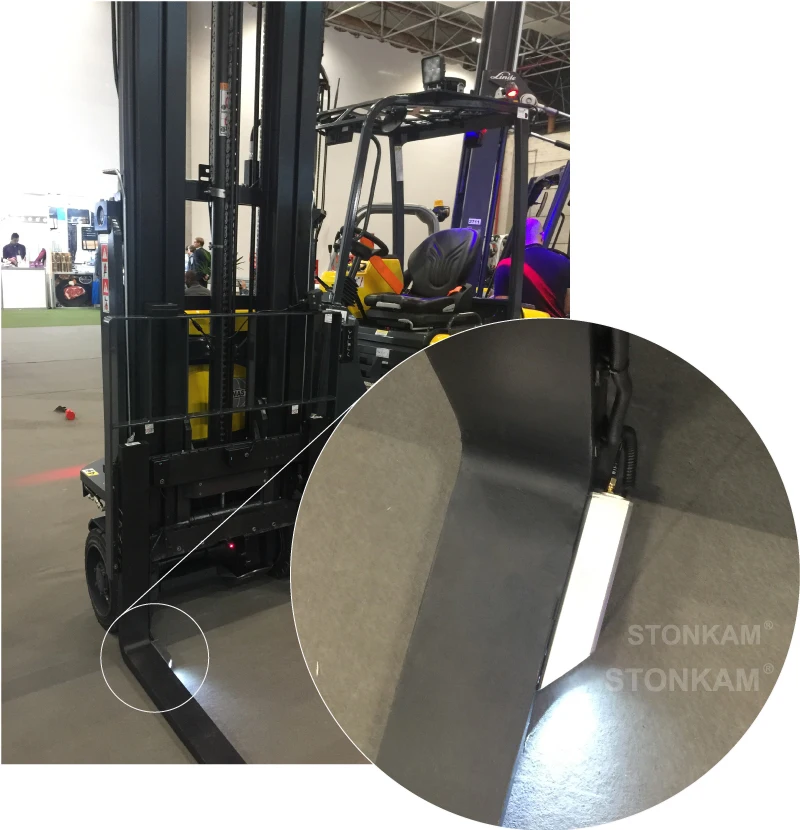

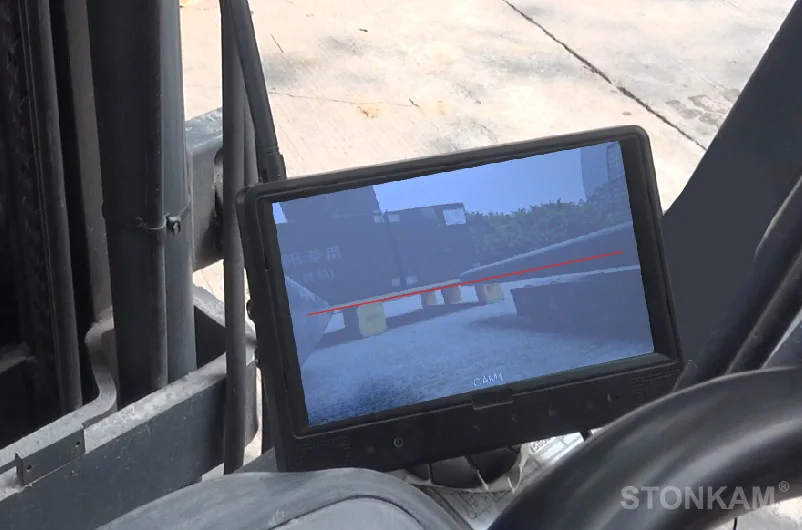

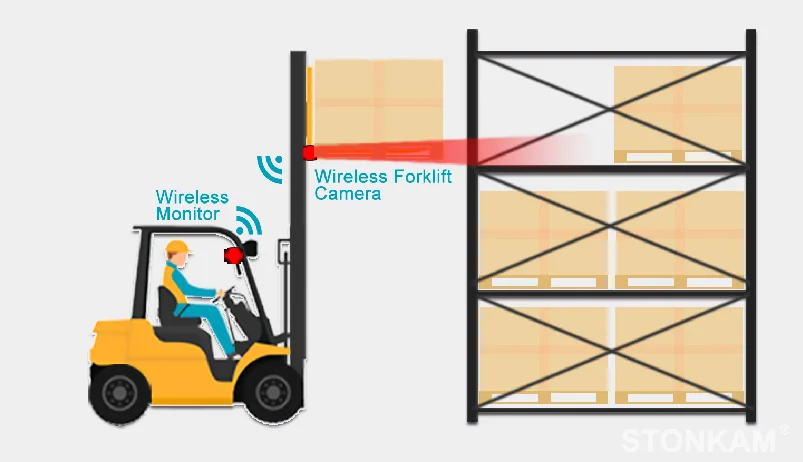

Mount the forklift camera onto the fork arm and the monitor onto the cab, which offers the operators with clear front view.
Mount the forklift camera onto the fork arm and the monitor onto the cab, which offers the operators with clear front view.

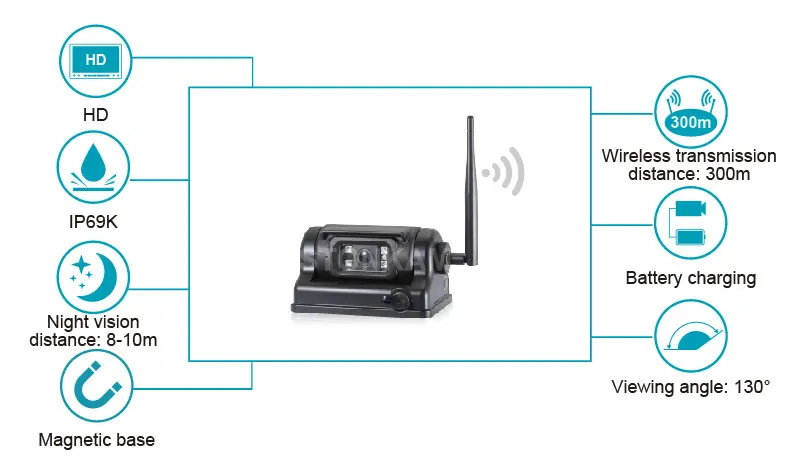

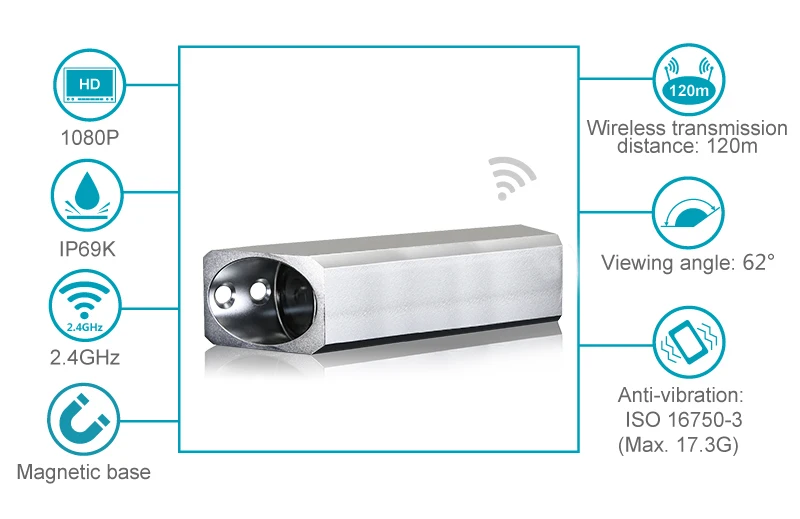

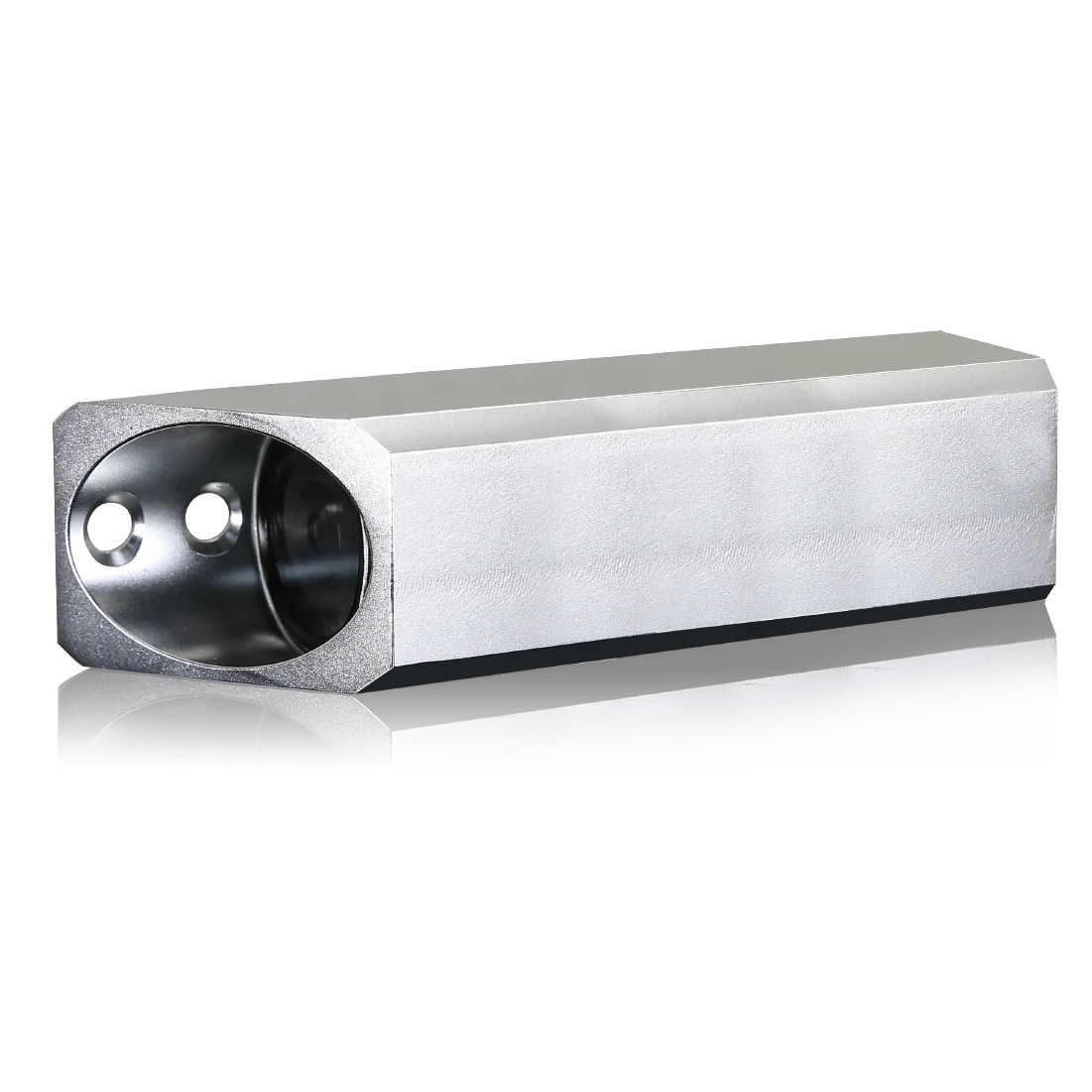

Magnetic housing for wire-free installation

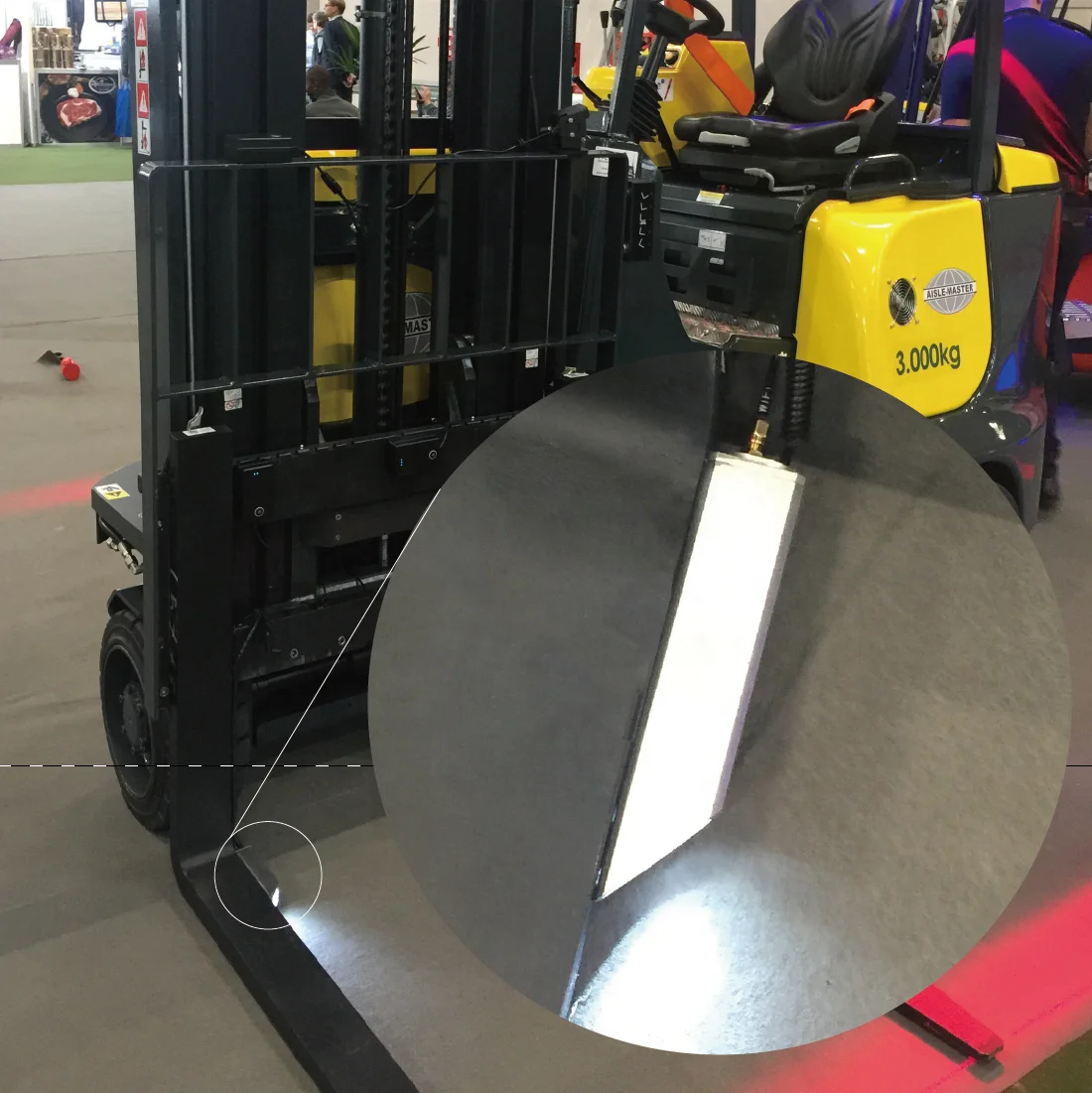

Just simply place the magnetic forklift camera on the iron arm, and the camera can firmly attach to the forklift.
Just simply place the magnetic forklift camera on the iron arm, and the camera can firmly attach to the forklift.

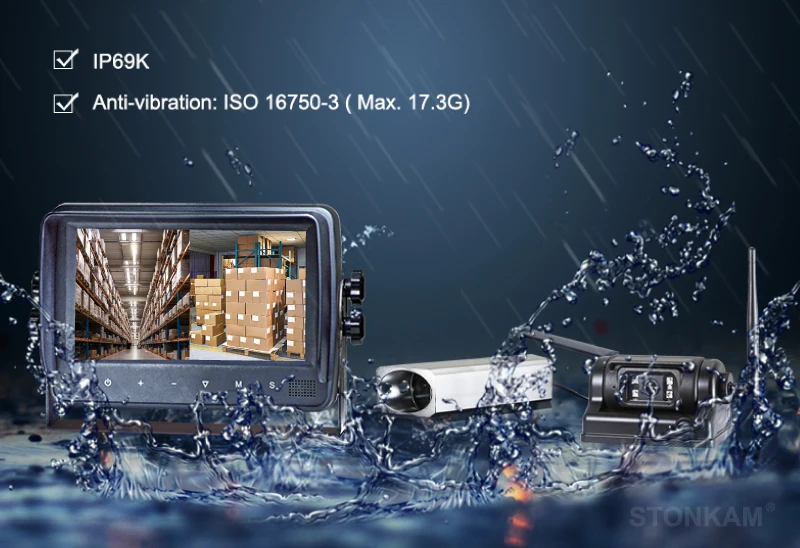

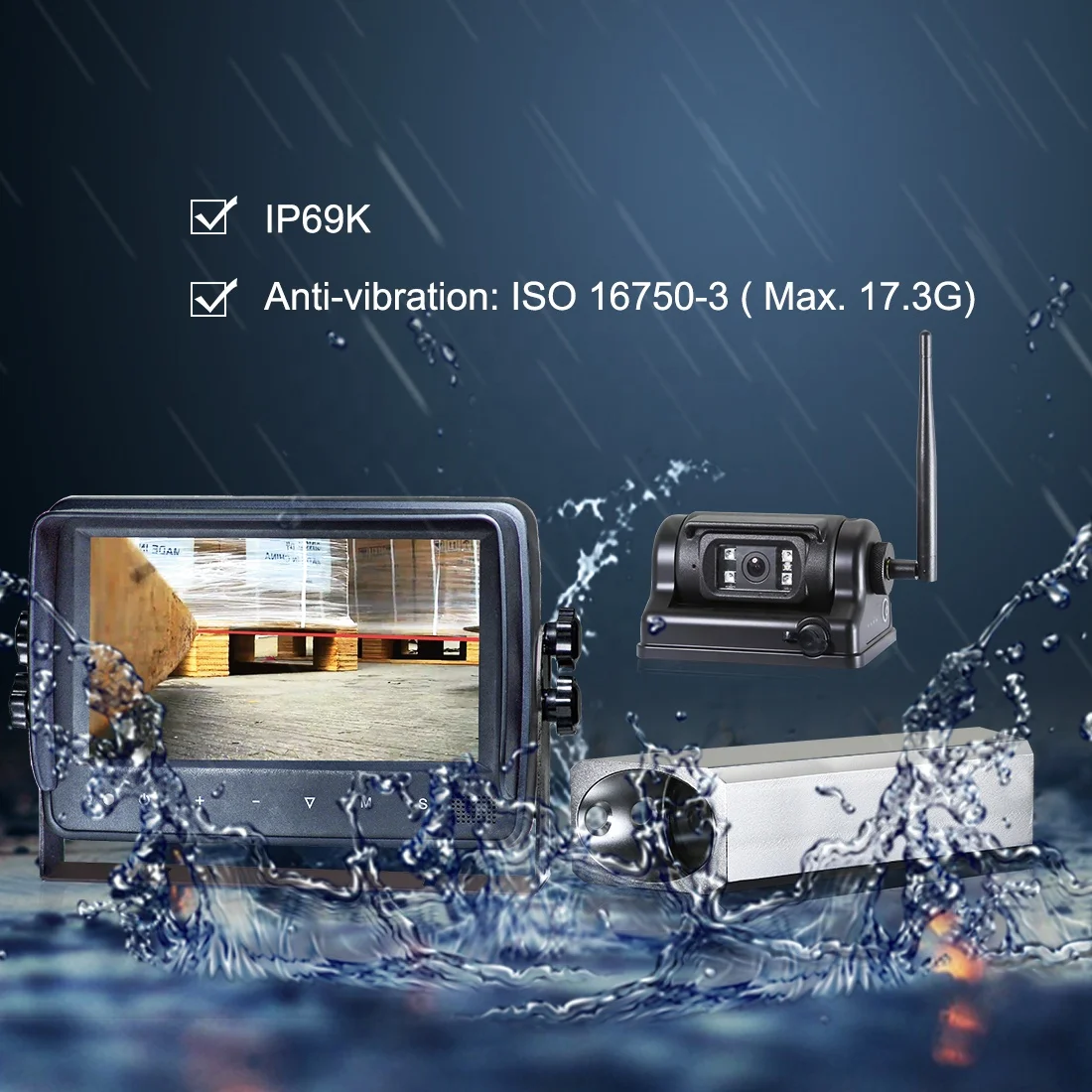

IP69K Waterproof wireless camera, suitable for outdoor use

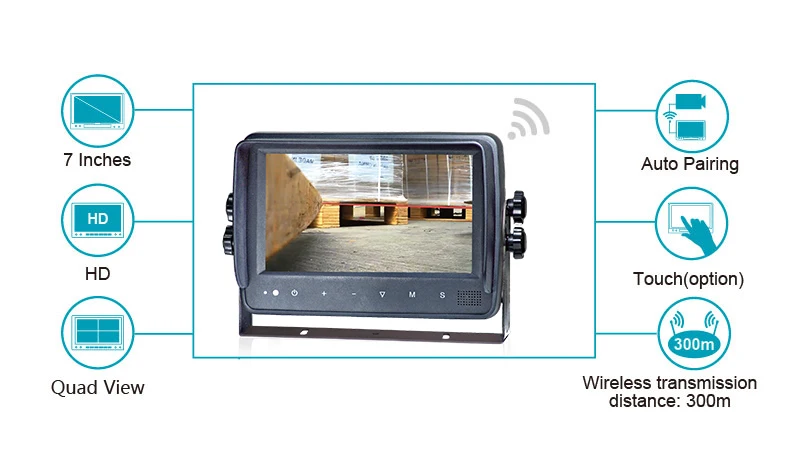

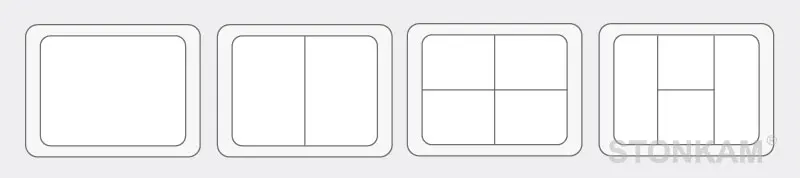

Support multiple display modes, such as quad-view mode, split-view mode, single view mode.

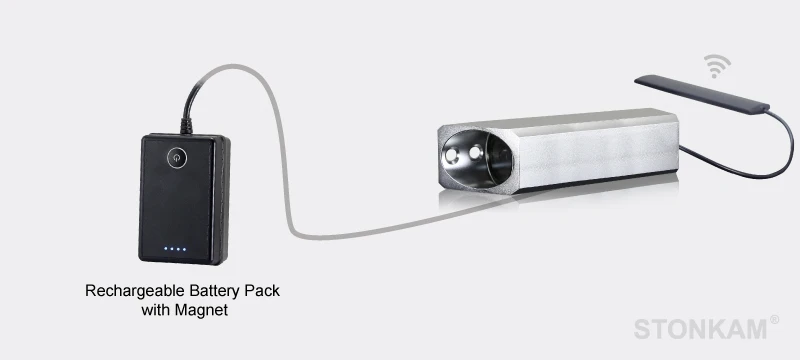

STONKAM 7 inch Digital wireless forklift camera system with Split Screen wireless monitor can be powered by an external battery, with no need for additional power wiring.
STONKAM 7 inch Digital wireless forklift camera system with Split Screen wireless monitor can be powered by an external battery, with no need for additional power wiring.
Touch screen optional
Save complex installation procedures, cutting installation costs
STONKAM 7 inch Digital wireless forklift camera system with Split Screen wireless monitor can be powered by an external battery, with no need for additional power wiring.
