Product Overview

Description



Product Description

2315


































































































Product NameBest Athletic Field Paver Machine Paver Running Track Paver Machinery
NamePaver machine
ModelTPJ-2.5TPJ-2.0TPJ-1.5
Actual Width2800mm2300mm1800mm
Paving  Width2500mm2000mm1500mm
Moving  Speed0.8-6m/min0.8-6m/min0.8-6m/min
Paving Capability800 sq.m./h600 sq.m./h400 sq.m./h
Power11kw11kw11kw

Temperature adjustment


 for


heating board


90-120 centigrade90-120 centigrade90-120 centigrade
Machine  Weight850kg750kg650kg
Dimension3000*1800*720mm2500*1700*720mm2000*1700*720mm
FOB ShanghaiUSD 5000USD 4900USD 4800

Structure


&


Function


1. Used for spreading, paving the bottom layer of plastic stadiums, like running track, rubberized playgrounds etc.
2. Framework: with a firm and stable welded H-type structure, and a rust-proof paint layer, it may accommodate any poor condition in the construction site.
3. Front scratch board: welded joint structure, the ground clearance is manually adjustable through a screw, which control the thickness of the floor layer. The width may be adjusted through a limiting board.
4. Driving device: the main driving system is a motor-driven caterpillar chain, with the speed smoothly controlled by a frequency converter, which is feature as stably and precisely moving ahead or back in an motion. It may be equipped with different caterpillar belt for different bottoms.
5. Walking Mechanism: the spreading machine may be manually moved or relocated through a walking mechanism consisting of advanced ratchet lever system and lift.
6. Screed: The screed has four functions, viz. the adjustment of height, angle, temperature, and vibration. The plastic cement material is vibrated, compacted and paves while passing through the screed.

  TPJ-2.5-type paver machine is a technology with higher levels of plastic track laying machine, which employs advanced technology and Siemens frequency stepless speed regulation of advanced ratchet lever system, to increase their degree of automation built performance of the construction of venues able to satisfy the requirements of the quality of the playing field to achieve target, with high efficiency, low consumption, high-quality and easy operation, with long-term use of authentication, by the majority of users at home and abroad.



  We equip the advanced ratchet lever system, which is simpler and durable than other hydraulic system, it won’t break down for the above-mentioned failure.


If there is no electric power at the construction site, or you don’t want to provide and run the electric wire, the TPJ-ENG 2.5 is a good solution. The generator is fed gasoline, and steady output of electricity which provide the electric to the paver.


  Of course, The TPJ-ENG2.5 also can work by electricity.

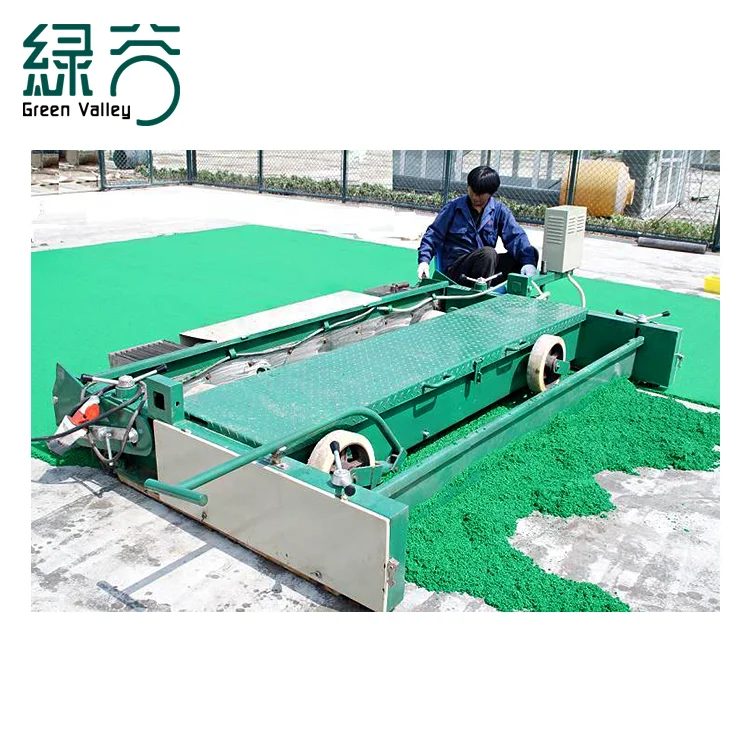

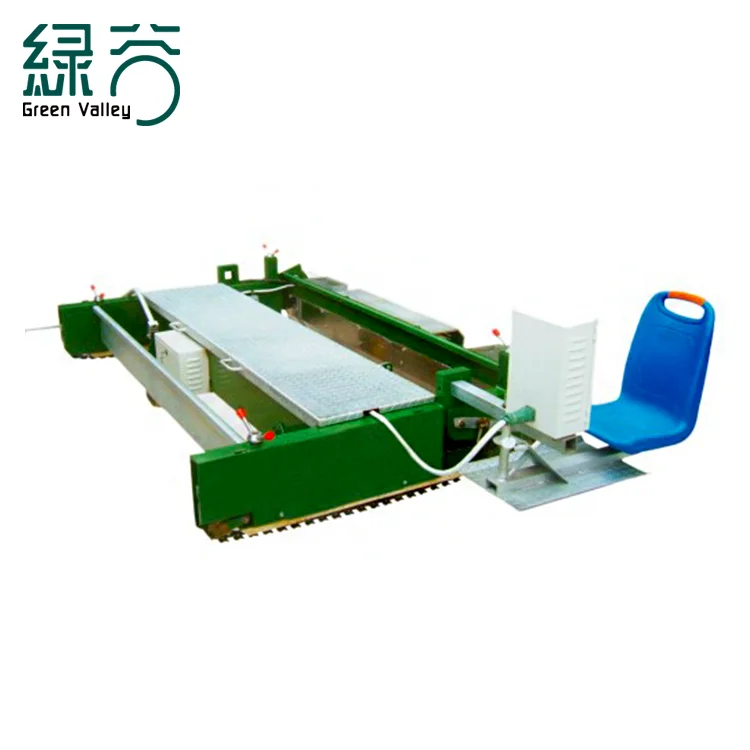

6.png1.png,
