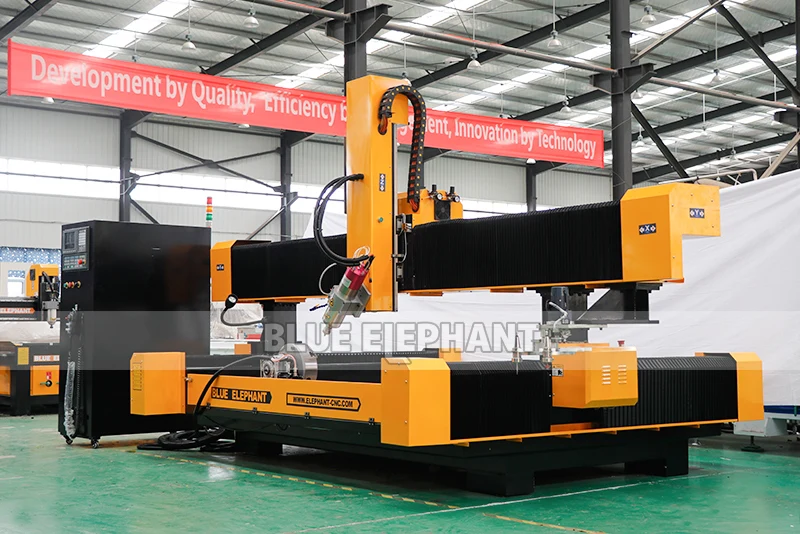

high quality granite cnc 5 axis stone bridge saw granite cnc engraver 2113 ATC 3D CNC blue elephant with water cooling spindle
- Category: >>>
- Supplier: Jinan Blue Elephant Cnc Machinery Co. Ltd.
Share on (1600512094865):
Product Overview
Description
Product Description
1. Designed with carousel automatic tool changer, and the working efficiency can be greatly promoted.
2. Designed with rotary device, and the diameter, length and position of rotary device can be customized according to your requirements.
3. Adopting Changsheng ATC water cooling spindle, and the speed can be reached to 18000rpm for per minutes.
4. Please notice that all the specifications and working size can be designed with your requirements.
Technical Parameters
Model | ELECNC2113ATC-4A |
X,Y axis travel | 2100*1300mm, option: 1300*2500mm, 2100*3000mm, 2100*4000mm, etc. |
Z axis travel | 600mm, option: 500mm, 600mm, 700mm, etc. |
Spindle type | 5.5kw ATC water cooling spindle, NBT30, ER32 |
Inverter type | 5.5kw |
The 4th axis | Cycloidal pin wheel precision reducer, with high transmission accuracy and torsional stiffness Can swing from -90 degree to +90 degree |
Tool magazine | Carousel type auto tool changer |
Tool holder with collet | NBT30,ER32 collet: φ4, φ6, 1/8, 1/2 |
Control system | Taiwan SYNTEC /LNC controller |
Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option: 1kw Taiwan Syntec servo |
Reducer | Japan SHIMPO reducer |
Machine structure | Heavy duty body with quenching treatment |
Work table | Stainless work table |
Linear guide | Taiwan Linear guide |
Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
Lubrication system | 1.5L automatic lubrication system |
Tool Calibration | Automatic tool sensor calibration |
Cables | Germany Igus cables with CE, cUL certificate |
Cooling system | Water cooling |
Compatible software | Powermill, UG, Alphacam, Fusion 360, etc. |
Command language | G Code & M Code |
Traveling speed | 40m/min |
Working speed | 0-20m/min |
Re-positioning accuracy | ±0.03mm |
System resolution | ±0.0025mm |
Working accuracy | ±0.03mm |
Working air pressure | 0.6MPa |
Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Sample & Application
Recommend Products
Company Information
Exhibition
Packaging & Delivery
FAQ
1. I need a CNC router, can you give me some suggestions?
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters.
2. Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, Copper,and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy, so welcome to visit to our factory.
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to pay the balance. We will ship themachine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non-standard machine and customized machines according to clients specific requirements, itwill be 15 to 30 days.
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters.
2. Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, Copper,and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy, so welcome to visit to our factory.
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to pay the balance. We will ship themachine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non-standard machine and customized machines according to clients specific requirements, itwill be 15 to 30 days.
