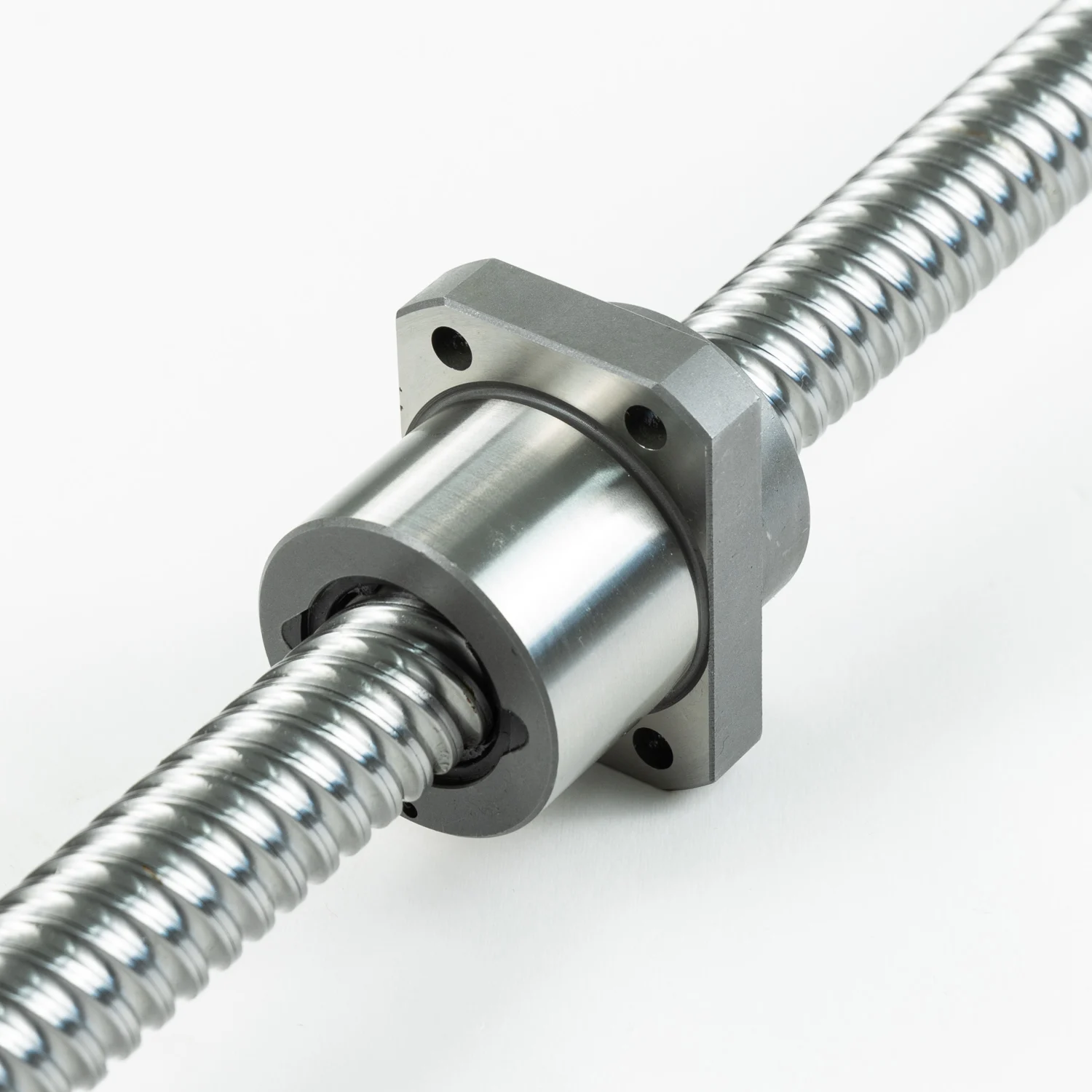

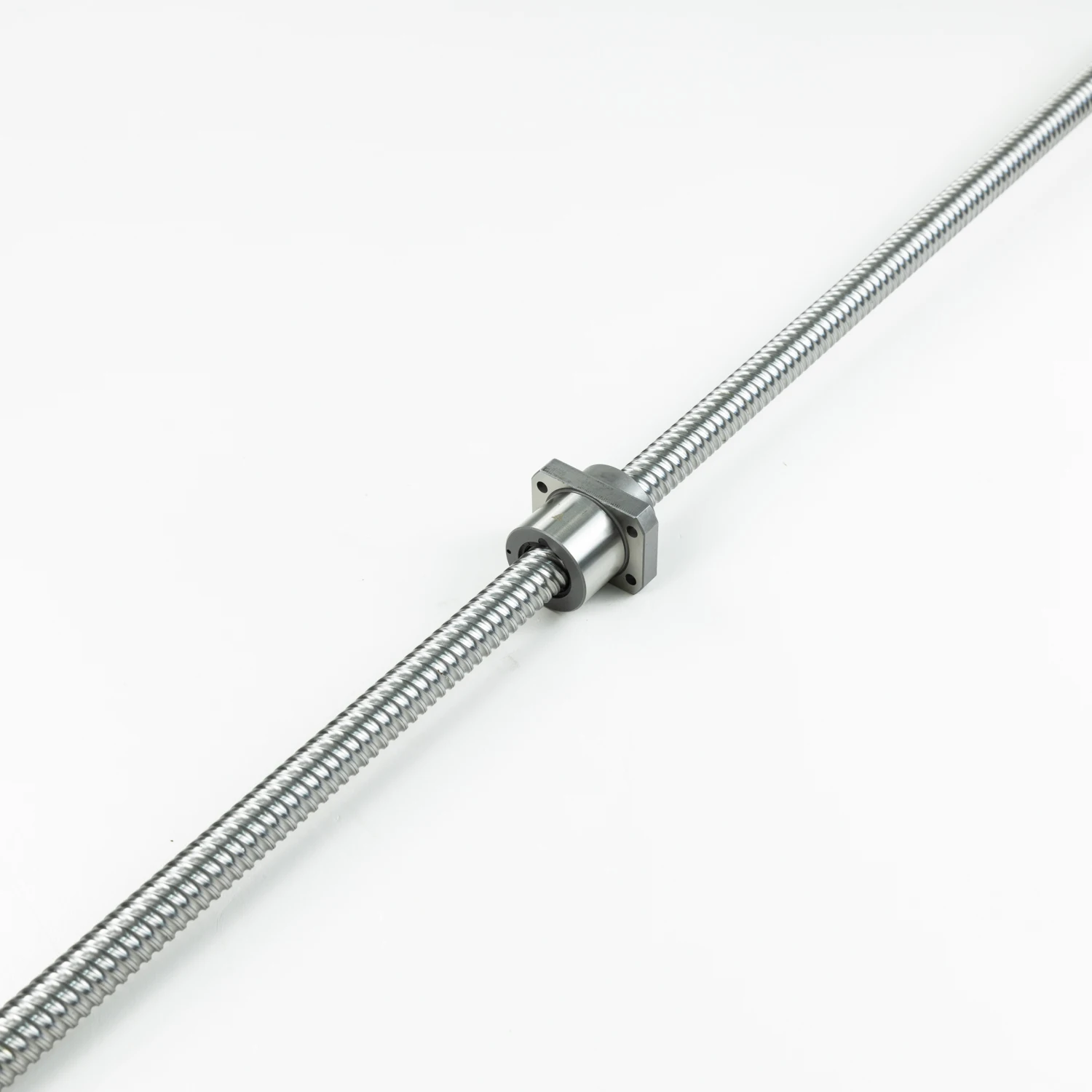

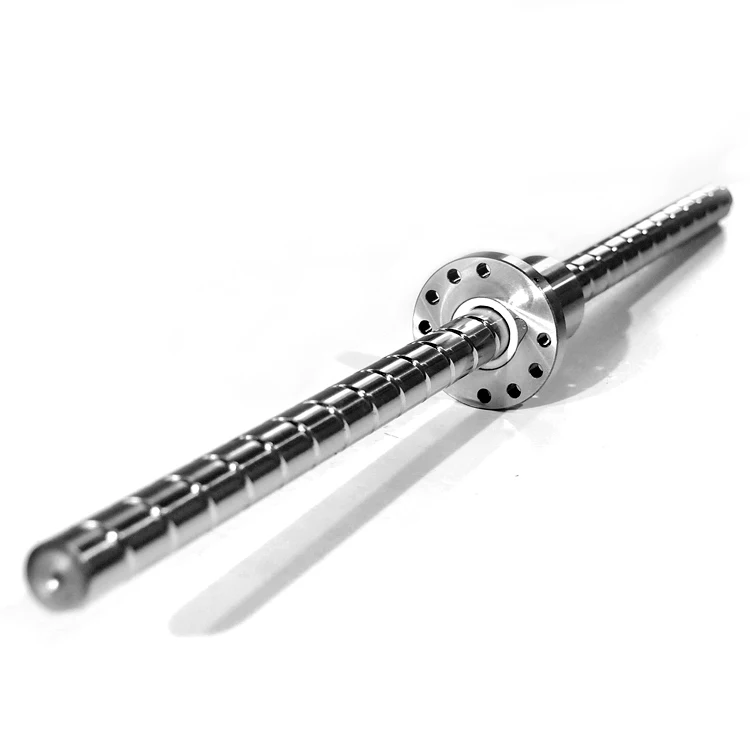

China manufacturer ball screw cnc kit 1500mm 3000mm AZI brand FFZD3205

Share on (1600512096096):


Price:

Quantity:


Product Overview

Description



Product Overview

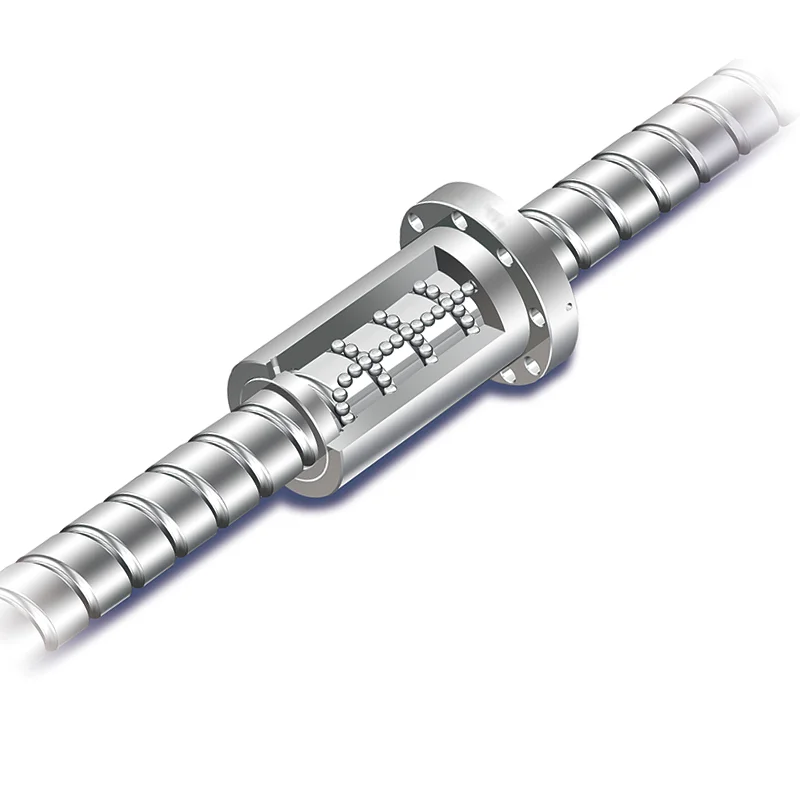

FF compact&high speed ball screw
Ball screw assembly is consisted of screw, nut and ball. The function is transfer the rotary motion into linear motion or transfer the linear motion into rotary motion. This is further extension and development of slide ball screw. The important significance of development is as same as change of bearing from rolling motion to sliding motion. Because of excellent friction function, ball screw is widely used for all kinds of industrial equipments and precision instrument.Since 1964, the company developed the China's first ball screw, it has on the leading position in China in the research and manufacture of ball screw.


Ball type:ø8 - ø200
High transmission rate
Transmission reversibility
long service life,good synchronicity
Max capacity is 376 tons.
Max. single to 10m,joint to 19m
It’s widely used in all kinds of industrial equipments,precision NC machine tool

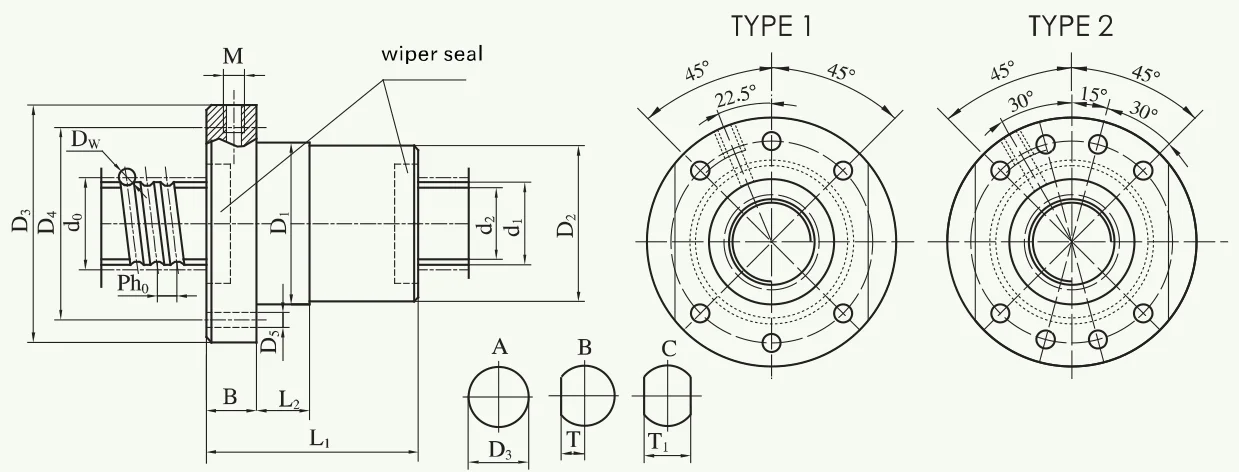

PRODUCT SPECIFICATIONS






Spec.
DKFZD3210-4-J
DKFZD3210-5-J
DKFZD3212-4-J
DKFZD3212-5-J
DKFZD3216-4-J
DKFZD4010-4-J
DKFZD4010-5-J
DKFZD4012-4-J
DKFZD4012-5-J
d0
32
32
32
32
32
40
40
40
40
Ph0
10
10
12
12
16
10
10
12
12
d1
32
32
32
32
32
40
40
40
40
d2
26.9
26.9
26.9
26.9
26.9
34.9
34.9
34.9
34.9
Dw
6.35
6.35
6.35
6.35
6.35
6.35
6.35
6.35
6.35
n
4
5
4
5
4
4
5
4
5
CaKN
44.7
54.8
44.6
54.6
44.3
50.3
61.6
50.2
61.5
CoaKN
112
141.9
111.8
141.7
111.3
142.4
180.3
142.2
180.1
KcN/m
1060
1329
1062
1331
1059
1268
1589
1274
1597
D1(g6)
57
57
57
57
57
65
65
65
65
D2
57
57
57
57
57
65
65
65
65
L2
15
15
15
15
15
20
20
20
20
D3
87
87
87
87
87
95
95
95
95
B
16
16
16
16
16
18
18
18
18
D4
72
72
72
72
72
80
80
80
80
D5
9
9
9
9
9
9
9
9
9
T
34.5
34.5
34.5
34.5
34.5
36
36
36
36
T1
69
69
69
69
69
72
72
72
72
M
M8x1
M8x1
M8x1
M8x1
M8x1
M8x1
M8x1
M8x1
M8x1
L1
133
153
151
175
186
139
159
152
176


Spec.
DKFZD4016-4-J
DKFZD4016-5-J
DKFZD5010-4-J
DKFZD5010-5-J
DKFZD5012-4-J
DKFZD5012-5-J
DKFZD5016-4-J
DKFZD5016-5-J
d0
40
40
50
50
50
50
50
50
Ph0
16
16
10
10
12
12
16
16
d1
40
40
50
50
50
50
50
50
d2
34.9
34.9
44.9
44.9
44.9
44.9
44.9
44.9
Dw
6.35
6.35
6.35
6.35
6.35
6.35
6.35
6.35
n
4
5
4
5
4
5
4
5
CaKN
50
61.2
55.9
68.5
55.8
68.4
55.7
68.2
CoaKN
141.7
179.5
180.2
228.3
180.1
228.1
180
227.6
KcN/μm
1278
1601
1502
1883
1515
1900
1529
1915
D1
65
65
75
75
75
75
75
75
D2
65
65
75
75
75
75
75
75
L2
20
20
20
20
20
20
20
20
D3
95
95
118
118
118
118
118
118
B
18
18
18
18
18
18
18
18
D4
80
80
100
100
100
100
100
100
D5
9
9
11
11
11
11
11
11
T
36
36
46
46
46
46
46
46
T1
72
72
92
92
92
92
92
92
M
M8x1
M8x1
M8x1
M8x1
M8x1
M8x1
M8x1
M8x1
L1
185
217
140
160
155
179
185
217


Manufacturing Equipment


4m CNC linear guide grinding machine
straightening&quenching machine
Block griding machine




SALES AND SERVICE NETWORK




SIMILAR PRODUCTS




Successful Project


SYMG
DOOSAN
DMTG




FAQ


Q:Are you manufacture?
A:Yes,we are

Q: Can you supply supports and coupling?
A: Yes,we can supply supports and coupling.

Q: How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock.If the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
