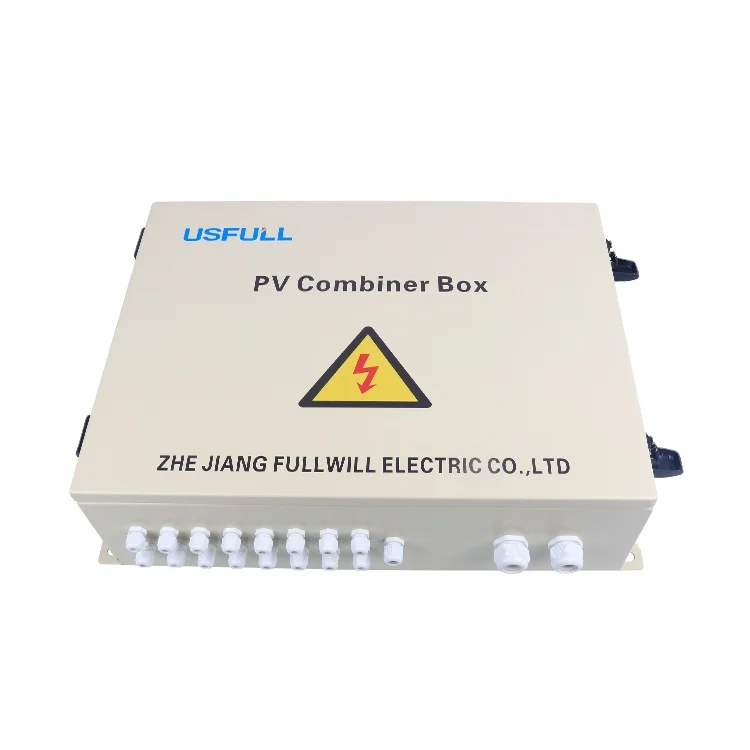

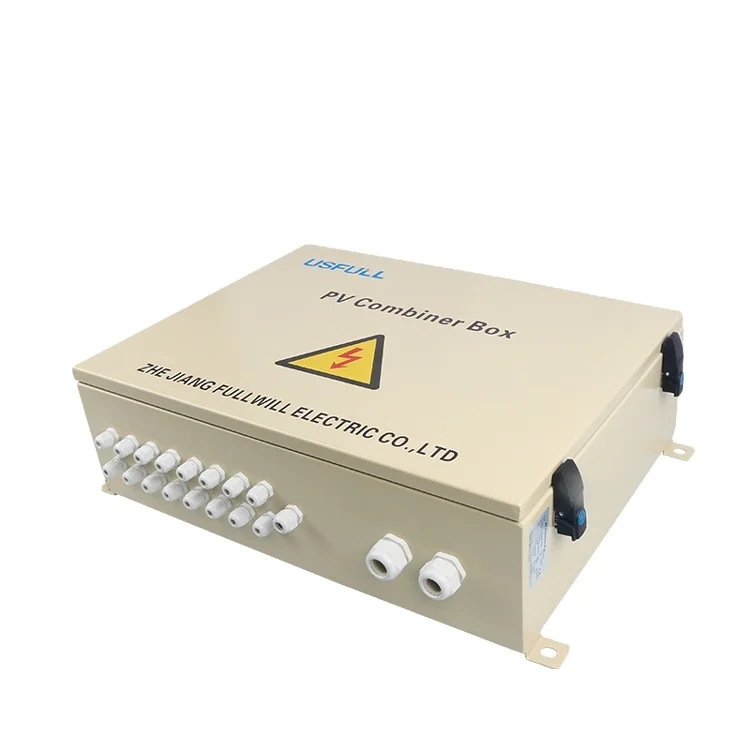

USFULL PV Combiner Box IP66 CE/IEC Solar Cabinet 18ways with 15A fuse 1000Volt
- Category: >>>
- Supplier: Zhejiang Fullwill Electric Co. Ltd.
Share on (1600512394073):
Product Overview
Description
Combiner Box Combiner Box PV Combiner Box 2 In 1 Out IP65 Lightning Protection
Combiner box parameter table
| Model | FU-CB2 | FU-CB4 | FU-CB6 | FU-CB8 | FU-CB10 | FU-CB12 | FU-CB14 | FU-CB16 | FU-CB18 | FU-CB20 | FU-CB22 | FU-CB24 |
| Input channel number | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 |
| Max. input voltage | 1000Vdc | |||||||||||
| Input current of each channel | 0-20A | |||||||||||
| Max.output current | 32A | 63A | 100A | 125A | 150A | 200A | 225A | 250A | 275A | 300A | 315A | 350A |
| DC Fuse | 15A(Recommend 15A, support other ampre) | |||||||||||
| Monitoring module(optional) | Detect current of each channel,bus voltage,status of circuit breaker and lightning protector,box temperature | |||||||||||
| Communication mode/ protocol(optional) | Rs485 bus/standard MODBUS-RTU protocol | |||||||||||
| Prevent-reverse function | Can be equipped with modularized and encapsulated prevent-reverse diode(optional) | |||||||||||
| Temperature and humidity | Operating temperature:-40~ +85ºC,humidity 95%,places free of dew or corrosive gas. | |||||||||||
| Power consumption of monitoring module | Working hours≤8W | |||||||||||
| Auxiliary power supply | Auxiliary power supply:AC85V-265V/DC24V(±10%)/DC200V-1000V | |||||||||||
| Box material | Hot galvanized steel/stainless steel/cold rolled sheet/engineering plastics | |||||||||||
| Protection level | IP65 | |||||||||||
