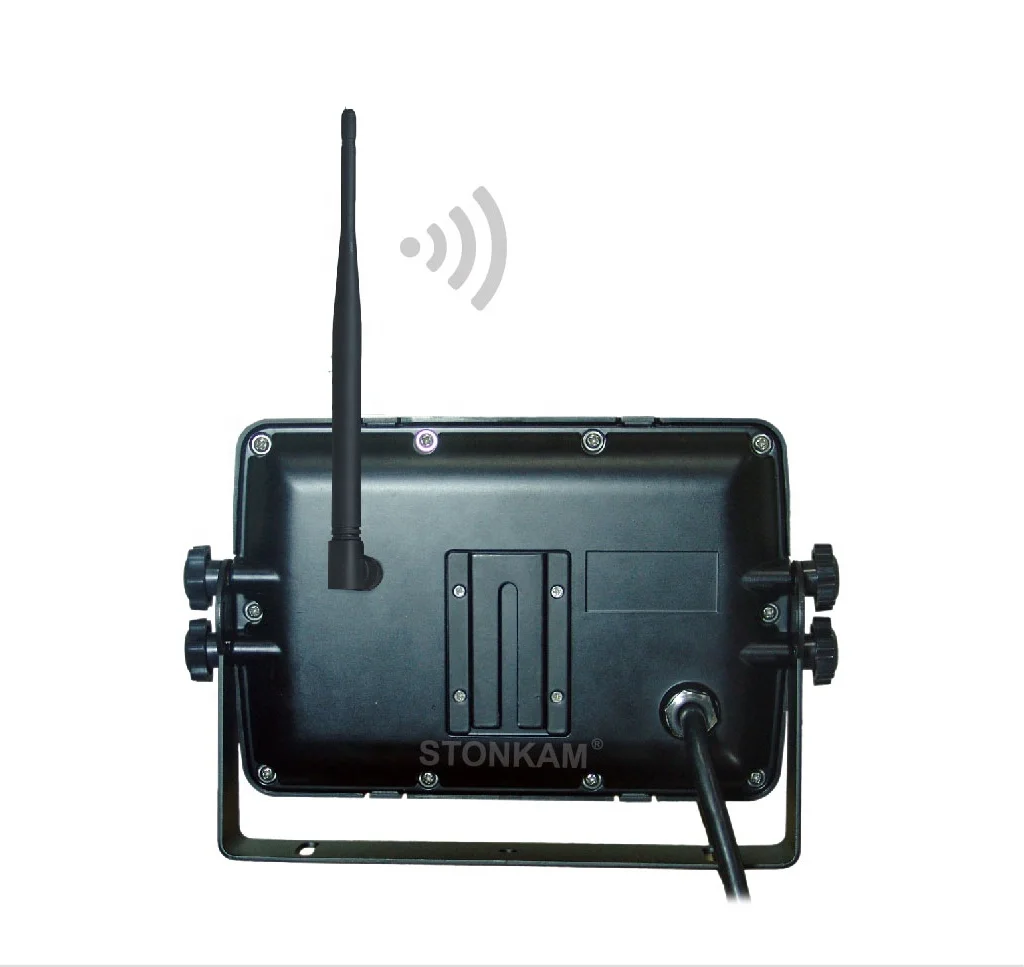

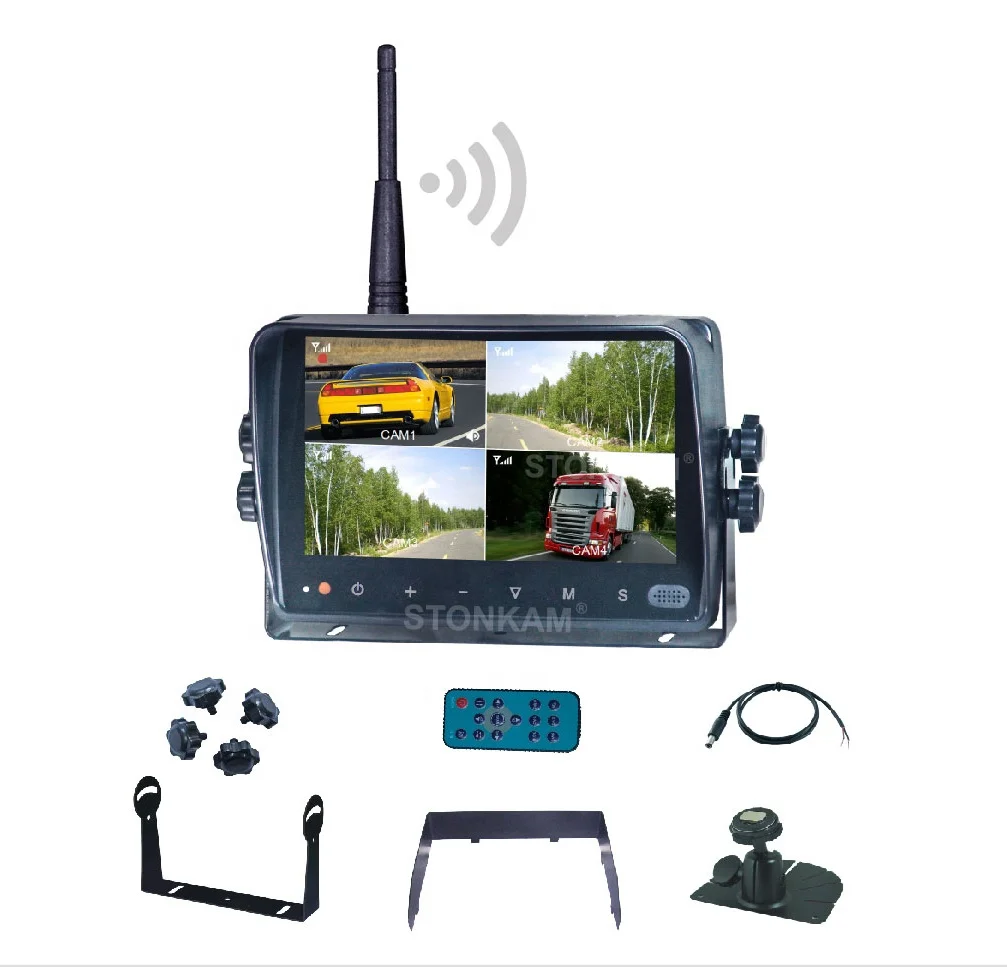

Rear view wireless camera monitor for car truck bus which support quad view and auto pairing
- Category: Auto Electronics >>>
- Supplier: Stonkam Co. Ltd.
Share on (1600512526368):
Product Overview
Description
Product Description

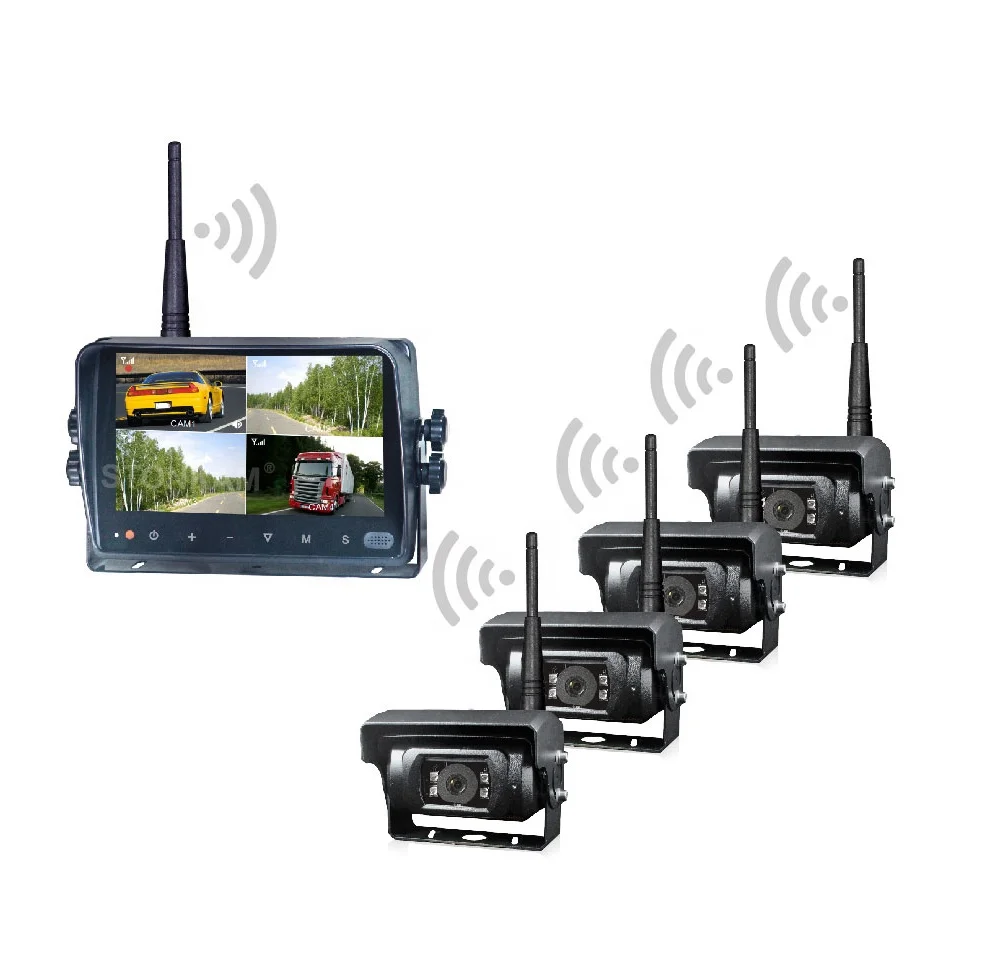

* Support 4CH wireless camera and wireless transmitter.
* Waterproof; with built-in antenna.
* Support multiple display modes, such as quad-view mode, split-view mode, single view mode, and the channels for the quad-view and split-view can be set flexibly.
* Supports both manual and automatic pairing.
* Supporting 1080P/720P camera input.
* Touch screen optional.
* Support 5 trigger input-wires, includes 4 channel single view trigger display and 1 channel split view trigger display, and the split view image can be set flexibly. In addition, the trigger for time to return the main display and triggering priority of 5trigger input-wires can be configurable.
* Auto-dim lighting control; screen brightness decreases automatically after the environment gets dark for 3 seconds.
* Auto scan function available, each channel can turn on or off auto scan function and adjust the scan time from 5 to 60 seconds.
* Rear view parking lines can be configured.
* Waterproof; with built-in antenna.
* Support multiple display modes, such as quad-view mode, split-view mode, single view mode, and the channels for the quad-view and split-view can be set flexibly.
* Supports both manual and automatic pairing.
* Supporting 1080P/720P camera input.
* Touch screen optional.
* Support 5 trigger input-wires, includes 4 channel single view trigger display and 1 channel split view trigger display, and the split view image can be set flexibly. In addition, the trigger for time to return the main display and triggering priority of 5trigger input-wires can be configurable.
* Auto-dim lighting control; screen brightness decreases automatically after the environment gets dark for 3 seconds.
* Auto scan function available, each channel can turn on or off auto scan function and adjust the scan time from 5 to 60 seconds.
* Rear view parking lines can be configured.
Image Device | 1/2.9" CMOS | ||||||
Frame Rate | 25 fps / 30 fps | ||||||
Effective Pixels | 1920 (H) x 1080 (V) | ||||||
Scanning System | Progressive Scanning | ||||||
Gamma Consumption | 0.45 | ||||||
S/N Ratio | 38 | ||||||
White Balance | Auto | ||||||
BLC | Auto | ||||||
Operation Frequency | 2408MHz-2478MHz | ||||||

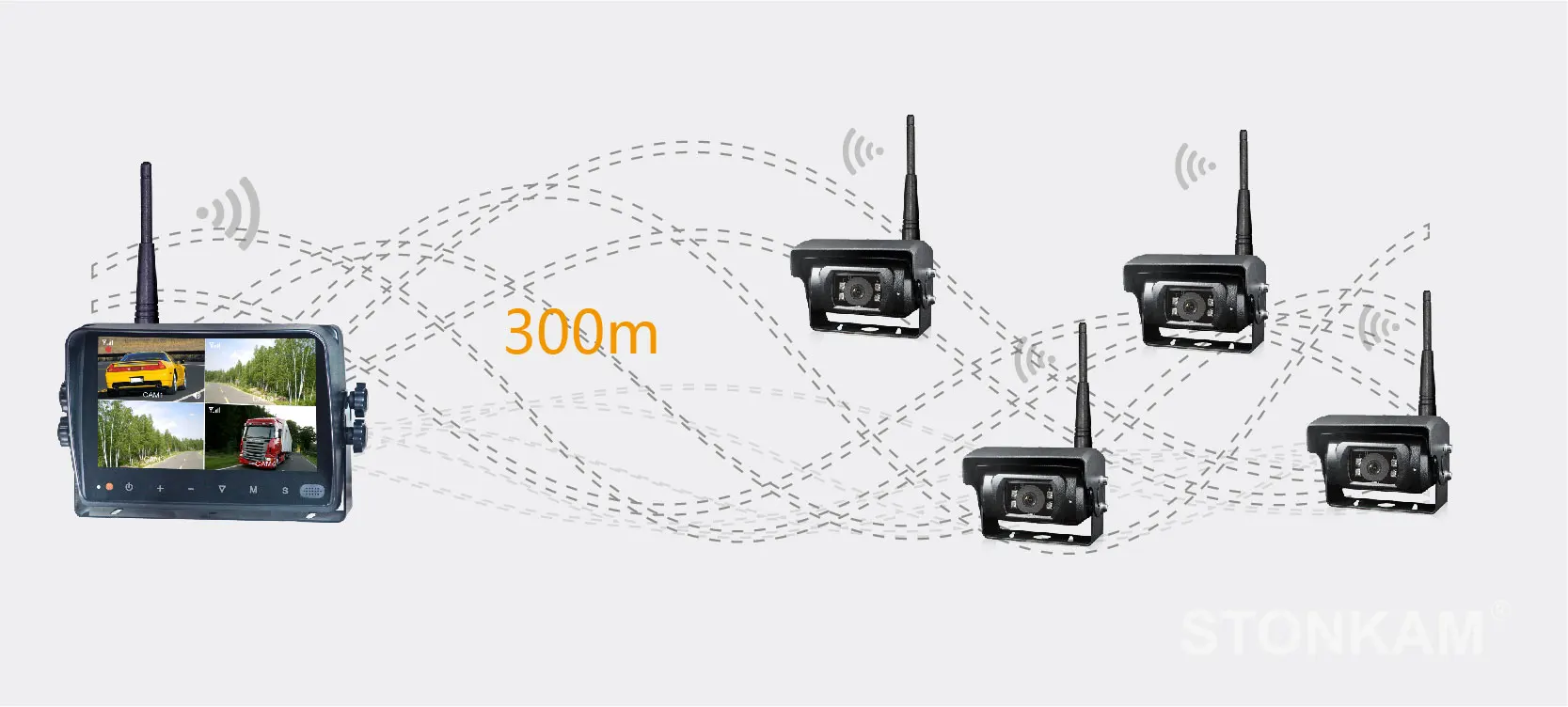

Transmitting distance | 300m | ||||||
Video Codec | H.264 | ||||||
Spread SPECTRUM | DSSS | ||||||
Delay | 200ms | ||||||
RF Bit Rate | 12Mbps | ||||||
Audio | Optional | ||||||
Minimum Illumination | 0.1 Lux or 0.1 Lux(with IR） | ||||||
Night vision distance | 8-10m | ||||||
Current consumption | Max.360mA (DC12V without heating) or Max.720mA (DC12V with heating) | ||||||
Charging Voltage | DC12V/DC10~32V | ||||||
Operating Temperature | -20℃～70℃, RH 95% MAX. | ||||||
Storage temperature | -30℃～80℃, RH 95% MAX. | ||||||
Viewing Angle | 35°/50°/70°/100°/130°/150°/170° | ||||||
24ghz digital wireless Rear view wireless camera monitor for car truck bus (HDW-121Q):
LCD size | 7" | ||||||
Resolution | 1024x 3 (RGB) x600 | ||||||
Contrast | 700:1 | ||||||
Brightness | 600cd/m² | ||||||
Brightness | U:80 / D:85, R/L:85 | ||||||
Aspect Ratio | 16:9 | ||||||
Channel | 4 channels | ||||||
Operating Frequency | 2400MHz ~ 2483.5MHz(ISM band) | ||||||
Receiving Sensitivity | -78dBm | ||||||
Decompression Form | H.264 | ||||||
Modulation | FHSS | ||||||
Time Delay | 200ms | ||||||
Transmitting Distance | FCC≤300 M CE≤200 M MIC≤60 M | ||||||
System Format | PAL / NTSC | ||||||
Power Supply | DC 10-32V | ||||||
Power Consumption | Max.10W | ||||||
Loudspeaker | 1W/8Ω | ||||||
Operating temperature | -20~+70ºC, RH90% | ||||||
Storage temperature | -30~+80ºC, RH90% | ||||||
When installing vehicle monitoring system …
High installation expenses ?
Complicated wiring?
Inconvenient camera power supply?
……
Complicated wiring?
Inconvenient camera power supply?
……
STONKAM® 24ghz digital wireless Rear view wireless camera monitor for car truck bus helps you solve all the problems!
Easy Installation + Instant Pairing = Save more money and efficiency
After being paired for the first time, the wireless monitor and wireless camera start to function simply by connecting them to power supply of the vehicle.
After being paired for the first time, the wireless monitor and wireless camera start to function simply by connecting them to power supply of the vehicle.
Easy Installation + Instant Pairing = Save more money and efficiency
Wireless camera and monitor start to function simply by connecting them to power supply of the vehicle respectively. No need to run long cables through the vehicle. System automatically pairs after being powered on, no need to re-code under abrupt disconnection circumstances.
Strong anti-interference, Stable connection

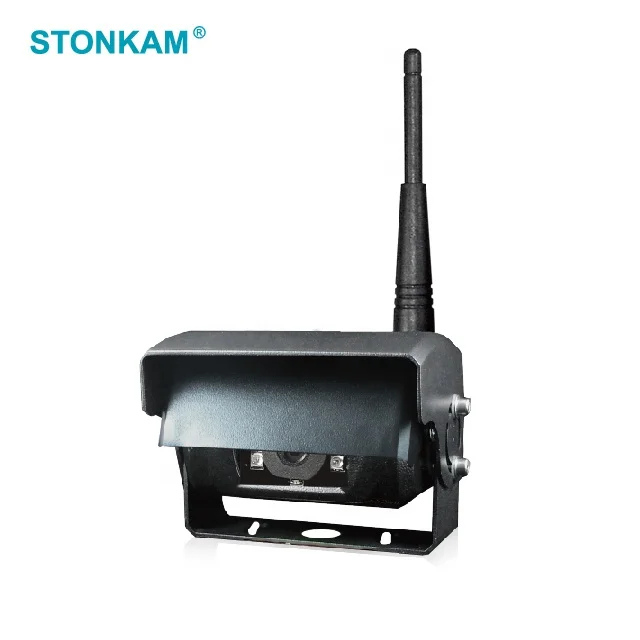

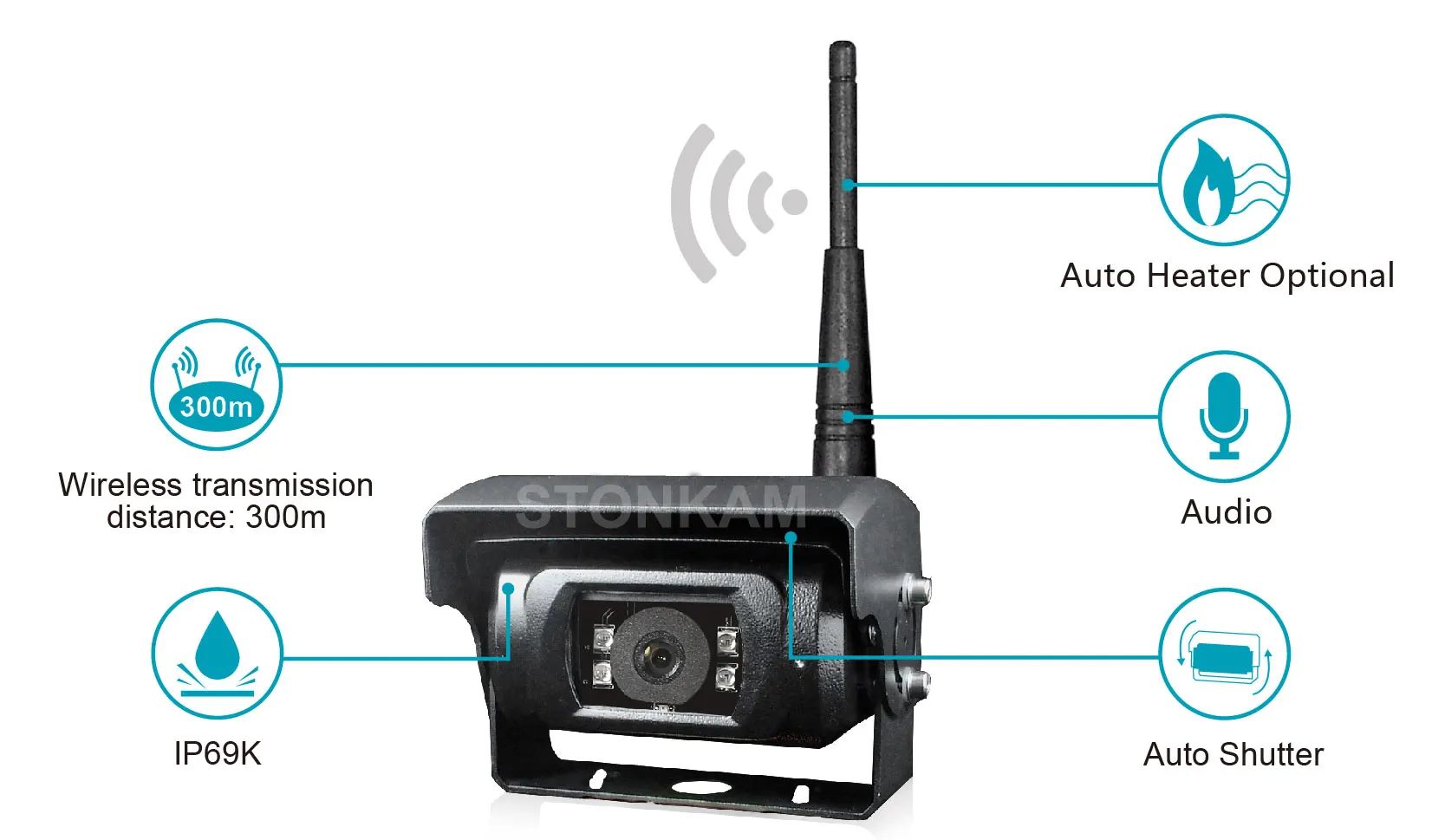

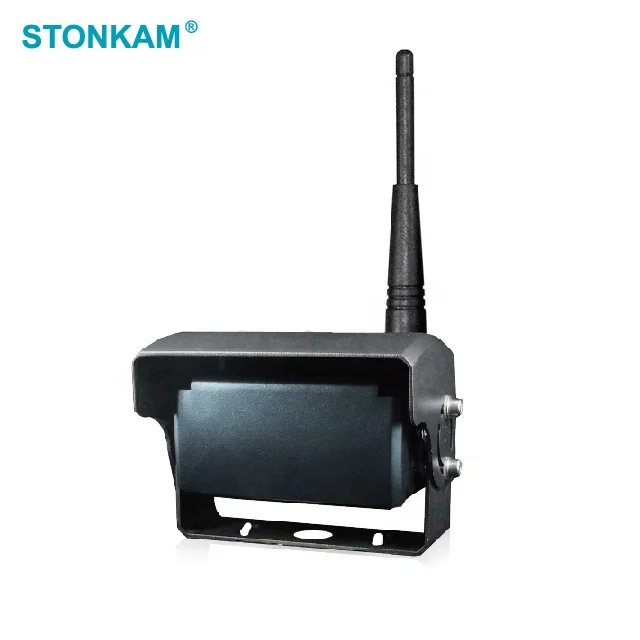

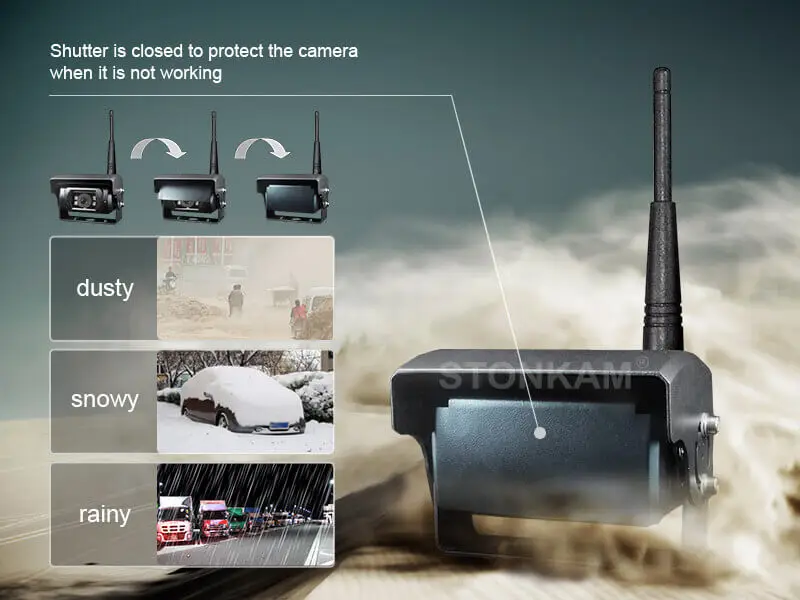

Camera with Auto Shutter, more durable in harsh environment
Camera with auto shutter is especially suitable for use in harsh environment like sandy or snowy places. The shutter is closed to protect the lens when the camera is not triggered.

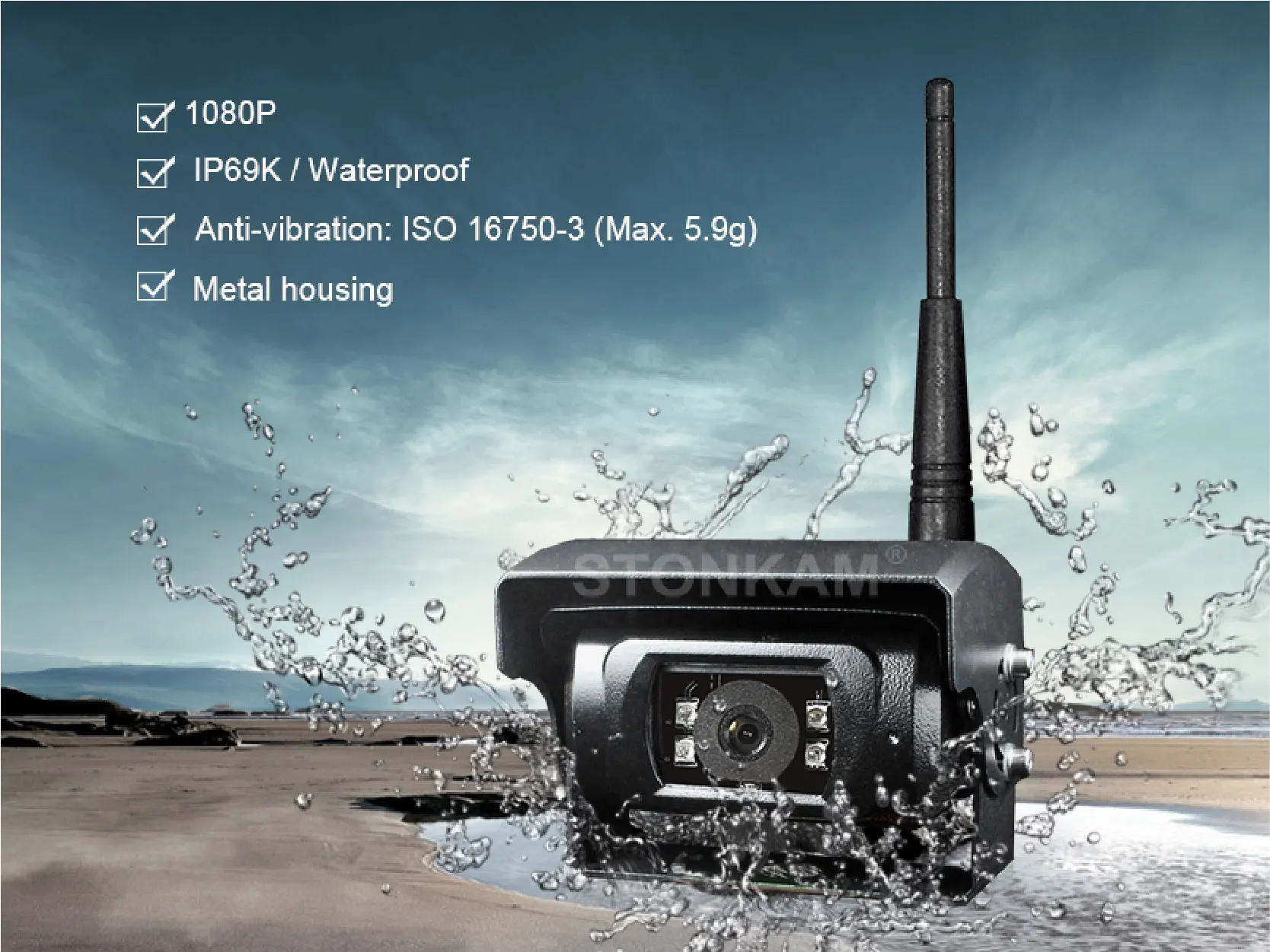

IP69K Waterproof + Metal Body + Anti-shock = Heavy Duty Camera
With IP69K rating, our metal constructed anti-shock camera works well in all weather conditions. And it especially suits commercial and industrial vehicles.
With IP69K rating, our metal constructed anti-shock camera works well in all weather conditions. And it especially suits commercial and industrial vehicles.

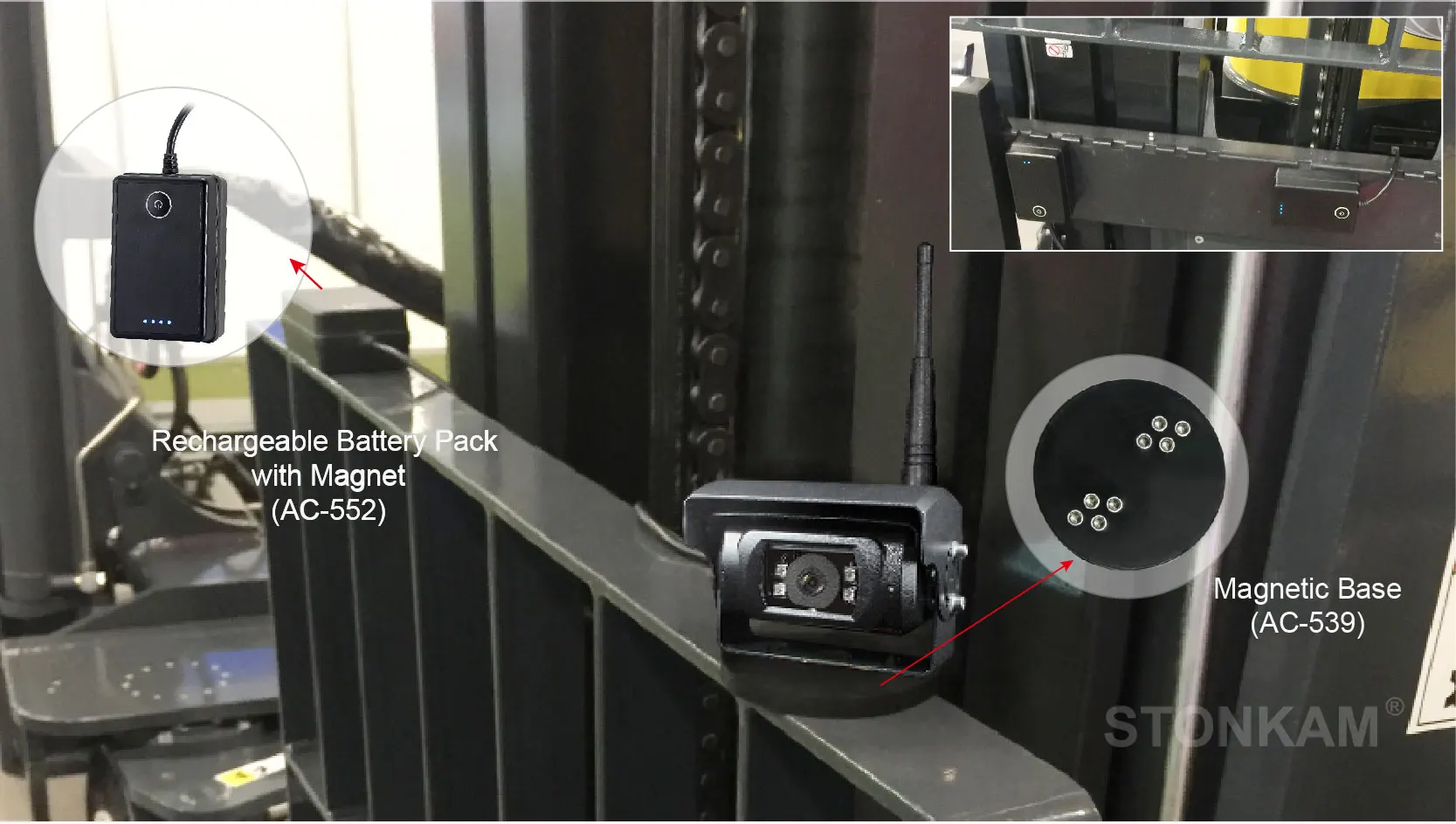

Can work with magnetic base and rechargeable battery
No need to run long cables through the whole car. Suitable for occasions when connecting to power cord is inconvenient.
No need to run long cables through the whole car. Suitable for occasions when connecting to power cord is inconvenient.
With IR-CUT function, night vision distance up to 10 meters
STONKAM Rear view wireless camera can support IR-CUT, thoroughly solving the problem of color deviation of green plants under sunlight and ensuring clear recording; And the night vision distance is up to 10 meters, ensuring safe driving!

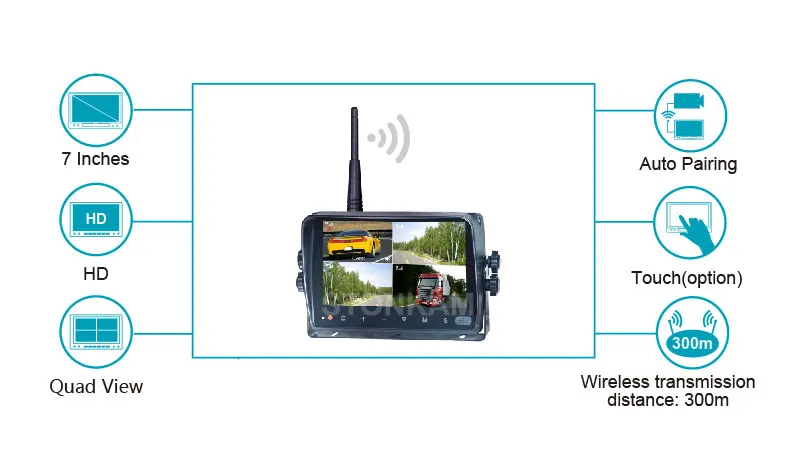

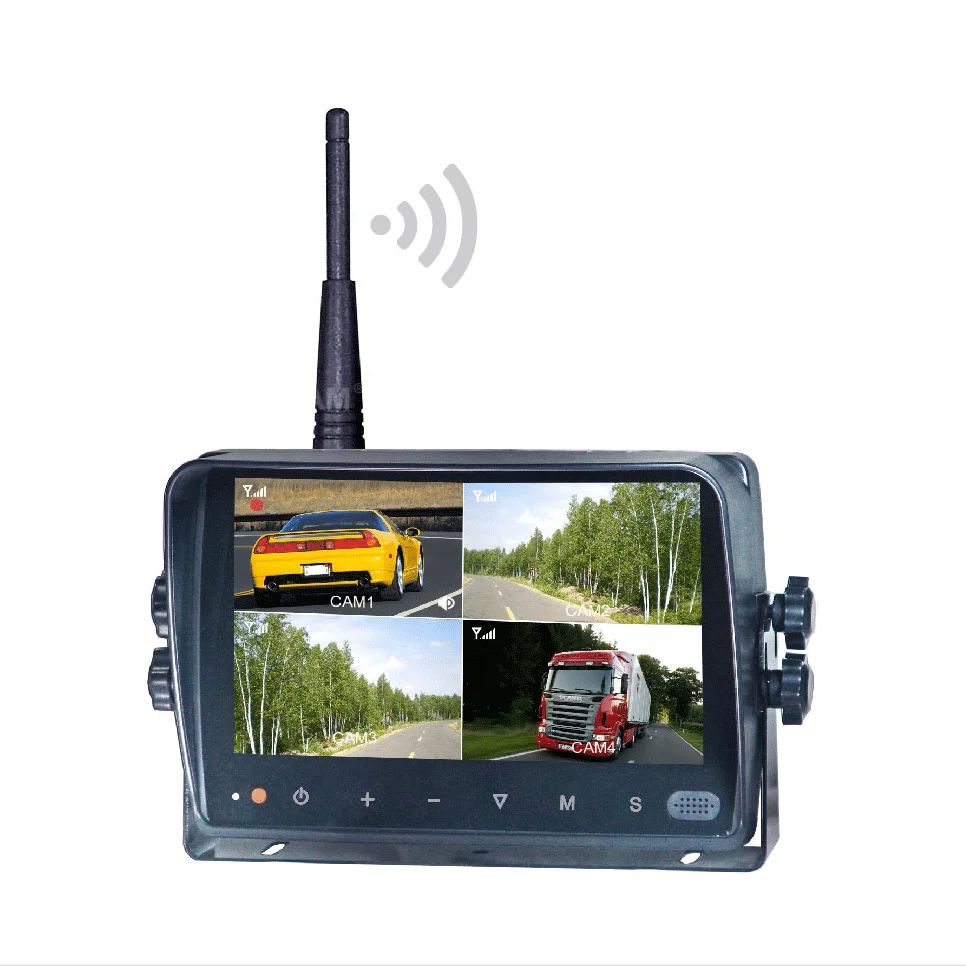

Support multiple display modes, such as quad-view mode, split-view mode, single view mode.
The channels for the quad-view and split-view can be set flexibly.
Touch screen optional
Multiple Application Scenarios
With top grade high quality, STONKAM® Rear view wireless camera monitor for car truck bus can be applied to various vehicles, such as forklift, crane, harvester, etc.
Applications
STONKAM Rear view wireless camera monitor for car truck bus can be applied to various vehicles by easy installation.
