High Quality LED Controller Machine Vision Light Source Controller
- Category: Lighting Accessories >>>
- Supplier: Shenzhen Zhixiang Shijue Technology Co. Ltd.
Share on (1600513131949):
Product Overview
Description
Product Features
1. The width of the output voltage pulse (that is, the lighting time of the light source) can be set from 1us to 999us,And can set the pulse width ratio.
2. Improve the instantaneous brightness of the light source by more than 200%, and prolong the service life of the light source; automatic output.Send out the camera trigger signal, and ensure that the camera is triggered to capture pictures synchronously after the light source is turned on.
3. It can work in the external trigger mode and light the light source as needed; it can also work in the internal trigger mode.The light source is lit at a fixed frequency.
4. Built-in overload automatic protection function.
2. Improve the instantaneous brightness of the light source by more than 200%, and prolong the service life of the light source; automatic output.Send out the camera trigger signal, and ensure that the camera is triggered to capture pictures synchronously after the light source is turned on.
3. It can work in the external trigger mode and light the light source as needed; it can also work in the internal trigger mode.The light source is lit at a fixed frequency.
4. Built-in overload automatic protection function.
Products Description

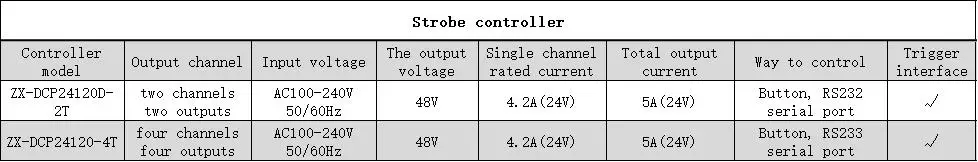

ZX-DCP24120D-2T light source stroboscopic digital display controller, different from the conventional light source controller, the stroboscopic controller switches its output voltage on and off according to the preset pulse width to control the stroboscopic lighting of the LED light source. When the output voltage is turned on, its voltage value is generally more than 2 times that of the conventional controller (for example: for a 24VDC LED light source, the output voltage value can be as high as 48VDC), and the maximum conduction time does not exceed 999us. Therefore, the stroboscopic controller can greatly improve the instantaneous brightness of the LED light source, and at the same time, due to the short lighting time of the light source, the internal heating of the LED is suppressed, thereby greatly extending the service life of the light source.
Details Images
