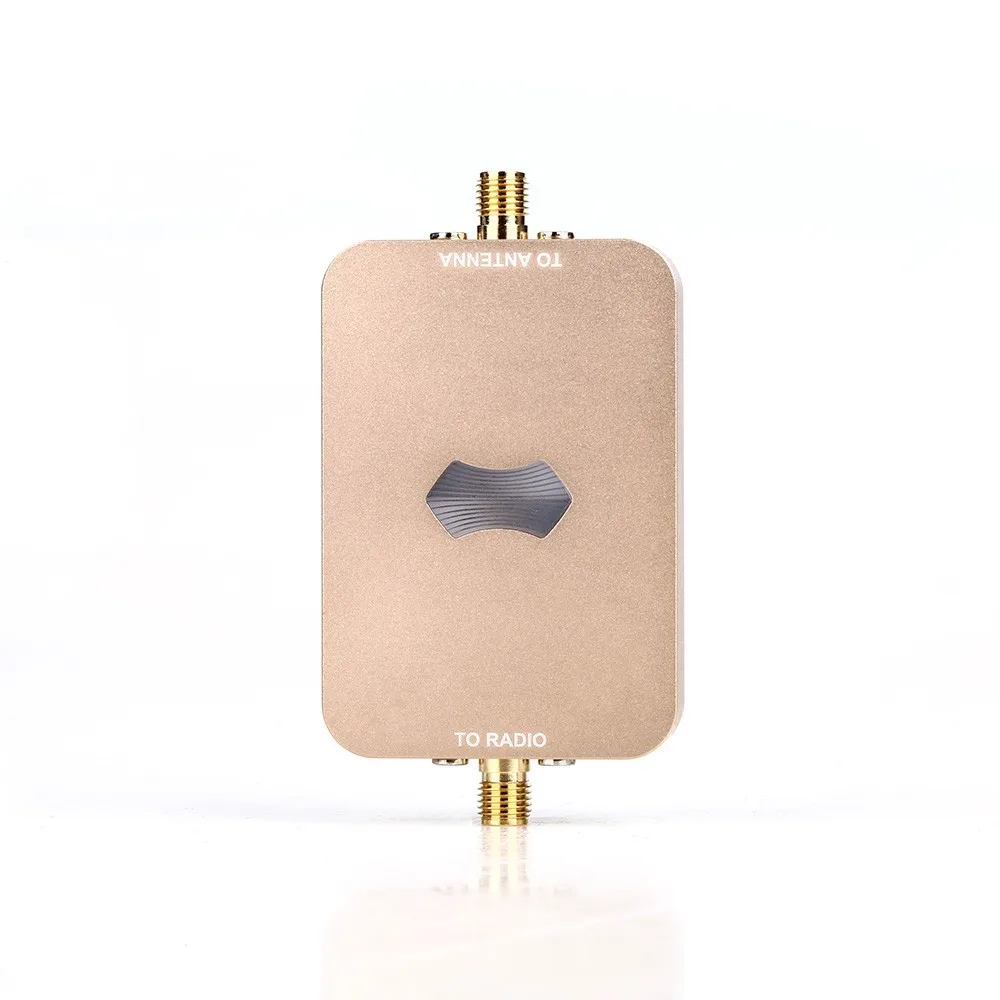

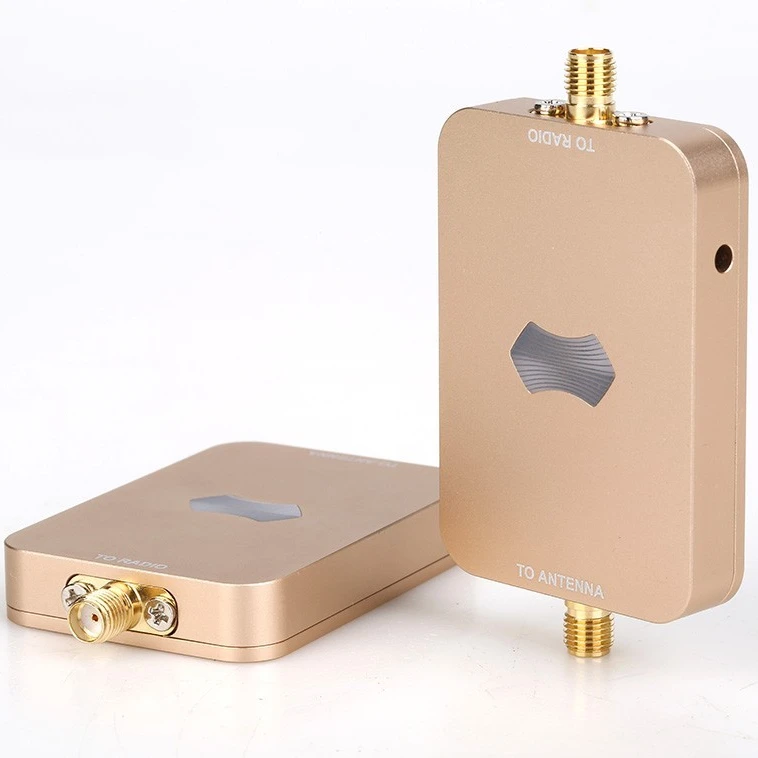

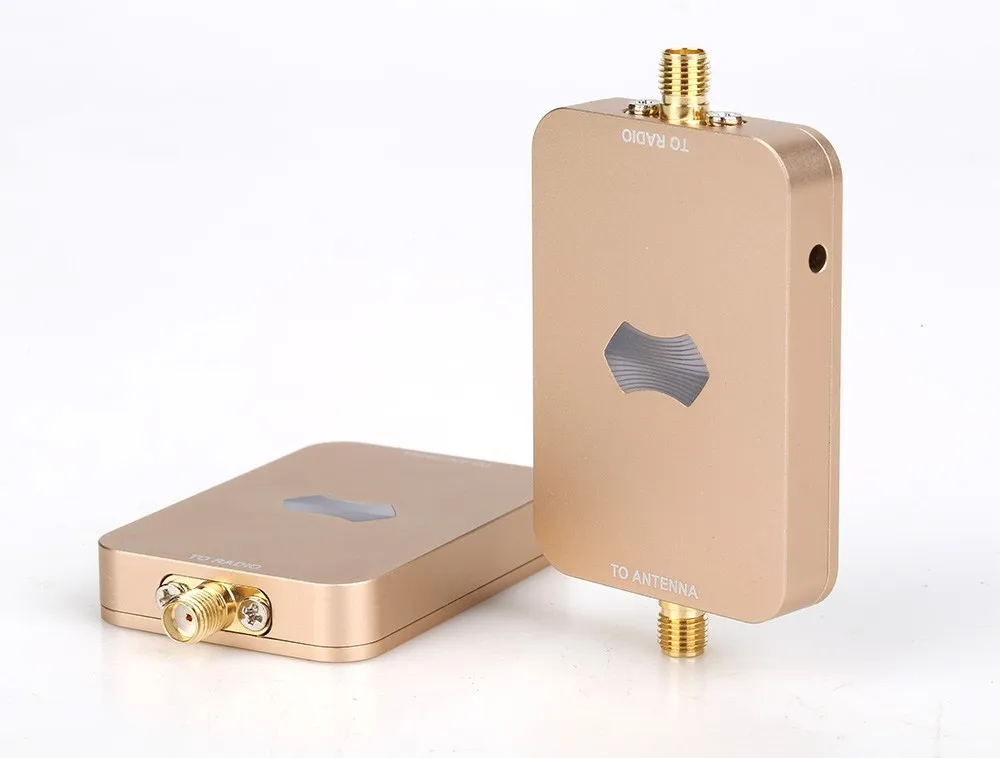

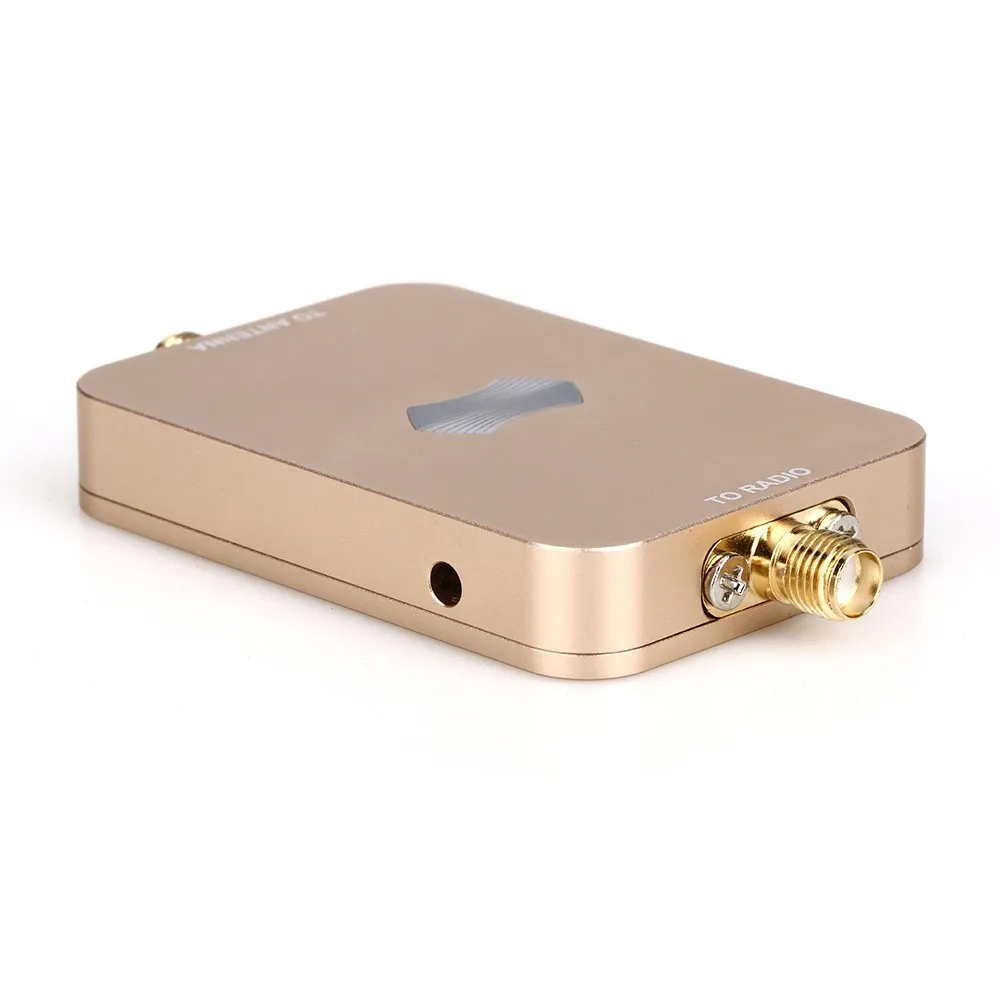

UAV RC WiFi Signal Booster Amplifier 2.4G 3W 35dBm SH RC24G3W

Product Overview

Description

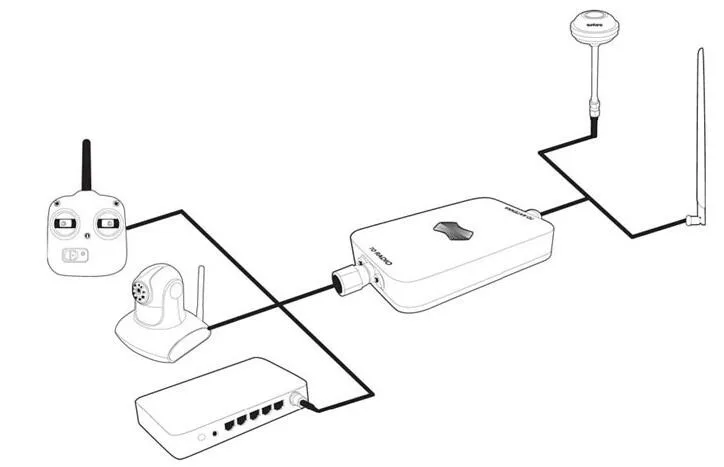

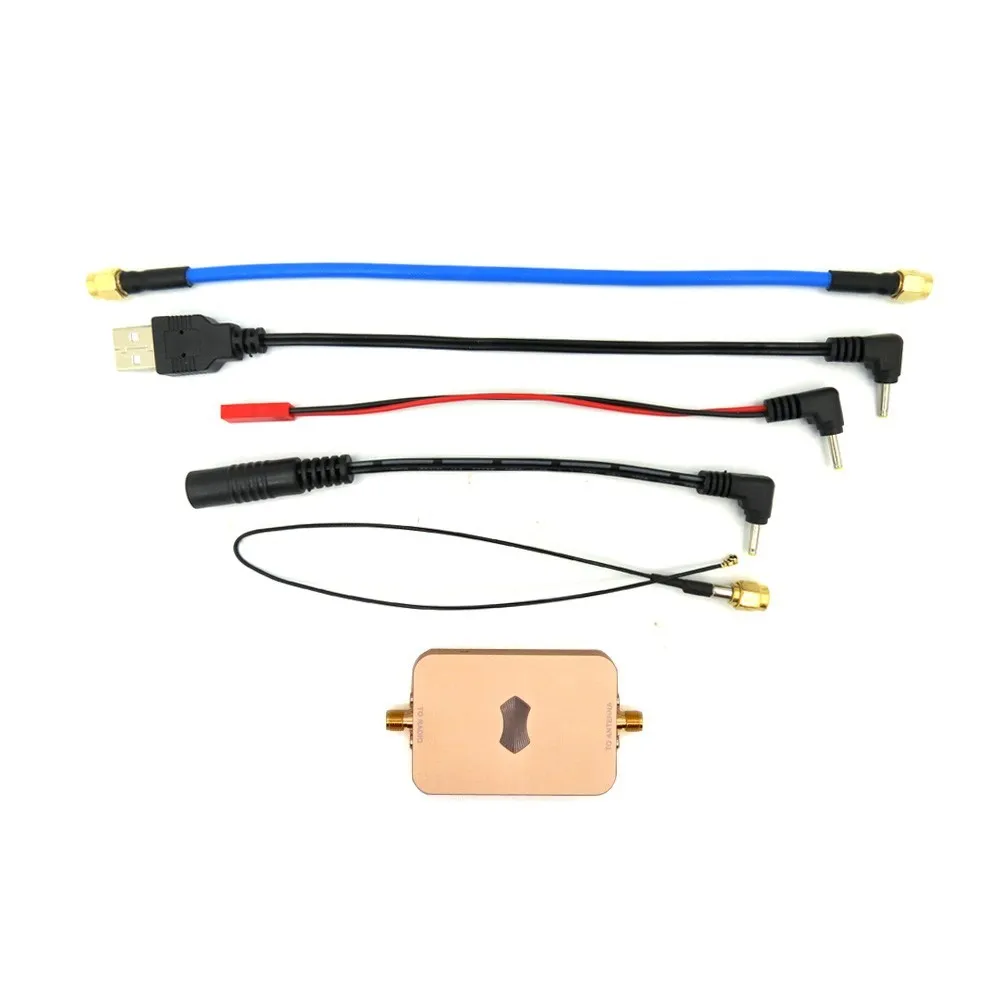

- Compact size and lightweight  - Designed for Drones, UAV, RC equipment etc.  - 3000mW 2.4GHz UAV RC wifi signal booster amplifier  - Designed for use in a variety of mobile and wireless networking applications  - Result in a further reaching signal and better connectivity  Parameters: - Model No.: SH- RC24G3W - Operating Range: 2.4~2.5 GHz - Channel Size: 20Mhz & 40Mhz  - Support Standard: IEEE 802.11/b/g/n  - Operating Mode: bidirectional transmission mode, half-duplex transmission mode and time division duplex transmission mode  - Connector Type: SMA  - Output Power: 3000mW (35dBm) - Input Power: 0~20 dBm - Transmission Gain: 15-18dB  - Receiver Gain: ≤ 12 dB - Noise Figure: ≤3.5 dB  - Supported Voltage: 5V~16V/2A DC - Operating Temperature: -20°C to +70°C - Operating Humidity: Up to 75% relative humidity - Material: Aluminum Alloy - Booster Weight: 46g - Booster Size: 7.3 x 4 x 1cm Package Included: - 1 x WiFi Signal Booster Amplifier  - 1 x RG141 20cm Cable  - 1 x DC 2.5" to 12V 5.5" Cable  - 1 x DC 2.5" to USB Cable  - 1 x DC 2.5" to JST Cable  - 1 x Magic Tape  - 1 x User Manual
