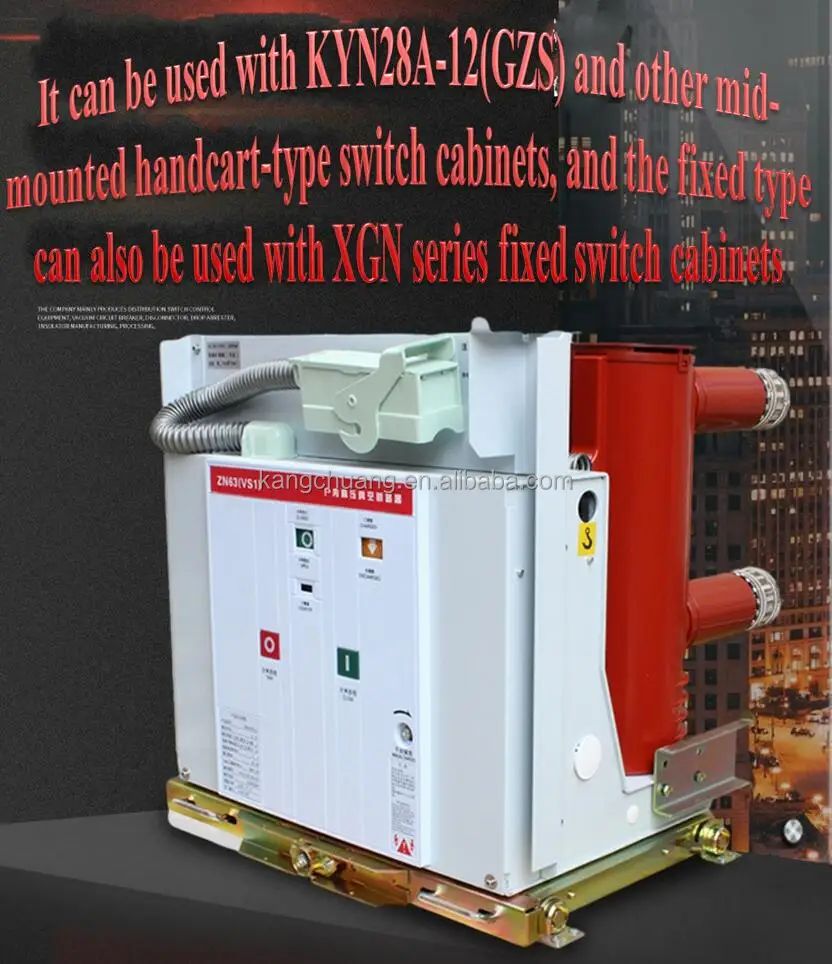

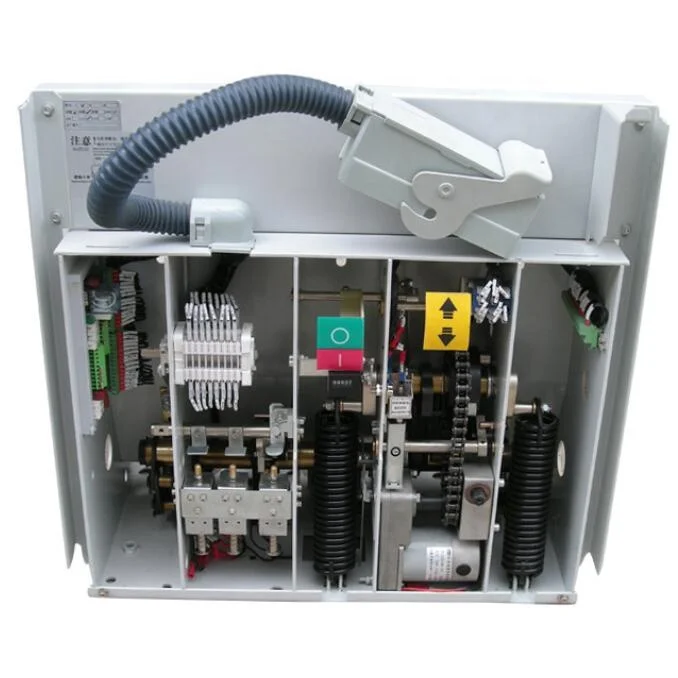

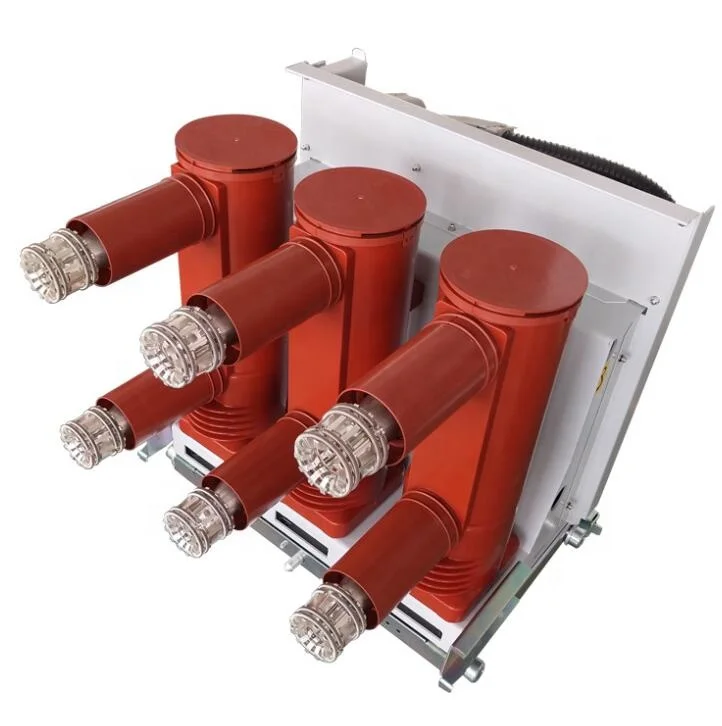

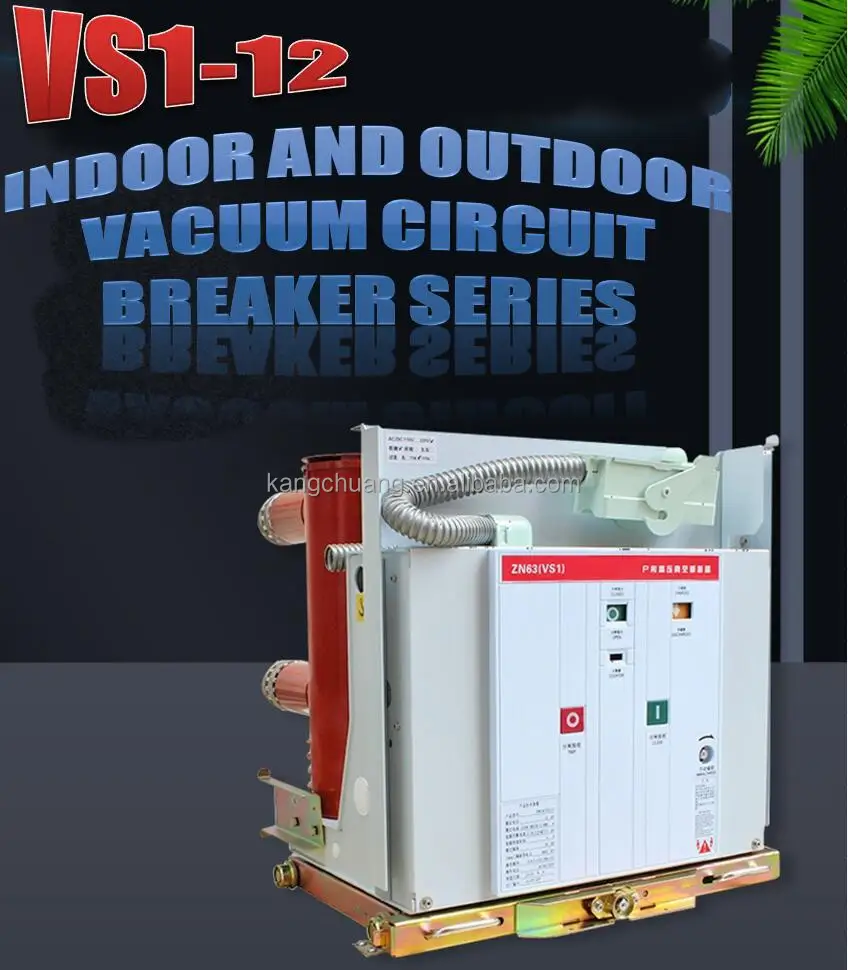

VS1 12/24KV High quality indoor high voltage vacuum circuit breaker for switchgear

Product Overview

Description

overview:

VS1 indoor medium voltage Vacuum Circuit Breaker is a three-phase AC 50Hz ,rated voltage 6KV,12KV,24KV switch equipment of power system.
Breaker adopts the integral design of the actuating mechanism and the breaker body, which can be used as a fixed installation unit or as an individual VCB carriage together with handcart. They have a long life expectancy. There is no adverse effect on the vacuum, even from frequent switching of operating and short-circuit currents.

Our products are widely used in:

1 - Transformers and distribution substations
2 - Generator control and protection

3 - Capacitor bank control and protection, etc

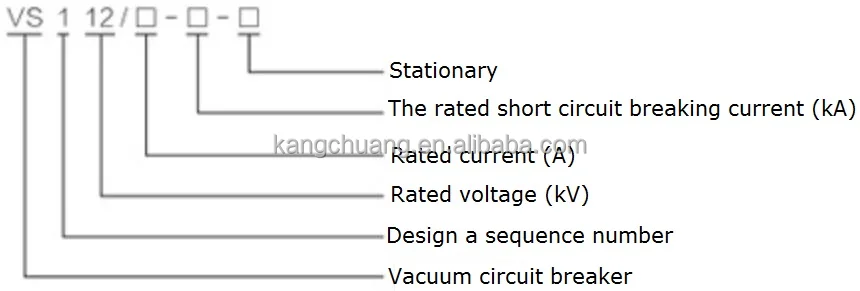

Model Description :

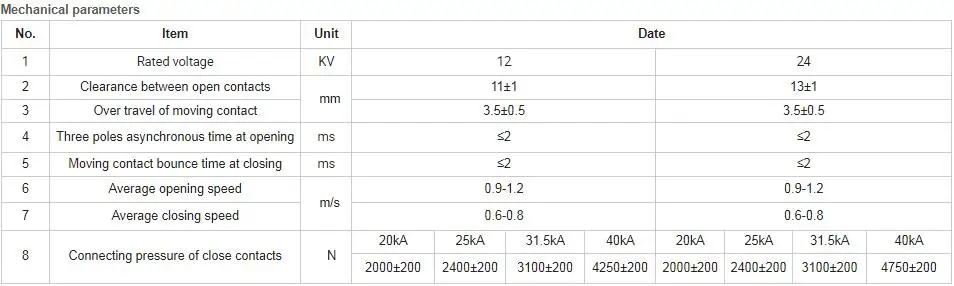

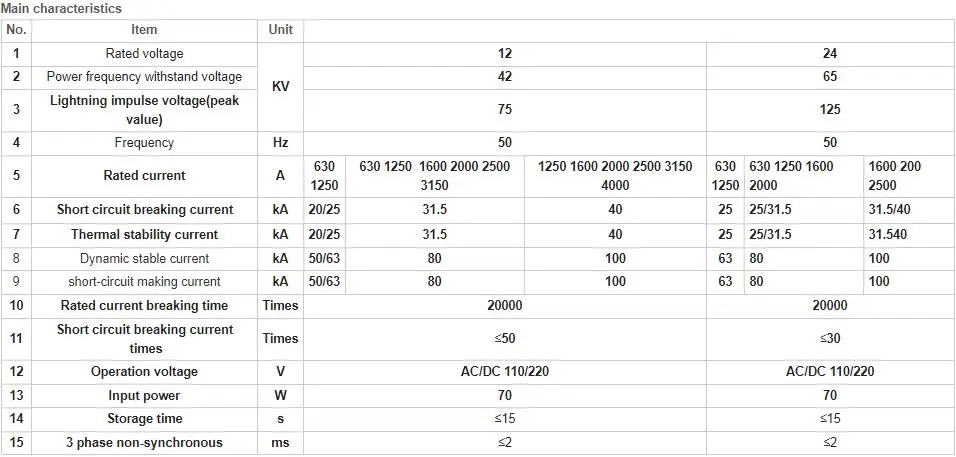

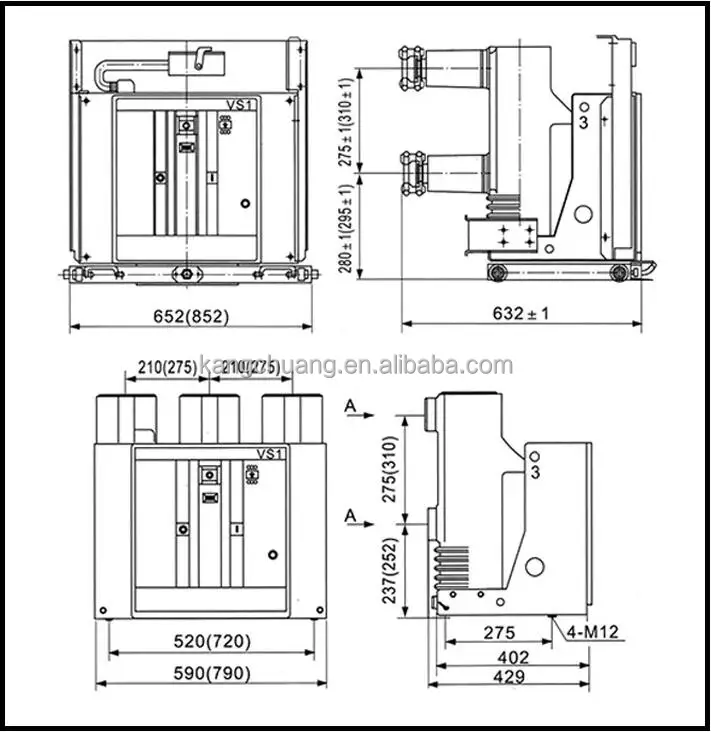

Technical parameters and  installation dimensions:

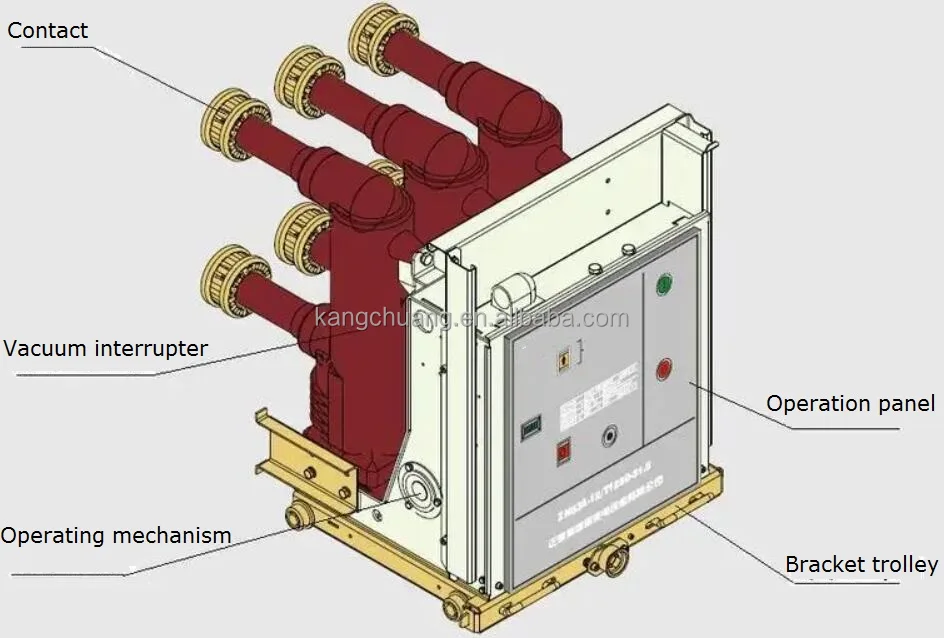

Product Structural features:

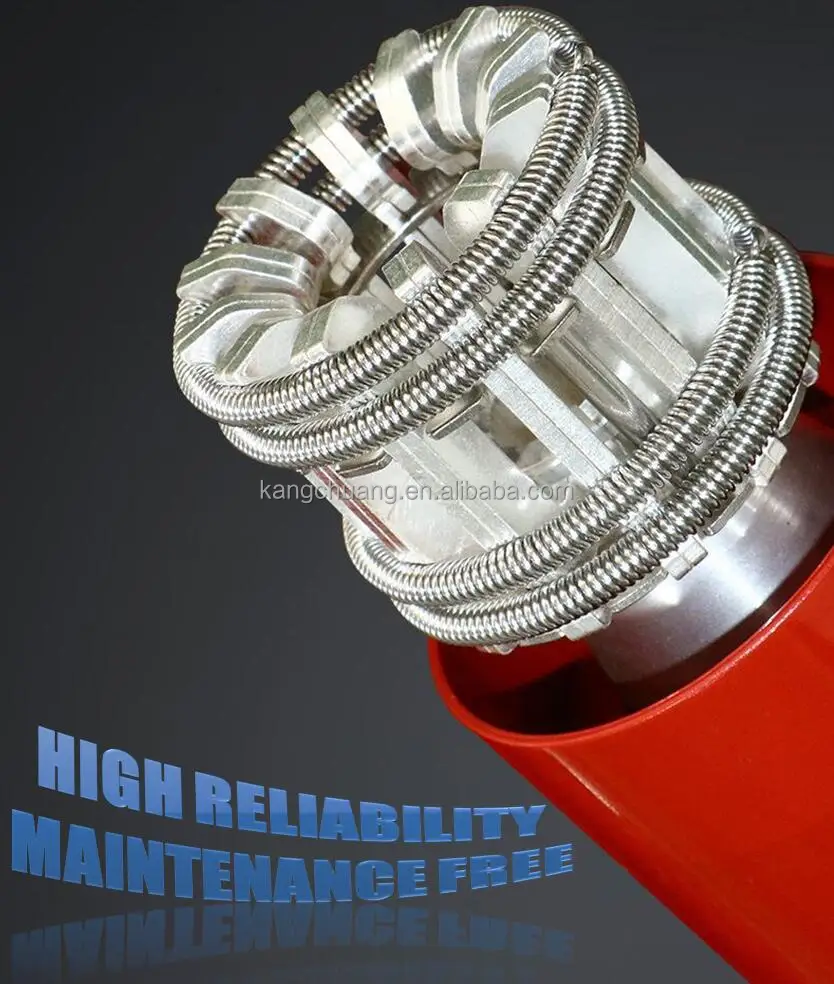

VS1 type VCB consist of operating mechanism and arc-extinguish chambers in front-back arrangement, its main conductive circuit is floor model structure. The vacuum arc-extinguish chamber is fixed in a vertical cannular insulation column made of epoxy resin by APG technology, therefore with high anti-creepage function. Such structure design greatly reduces the accumulation of dusts on the surface of vacuum arc- extinguish chamber, it not only can prevent the vacuum extinguish chamber from outside influences, but also can ensure to present high resistance state against the voltage effect even in warm-wet climate or heavy pollution environment.

1 - with reliable interlock functions, suitable for frequent operation

2 - low noise and energy consumed

3 - simple and robust construction.
4 - high operating reliability

5 - mechanical durability of switch : 20000 times, etc

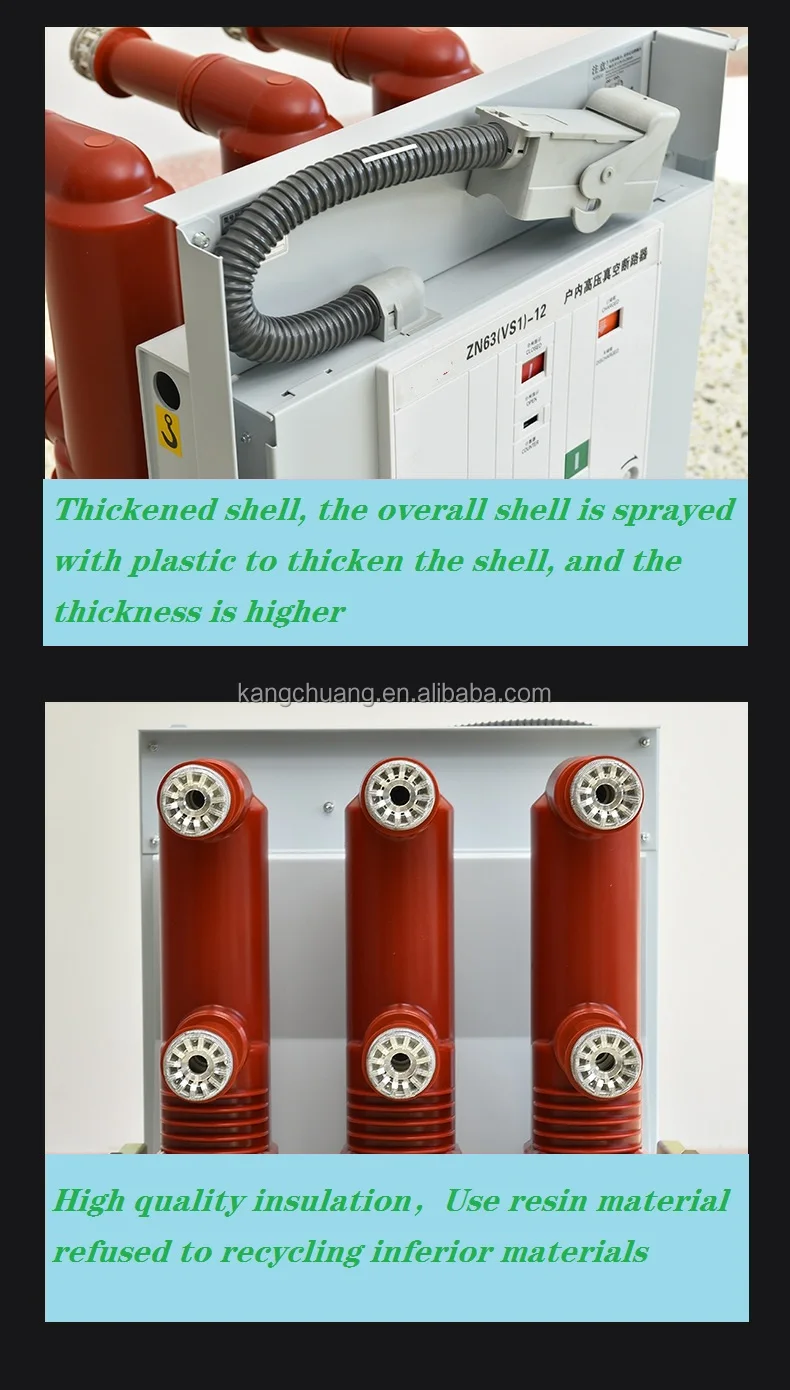

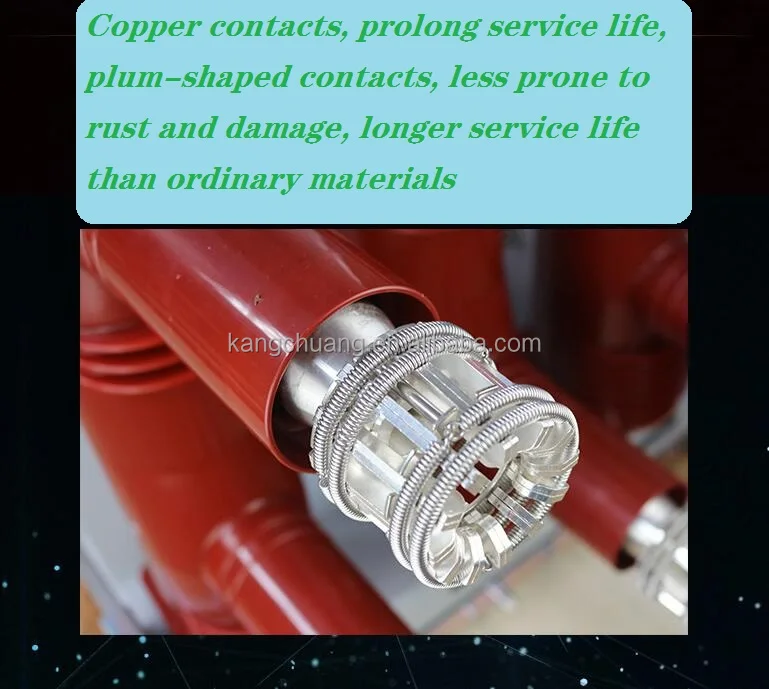

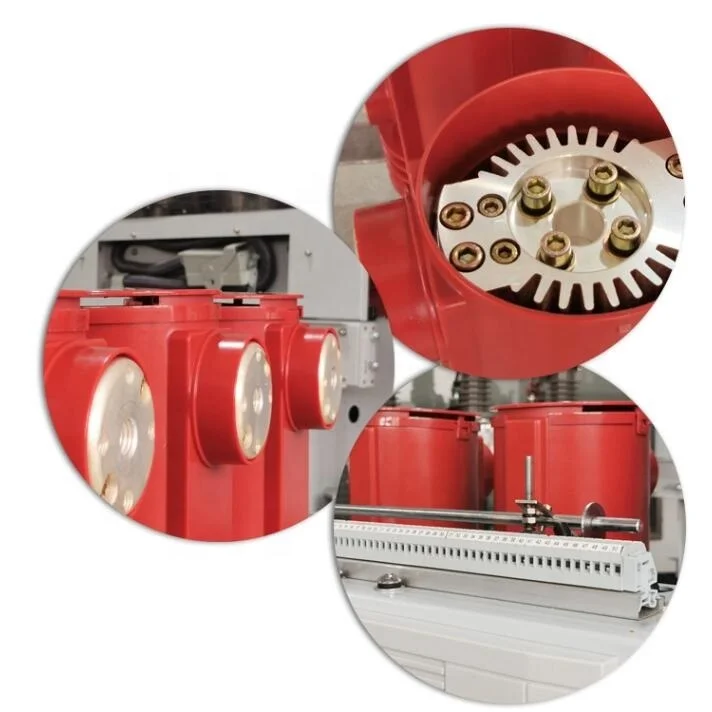

Product details:







Product use environment:

Installation site:outdoor

Ambient temperature: -25℃~+40℃

Max. daily temperature difference ≤25℃

Height above sea level:2000m(no limit for specified order)

Air humidity     Daily average:≤95%;

month average:≤90%;

Wind speed: ≤34m/s

Solar radiation:≤0.1W/cm2(fine day, noon)

Earthquake intensity horizontal:≤0.3g;vertical:≤0.15g

Icing thickness:≤10mm

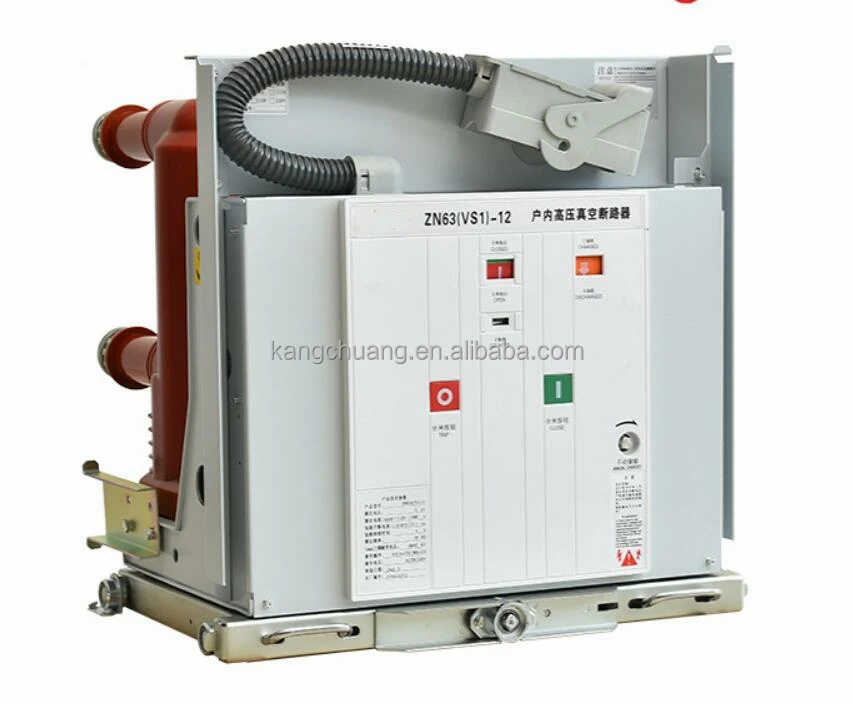

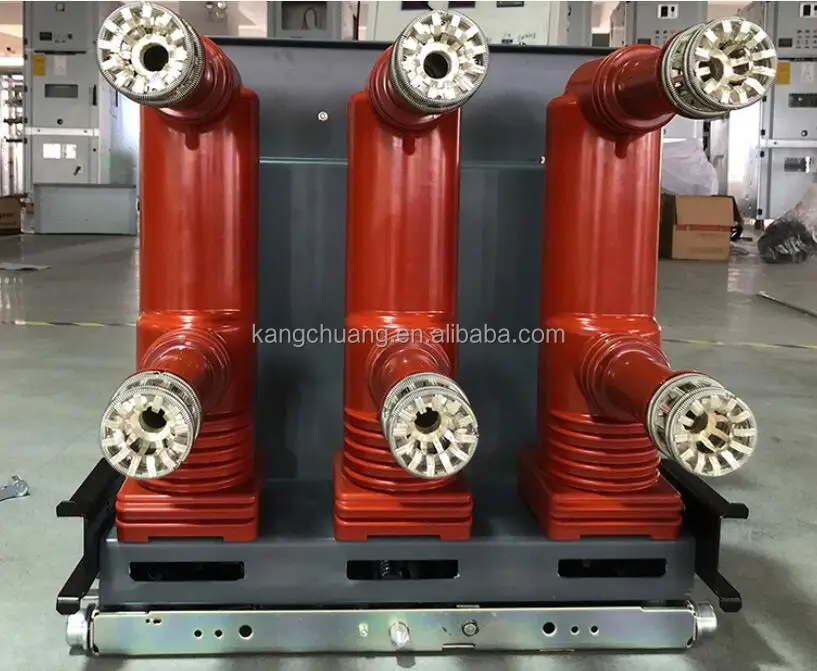

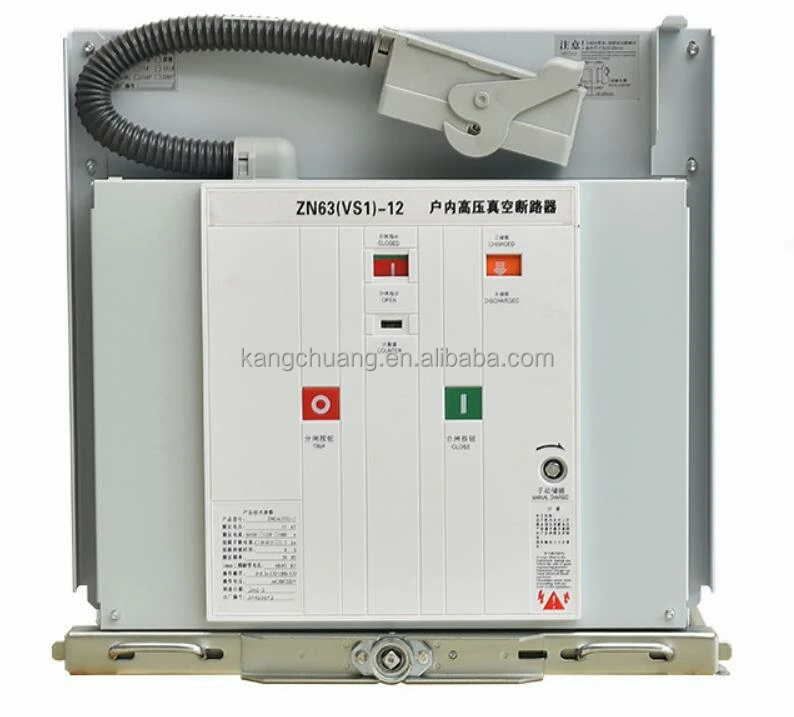

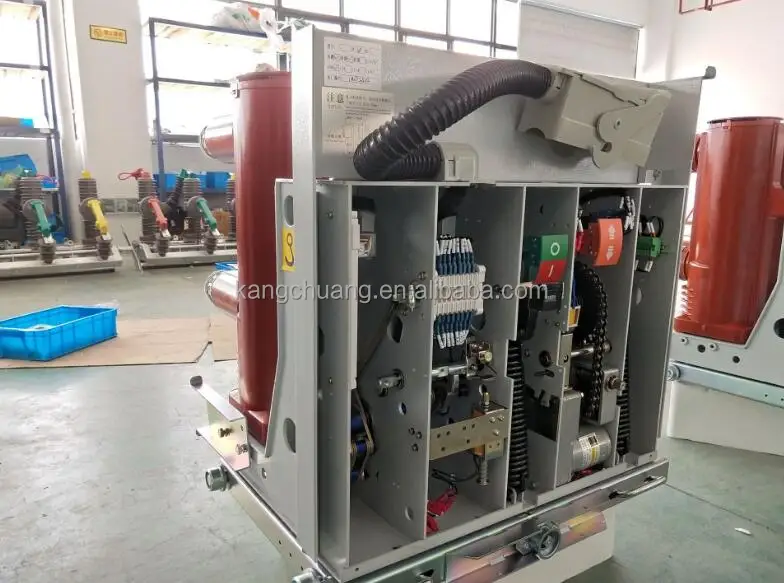

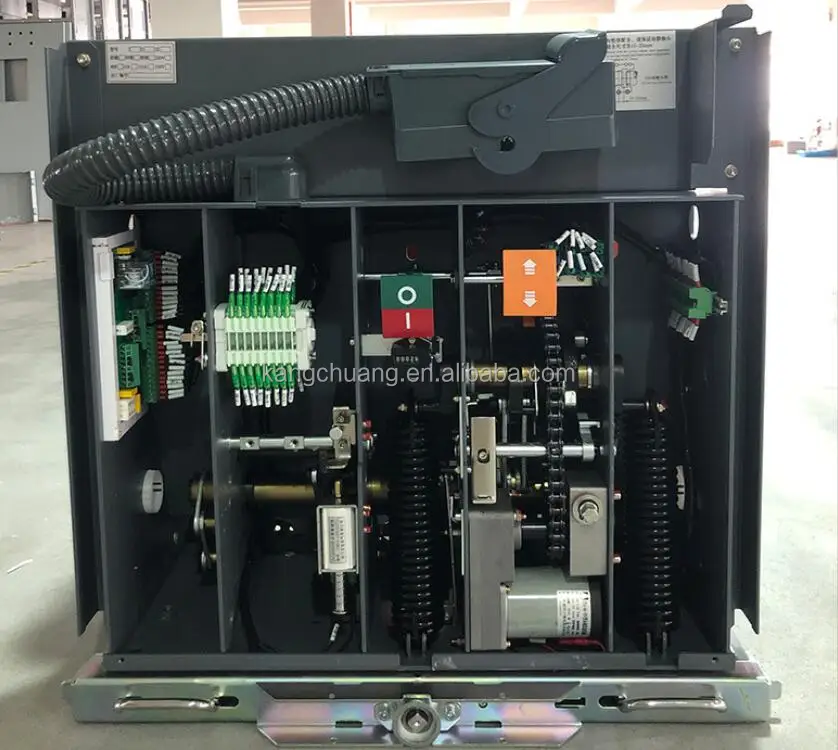

Products real shot:

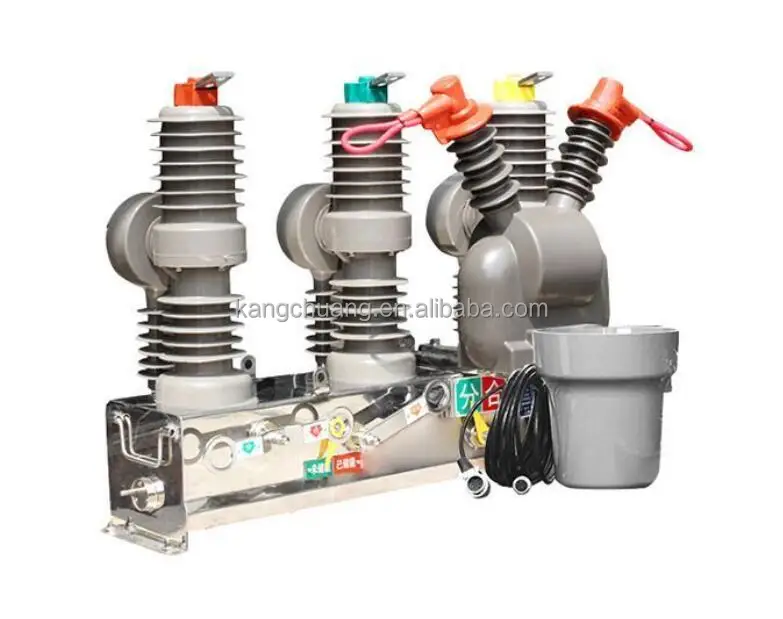

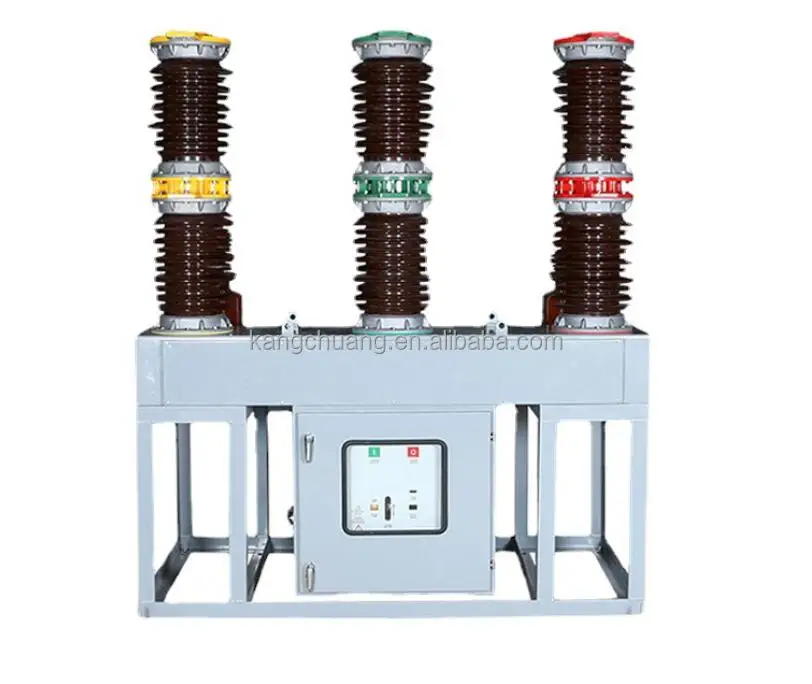

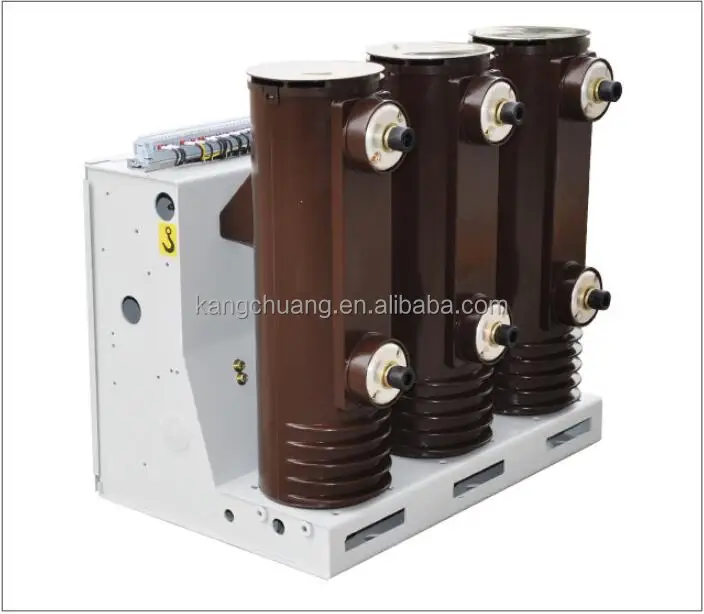

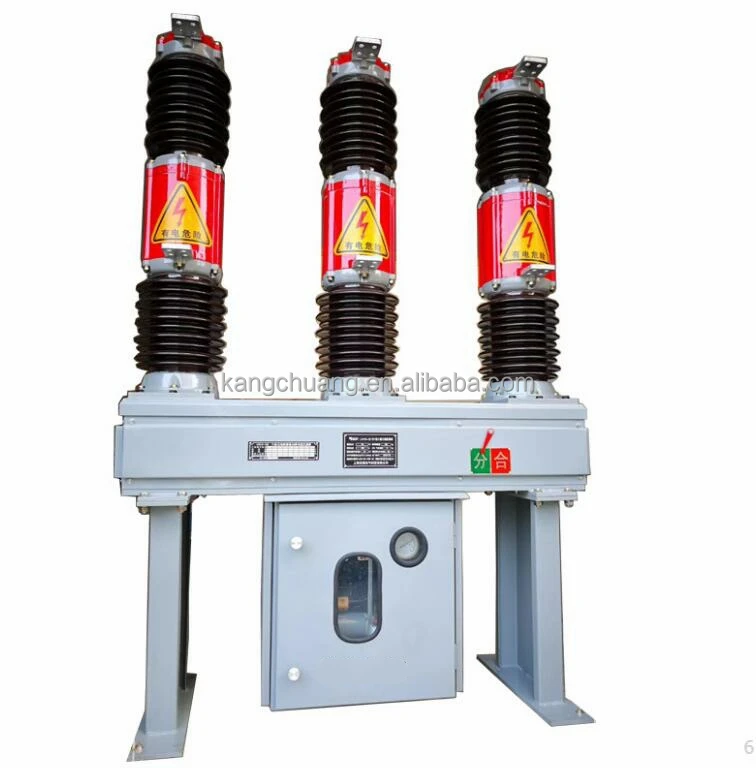

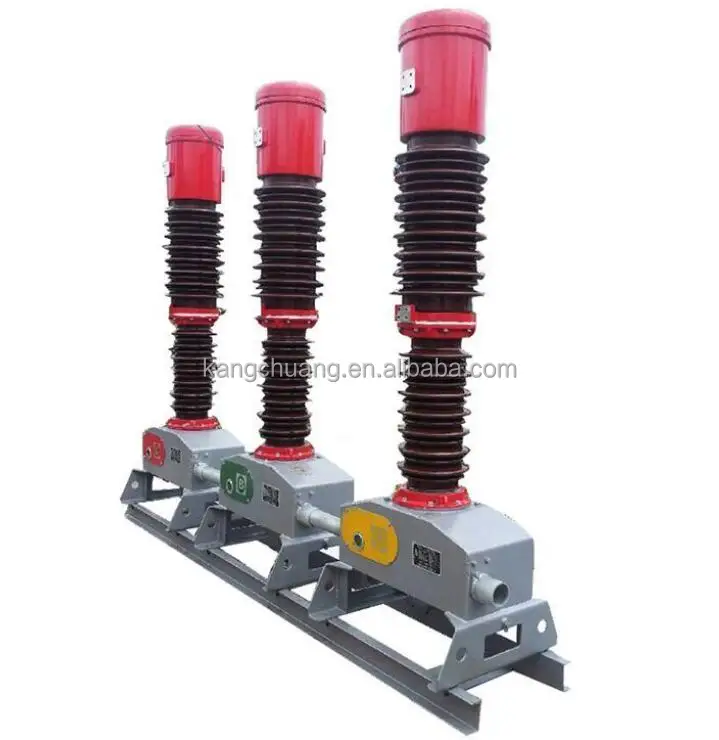

More products:

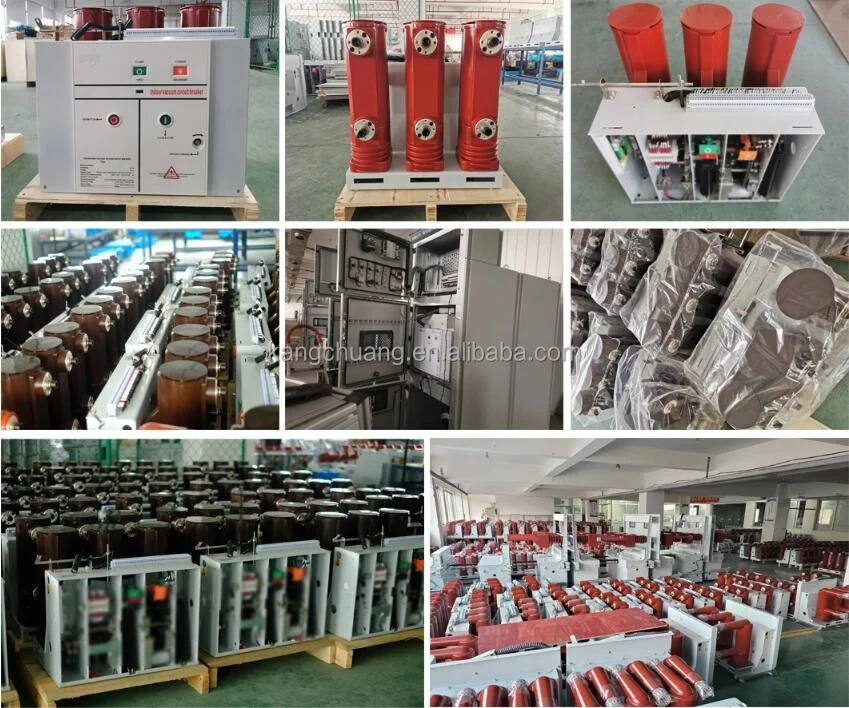

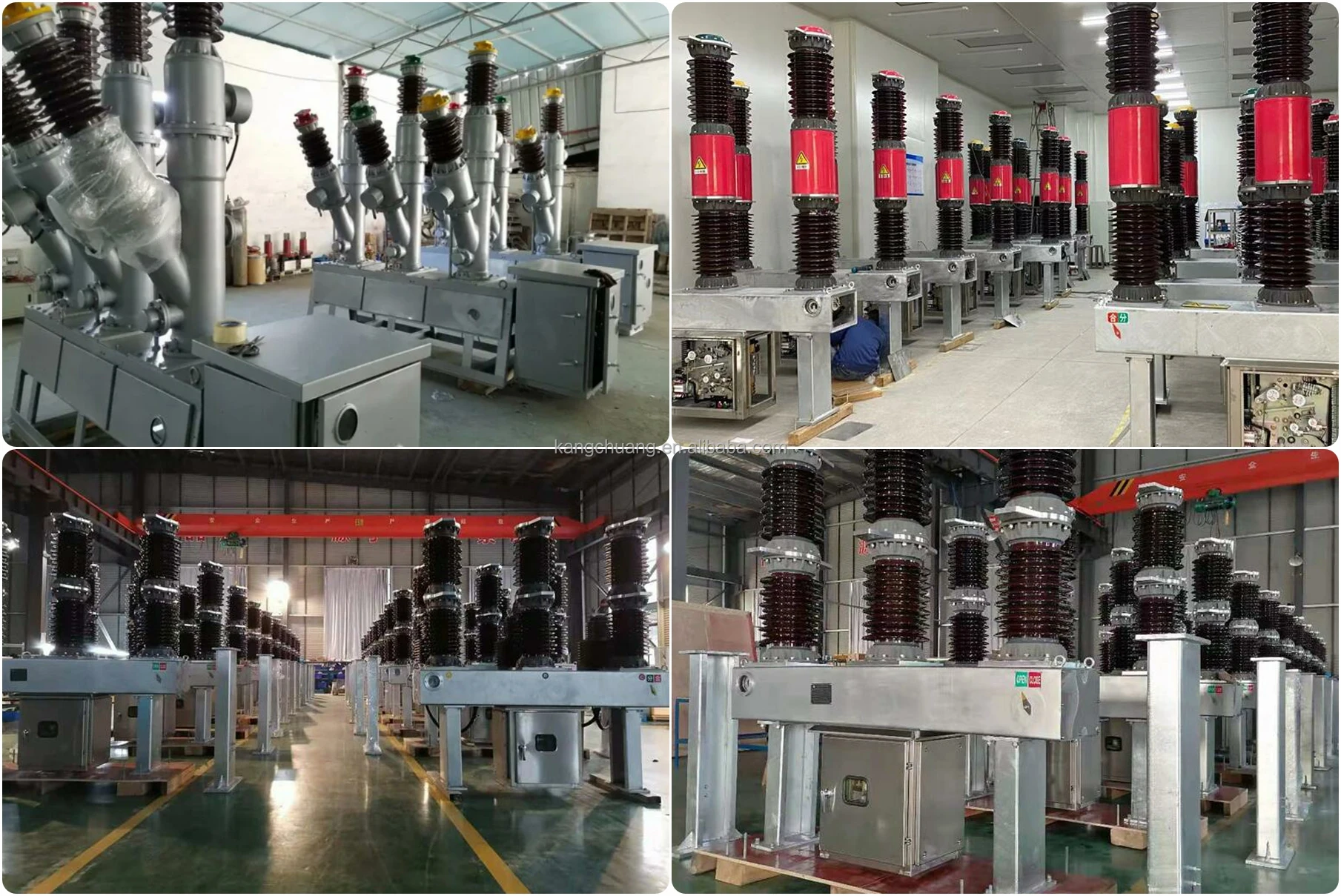

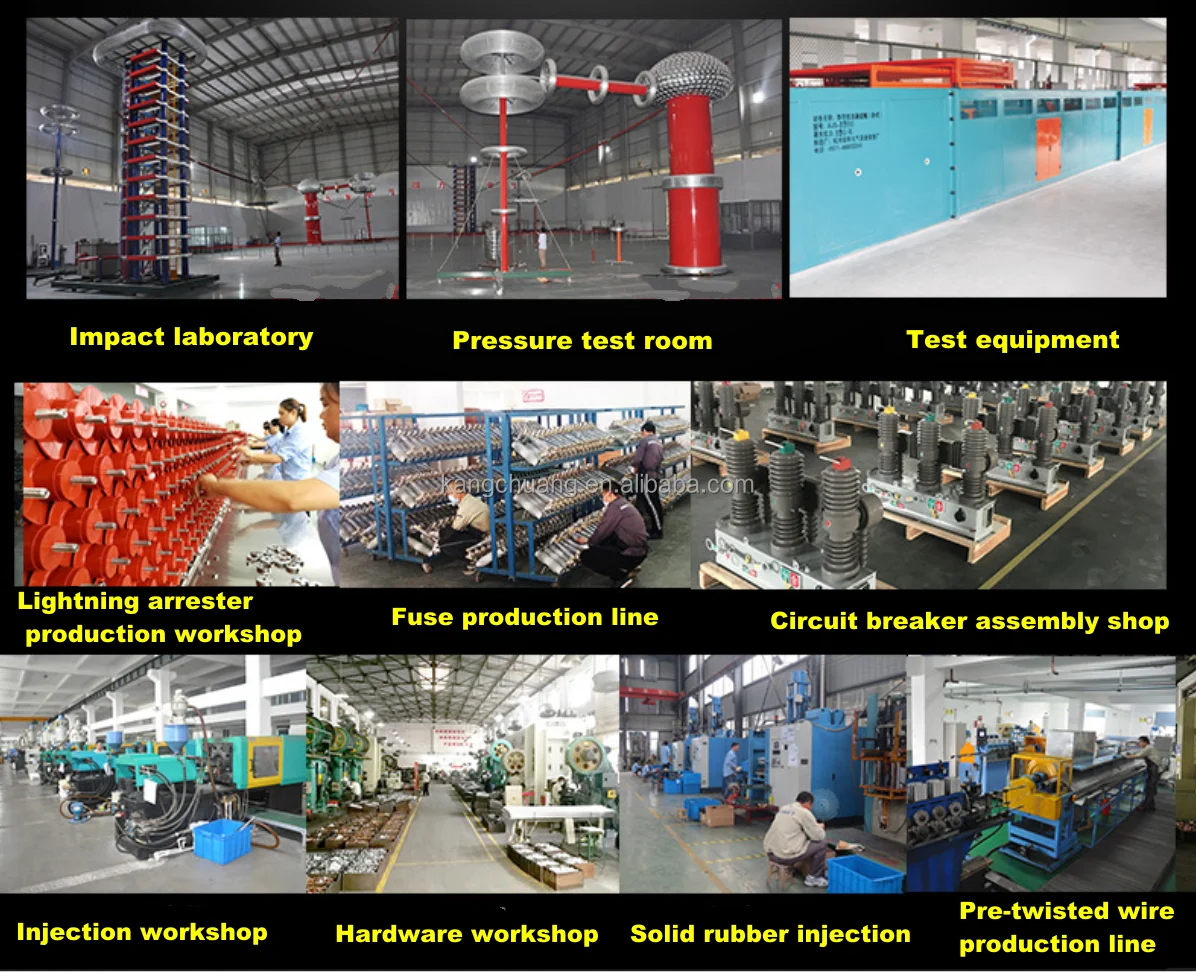

A corner of the production workshop:

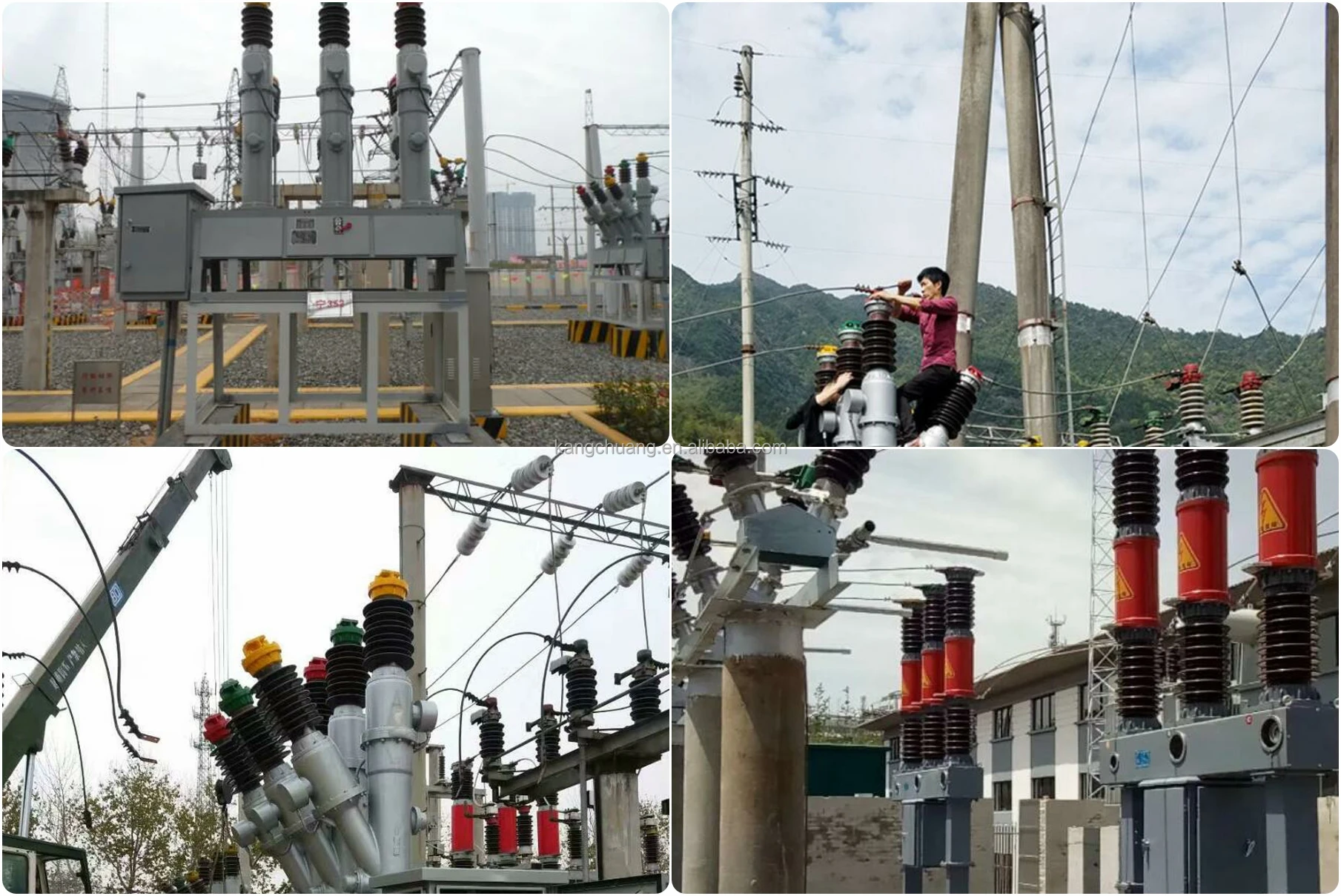

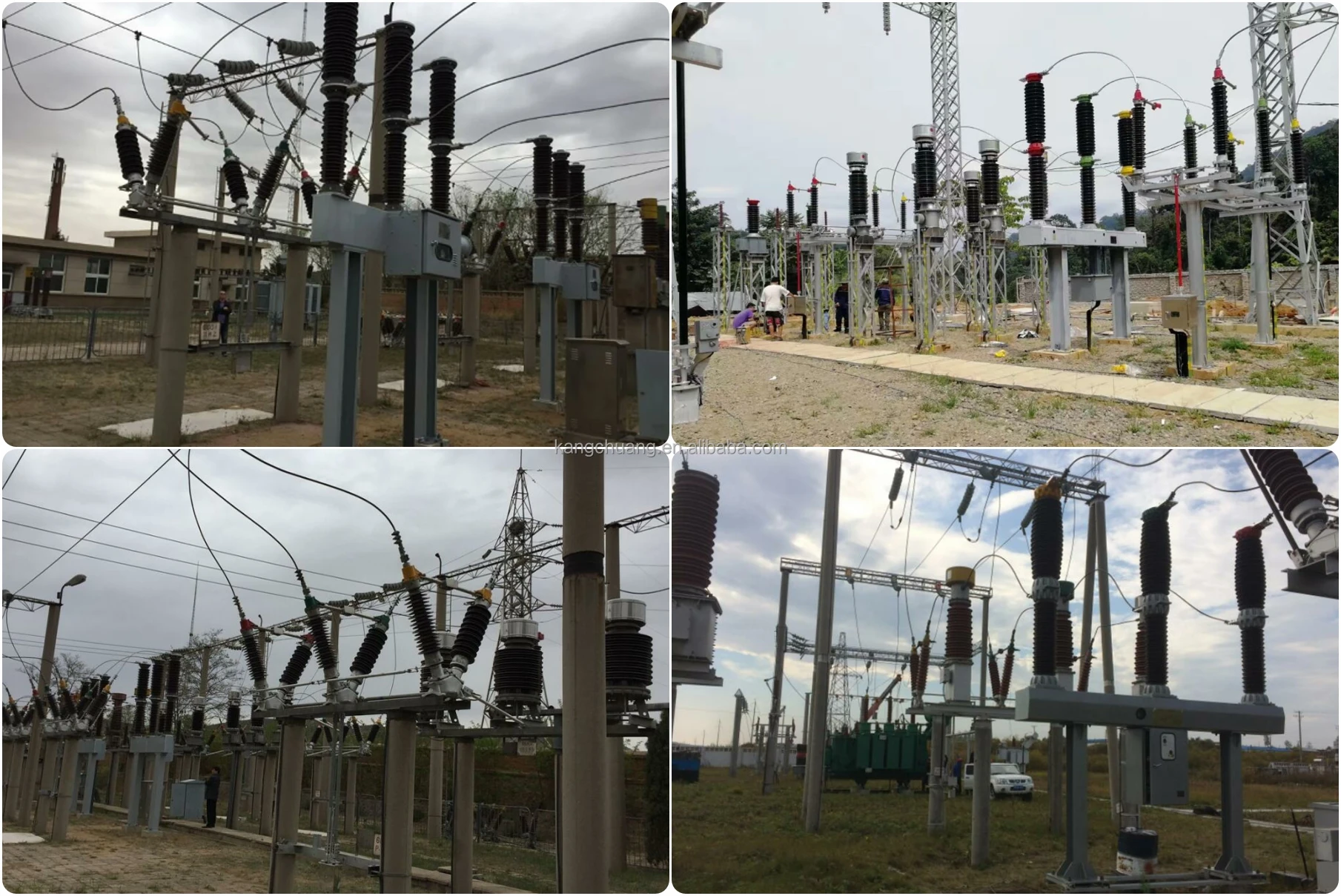

The product application:











Packaging and Shipping:



FAQ:

Q: Are you a trading company or manufacturer?

A: We are a factory of more than 20 years' experiences.



Q: Is it all right to make customer's own brand name?

A: Sure, with your authorization of brand. We accept OEM service.



Q: How do you control the quality?
A: We have QC team comply with TQM to ensure the quality. Each step is in compliance to the standards. At the same time, we will take photos and shoot video for you if you need.



Q: How long does it take for me to get the quotation?
A: For customized products, we will quote after you provide the requested product details within 48 hours because we need the time to calculate the cost, but we will quote as soon as possible.

 Q: Why should I choose your company?

A:Superior quality and low price, professional technical team, rich experience, timely delivery time, excellent after-sales service, good reputation and credit.



Q:What's your main products?
A: Drop out fuse ,lightning arrester, compact transformer, substation, HRC Fuse ,fuse base, power cable ,all kinds of high-voltage and low-voltage goods and related products.



Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.



 Q: What’s your payment terms?
A: We usually accept all kinds of payment terms, T/T, L/C, Western union, Cash.



Q: What’s your warranty terms?
A: We offer 24 months warranty terms.



Q: Do you have the products in stock?
A: Depends on your request, we have standard models in stock. Some special product and big order will be newly produced according to your order.



Q: What do you have for certificate?
A:ISO9001, ISO14001, Type test, CESI etc.



Q:Can we visit your company?
A:Yes, for sure, you are welcome to visit our company.
