Product Overview
Description
Timer Switch

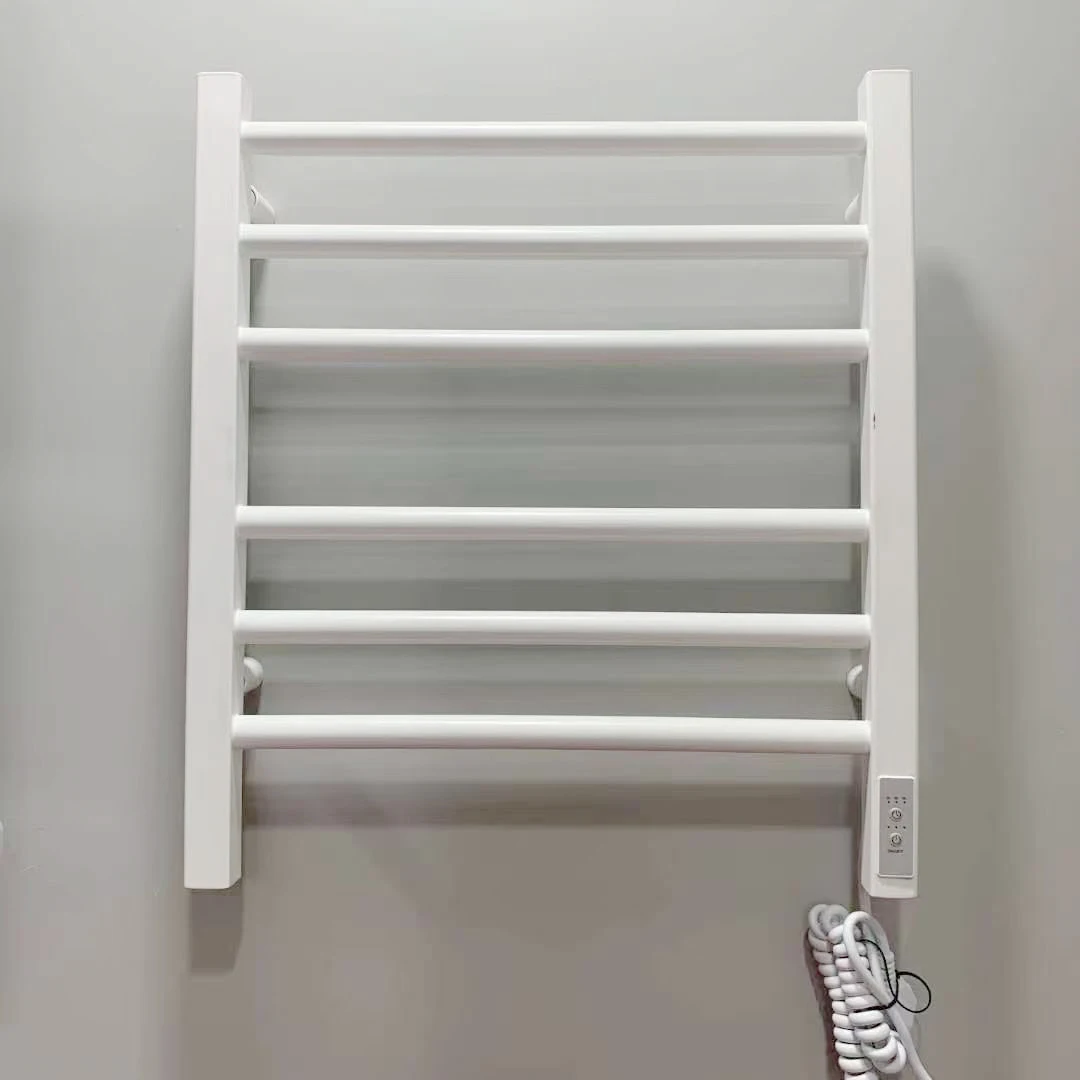

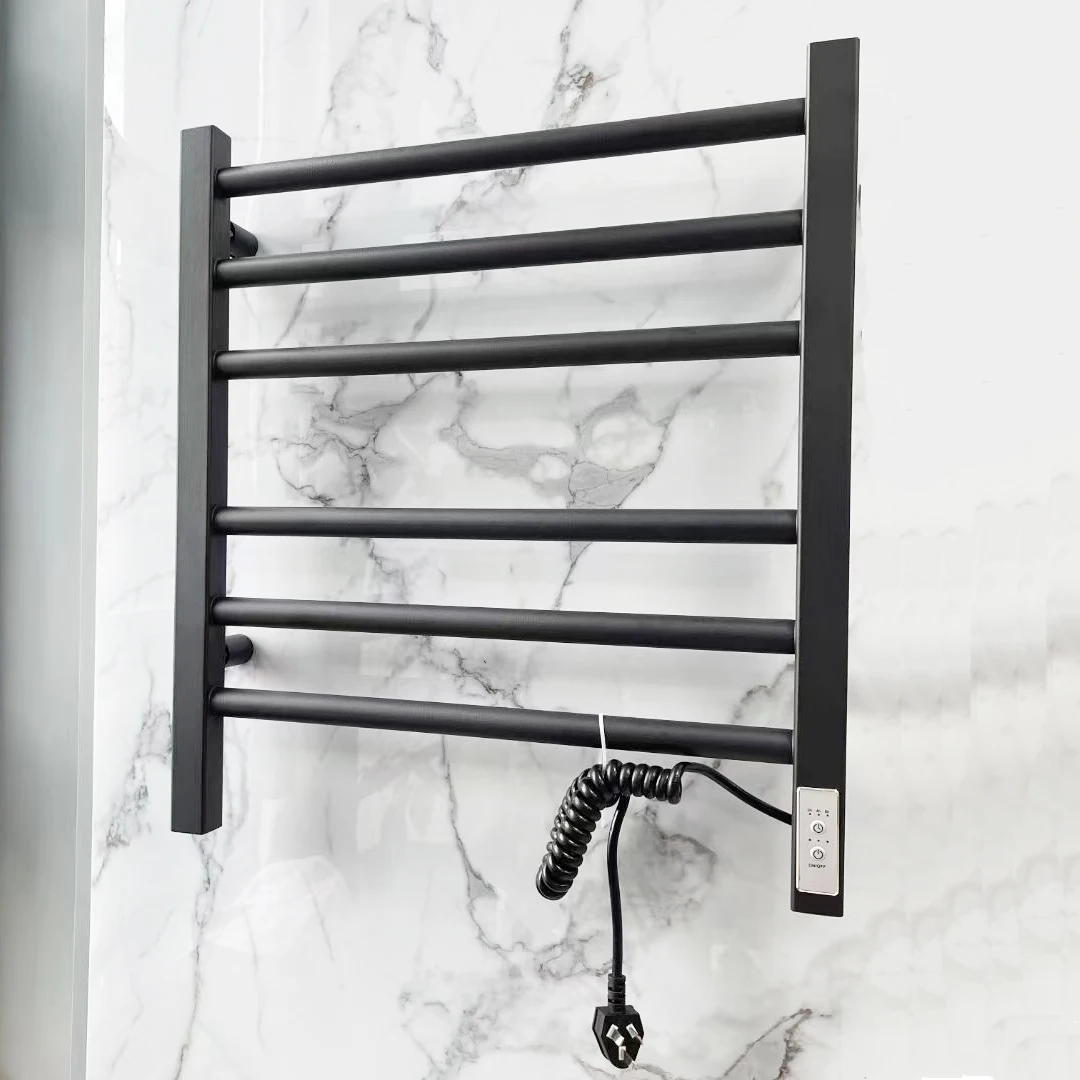

Timer switch for electric towel rack
Application
Switches Types

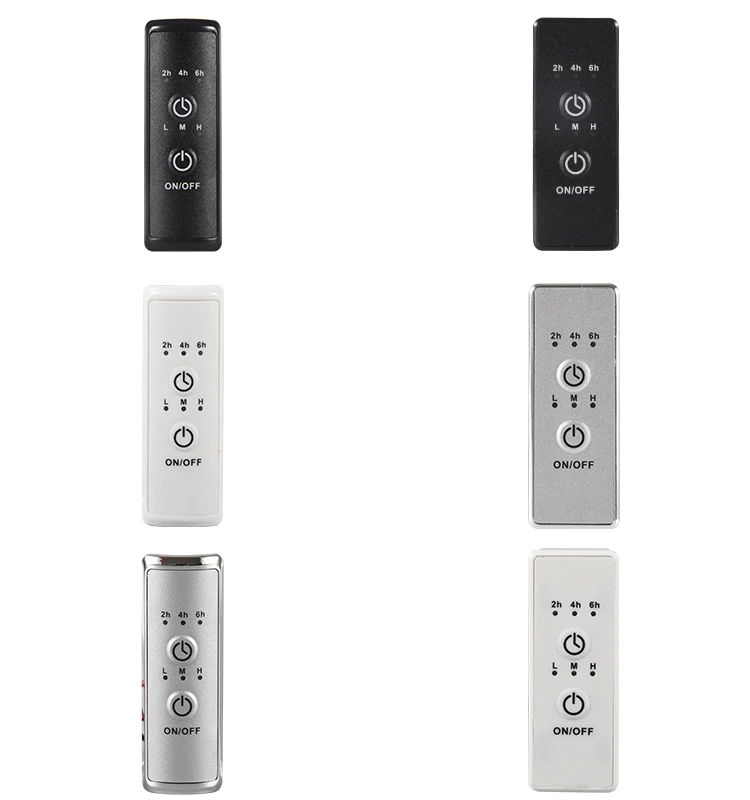

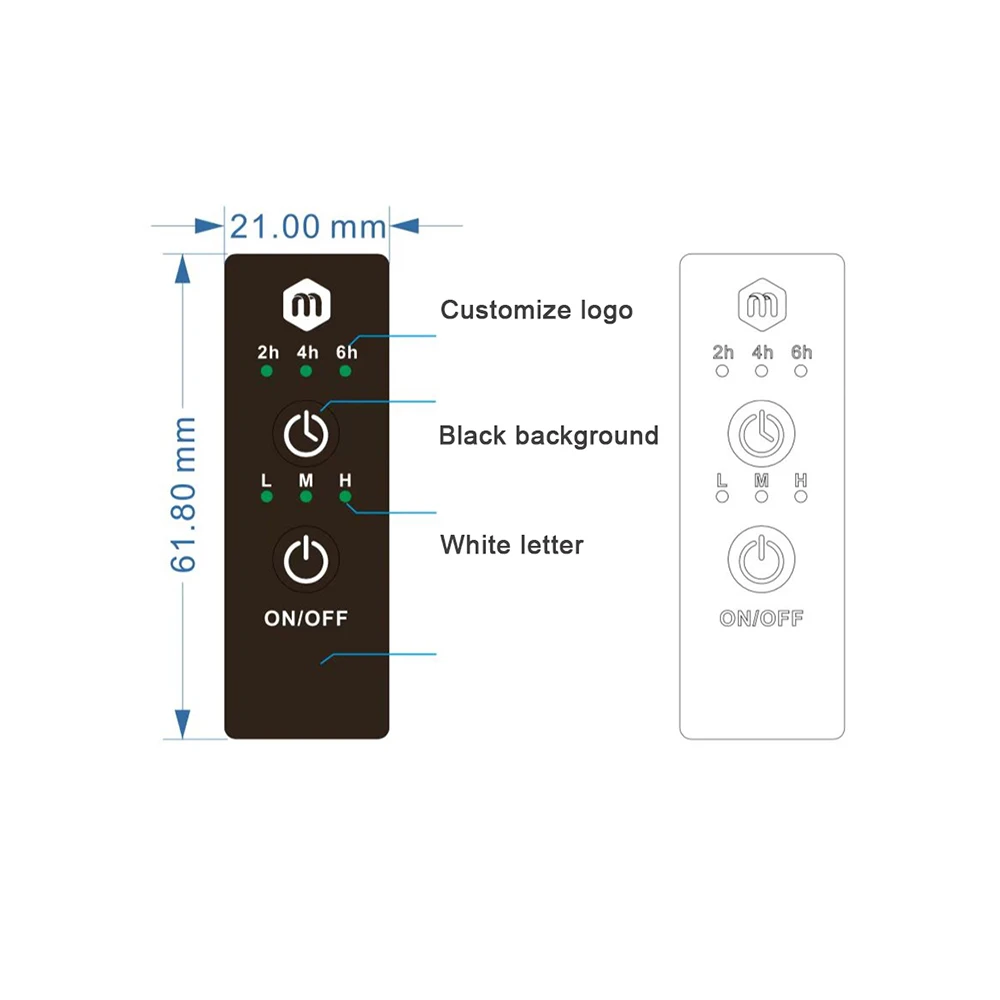

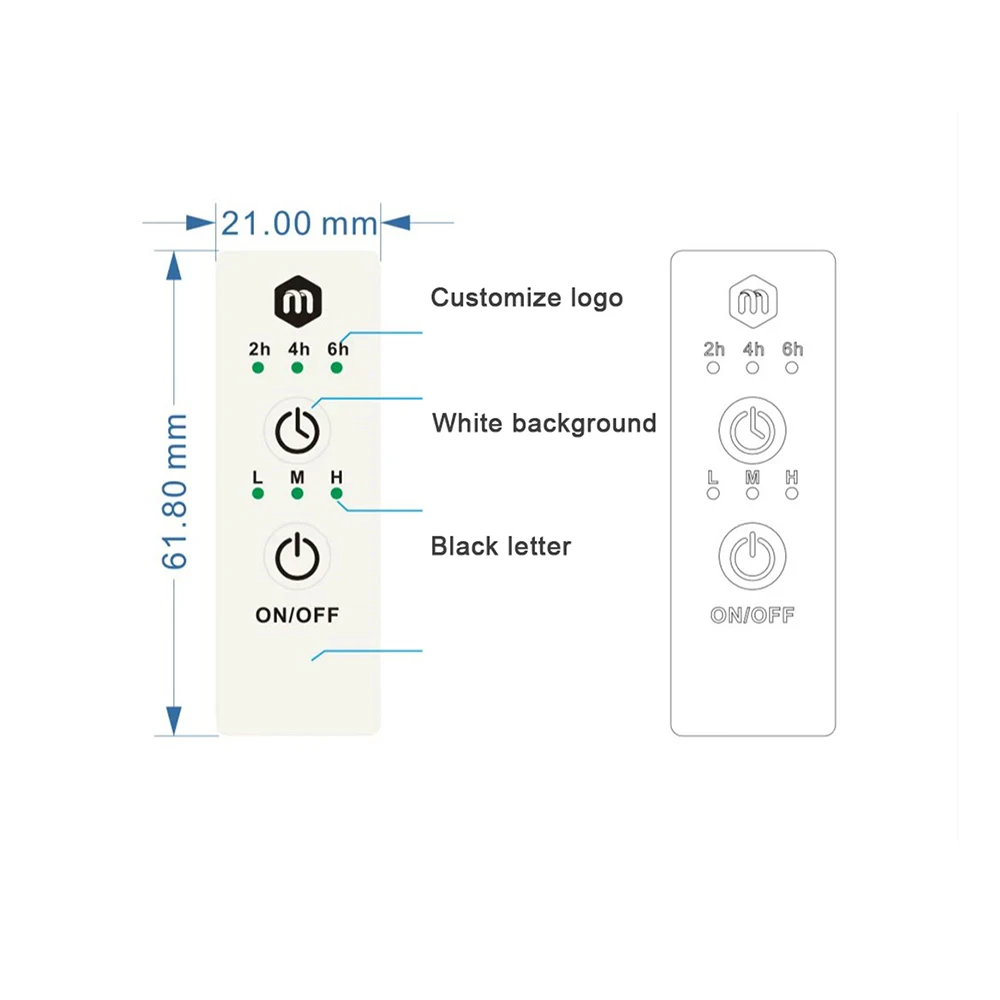

Colors : Black/White/Silver Chrome
Types : 32mm Round tube/30mm square tube/25mm square tube
3 colors for you to select: black,white and silver
Front Side
Back Side
Front Side
Back Side

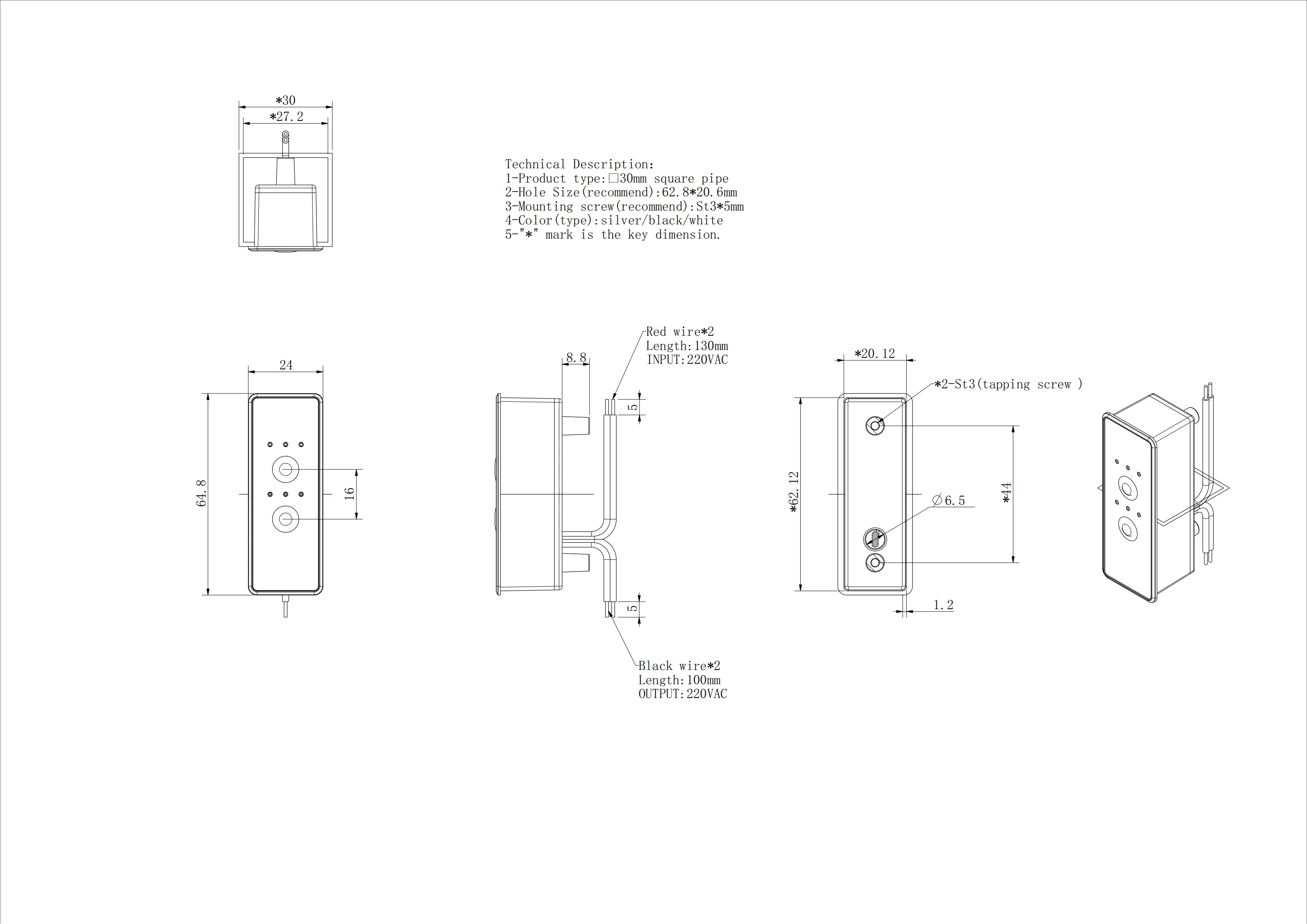

Using For : 30MM Square Tube
3 colors for you to select: black,white and silver
Front Side
Back Side

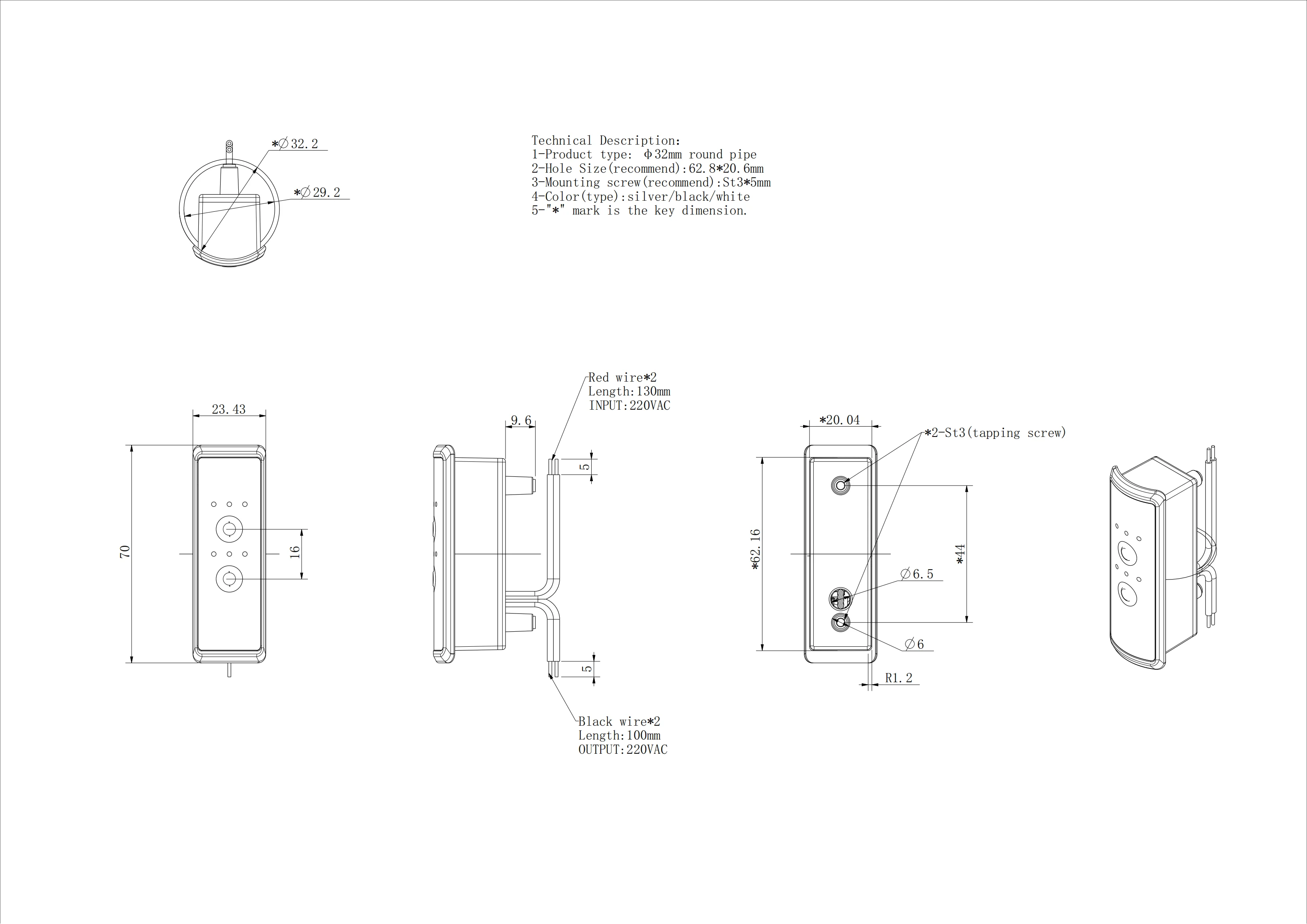

Using For : 32MM Round Tube
3 colors for you to select: black,white and silver
Front Side
Back Side
Front Side
Back Side
Front Side
Back Side
Product Paramenters
Number. | SPECIFICATION | DETAILS |
1. | Voltage | AC 230V±10% |
2. | Rated Current | 2A |
3. | Over Current Protection | Yes |
4. | Timer | 2H,4H and 6 Hours |
5. | Heat Levels | Low-Mid-High |
6. | LED Light | Yes |
7. | Color | Black,white,silver chrome |
8. | Type | 32mm Round tube,30mm square tube,25mm square tube |
9. | Wires Instruction | Red is Live wire and Naught wire,black is load wire |
10. | Operation | Click ON/OFF button,low level start to work,and then adjust levels as your demand. Click timer button,2hours start to work,and then adjust timer as your demand |

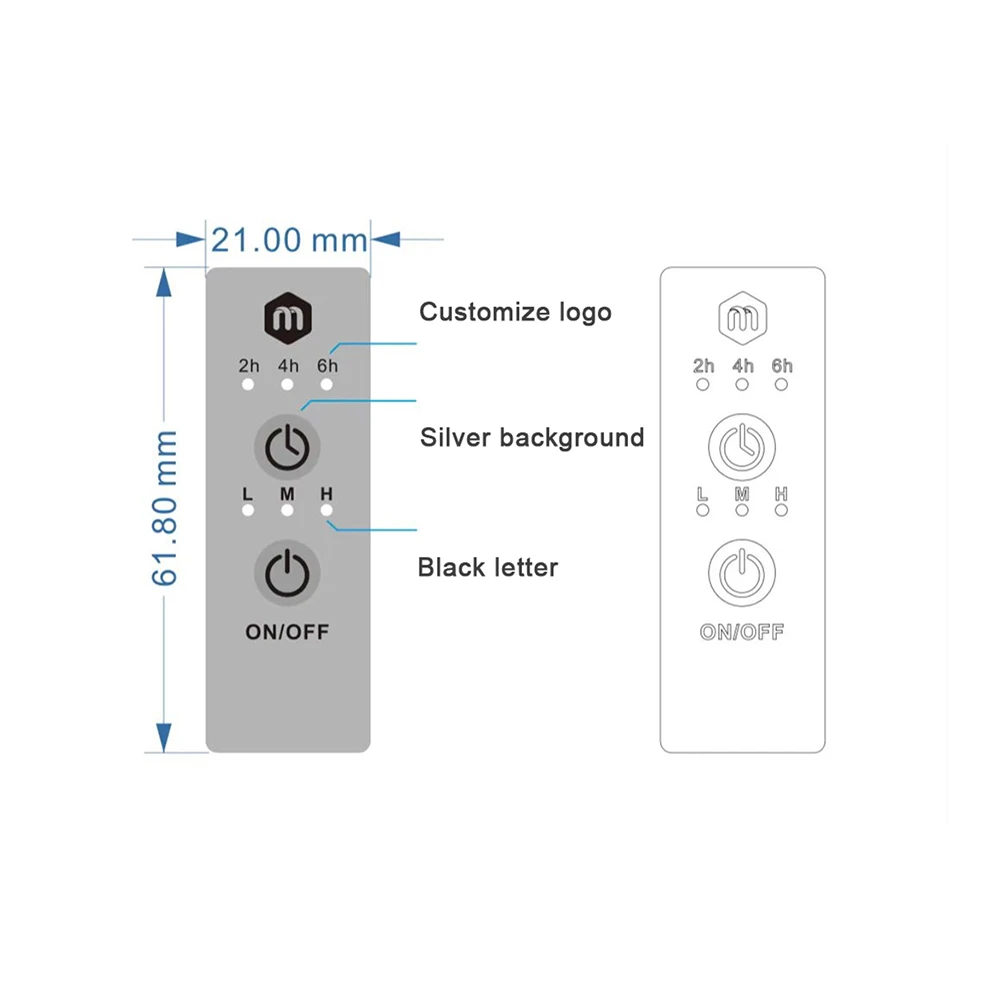

11. | Customize Logo | MOQ 1000pcs |

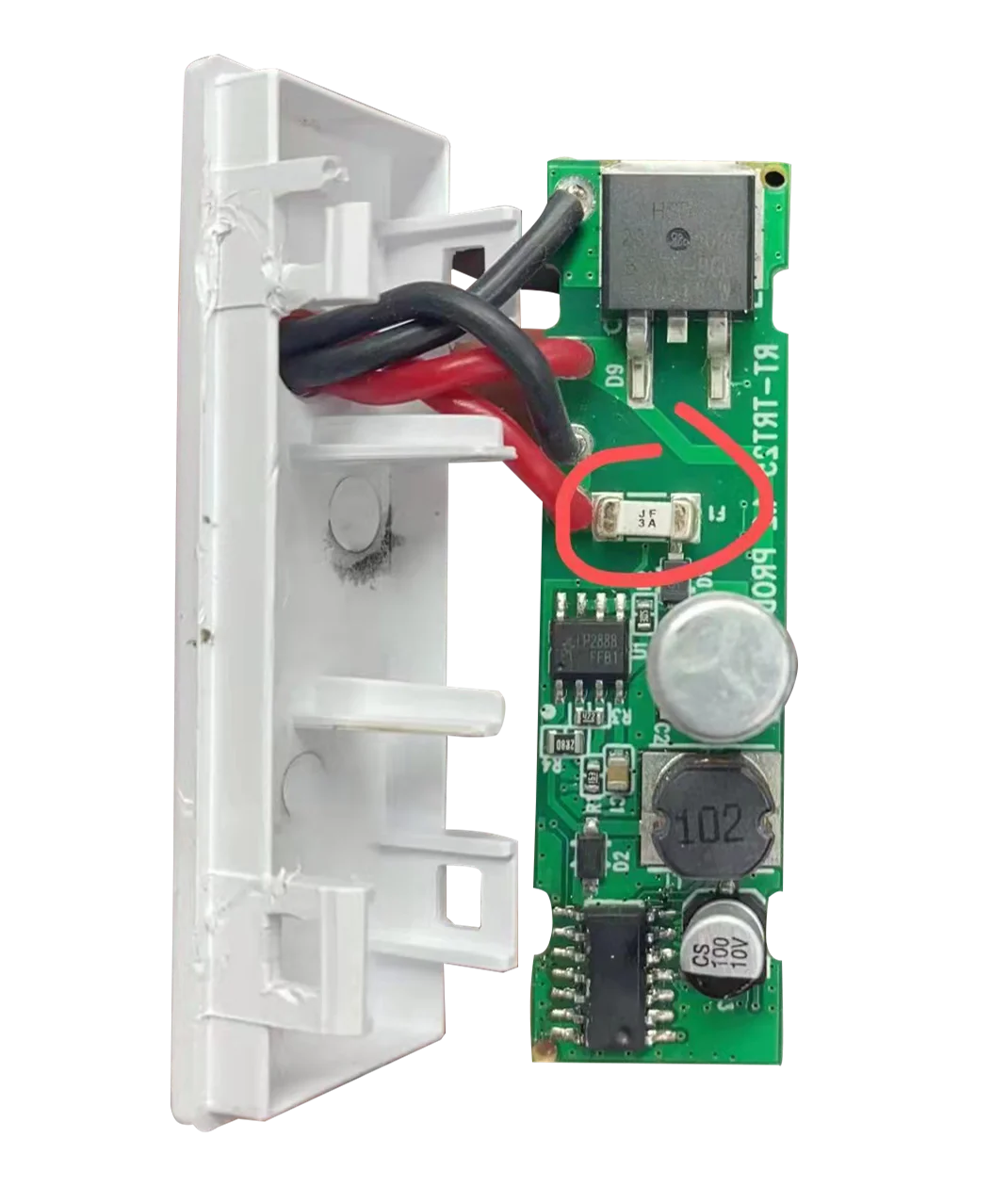

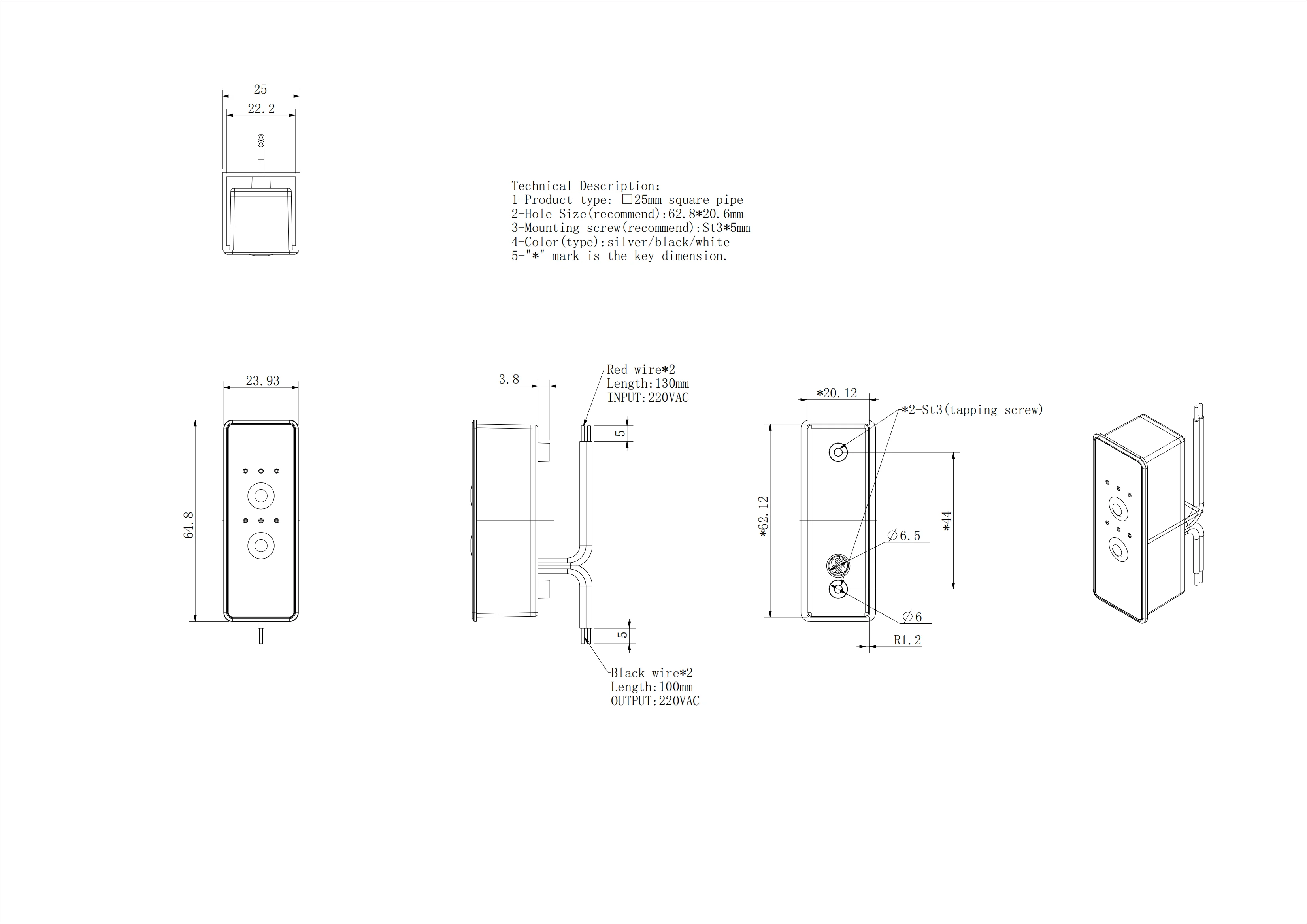

Inside Design

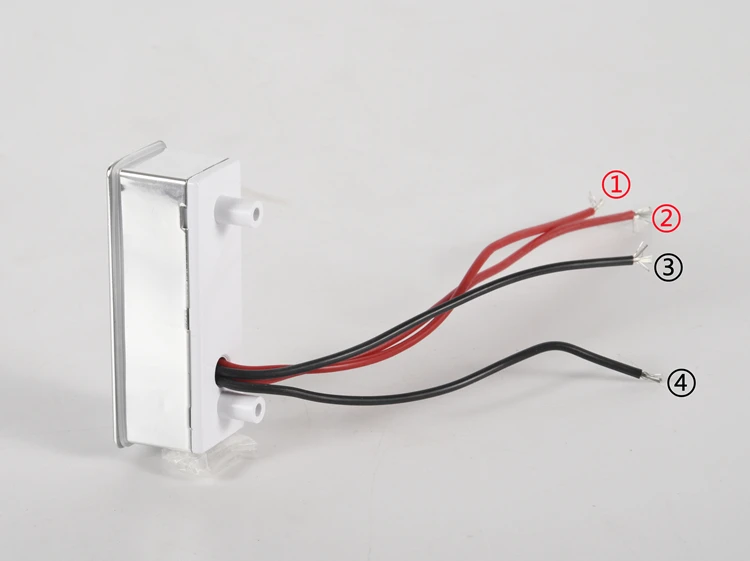

Wires Instruction
How To Install With Your Heating Cable and power cord
① and ② are Live wire and Naught wire,be installed with your power cord
③ and ④ are load wires,be installed with your heating cable
