Water treatment water filter ceramic membrane silicon carbide ceramic flat sheet membrane to wastewater reuse
- Category: >>>
- Supplier: SiHYFLUX Co. Ltd.
Share on (1600515622932):
Product Overview
Description
Products Details

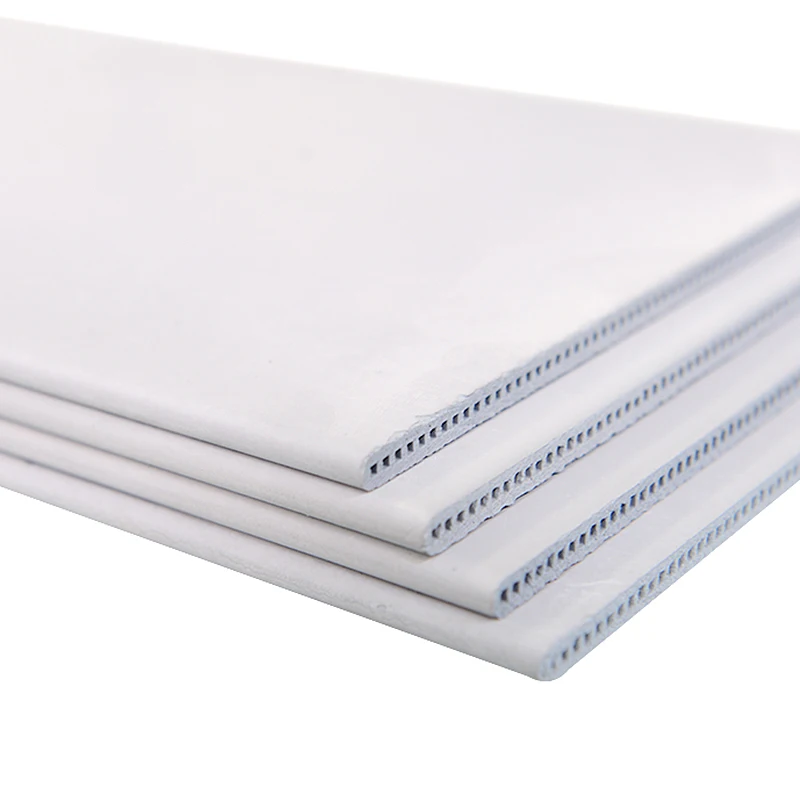

SiHYFLUX B series silicon carbide flat sheet structure with external coating, and its filtration is 0.1~0.4μm, with the
characteristics of high strength, high hydrophilicity, good thermal shock stability, high flux, low operating cost and long
service life.

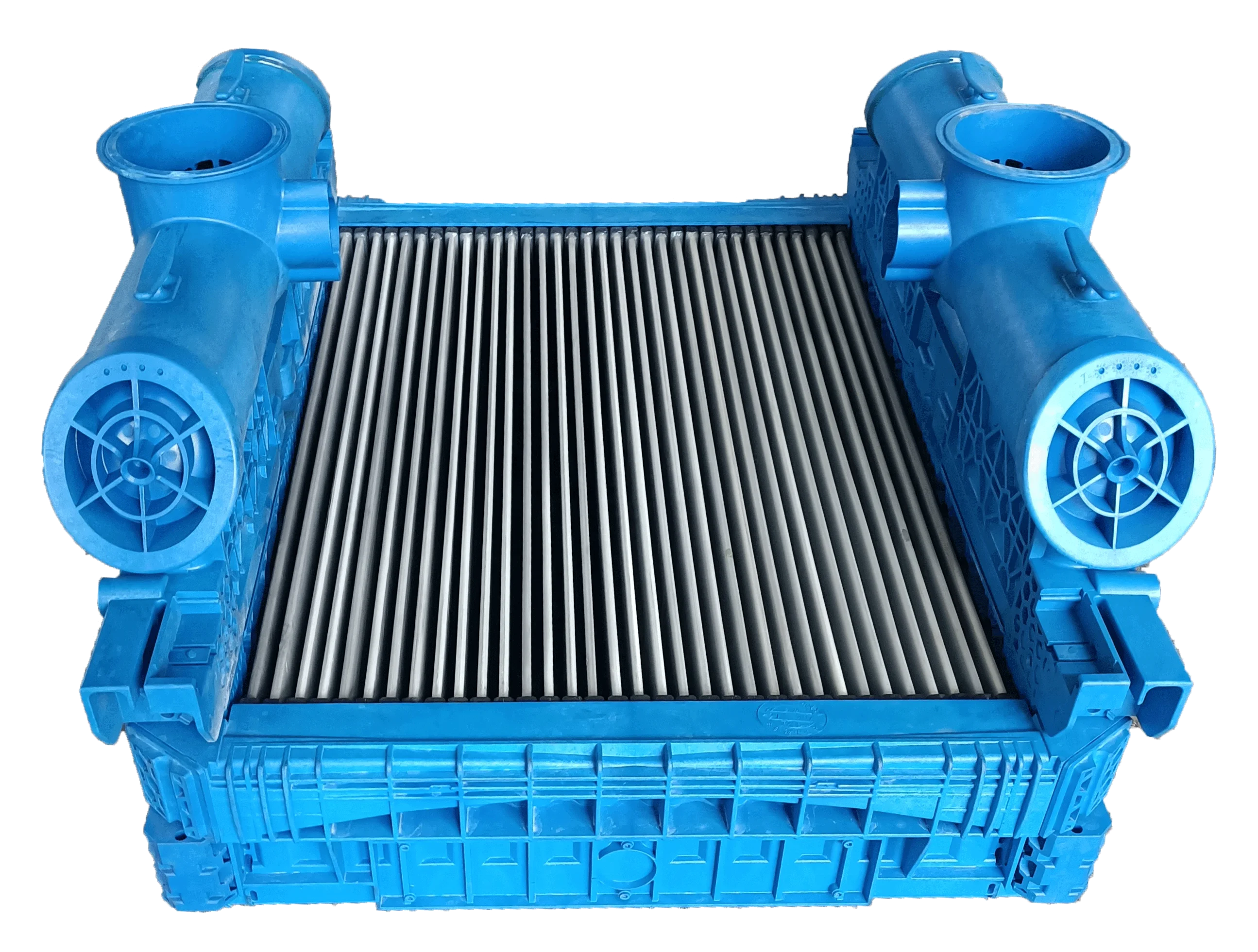

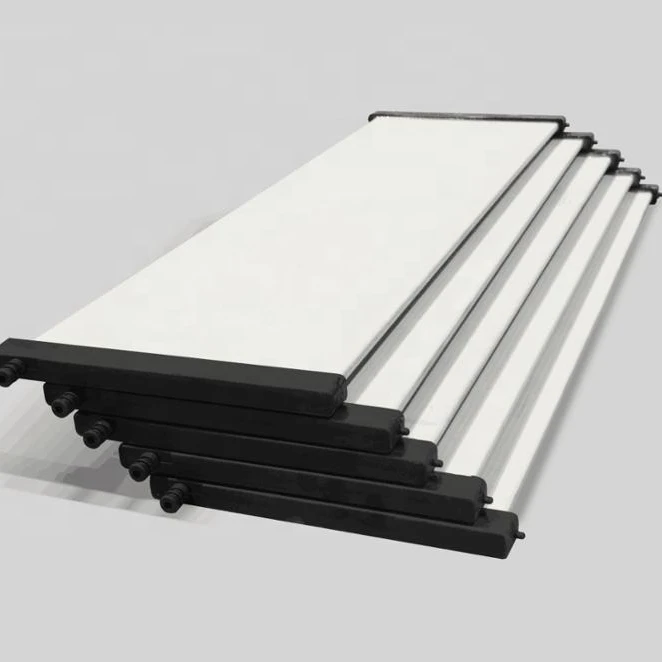

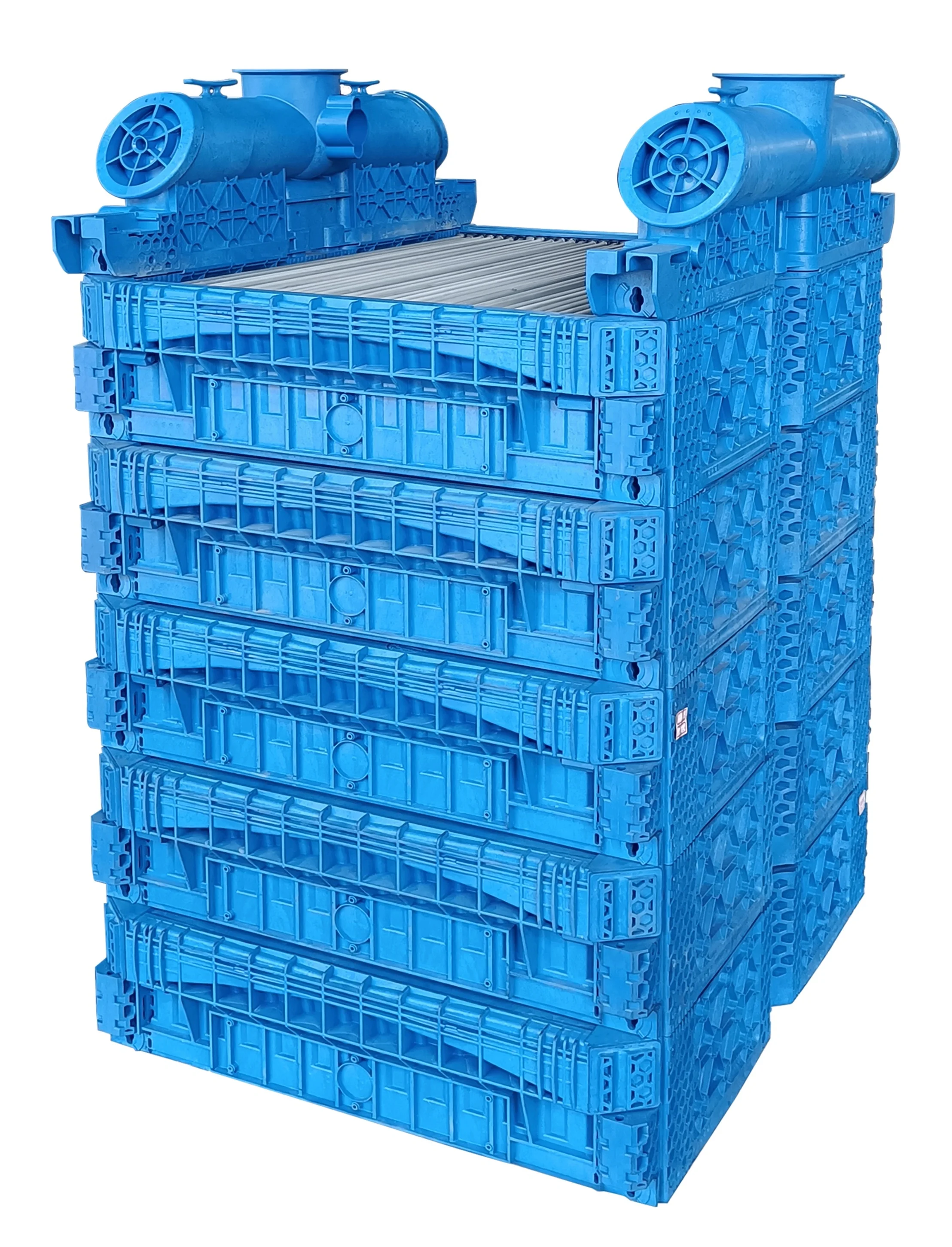

Single ceramic membrane plate with double side filtered water outlet. Equipped with up to 50 exchangeable ceramic plates. Internal filtered water piping. Up to 8-15 modules can be stacked up to a tower. Base set for easy installation on tank bottom. Header set for connection to common piping. Several single towers are simply connected together through a common header pipe at the top. Fully modular configuration, no limitation in tower design as there is no surrounding steel frame.

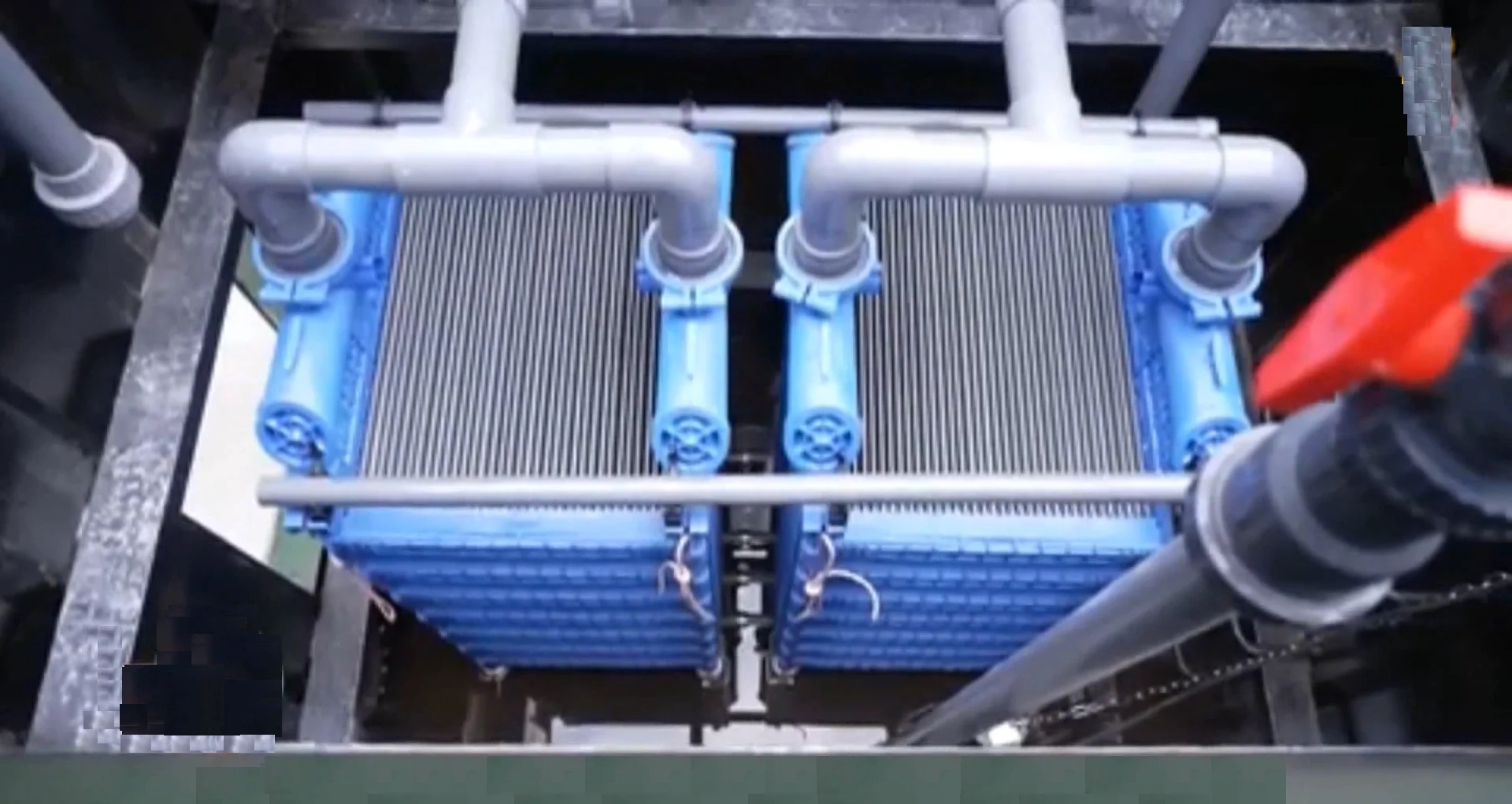

The modules are easy to mount and install – each module or the entire tower can be lifted and inserted in the membrane tank. Several single towers are simply connected together through a common header pipe at the top. Fully modular configuration, no limitation in tower design as there is no surrounding steel frame. Base set for easy installation on tank bottom. Header set for connection to common piping.
characteristics of high strength, high hydrophilicity, good thermal shock stability, high flux, low operating cost and long
service life.
Single ceramic membrane plate with double side filtered water outlet. Equipped with up to 50 exchangeable ceramic plates. Internal filtered water piping. Up to 8-15 modules can be stacked up to a tower. Base set for easy installation on tank bottom. Header set for connection to common piping. Several single towers are simply connected together through a common header pipe at the top. Fully modular configuration, no limitation in tower design as there is no surrounding steel frame.
The modules are easy to mount and install – each module or the entire tower can be lifted and inserted in the membrane tank. Several single towers are simply connected together through a common header pipe at the top. Fully modular configuration, no limitation in tower design as there is no surrounding steel frame. Base set for easy installation on tank bottom. Header set for connection to common piping.
Advantage in Drinking Water
1. Efficient removal of TLSS, bacteria and other harmful substances, the produced water turbidity is less than 0.1NTU;
2. High land utilization rate, saving floor space;
3. The working capacity per unit membrane area is large, 400LMH~1200LMH;
4. High recovery rate(>95%)
5. Easy to clean and save chemicals. Pretreatment can use ozone technology;
6. Long service life(>=30 years)
2. High land utilization rate, saving floor space;
3. The working capacity per unit membrane area is large, 400LMH~1200LMH;
4. High recovery rate(>95%)
5. Easy to clean and save chemicals. Pretreatment can use ozone technology;
6. Long service life(>=30 years)
Advantage in Liquid Waste
1. The use of pure physical technology, do not add chemical agents, do not destroy the liquid components, liquid recycling;
2. 04 micron high-precision microporous filtration can ensure that 99.99% of the bacteria in the cleaning solution are retained, control the growth of microorganisms from the source and prevent the liquid from smelling;
3. Effectively solve the problems of odor, oil and particulate matter that affect the life cycle of the liquid, restore the performance of the liquid, and realize the recycling of the liquid;
4. The equipment can run continuously and automatically for 7*24 hours, with low power consumption, simple use and maintenance, stable and reliable.
Why Choose Us
* More than 1700,000 ㎡ production base.
* Been serving fortune 500 companies for 10+ years.
* Well experienced and high quality construction team.
* Many outstanding EPC projects both at home and aboard.
* Powerful R&D engineer team with profound professional experience.
* Professional and advanced equipments produced and sold is highly praised by customers.
* Been serving fortune 500 companies for 10+ years.
* Well experienced and high quality construction team.
* Many outstanding EPC projects both at home and aboard.
* Powerful R&D engineer team with profound professional experience.
* Professional and advanced equipments produced and sold is highly praised by customers.
FAQ
Q: Are you a trading company or a manufacturer ?
A: We are both , we have more than ten years of experience as a professional manufacturer of water treatment equipment .we also provide the comprehensive solutions for wastewater of high COD .
Q: How do we trust you for the first transaction?
A: We have been doing this for more than 10 years , There are hundreds of Chinese and foreign enterprises that can endorse our credibility.And we have excellent projects in Singapore ,Vietnam ,Australia, USA, South America, East Asia ,Central and South Asia etc., if you are by any chance in one of these countries , please check it out, and if not ,you are welcome to visit our company any time.
Q: What kind of payment do you accept ?
A: T/T and L/C are preferred , other methods are also negotiable.
Q: What's the production capacity ?
A: Our factory covers an area of more than 1.75 million meter square, and produce various of water treatment equipment 10 to 50 sets per month.
Q: What's your machine material?
A: For pre-treatment tanks, we usually use FRP or S.S. The RO frame could be S.S, carbon steel.For pipes, it is usually S.S and UPVC. We can choose material according to your special requirements.
