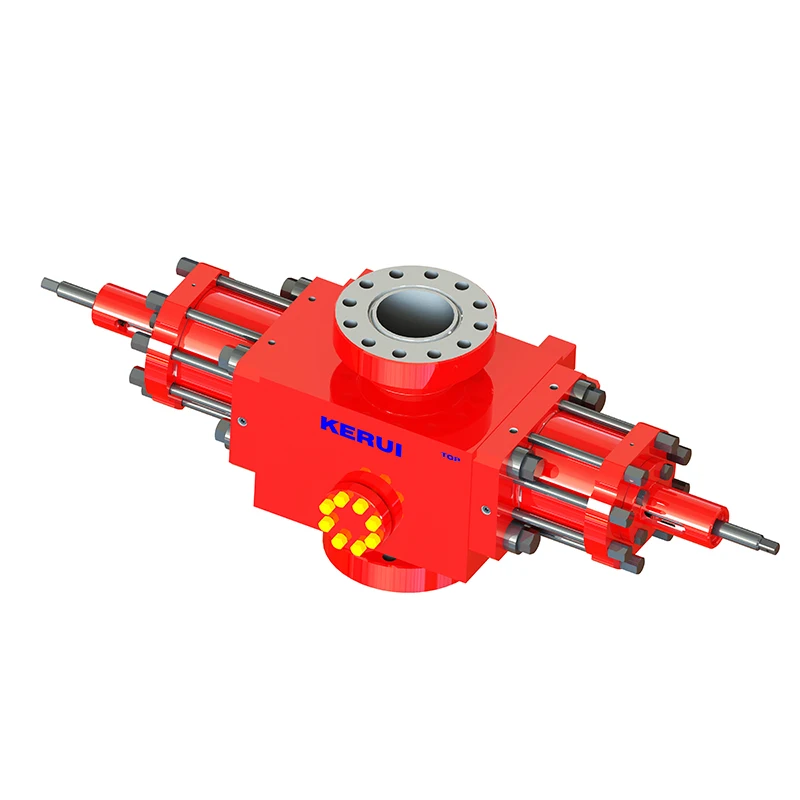

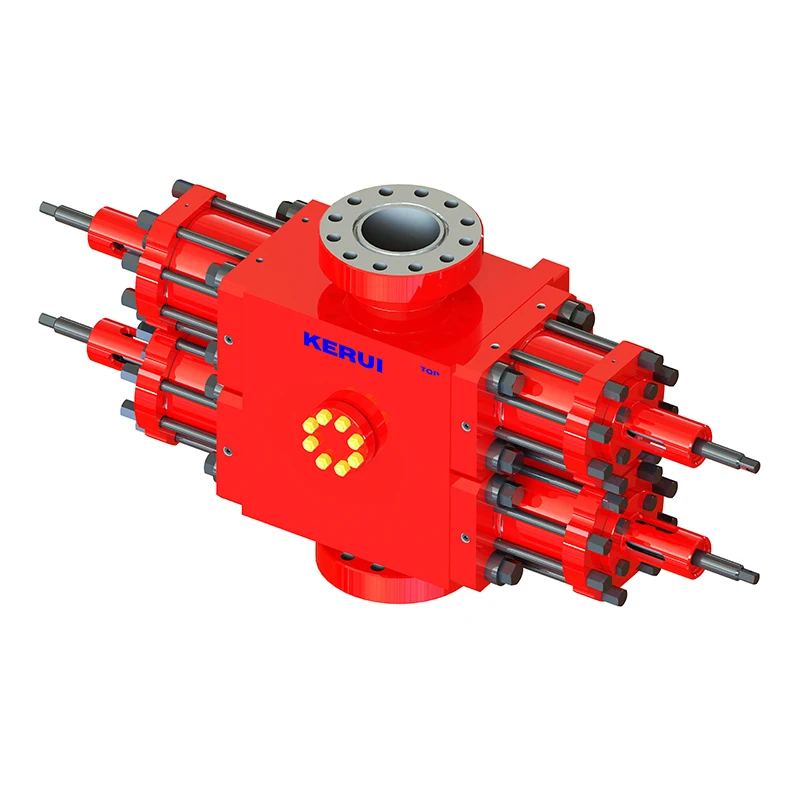

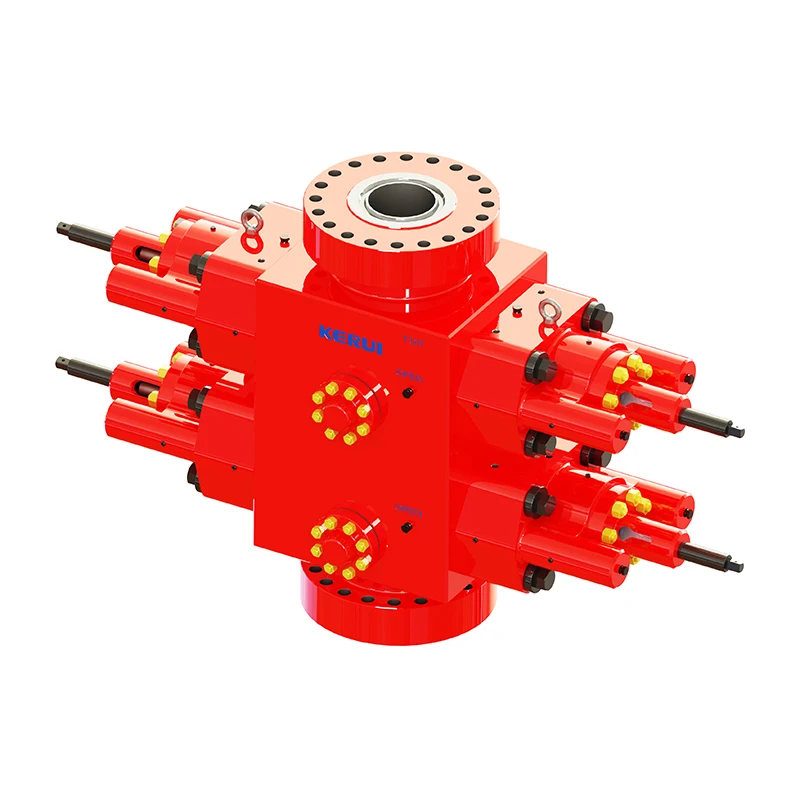

Single double RAM BOP for oilfield(S SHAPED STRUCTURE Blow out Preventer)
- Category: Mining Machine Parts >>>
- Supplier: Shandong Kerui Petroleum & Gas Equipment Co. Ltd.
Share on (1600516381322):
Product Overview
Description
Title goes here.
Kerui BR2 RAM BOP (S-SHAPED STRUCTURE)
Title goes here.
The BOP main pressure-bearing parts are casted and cost effective. The opening/closing of side door is rotating form, and the hydraulic control assembly rotates around the hinged seat. The ram BOP is an important part of well control unit and it is mainly applied to control the wellhead pressure during drilling, workover, and oil testing operations to prevent blowout effectively to realize safe operation.
Product features:
1.A sand trap is set in the ram chamber for removing sand, gravel and other impurity to protect the ram and the ram chamber
2.Floating seal structure is used between side door and body, which strengthen sealing performance by wellbore pressure, and meanwhile reduce the pre-tightening force of side door
3.Shear ram with full seal function, after finishing shearing operation, it can fully close the wellhead
4.In case of sealed condition, drilling fluid circulation, choking and blowout prevention,
killing operations can be achieved by the manifolds connected with the side outlet of the body
killing operations can be achieved by the manifolds connected with the side outlet of the body
5.Shearing with pressure—in emergency situations, it can shear the drilling tools within wellbore pressure, and close the well
6.Pipe ram and variable bore ram can suspend drilling tools
Temperature Grades of Metal Materials | ||||
Temperature Grade Code | API Code | Working Temperature Range | ||
T75 | 75 | -59~121℃(-75~250 ºF) | ||
T20 | 20 | -29~121℃(-20~250 ºF) | ||
T0 | 00 | -18~121℃(0~250 ºF) |
Temperature Grades of Non-metal Sealing Elements in contact with Well Liquids. | |||||||
Lower Limit (First Letter) | Upper Limit (Second Letter) | ||||||
A 15ºF(-26℃) | A 180ºF(82℃) | ||||||
B 0ºF(-17.8℃) | B 200ºF(93℃) | ||||||
C 10ºF(-12.2℃) | C 220ºF(104℃) | ||||||
D 20ºF(-6.7℃) | D 250ºF(121℃) | ||||||
E 30ºF(-1℃) | E 300ºF(149℃) | ||||||
X 40ºF(4℃) | X 180ºF(82℃) | ||||||
For example, AB represents a temperature grade ranging from -26℃ to 93℃. The specific temperature grade is marked with a code on a sealing member. | |||||||
