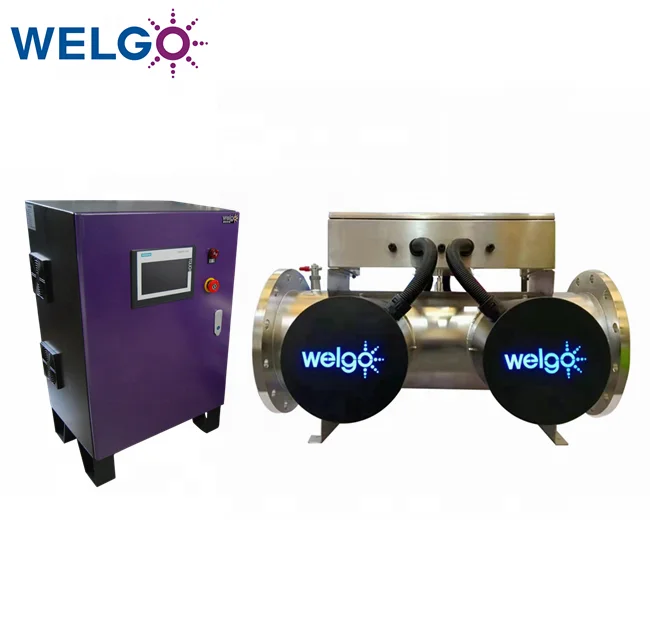

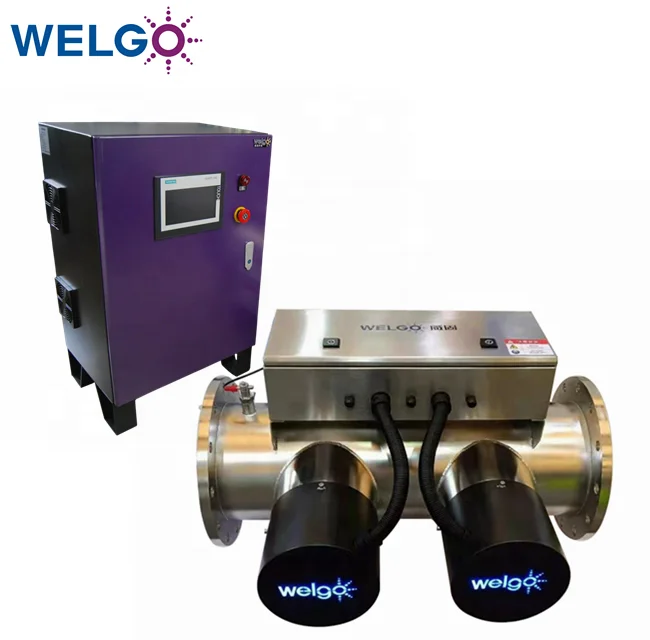

Large Scale Water Purification System Medium Pressure UV Water Sterilizer
- Category: Environmental Machinery >>>
- Supplier: Guangzhou Welgo Environmental Equipment Co. Ltd.
Share on (1600516489335):
Product Overview
Description
Large Scale Water Purification System Medium Pressure UV Water Sterilizer
Large Scale Water Purification System Medium Pressure UV Water Sterilizer Large Scale Water Purification System Medium Pressure UV Water Sterilizer
Product Description
High Lamp tube power, large processing capacity, higher sterilization effect
200-400nm multispectral continuous UV spectrum output, directly killing microorganisms
Medium-pressure UV lamp imported from the US/Germany
Medium-pressure UV lamp imported from the US/Germany
Small floor area,convenient operation

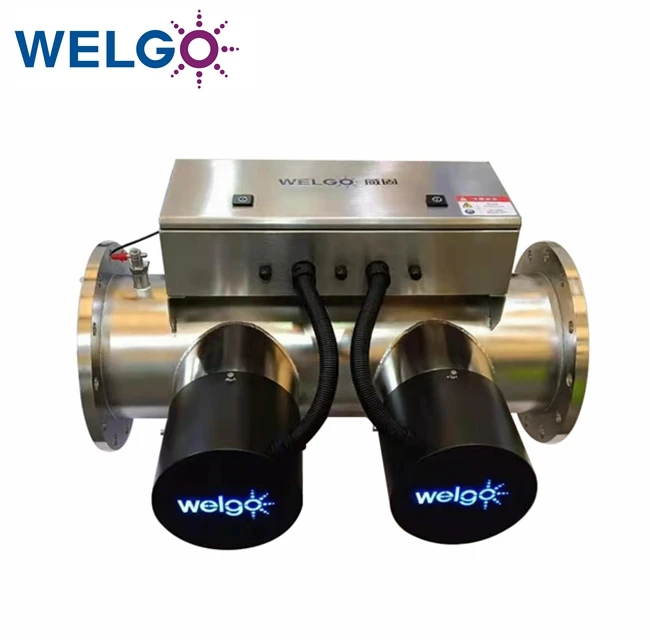

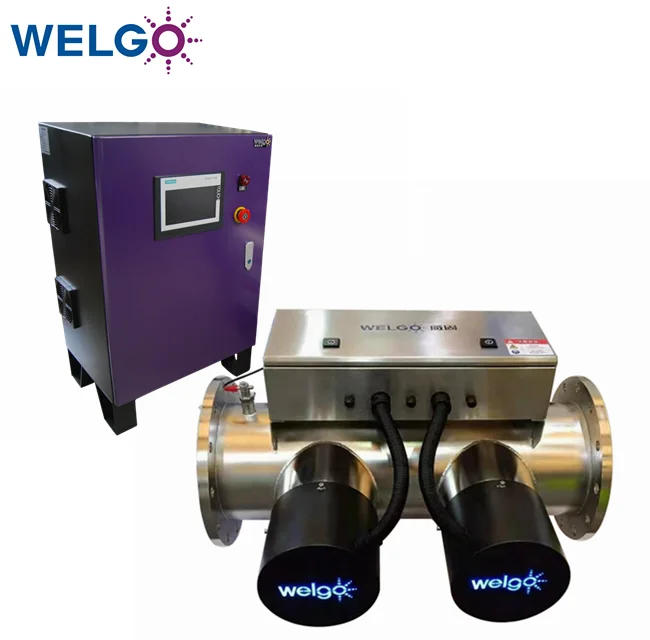

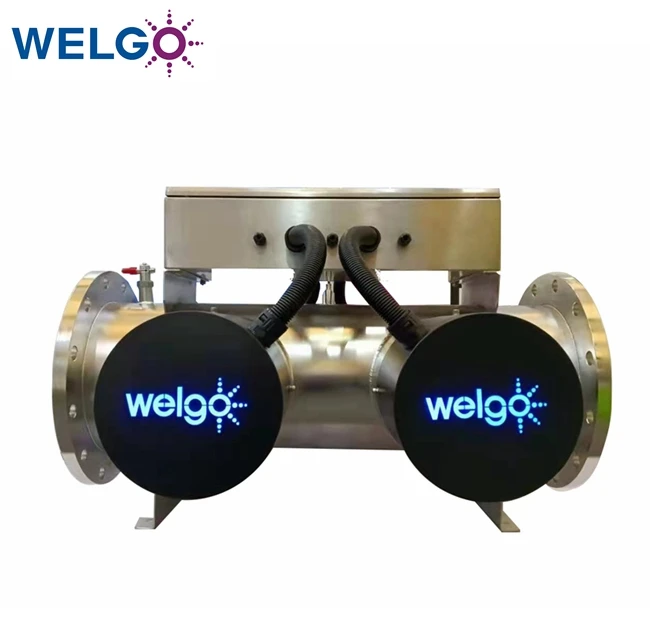

Product Structure
Chamber
316L or 304 stainless steel
Quartz galss tube
Medium-pressure UV lamp (made in USA or German)
Working pressure:10Bar
Connection type: Flange

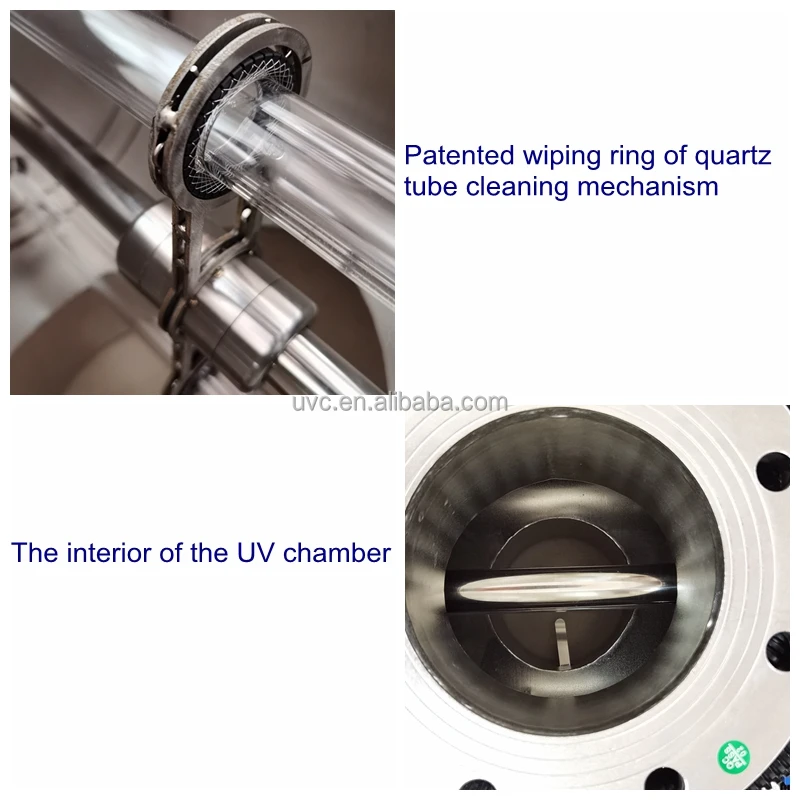

Automatic wiping system is optional
Electric control
Siemens PLC and touchscreen
Including automatic control system
Carbon steel or SS304 stainless steel housing
System status disply
System fault alarm
Display of accumulated working time of the lamp tube
Working voltage indication
System overheating protection
Temperature online monitoring in the chamber
UV intensity parameter display
Lamp serivice life time alarm
Traffic statistics
Exhaust/evacuation status display
Specification
Model | @60mj/cm2 | Power (KW) | Lamp QTY | Total Power (KW) | Inlet/Outlet Port | Size(mm) | ||||||
Flow rate (m3/Hr） | L | W | H | |||||||||
MPUV-1.0KW-1 | 30 | 1.0 | 1 | 1.05 | DN100 | 550 | 530 | 400 | ||||
MPUV-2.0KW-1 | 75 | 2.0 | 1 | 2.05 | DN125 | 800 | 260 | 450 | ||||
MPUV-3.0KW-1 | 125 | 3.0 | 1 | 3.05 | DN150 | 890 | 250 | 450 | ||||
MPUV-2.0KW-2 | 150 | 2.0 | 2 | 4.10 | DN150 | 800 | 250 | 450 | ||||
MPUV-3.0KW-2 | 300 | 3.0 | 2 | 6.10 | DN250 | 890 | 250 | 450 | ||||
MPUV-3.0KW-3 | 475 | 3.0 | 3 | 9.10 | DN300 | 930 | 460 | 600 | ||||
MPUV-3.0KW-4 | 650 | 3.0 | 4 | 12.10 | DN350 | 930 | 520 | 600 | ||||
MPUV-3.0KW-5 | 825 | 3.0 | 5 | 15.20 | DN350 | 930 | 520 | 600 | ||||
MPUV-3.0KW-6 | 1000 | 3.0 | 6 | 18.20 | DN400 | 930 | 580 | 600 | ||||
Remark: Medium pressure UV system with large flow rate could be customized.

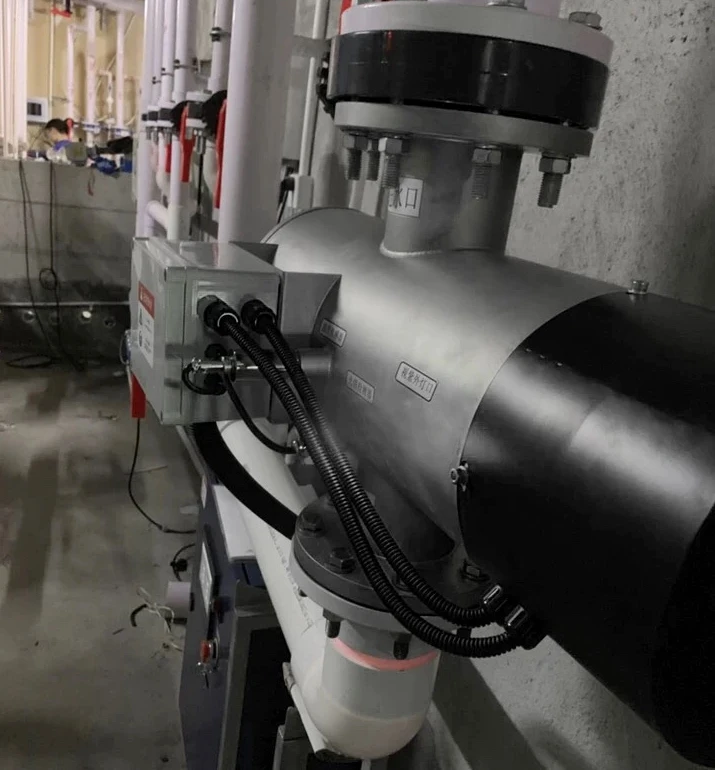

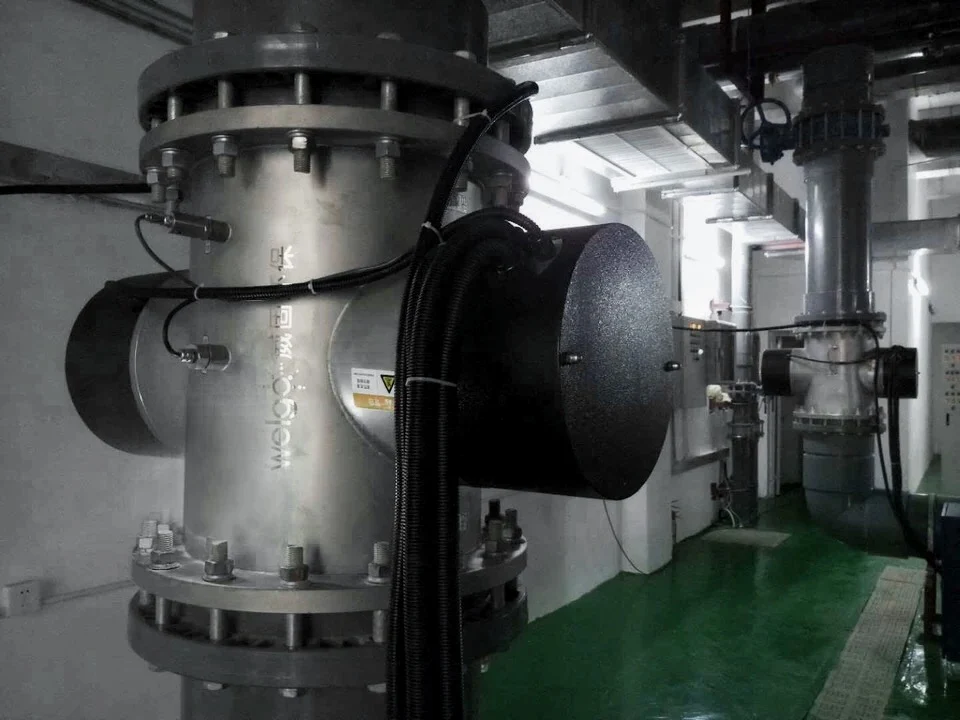

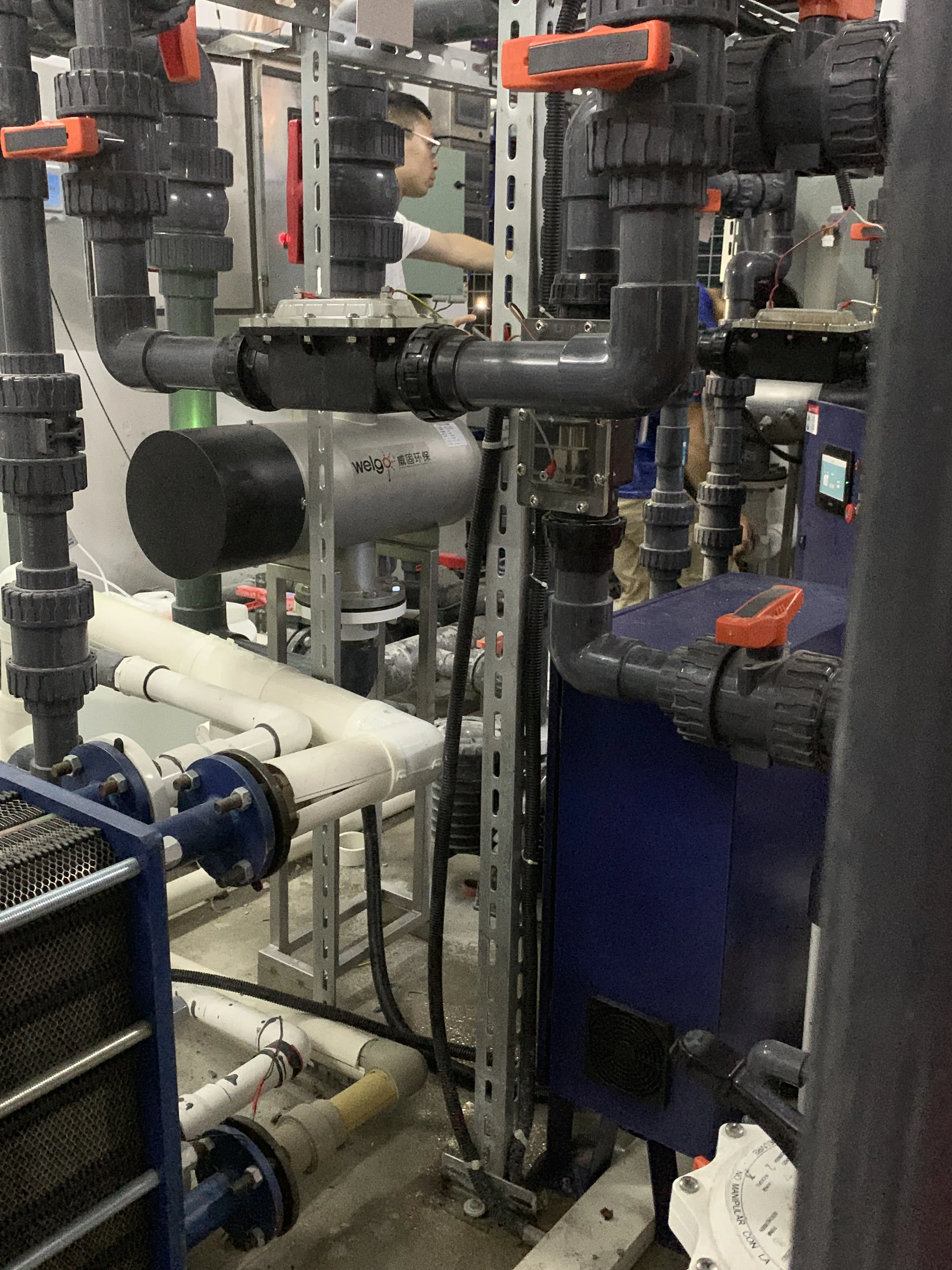

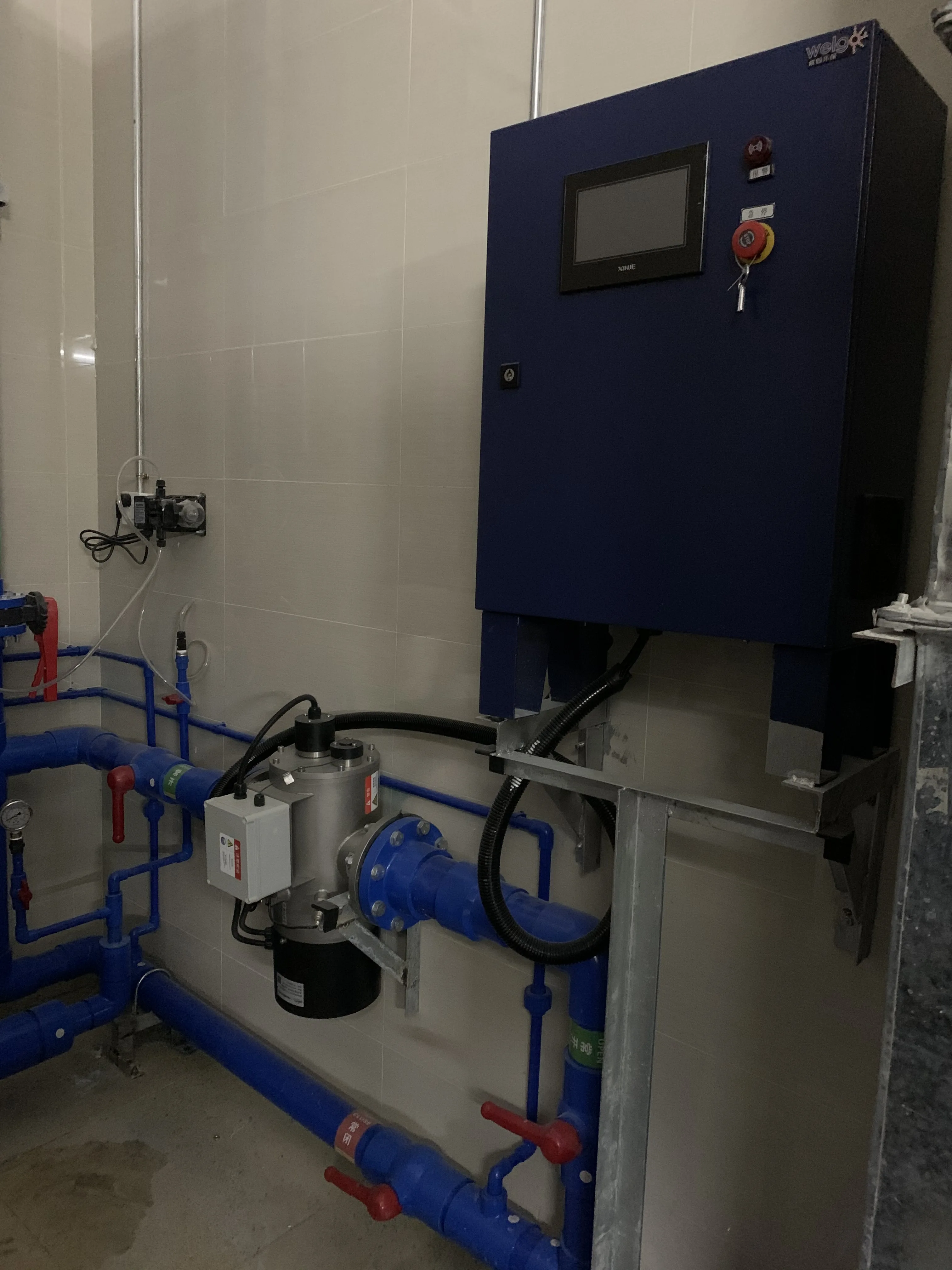

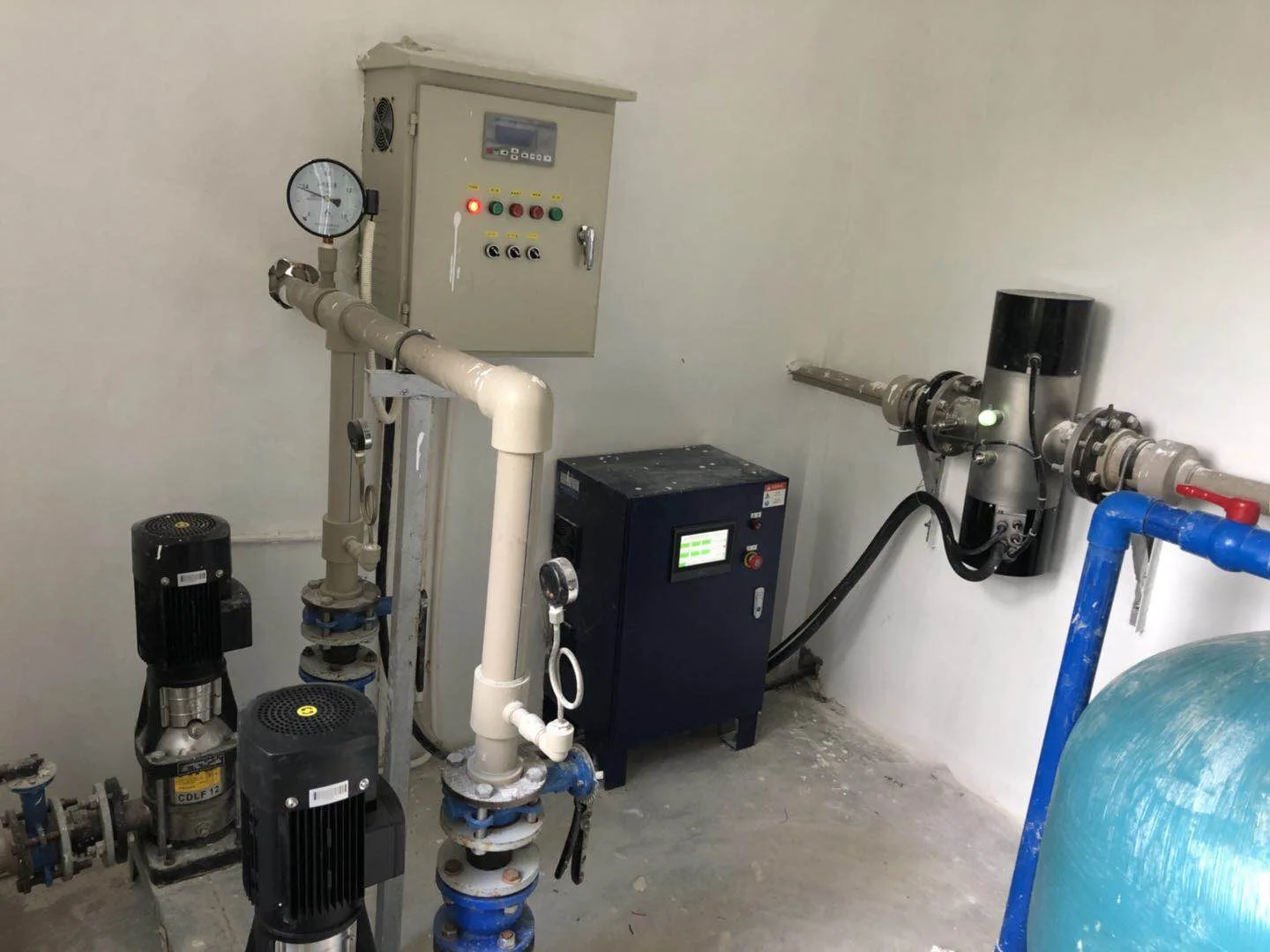

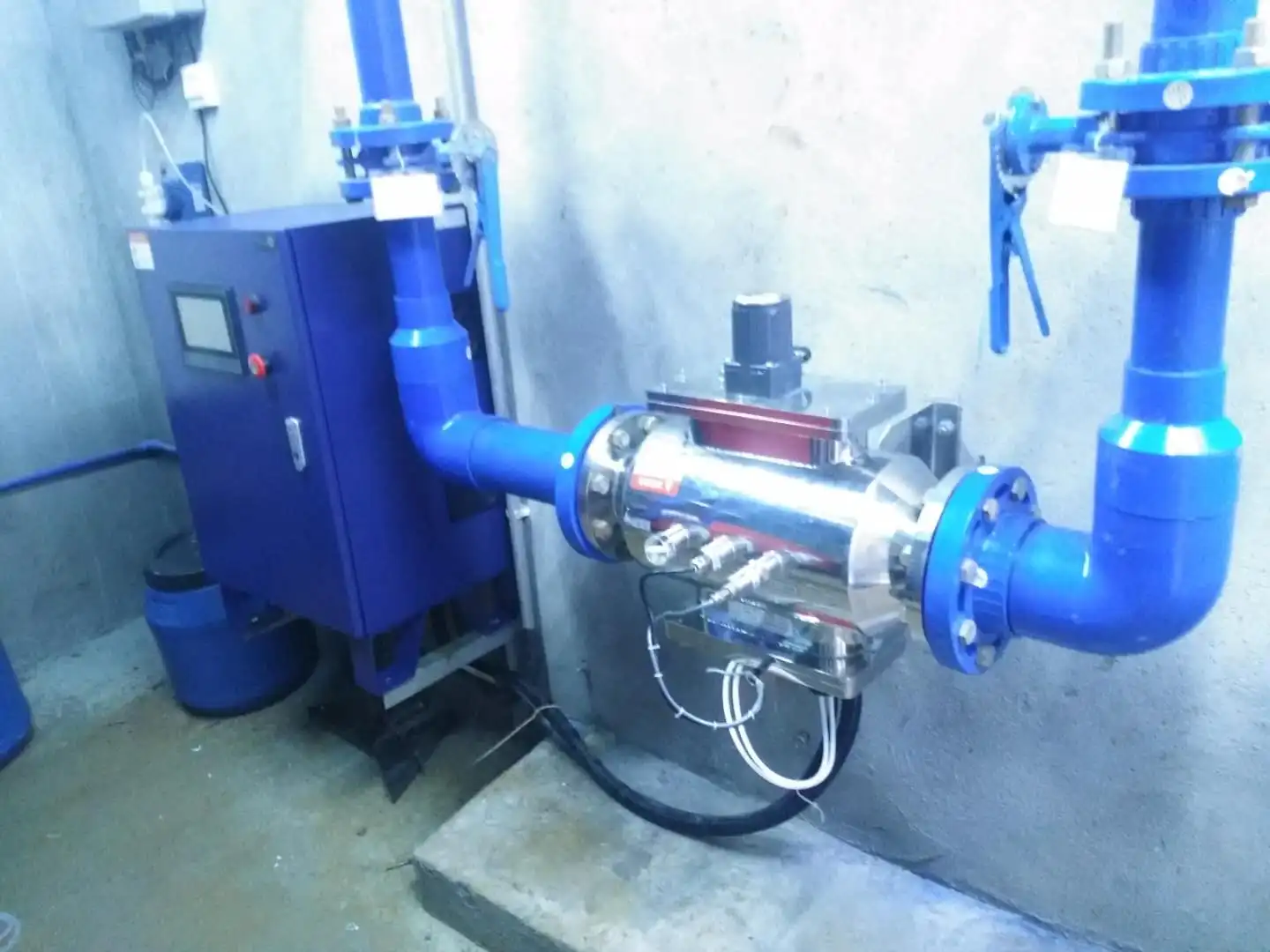

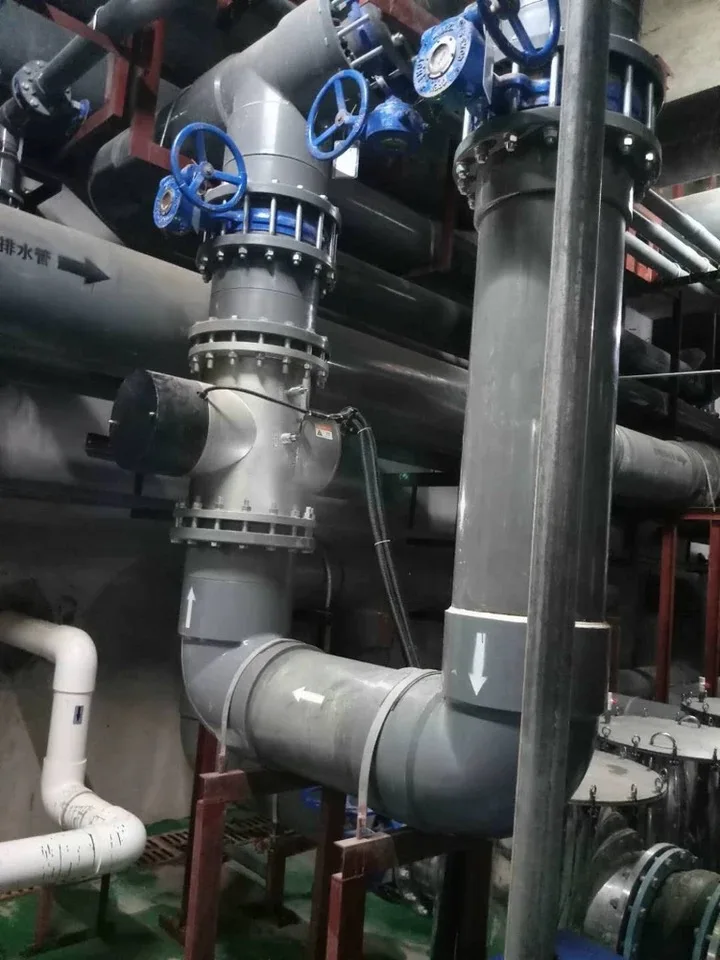

Project Cases
1. Q: Can I get your products with our logo and design?
A: Customized service is available.
2. Q: What about Lead time ?
A: About 15 work days normally. Your order will be arranged to production once the deposit be received.
3. Q: Do you accept sample order?
A: Yes,we can make your customized sample before mass order placed.
4 Q: What's the MOQ ?
A: We can offer the quantity you required, as we do not have MOQ requirement.
5. How do you control the quality?
A: Strictly check the material and control the quality at every stage of production, from the incoming raw materials to the finished product.
6. What is the Packing material?
A: Carton, Plywood case, Pallet. They are suitable for shipment.
7.What information we need to let you know before order?
a. What is the raw water?
b.What's the flow rate per hour?
c.What is your industrial voltage and frequency?
8.What's the payment terms?
1) Small order: T/T100% payment in advance
Big order: T/T 30% deposit in advance, 70% paid before shipment.
2)Western Union
3)Alibaba Escrow.
4)L/C at sight.
9.After sales service
(1) 24 hours we are ready to explain question for you.
(2) Professional engineers supported, along with strong technical service.
(3) Welgo will send engineers to customers factory to Offer installation, debug and technology training to if you need.
A: Customized service is available.
2. Q: What about Lead time ?
A: About 15 work days normally. Your order will be arranged to production once the deposit be received.
3. Q: Do you accept sample order?
A: Yes,we can make your customized sample before mass order placed.
4 Q: What's the MOQ ?
A: We can offer the quantity you required, as we do not have MOQ requirement.
5. How do you control the quality?
A: Strictly check the material and control the quality at every stage of production, from the incoming raw materials to the finished product.
6. What is the Packing material?
A: Carton, Plywood case, Pallet. They are suitable for shipment.
7.What information we need to let you know before order?
a. What is the raw water?
b.What's the flow rate per hour?
c.What is your industrial voltage and frequency?
8.What's the payment terms?
1) Small order: T/T100% payment in advance
Big order: T/T 30% deposit in advance, 70% paid before shipment.
2)Western Union
3)Alibaba Escrow.
4)L/C at sight.
9.After sales service
(1) 24 hours we are ready to explain question for you.
(2) Professional engineers supported, along with strong technical service.
(3) Welgo will send engineers to customers factory to Offer installation, debug and technology training to if you need.
