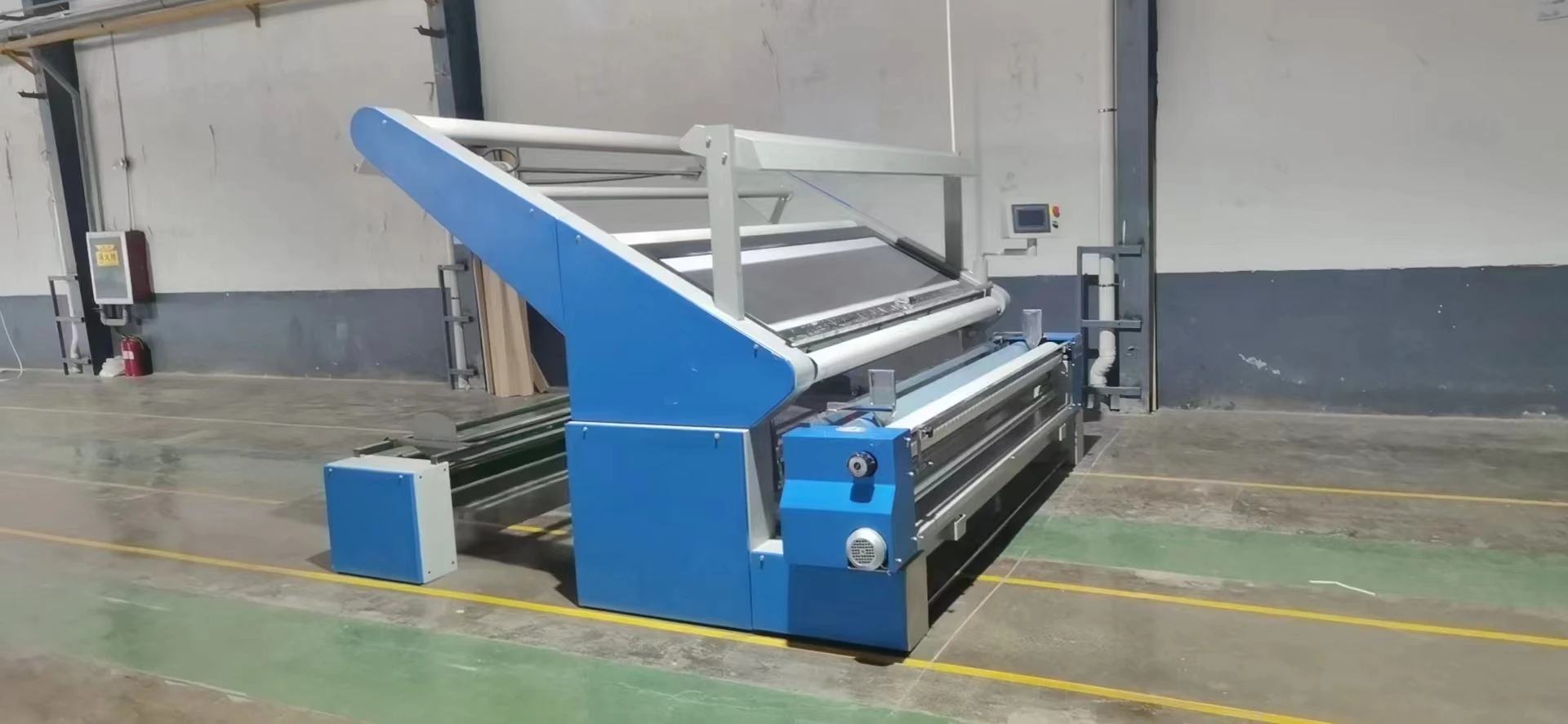

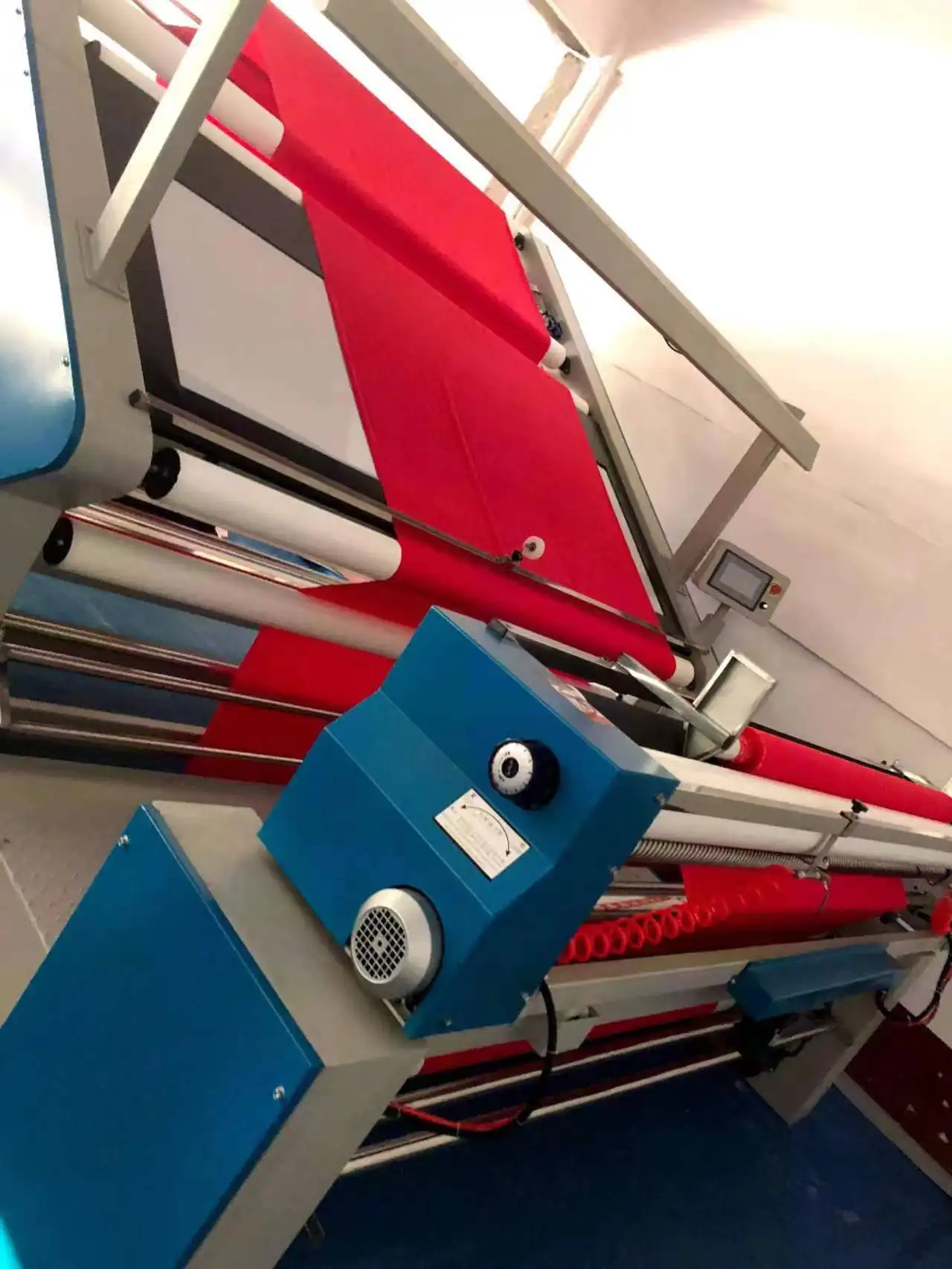

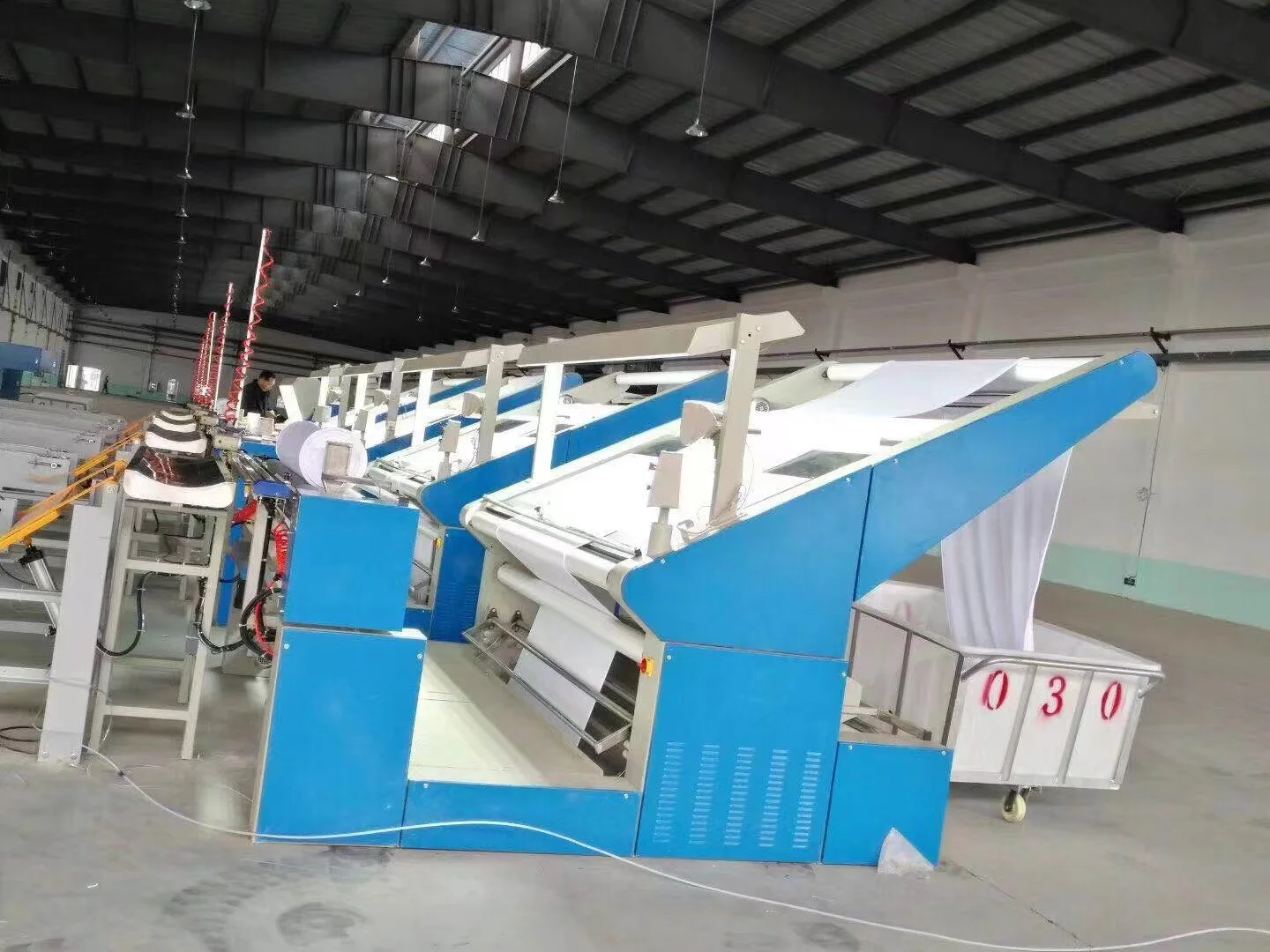

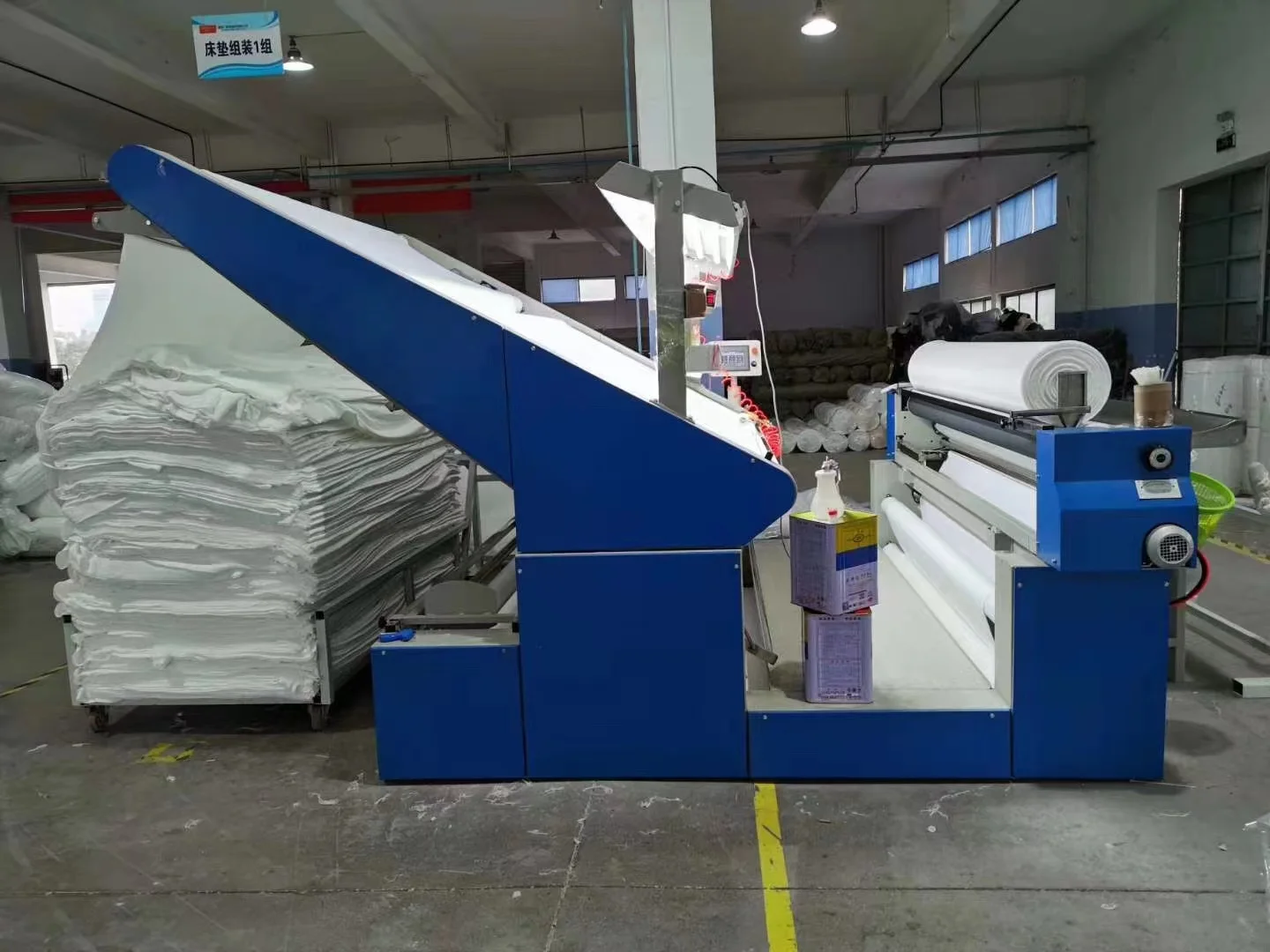

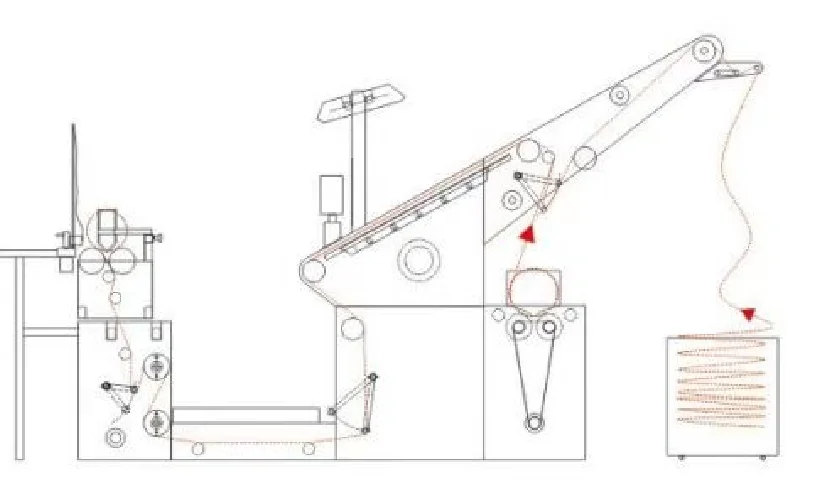

Knitting fabric No tension inspection machine

Category: Textile Dyeing Machines >>>
Supplier: Dezhou Guanlu Precision Machinery Co. Ltd.

Price:$50,000.00

Quantity:

Product Overview

Description

Product Description

Features :

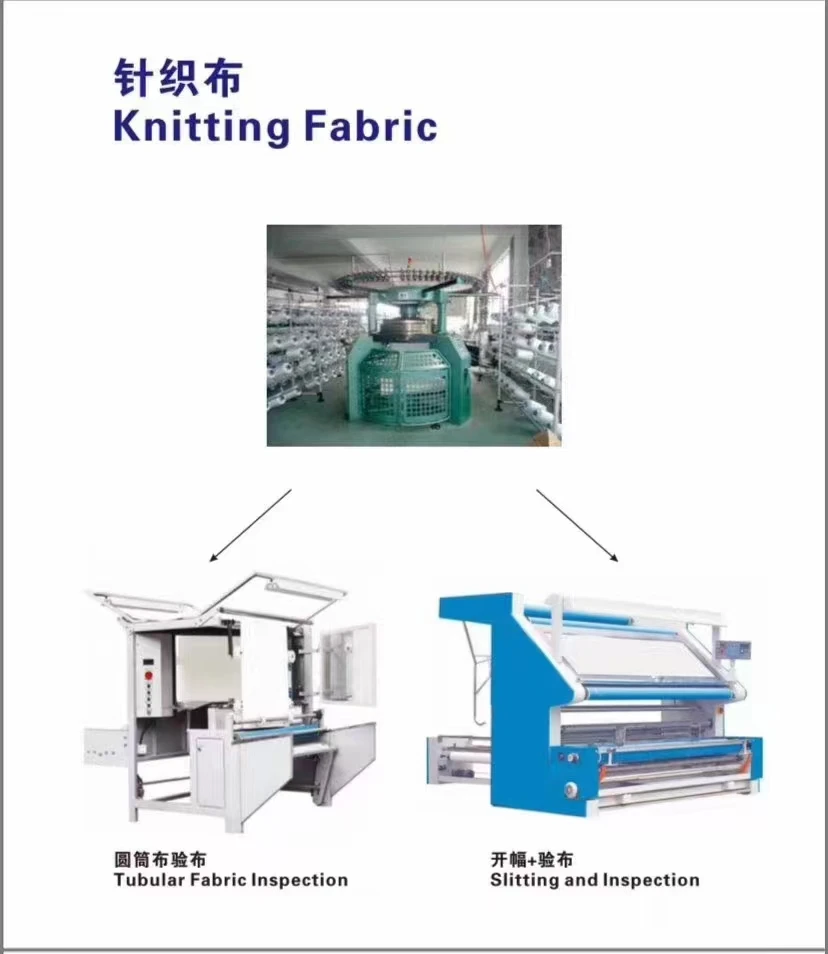

1.Applicable for the quality inspection for knitting surface materials for the textile ,printing and dyeing factories .

2.Automatically track the edge with infrared ray ,Automatically align the edge of the fabric

3.Automatically control the front and back with automatic tension frame ,protect the fabric from influence of tension when rolling

4.Front and back fabric extending roller ,Prevent crease and rolling with edge blowing device .

5.Frequency speed control ,kick control ,simple and convenient operation

6.Fabric roller is equipped with speed different mechanism,Adjust the softness and hardness of the fabric roll .

7.Cut the fabric with Automatic cutter

8.Electronic scale is optional

Specification

item	value
Applicable Industries	Textile factory
Showroom Location	Pakistan
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2019
Warranty of core components	1 Year
Core Components	PLC, Pump
Condition	New
Automatic Grade	Automatic
Place of Origin	China
	Shandong
Brand Name	Shandong province
Voltage	220V/380V
Power	1.55kw
Dimension(LWH)	300042002300mm
Weight	1500KG
Warranty	1 Year
Production Capacity
Dimension	300042002300
Speed	0-50m/min
Power supply	220V
Motor	1.55kw (Transmission motor) 1.11kw (Selvedge trimmer motor)
Useful width	2500mm
The widest diameter of rolling clothing	500mm
Accuracy of checking selvedge	+-5mm
Accuracy of counting length	less 5%

Packing & Delivery

1. Before shipment, every part of machine will be painted with a layer of anti-rust and water-proof oil to prevent possible
erosion during transportation.
2. A plastic cover to wrap around machine parts to enhance corrosion prevention.
3. Export standard fumigated wood cases are measured and specially made for packing.
4. Steel wire will be used to tighten and strengthen the packages inside container.
5. At seaport, extra strengthen with wire ropes, bandages, wedges ect. to avoid packages leaning or moving during
transportation.

Company Profile

FAQ

1. Q: How about the payment terms?

A: We accept T/T 30% prepaid when ordering, the balance paid before shipping.

2. Q: How about the delivery time?

A: Normally, 4-6 months after the deposit.

3. Q: How about the after-sale services?

A: We supply on-site commissioning, operators training, and maintaining services.

4. Q: How about the technical support?

A: While the customer is meeting the technical problems in processing, our engineer will try their best to give them suggestions
and support. This is for free to our customers.
