HTHP Rapid Dyeing Machine/Horizontal jet dyeing machine

Share on (60650759066):


Price:

Quantity:


Product Overview

Description



Product Description


Applicable Cloth Varieties:

Sprayed water flow with high pressure and flow rate up to 3KG/cm2 is useful for dyeing non-splitting and non-pilling cloth,like high count,new synthetic satin,tricot,suede cloth,peach-skin processing,Talon,Tsctel,Figured cloth,Bengaline,rib fabric,interlock fabric,poplin.fluting,crepe,mesh fabric,oxford cloth,taffeta,middy twill and curled edge cloth,woven with T 100%,T/C,CVC,T/R,N/C,N/T,N/R,R/T,CD/T/R and NC/TR,as well as union cloth interwoven and blended with various chemical fibers or long staple ,cut fibers,spraying in the proper range 0.5~1kg/cm2 can satisfy special operating requirements of resilient fabric and low-tension fabric.



Main Technical Features:

a),Extra large capacity:

1,Short investment recovery period.

2,Rduction of dyeing difference between throughs in batch production.

3,Increasing productive efficiency.

b),Flexible water flow produces smaller impact on surface of high-grade cloth to ensure cloth to be non-pilling and yarn to be non twisting.

c),Specially designed bending heads can meet the requirements of no dead corner,small tension and bath ratio.

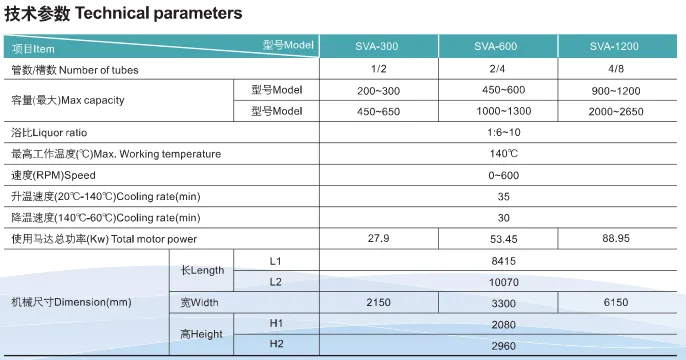

Technical Data









Company Information


Sunsky is an experienced machinery manufacturer since 2004,it's located in Wuxi,JiangSu Province,China(50mins by train from Shanghai).We're focusing on dyeing and finishing machines for various textiles.After a decade of innovations and development, Sunsky becomes an expert in the field of textile dyeing machines, including normal temperature dyeing machine, high temperature dyeing machine, pre-treatment and after-treatment machines. We make designs according our customer's requirement, continuously improve our techniques, optimize designs and also take the issue of environment into consideration. Sunsky dyeing machine has been well received by domestic and foreign customers.On the basis of 10years professional manufacturing experience,we have successfully developed a new generation of liquor ratio 1:3.5~5, energy saving type OH/UH,and 1:2.8~3.5 yarn dyeing machine model SS241H.


-11





Detailed Images

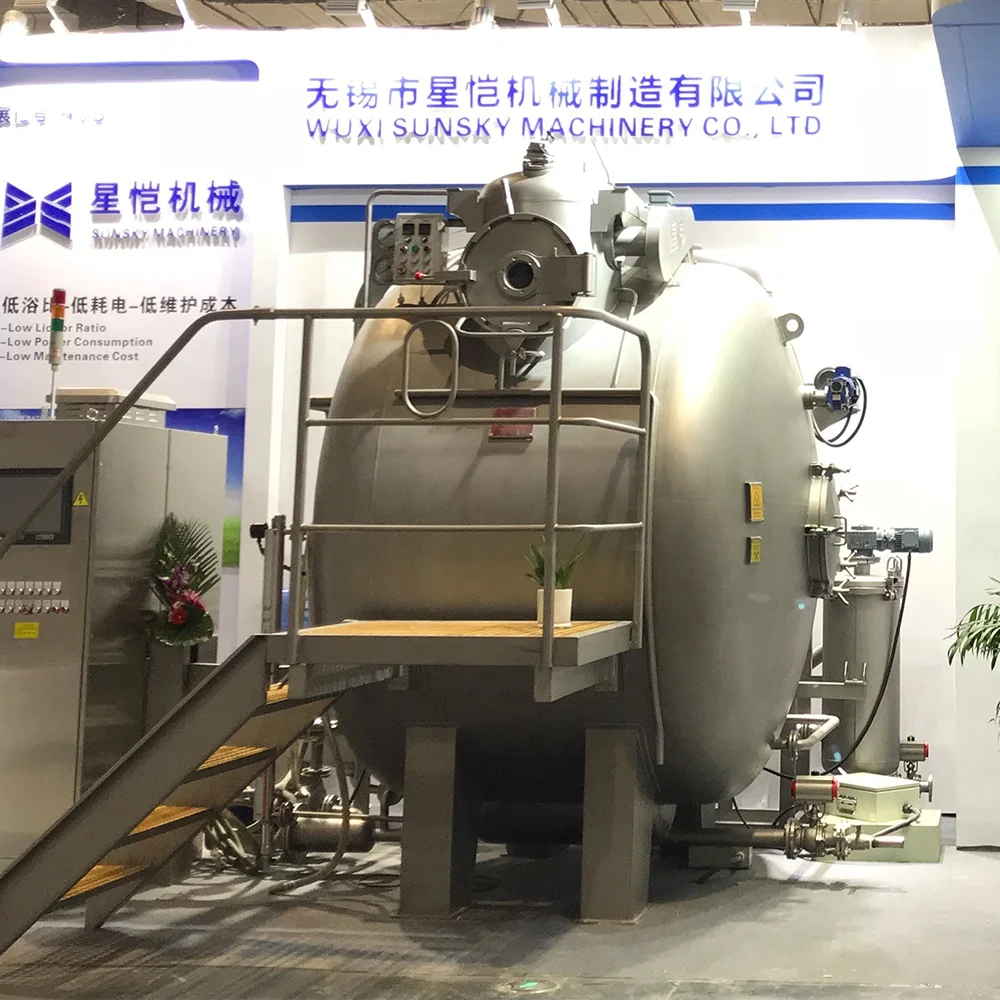

High-Temperature Overflow Fabric Dyeing Machine.Model OH-300-4(4Chambers),Fabric Maximum loading capacity at 1200kgs.Main Pump 18.5KW,total running power 34KW.

-2

HTB1nbqAKXXXXXb2XXXXq6xXFXXXI



Packaging & Shipping

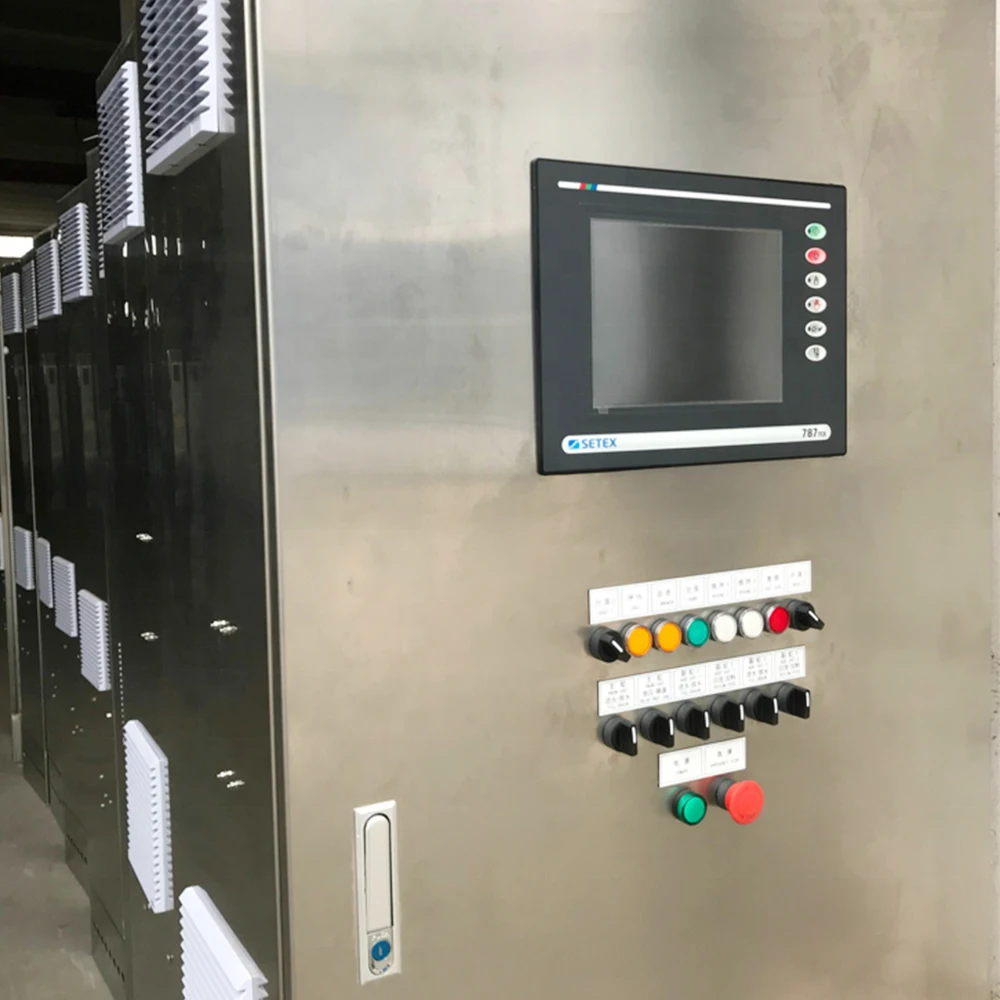

Packaging of Electrical Control Panel:


-1





Our Services



  • Your any inquiries will be replied within 12 hours.

  • We offer you professional services in fluent English.

  • Quality: we have QC on each process in production.

  • We will give the right schedule and quality machine.

  • Without man-made faults,the warranty is 18months,and spare parts can be replaced within 3months since the delivery of dyeing machine.

  • Engineers available to service machinery overseas,commissioning and technical support,etc.

  • Our factory is located in Wuxi,JiangSu(50mins by train from Shanghai)

  • To contact us by email Dyeing(a)sunsky-machine.com Wechat:Cpa588
