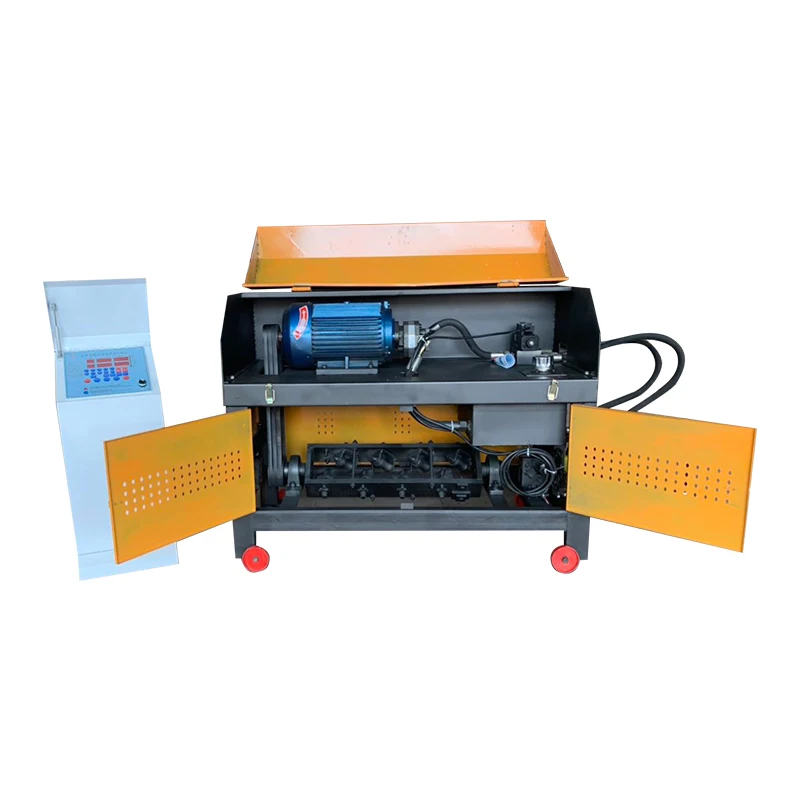

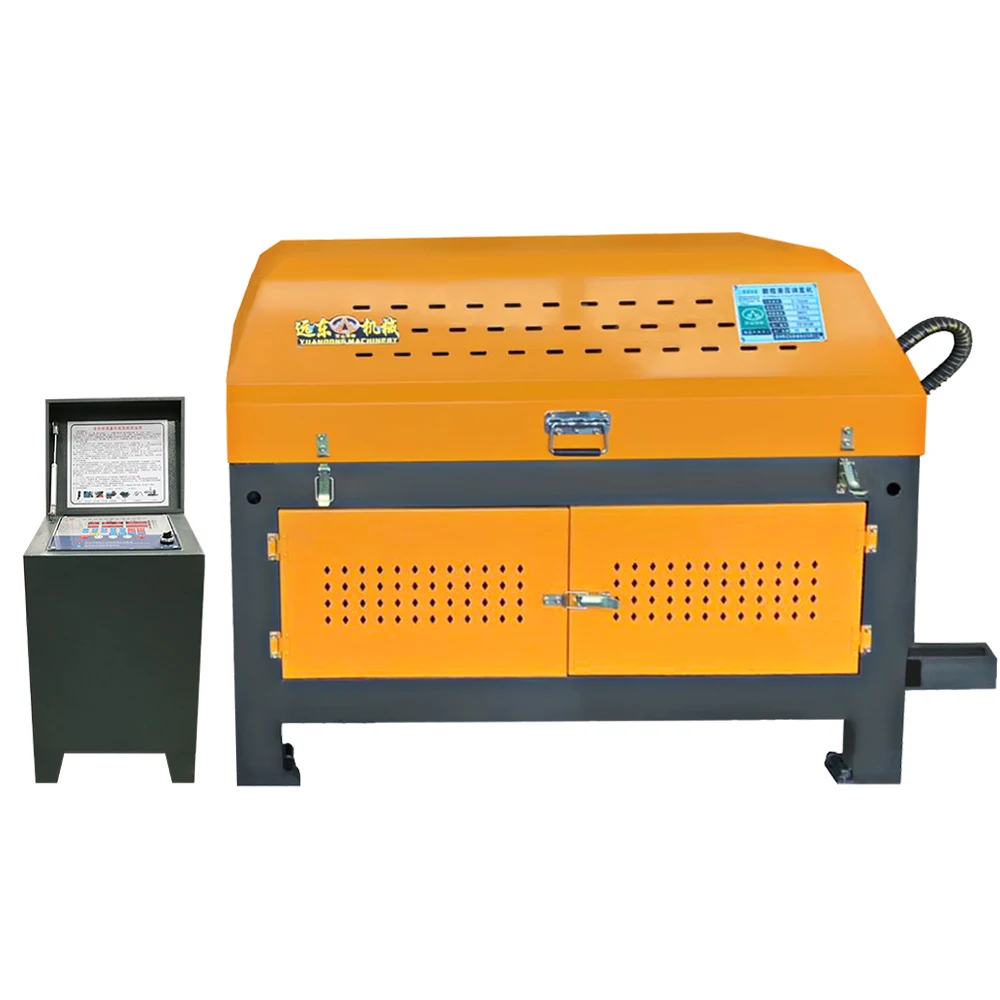

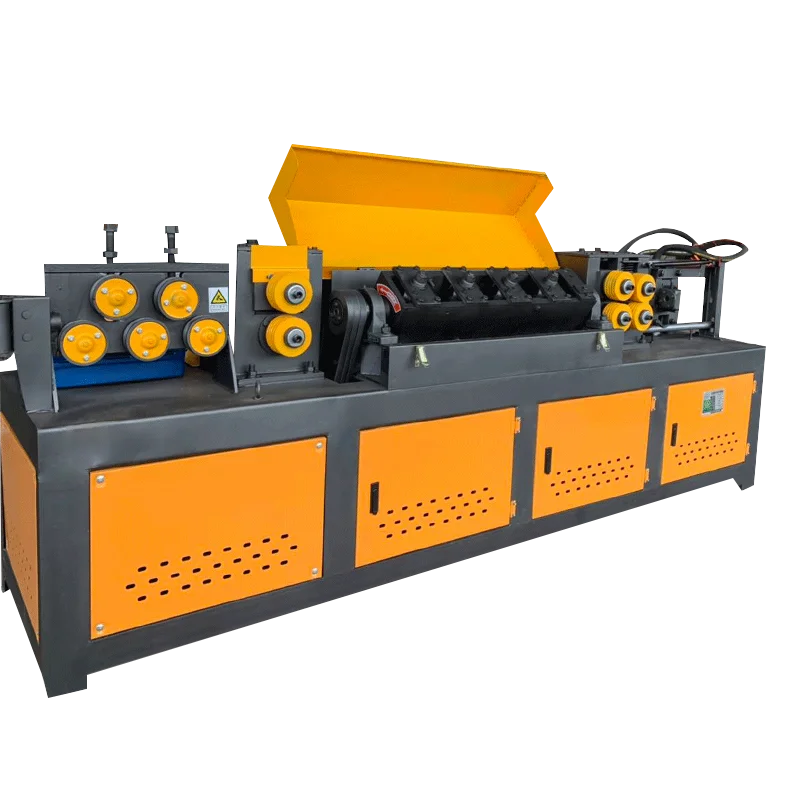

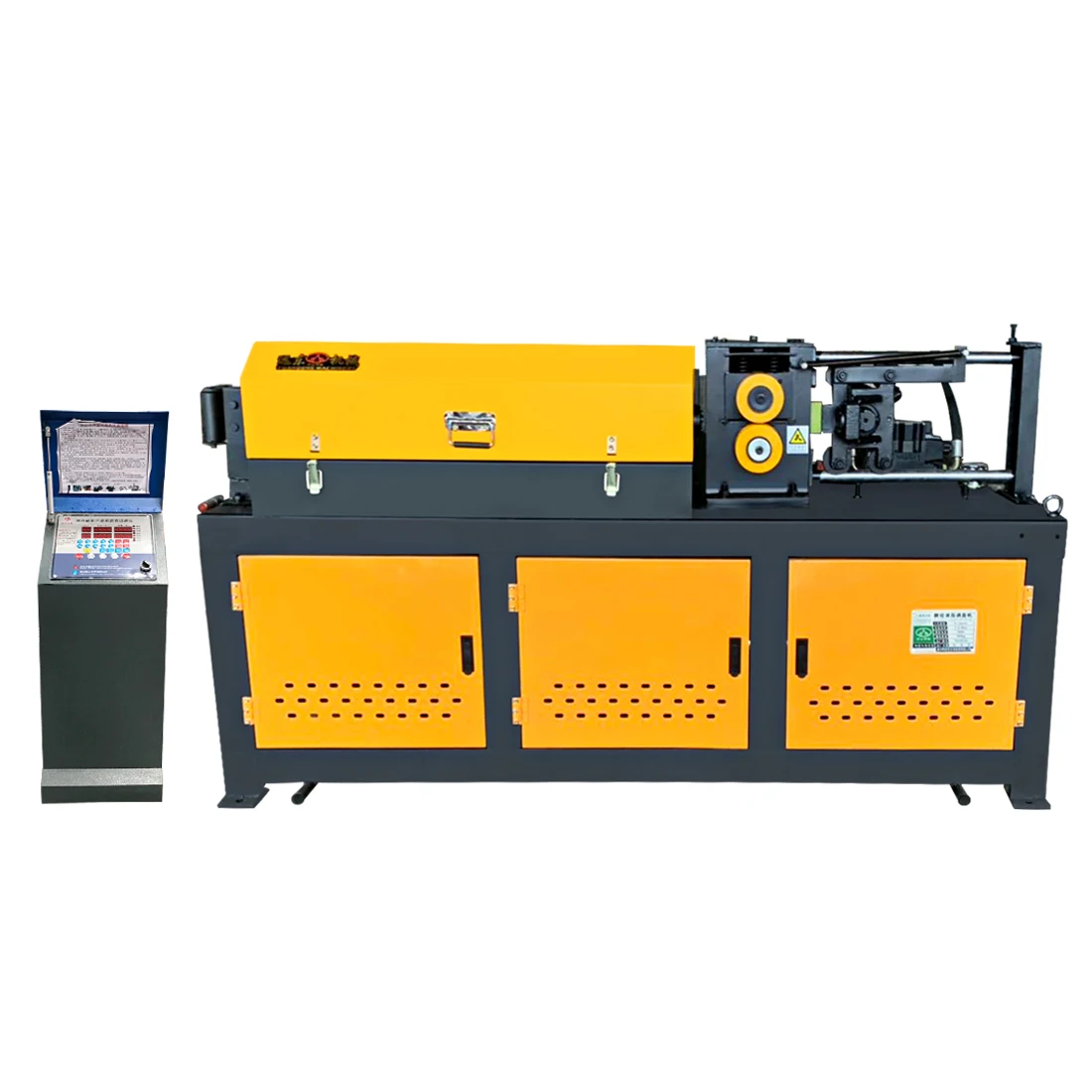

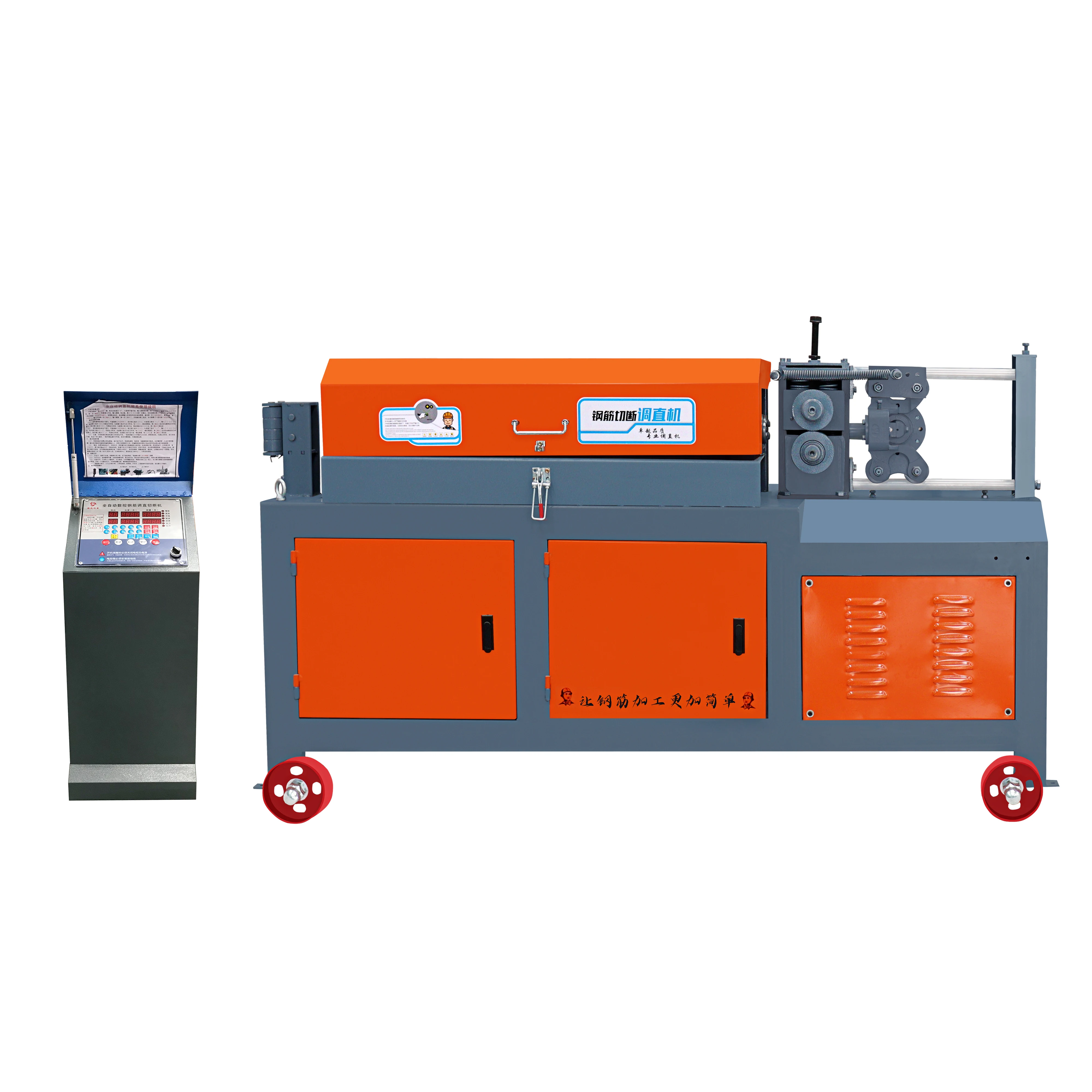

Automatic mechanical steel wire straightening and cutting machine
US $115.00-$385.00
Лидер продаж в Китае! GT4 14MM автоматический нулевой ошибки арматура выпрямление и автомат для резки выпрямитель резак
- Category: >>>
- Supplier: Zhengzhou Yuandong Machinery Manufacturing Co. Ltd.
Share on (1600516969041):
Product Overview
Description
Product Overview
China Hot Sale Gt5-16Mm Automatic Zero-Error Rebar Straightening And Cutting Machine Straightener And Cutter For Exporting
The structure of the machine is that the angle of the straight wire die is adjusted by the high-speed rotor rotation to achieve the effect of straightening, and then the wire is fed forward through the wire feeding wheel. After reaching the required size,the wire touches the positioning key and pushes the runway forward by 5 mm. The upper punch presses the vertical wire cutter and cuts it immediately. The wire presses the opening bearing through the pressure plate on the vertical wire cutter, and the wire automatically falls to the Wire rack, if you want to change the length, move the positioning key. China Hot Sale Gt5-16Mm Automatic Zero-Error Rebar Straightening And Cutting Machine Straightener And Cutter For Exporting

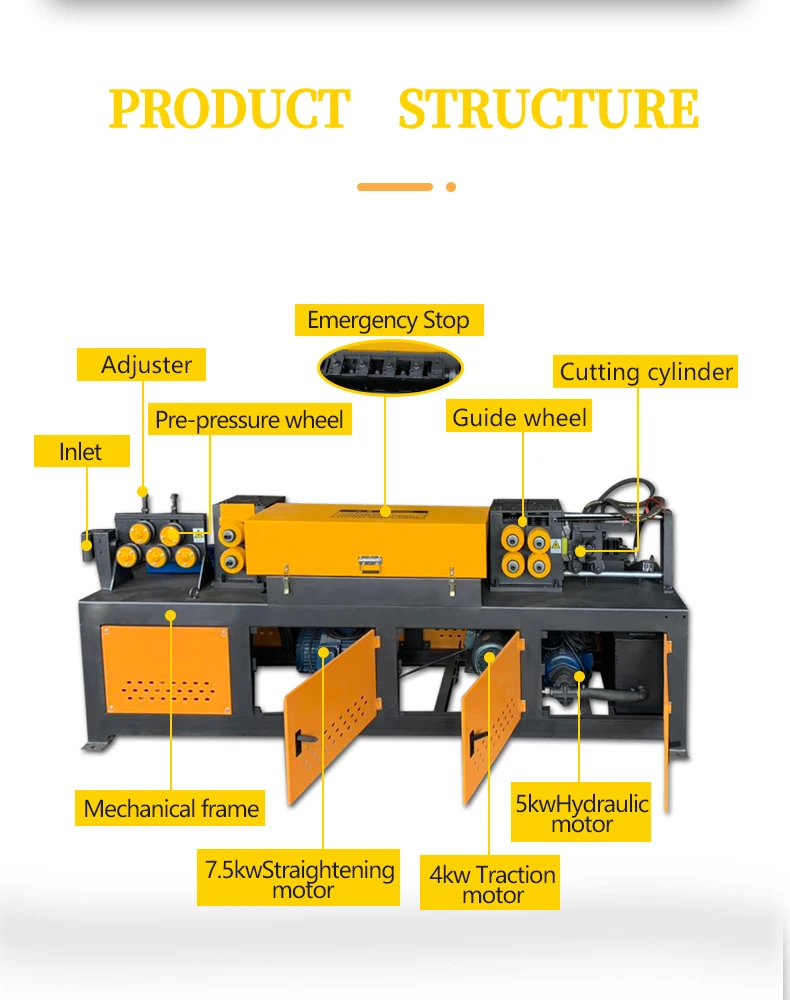

Product Structure
Advantage: China Hot Sale Gt5-16Mm Automatic Zero-Error Rebar Straightening And Cutting Machine Straightener And Cutter For Exporting
1. There is no error in cutting the length of the steel bar .
1. There is no error in cutting the length of the steel bar .
2. Double head pulling type rebar straightener，steel bar straightener and cutter.
3. Until the last meter of steel bars are adjusted and pulled out.
4. The construction wire adopts tungsten steel mold.
5. The machine uses three motors, with low noise, hydraulic system brings high speed and high precision.
6.Applicable to hot/cold rolled steel,low carbon steel ,steel copper wire.Steel Bar Straightening And Cutting Machine
3. Until the last meter of steel bars are adjusted and pulled out.
4. The construction wire adopts tungsten steel mold.
5. The machine uses three motors, with low noise, hydraulic system brings high speed and high precision.
6.Applicable to hot/cold rolled steel,low carbon steel ,steel copper wire.Steel Bar Straightening And Cutting Machine

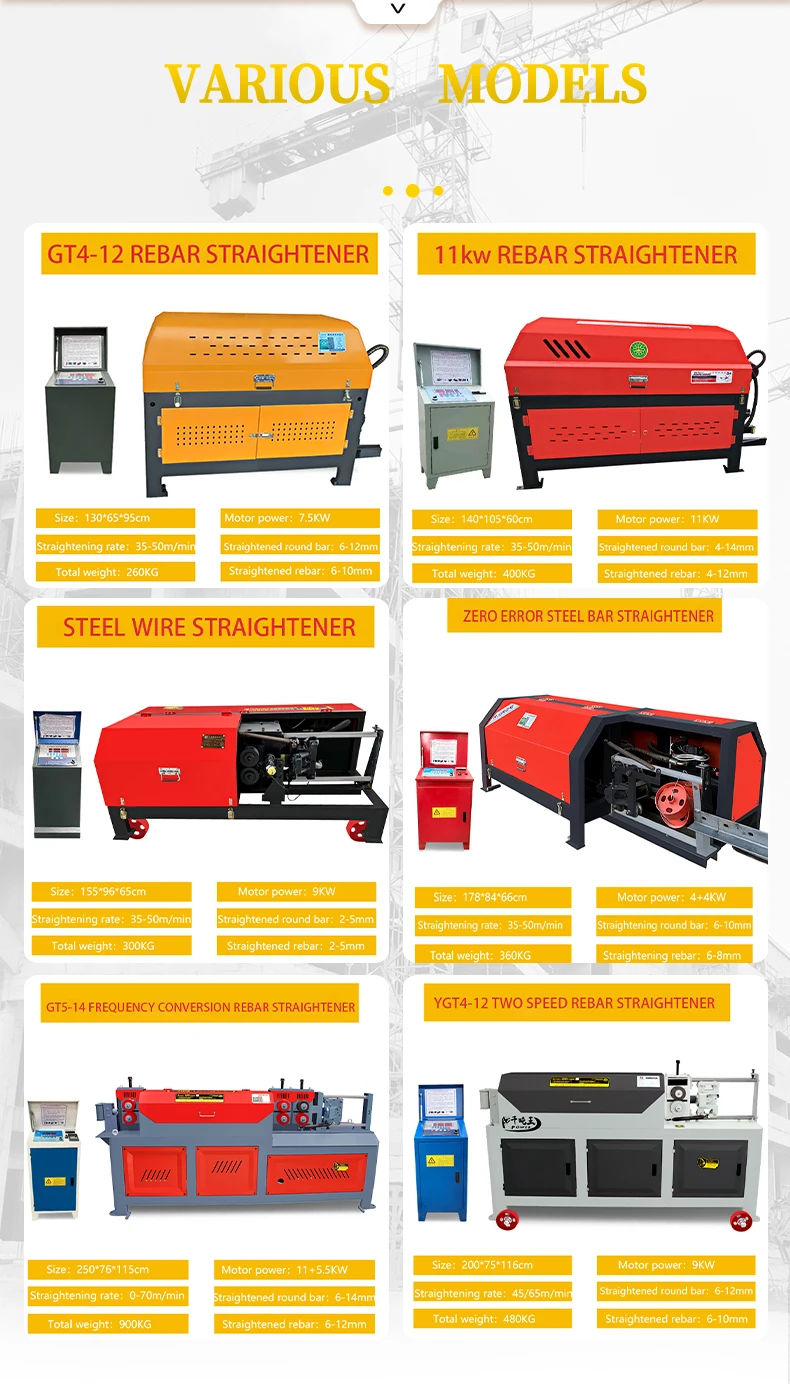

Metric dimensions specifications | ||||||||||
Model | YGT4-12 | YGT 5-14 | YGT6-14 | GT2-5 | YGT6-10 | |||||
Motor power | 7.5 KW | 11+5.5 KW | 7.5+4+4 kw | 9 kw | 4+4 KW | |||||
Straightening rate | 35-50 m/min | 0-70 m/min | 45-65 m/min | 35-50 m/min | 35-50 m/min | |||||
Weight | 260 kg | 900 KG | 800kg | 300 kg | 360 kg | |||||
Straightened round bar | 6-12 mm | 6-14 mm | 6-14 mm | 2-5 mm | 6-10 mm | |||||
Straightened rebar | 6-10 mm | 6-12 mm | 6-12 mm | 2-5 mm | 6-8 mm | |||||
Host length | 130 cm | 250 cm | 282 cm | 155 cm | 178 cm | |||||
Host width | 65 cm | 76 cm | 72 cm | 96 cm | 84 cm | |||||
Host height | 95 cm | 115 cm | 108 cm | 65 cm | 66 cm | |||||

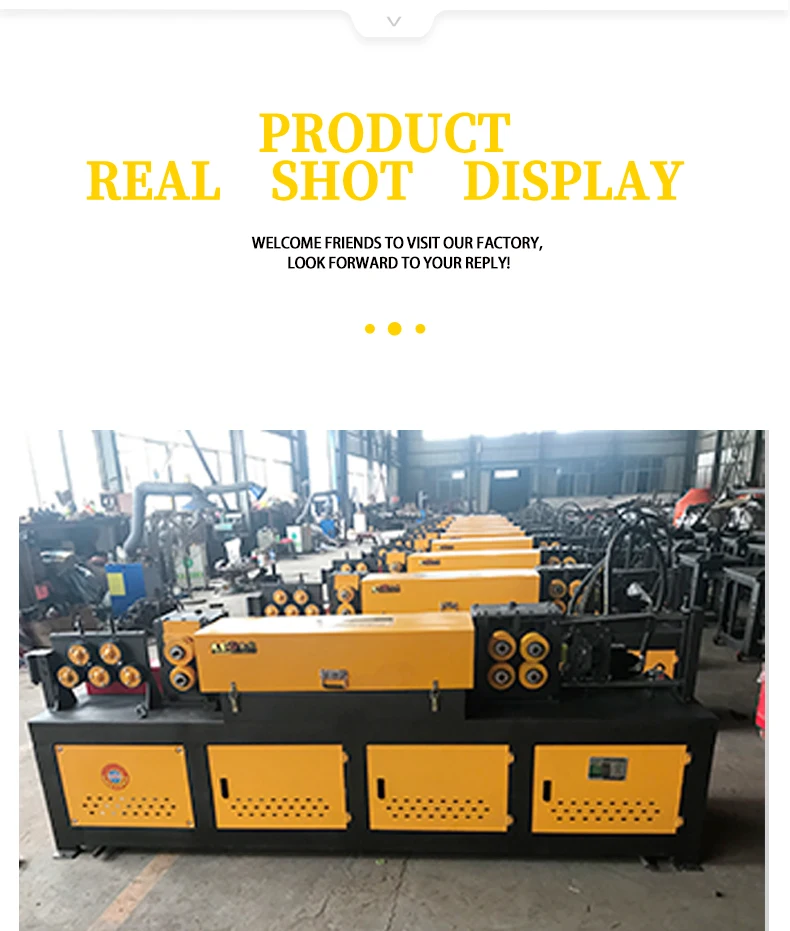

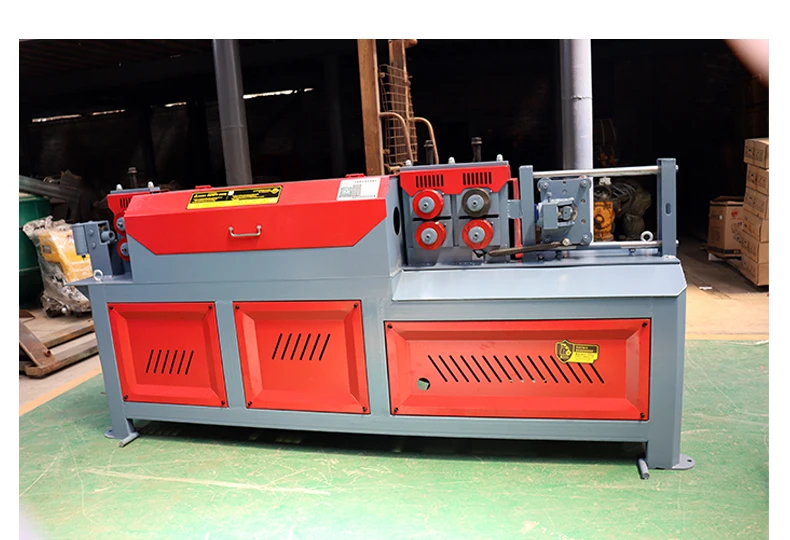

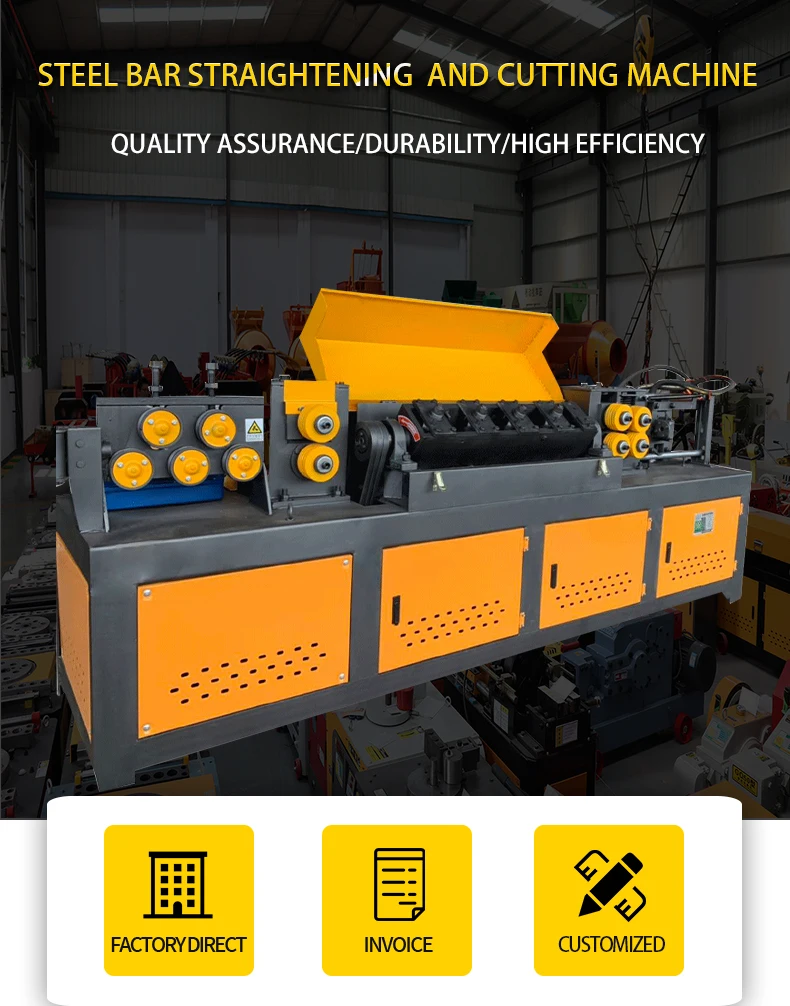

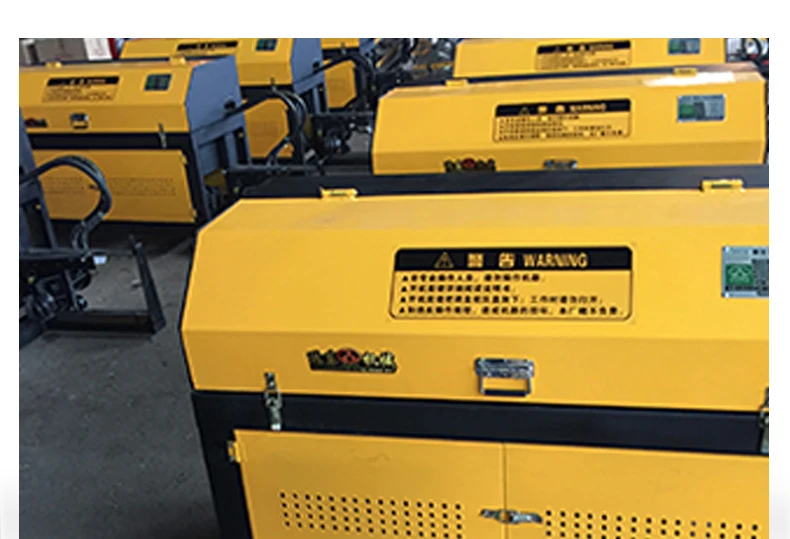

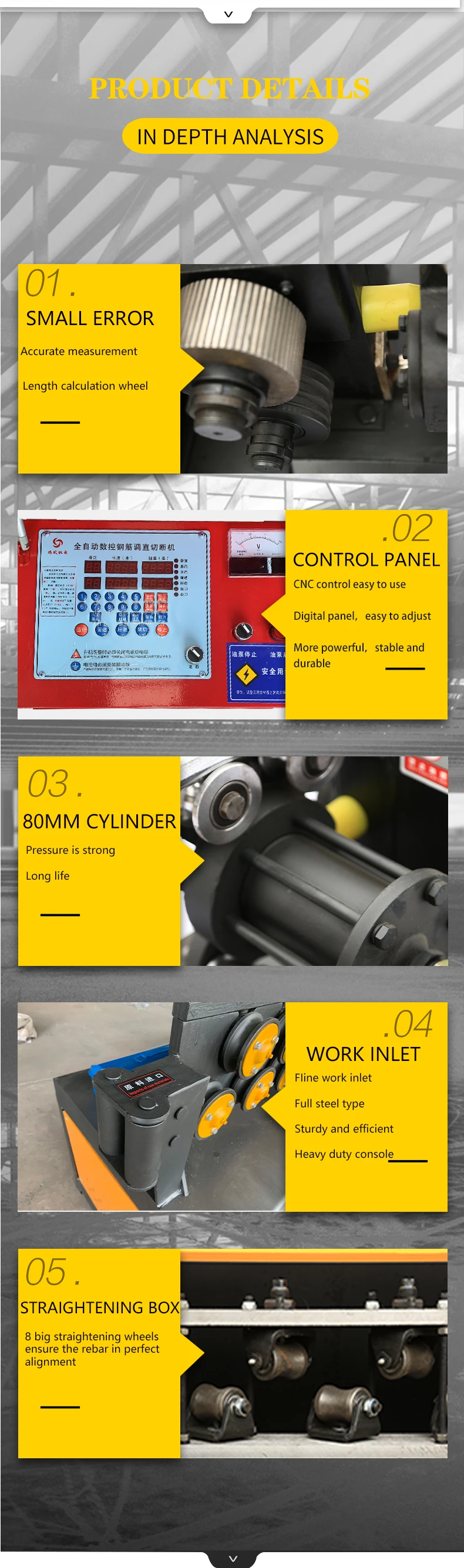

Detailed Images
