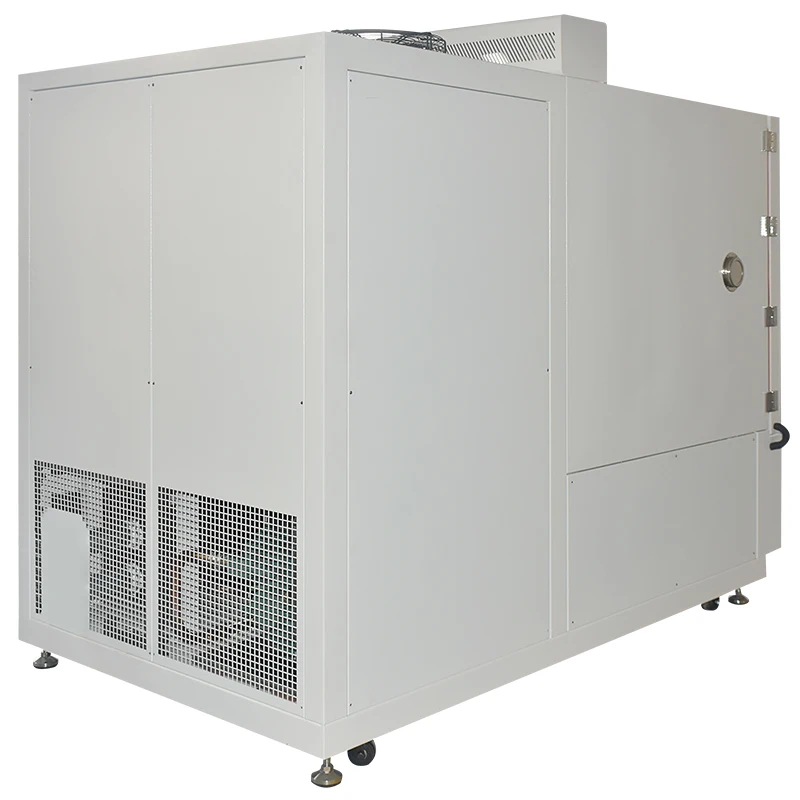

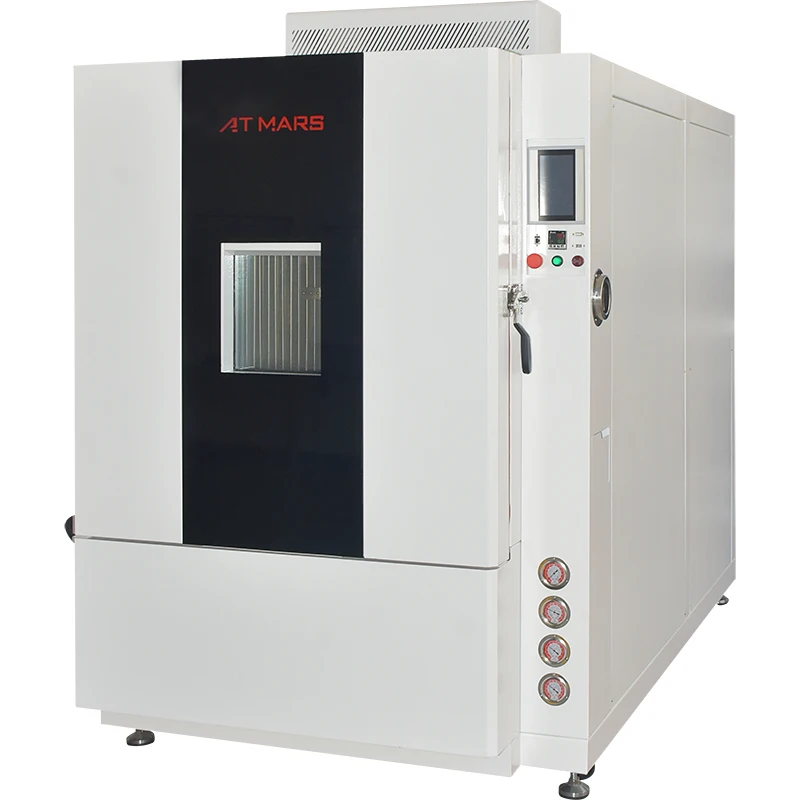

CE Certified Rapid Temperature And Humidity Change Test Chamber Electrical Thermal Shock Chamber Climatic Test Chambers
- Category: Testing Equipment >>>
- Supplier: Guangdong Atmars Test Equipment Co. Ltd.
Share on (1600518455986):
Product Overview
Description
Products Description
Product Name | Fast change rate test chamber | ||||||
Brand | ATMARS | ||||||
colour | Blue , white , red , customized | ||||||
MOQ | 1Pieces | ||||||
"Specifications of AFRC Series ESS Test Chamber*Performance is based on ambient temperature +25℃ or circulating water temperature +25℃, empty load no specimen."\t\t\t\t\t
Model | AFRC-600D | ||||||||
600D-5 | 600D-10 | 600D-L5 | 600D-L10 | ||||||
Performance | Temperature range | -70℃ ~ +150℃ | |||||||
Fast temp.change rate | -55℃ ~ +85℃(Average change) | -55℃ ~ +85℃(Linear change) | |||||||
Fast Temp. change rate | 5℃/min | 10℃/min | 5℃/min | 10℃/min | |||||
Temp. fluctuation | ≤±0.5℃ (at a steady temperature) | ||||||||
Temperature deviation | ≤±2.0℃ | ||||||||
Temperature uniformity | ≤±2.0℃ | ||||||||
Workspace volume | 600L | ||||||||
Workspace dimensions (WxDxH)mm | 1060*1060*630 | ||||||||
Exterior dimensions (WxDxH)mm | 1650*2040*2550 | 1650*2040*2550 | 1650*2040*2550 | ||||||
Material | Interior | Matte SUS #304 Stainless Steel Plates | |||||||
Exterior | Powder Coated Carbon Steel Plates | ||||||||
Seal | Imported Silicone Seal | ||||||||
Insulation | Hard Polyurethane Foam Insulation and Glass Wool | ||||||||
System | Heating | Nichrome Wire Electric Heater | |||||||
Refrigeration | German GEA Cascade Semi-Hermetic Compressors or Other Brands Air-cooled or Water-cooled Cooling Mode for Option Zero Ozone Depletion Potential (ODP) Refrigerant - R404A / R23 | ||||||||

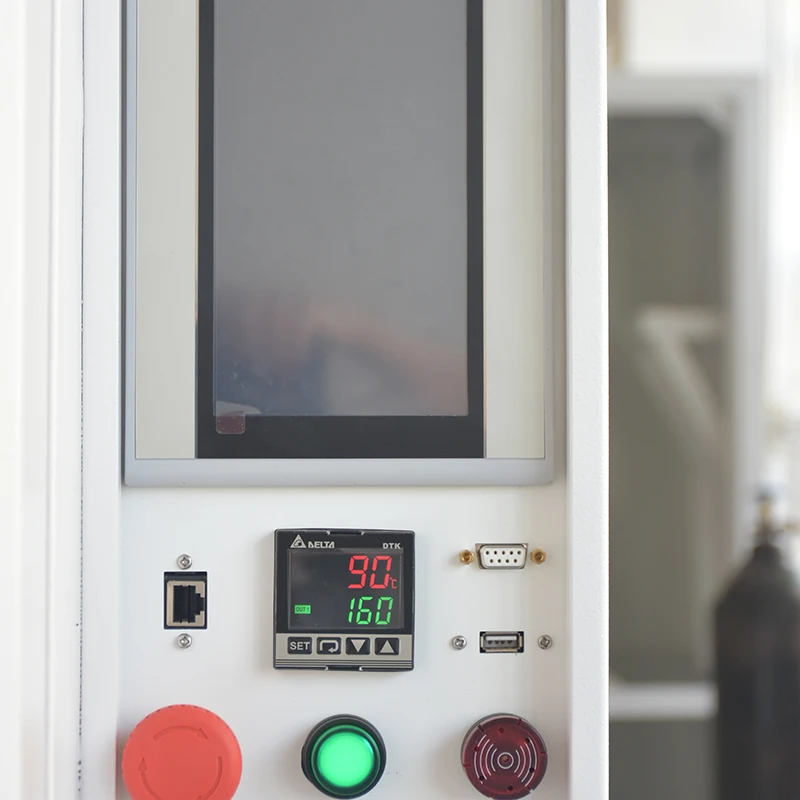

Controller | Display Operating mode Memory capacity Control tolerance Temp. sensor input Comm. interface | 7 inch 65535 true color, LED backlit display screen, resolution 800 x 480; Program and setpoint operating mode; Program capacity up to 127 programs, each 999 hours, maxiumum 32,000 cycles; Temperature measuring range: -90.00℃ to 200.00℃, tolerance: ±0.20℃; Supports multiple sensor inputs such as T type, PT100; Comes with USB interface, supports RS-485, LAN and others. | |||||||
Noise level | ≤70dB | ||||||||
Allowable ambient conditions | Temperature: +5℃ to +35℃; Relative humidity: ≤85％RH (No condensation); Air pressure: 86kPa to 106kPa. | ||||||||
Electrical supply | AC 380 (1±10％)V (50±0.5)Hz 3 Phase 4 Wire plus Earth Wire | ||||||||
Recommend Products
Company Profile
Production Line
Certifications
Logistics&Transportation
FAQ
1.Are your company a factory or a trading company ?
-- We are a manufacturer, factory + trading company
2.What are the payment methods?
- Payment methods are T/T, Paypal, LC, VISA
3.Do you accept customization service? Can I have my logo on the machine?
--Yes, of course. We can not only offer standard machines, but also customized.
4.How do you calibrate the equipment?
--We have our own calibration and third-party calibration such as ISO17025.
5.What's the delivery term?
--At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 7-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
6.What about the services and product' quality?
-Service: ,Design service ,Buyer service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
7.Can we come to your factory to study and train?
- Welcome to our factory for study and training, we provide this service free of charge.
8.Do you have an agent?
- Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.
9.How to provide after sales service?
- At first, our test chambers are produced based on 20 years product lifetime. Normally once test chambers have problems, we judge the problems, and send spare parts to our customers, and teach them how to change new parts on by email or video. Within 3 years, all spare parts and shipping cost (by DHL, INT, and FedEx) paid by our company.
- If customers need our engineers on site service, the company only need pay the ticket accommodation to our engineers, service is for free.
- If Products still can't use after our engineers repair, we will produce 2 new test chamber (same as the old one) to our customers with no charge.
- You can contact our local service center in overseas market to get service and product.
