Product Overview

Description

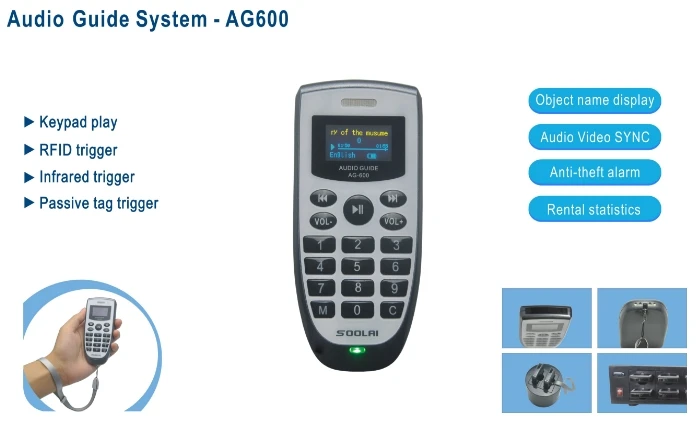

Smart Audio Guide System AG-600

-----------------------------------------------------------------------------------------------------------------------------------------------------





Main Feature of audio guide system

• Built in speaker, 3.5mm stereo headphone jack output.


• Yellow and blue dual color OLED display.


• Welcome screen can be custom made.


• Support audio files of Mp3 format, 8-48KHz sample rate, 8-320kbps bit rate and VBR.


• 99 different languages available ,4096 audio files supported by each language.


• Automated switch language.


• Object name display, Support multi-language characters.


• Keypad play function.

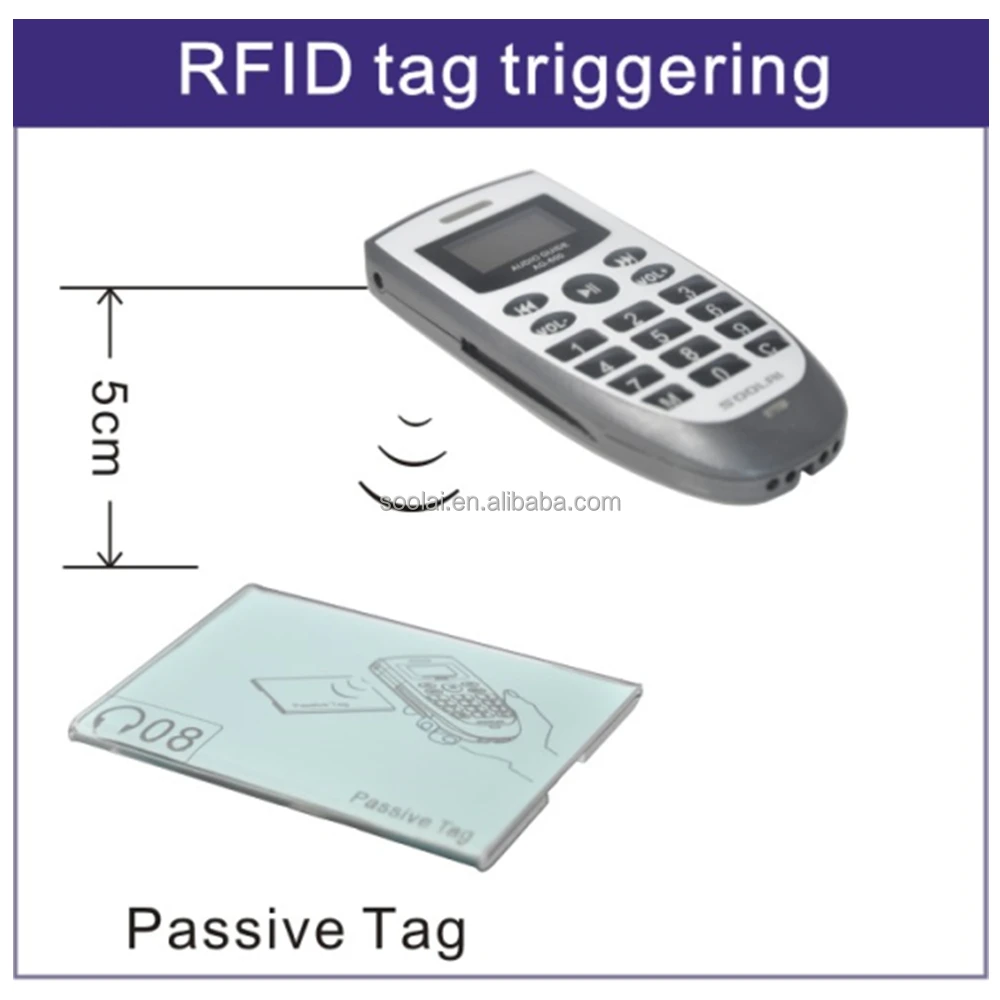

• Can be triggered by passive tag within 0-5cm.

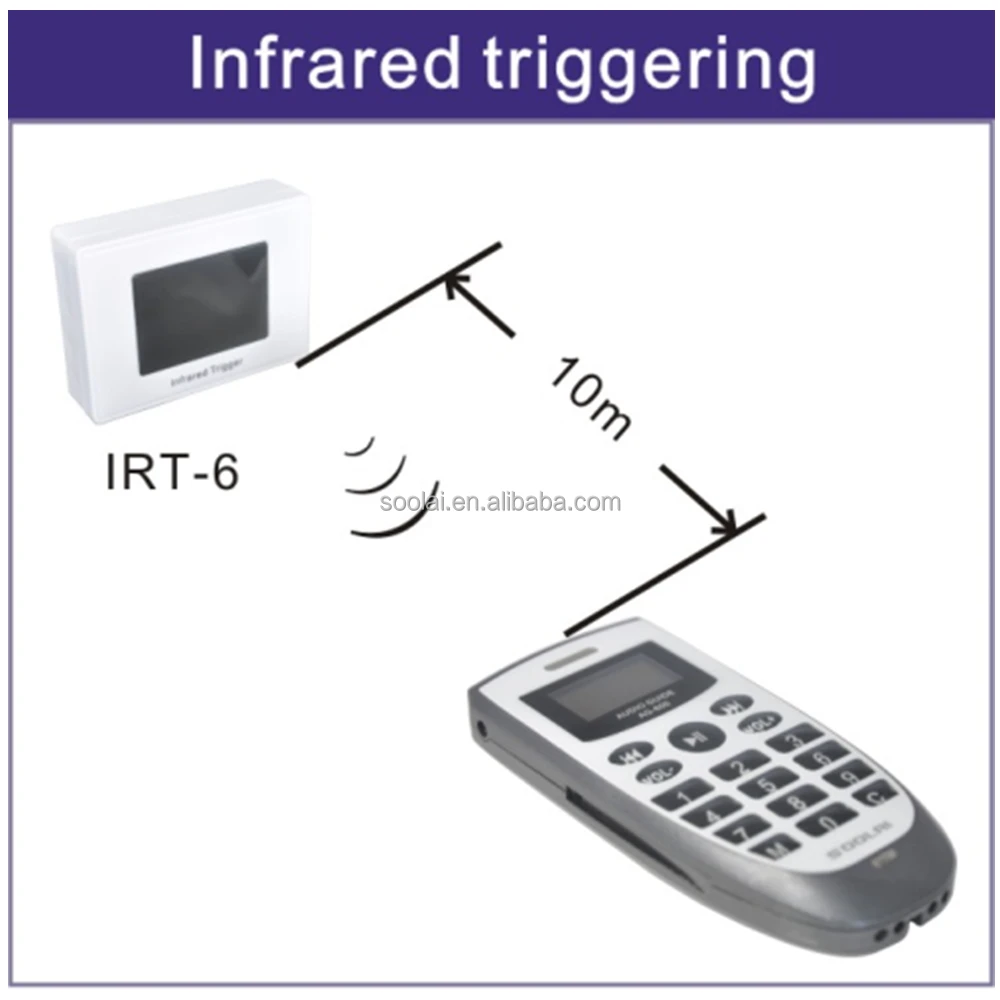

• Can be triggered by infrared ray within 0-10m.


• Can be triggered by RF signal within 0-100m.


• Maximum volume output can be locked.


• With play restrict and play times statistics functions, applied to rental.


• With the functions of play,/pause,fast forward/fast rewind, previous/next.


• The latest three trigger contents can be selected and replayed.


• Auto playing background music when trigger playing ended.


• With vibrate and buzzer trigger prompt function.


• With anti-theft alarm function.


• With audio video sync function, visitors will hear synchronous audio when video is playing.


• Battery states of RFID trigger and infrared trigger can be displayed on Audio Guide.


• The charger is compatible with 19 inch standard server network cabinet assembly.


• High capacity lithium-ion battery, continuous operating time is more than 12 hours.


• Parameters only can be changed by wireless decoder, prevent guests amending parameters.


• Special upload software convenient to update audio contents.

-----------------------------------------------------------------------------------------------------------------------------------------------------

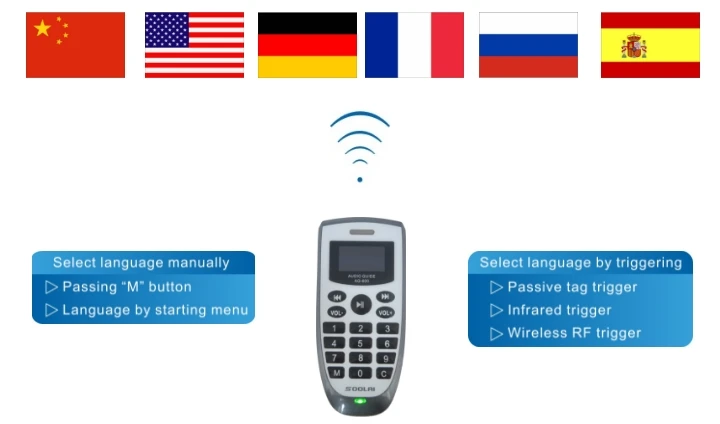

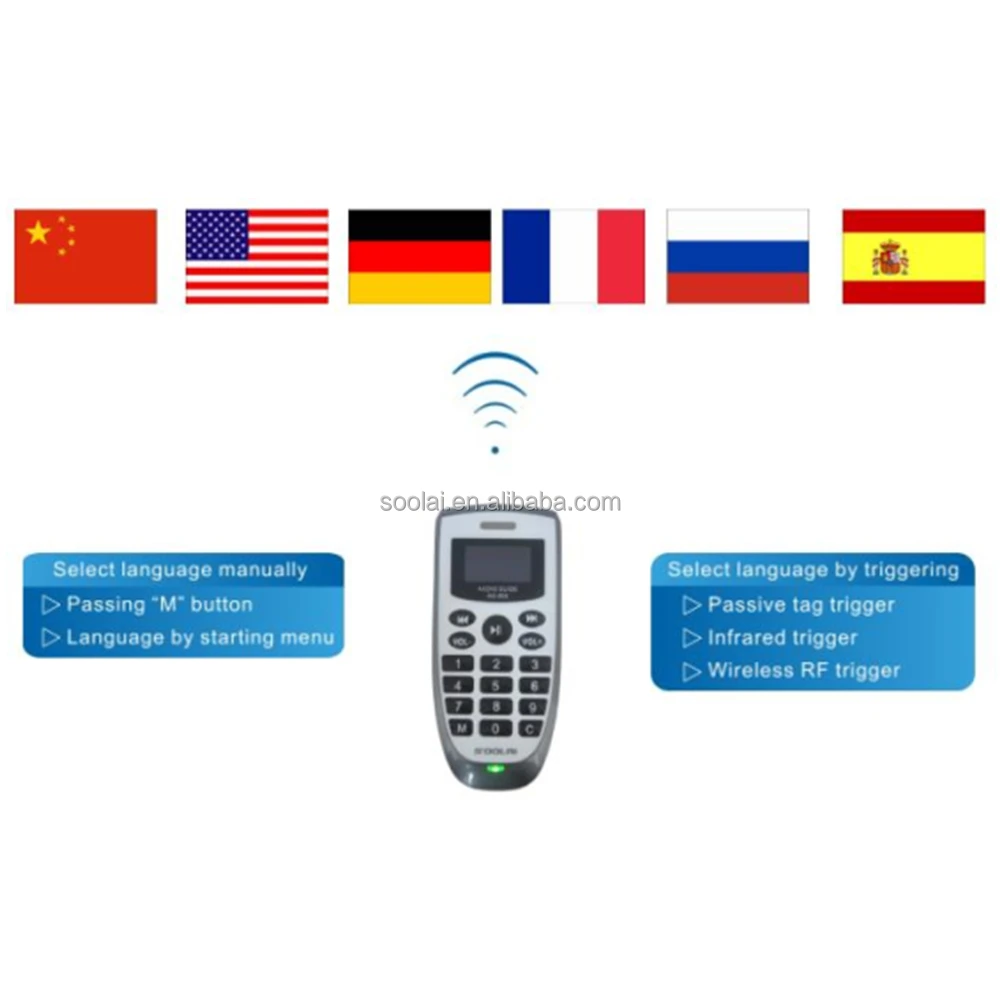

Select multi-languages

-----------------------------------------------------------------------------------------------------------------------------------------------------

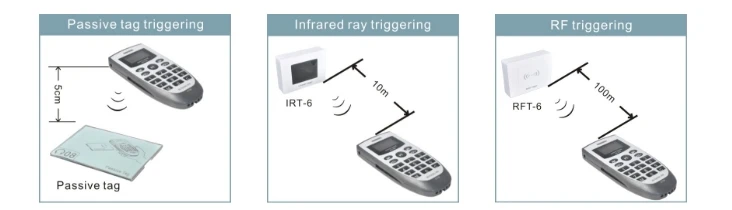

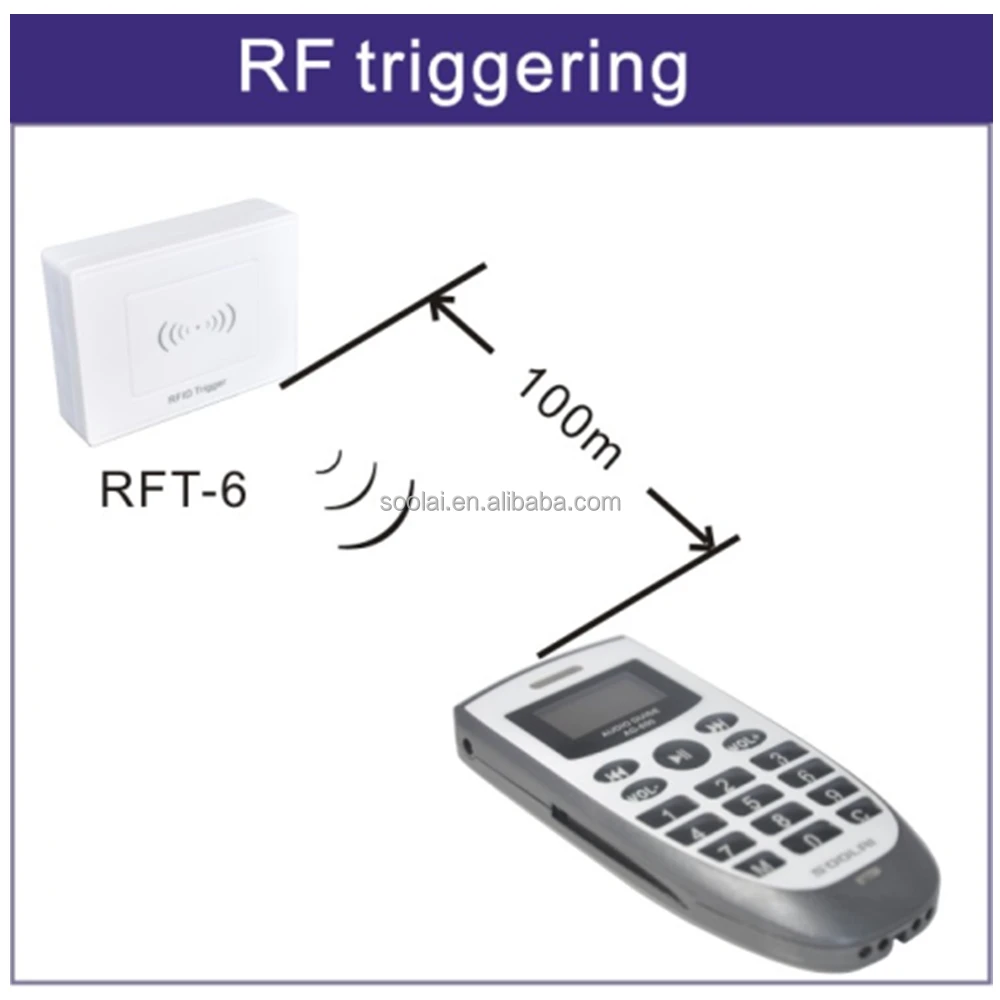

Smart Triggering

Passive Tag L45A	Infrared Trigger IRT-6	RFID Trigger RFT-6
Activate range:0~5cm	Range:0~10m,4 steps adjustable	Range:0~100m,16 steps adjustable
NO power supply	Battery:AA alkaline battery 1.5V*2	Battery:AA alkaline battery 1.5V*2
	Battery life:>15 months (measured)	Battery life:>3 years (measured)





-----------------------------------------------------------------------------------------------------------------------------------------------------

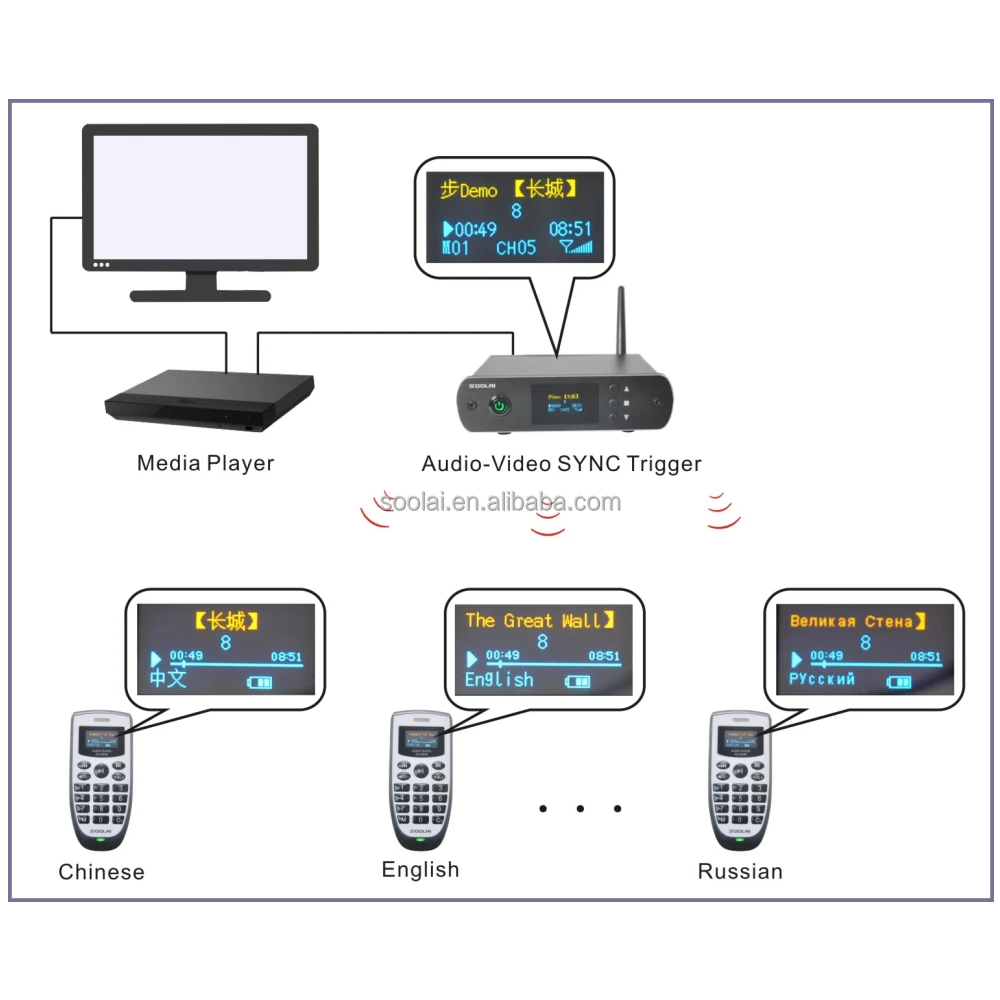

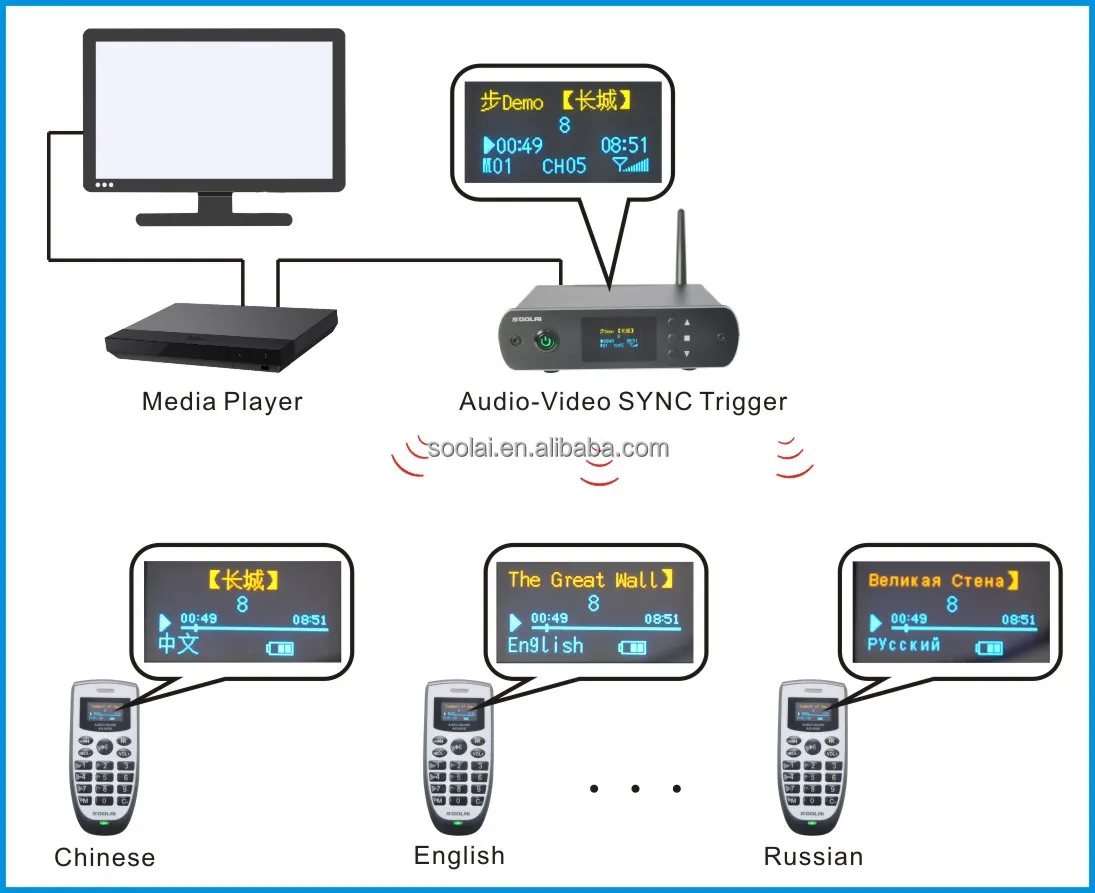

Application of Audio Video Synchronization



	The video output AVT-6 connect to video.
	Visitors who carry Audio Guide unit enter trigger area of Audio Video sync trigger AVT-6.
	The audio guide unit would trigger and play synchronous audio of video in visitors’ required language automatically.





















































-----------------------------------------------------------------------------------------------------------------------------------------------------

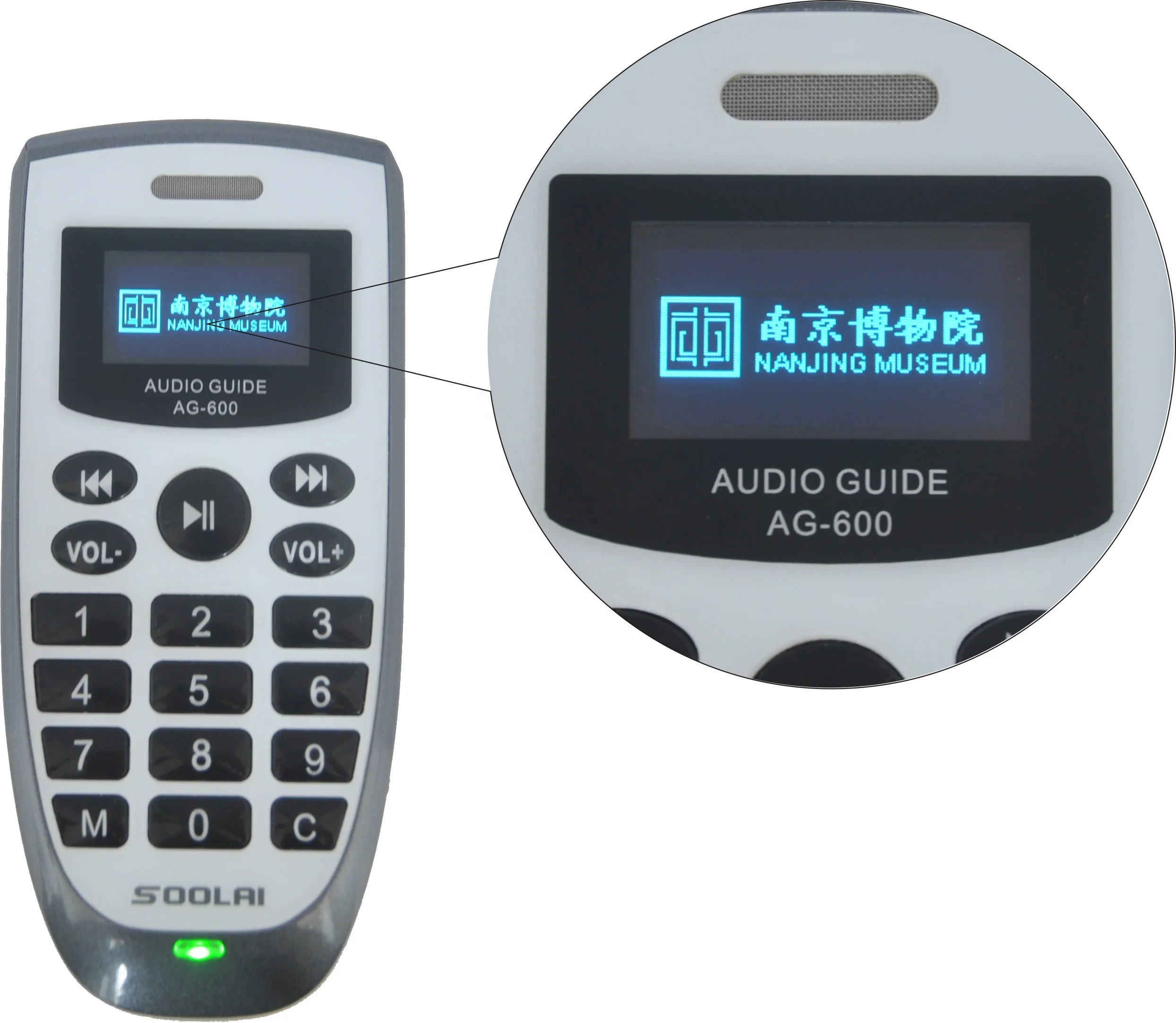

Welcome screen customization



	Welcome display screen could show any character, pattern, logo, etc.
	And welcome display can be edited by user own.

-----------------------------------------------------------------------------------------------------------------------------------------------------

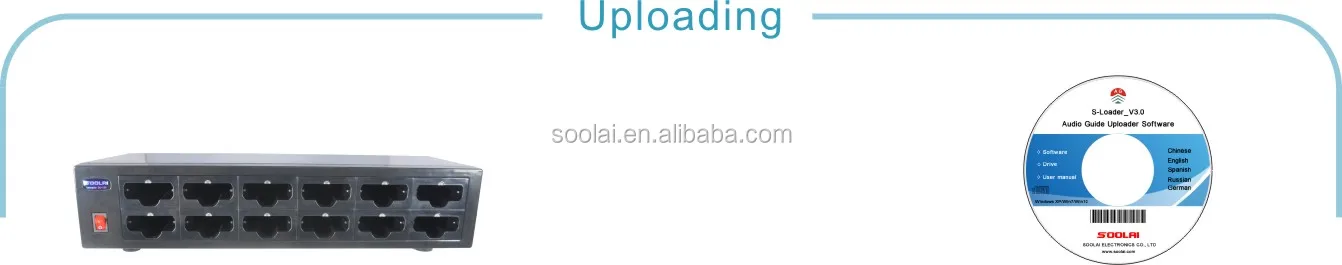

Uploading and charging



12 slots uploader SU-12B		Uploading software S-Loader
Charging 12 unit simultaneously		Windows XP/Win7/Win10 systems
Uploading 12 unit simultaneously

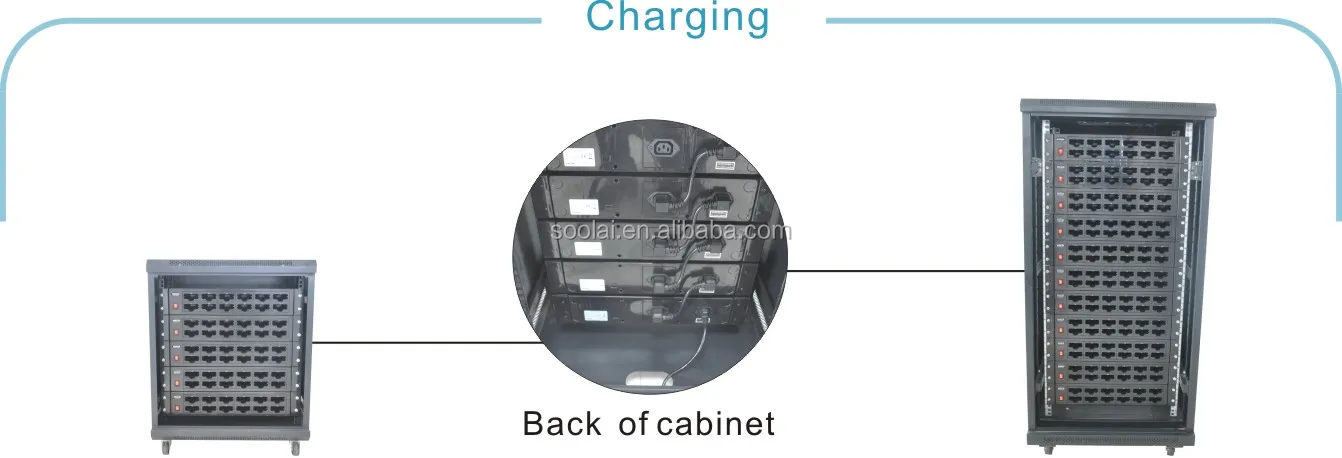

60-Slots Charger		60-Slots Charger
19 inches standard cabinet 12U		19 inches standard cabinet 24U
Dimensions: 650*500*400mm		Charging current: 400mA*60
5pcs charger SC-12B		11pcs charger SC-12B
Charging current: 400mA*60		Charging current: 400mA*132



-----------------------------------------------------------------------------------------------------------------------------------------------------







System Specification of audio guide system

Ways of play	Keypad play & Automatic triggering play
RF Trigger	2.4GHz / 0~100m trigger range (16 steps)
Infrared Ray Trigger	38KHz / 0~10m trigger range (4 steps)
Passive Tag Trigger	13.56MHz / 14443A standard / 0~5cm trigger range
File Format	Mp3 Format (8-48KHz sample rates, 8-320kbps bit rate)
Memory Capacity	4GB (Optional 8G/16G/32G)
Multi-Language	99 (Maximum)
Tracks Number	4096 (per language)
Display name of object	Support multi-language text display
Display screen	128*64 dot matrix, OLED Double Color
Built in speaker	8Ω/0.5w
Play controls	Play/Pause, Fast forward/Fast rewind, Previous/Next
Anti-theft alarm function	Support
Audio Frequency Response	50~18,000Hz
Distortion	<0.02%
Audio Dynamic Range	88dB
S/N Ratio	96dB
Operating Temperature	-10~60℃
Power Supply	Lithium ion battery 3.7v/1020mAh
Operating Time	About 12 hours
Dimension	108*49*16mm
Weight	50g (include battery)



-----------------------------------------------------------------------------------------------------------------------------------------------------







Optional Accessories of audio guide system



RFT-6 RFID Trigger	IRT-6 Infrared Trigger	L45A / B Passive Tag	K96 Display Card	EW100 Passive Tag Reader
WD-900 Wireless Decoder	AVT-8 Audio Video Trigger	SC-02B 2-Slots Charger	SC-12B / SU-12B 12-Slots Charger/ 12-Slots Uploader	SCB-24BD 24-Slots Charging/ Disinfection Case
