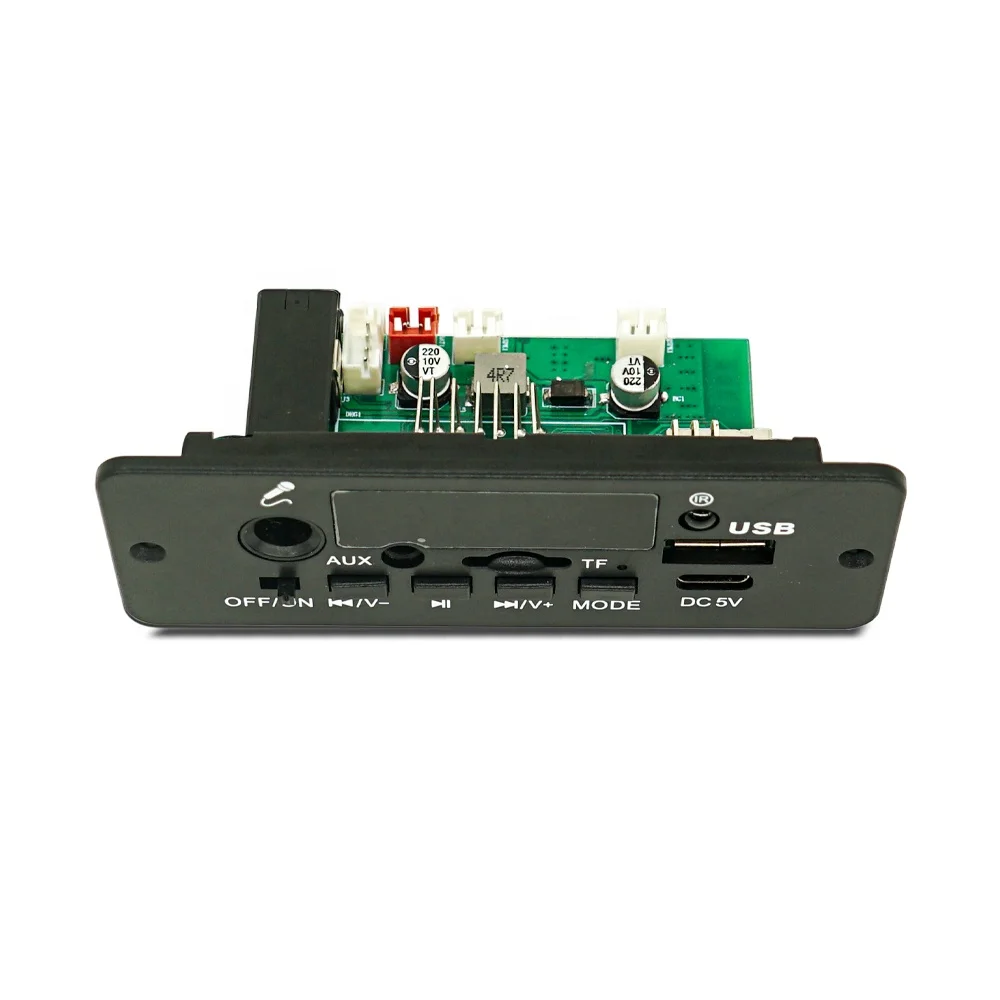

Portable Speaker Amplifier Power MP3 Bluetooth Module MP3 Player Bluetooth Microphone Board 3.7V 2x5W
Product Description
Function Introduction:
Support :Amplifier 2x5W,Wireless bluetooth ,Microphone，double decoding MP3/WMA/WAVAPE formats music,recording microphone, changing folder,reading USB sdisk, read tf card,radio FM,infrared remote control,power off memory,power supply DC 5V/battery 3.7V .
Major Functions:
1,Double decoding,support MP3/WMA/WAV/APE format music;
2,Support Wireless BT music;
3,Display with digital tube;
4,Support USB/MMC/SD/MMA card;
5,Power off memory functions;
6,Support 5-10 meters distance infrared remote control operation;
7,Support FM(87.5MHZ-108.0MHZ);
8,Buttons:VOL-/ AUTO / VOL+ / MODE;
9,Support LINE-IN/ LINE-OUT;
10,Support power automatic protection system(the PCBA will not burn out if the positive and negative power is reverse,it only not working);
11,The highest volume level is 30/50;
12,Support for pause / single loop play / replay all the repertoire.
13.Input DC 5V/battery 3.7V, Amplifier 2x5W
Support :Amplifier 2x5W,Wireless bluetooth ,Microphone，double decoding MP3/WMA/WAVAPE formats music,recording microphone, changing folder,reading USB sdisk, read tf card,radio FM,infrared remote control,power off memory,power supply DC 5V/battery 3.7V .
Major Functions:
1,Double decoding,support MP3/WMA/WAV/APE format music;
2,Support Wireless BT music;
3,Display with digital tube;
4,Support USB/MMC/SD/MMA card;
5,Power off memory functions;
6,Support 5-10 meters distance infrared remote control operation;
7,Support FM(87.5MHZ-108.0MHZ);
8,Buttons:VOL-/ AUTO / VOL+ / MODE;
9,Support LINE-IN/ LINE-OUT;
10,Support power automatic protection system(the PCBA will not burn out if the positive and negative power is reverse,it only not working);
11,The highest volume level is 30/50;
12,Support for pause / single loop play / replay all the repertoire.
13.Input DC 5V/battery 3.7V, Amplifier 2x5W
14，wireless Microphone / wire Microphone
Button Operation Instructions:
Button Operation Instructions:
Vol-:
Long presiing is volume descrease；
Short press one time" is last song or last FM station when playing USB/CARD/FM/BT；
Long presiing is volume descrease；
Short press one time" is last song or last FM station when playing USB/CARD/FM/BT；
PAUSE/PLAY：
When playing USB/SD/BT/FM/AUX，Short press once to pause and play music；
When playing fm radio,long pressing the key to Automatically search all radio frequencies and memorize the frequencies of clear sound;
When playing USB/SD/BT/FM/AUX，Short press once to pause and play music；
When playing fm radio,long pressing the key to Automatically search all radio frequencies and memorize the frequencies of clear sound;
Vol+:
Long presiing is Volume increase;
Short press one time" is Next song or Next FM station when playing USB/CARD/FM/BT；
MODE:
Short once pressing：Changing Functions,Switch SD card-USB-FM RADIO-AUX IN-BLUETOOTH
Long presiing is Volume increase;
Short press one time" is Next song or Next FM station when playing USB/CARD/FM/BT；
MODE:
Short once pressing：Changing Functions,Switch SD card-USB-FM RADIO-AUX IN-BLUETOOTH
Long pressing MODE key is recording the playing when playing BT/FM/AUX,when the board is inserted the USB/CARD as memory device;
Specification
Product name | Bluetooth Amplifier Board |
Amplifier Power | 2x5W |
Display | Dancing Digital LED Dispaly |

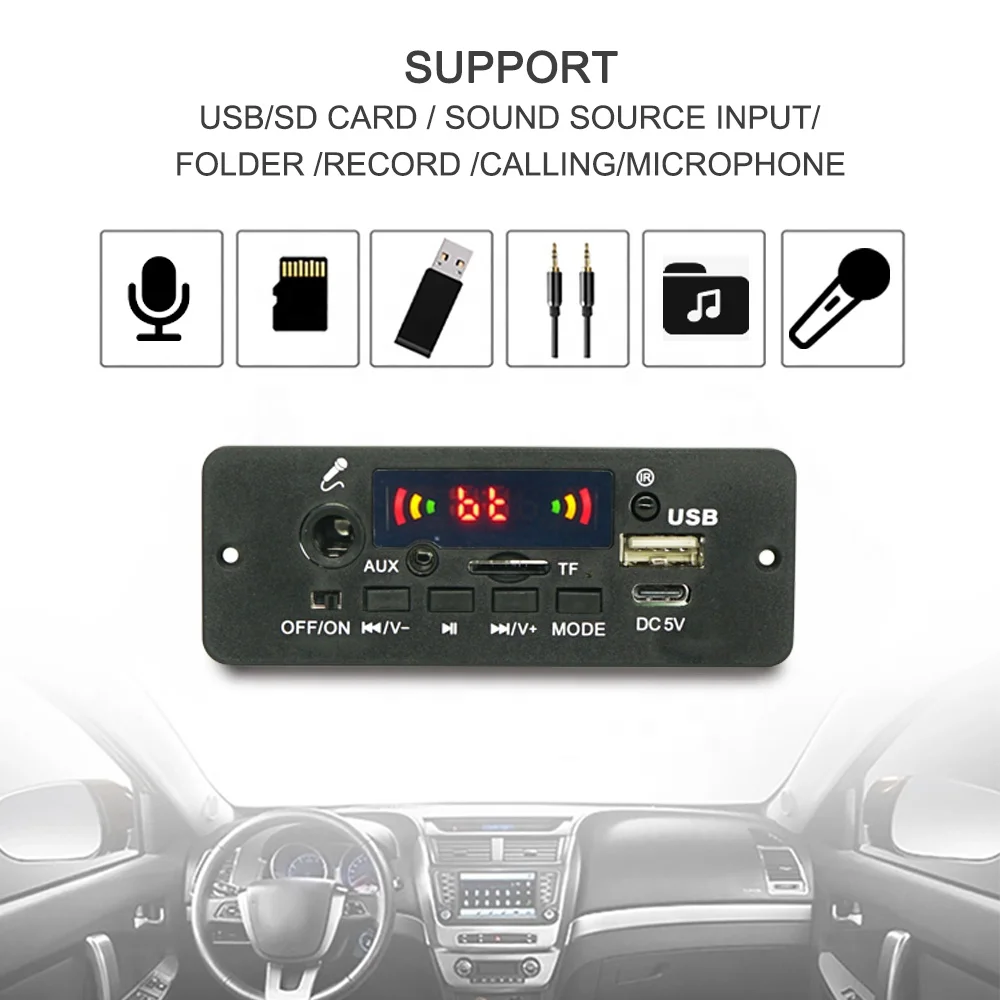

Support Functions | Bluetooth Wireless BT/fm radio/TF Card/USB/AUX/Remote/record/folders/microphone |

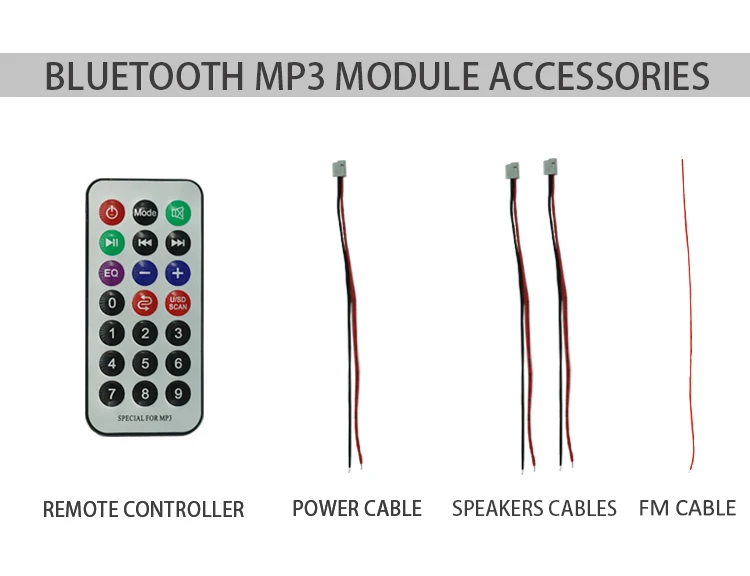

Accessories | Cables and remote controller |
Voltage input | DC 5V/Battery 3.7V |
Sevice | OEM/ODM |
