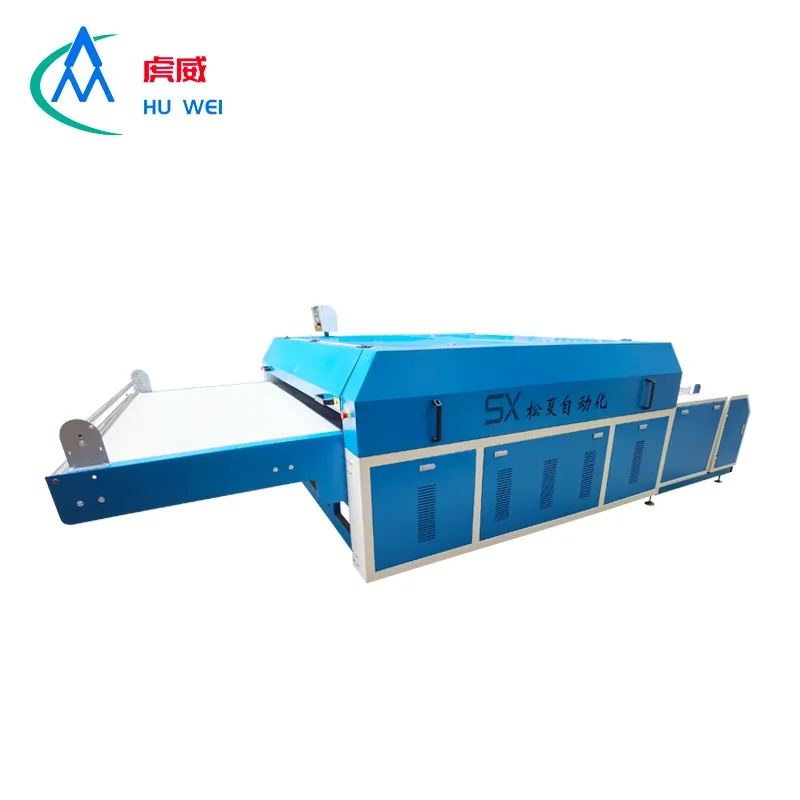

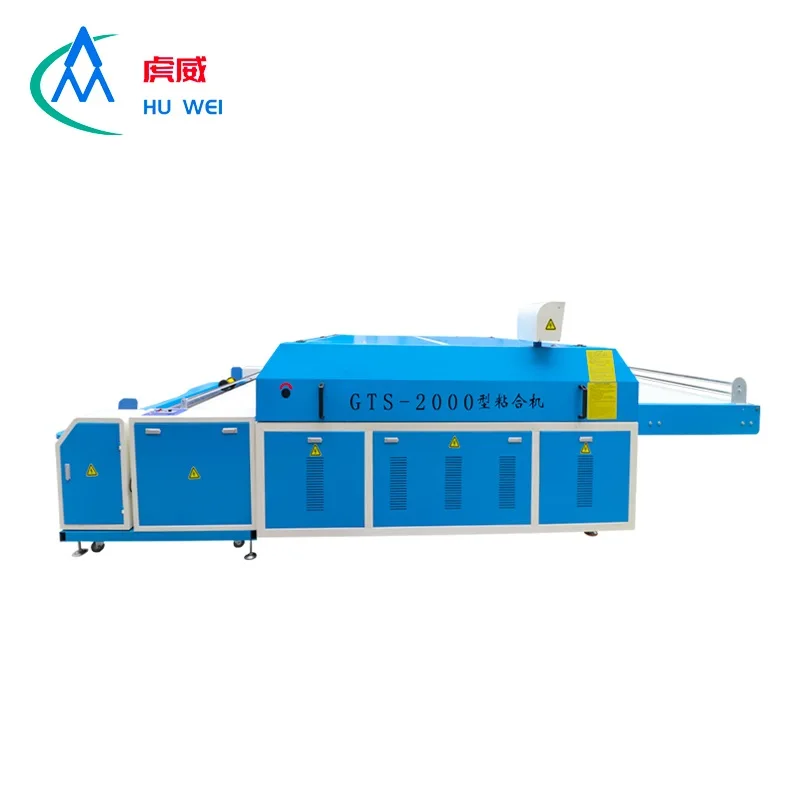

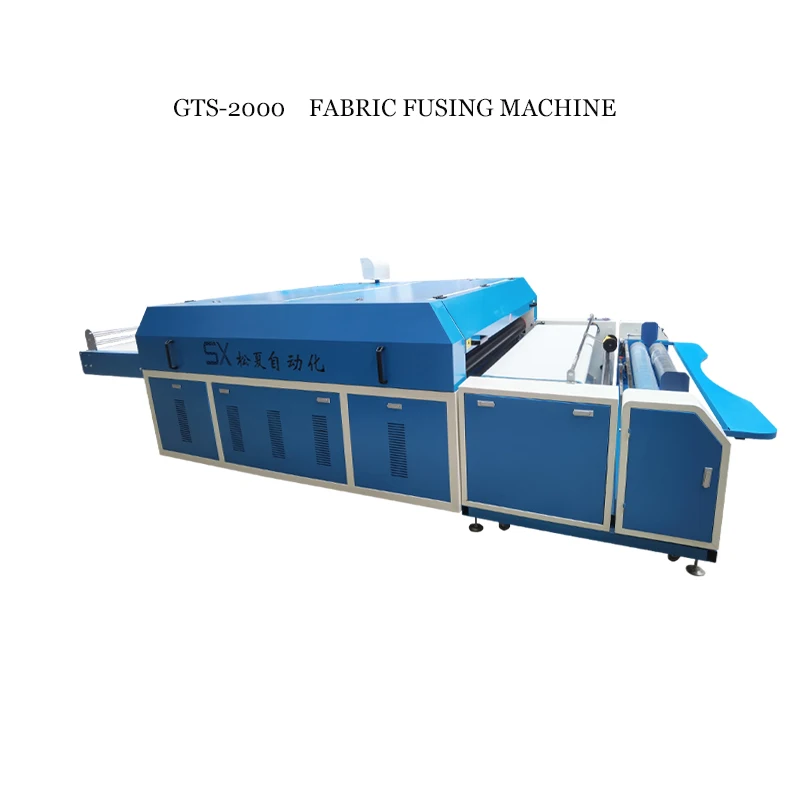

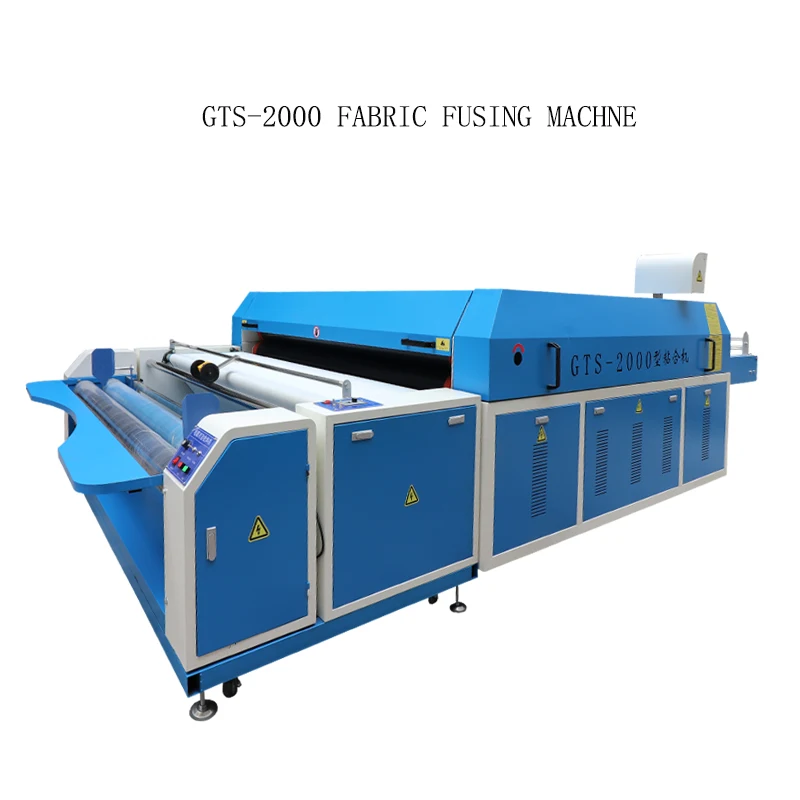

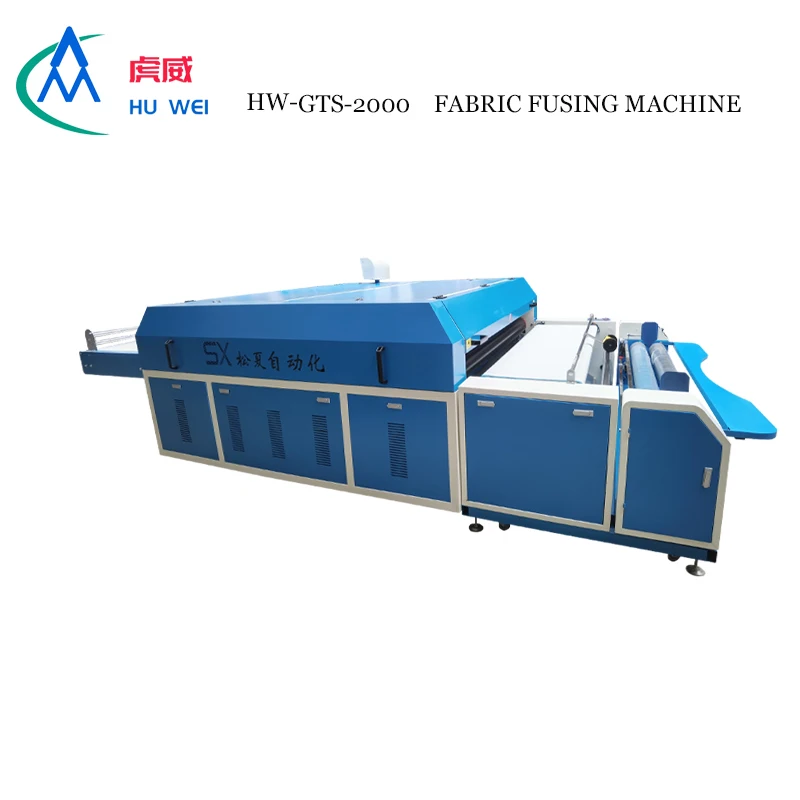

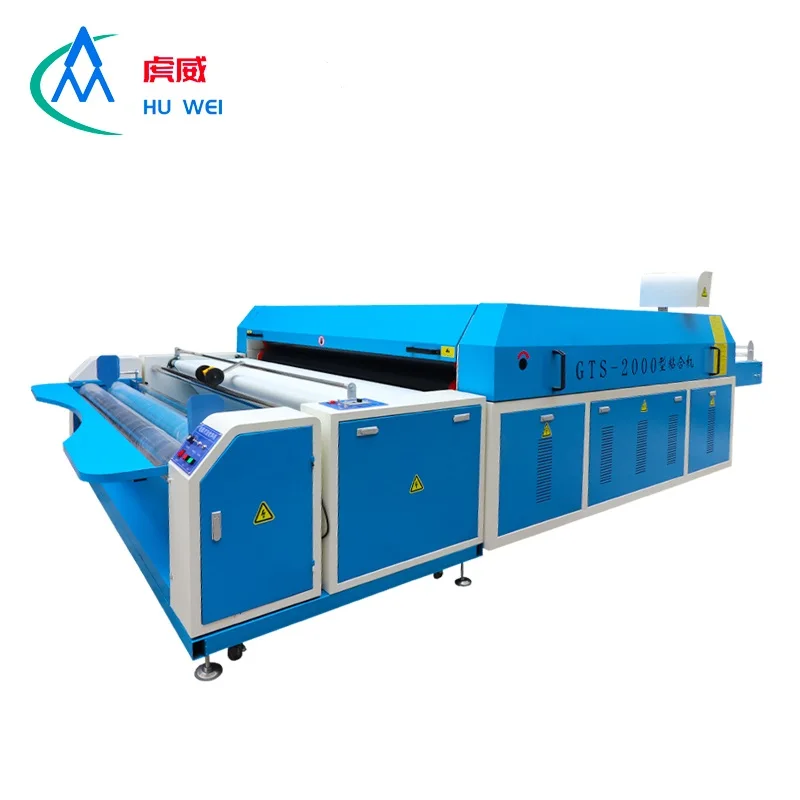

HW GTS 2000 Fusing Machine Top Quality Industrial Fusing Machine fabric fusing machine bonding fabric
- Category: Apparel Machinery >>>
- Supplier: Dongguan Huli Mechanical Equipment Co. Ltd.
Share on (1600519572313):
Product Overview
Description
Products Description
Application area:
It is suitable for bonding, For customers who need whole roll bonding, shrinkage setting, calendering, hot stamping and feeding.
Fabric Fusing machine Main feature：
1,Continuous fusing system increases the productivity.
2,Equipped with the wheels for convenient mobility.
3,PCB and micro switch control the upper and lower belts automatically and extends duration of the belt.
4,Pressure rollers are made by silicone,which ensure the power of pressure giving is stable and equal.
5,Electronic temperature constant temperature control system, temperature accurately.
6,There are 9 heaters to distribute the heat evenly and can be used to all fabrics.
7,Equip with stronger vacuum system for cooling which can let the fabric in shape immediately.
8,Equipped with automatic cooling timing shutdown system.
9,Pneumatic double roller pressing,the pressure of which can be adjusted separately.
10,Special-designed clean rod to clean the belt completely,and it is easy for replacement once the rod gets dirty.
11,With frequency conversion mechanic to control speed, running smoothly and more energy saving.
12,Optional:Basket of cloth/Automatic feeding machine;Winding machine/Infrared edge cloth rolling machine.
2,Equipped with the wheels for convenient mobility.
3,PCB and micro switch control the upper and lower belts automatically and extends duration of the belt.
4,Pressure rollers are made by silicone,which ensure the power of pressure giving is stable and equal.
5,Electronic temperature constant temperature control system, temperature accurately.
6,There are 9 heaters to distribute the heat evenly and can be used to all fabrics.
7,Equip with stronger vacuum system for cooling which can let the fabric in shape immediately.
8,Equipped with automatic cooling timing shutdown system.
9,Pneumatic double roller pressing,the pressure of which can be adjusted separately.
10,Special-designed clean rod to clean the belt completely,and it is easy for replacement once the rod gets dirty.
11,With frequency conversion mechanic to control speed, running smoothly and more energy saving.
12,Optional:Basket of cloth/Automatic feeding machine;Winding machine/Infrared edge cloth rolling machine.
Fabric Fusing machine of specification | ||||||||
Model | HW-GTS2000 | |||||||
Max Pressure | 6 kg/ cm2 | |||||||
Power Supply | 60 kw | |||||||
Voltage/Frequency | 380 V/50-60 HZ | |||||||
Fusing Width | 2000 mm | |||||||
Fusing Time | 10-30 sec | |||||||
Weight | 1000 KG | |||||||
Dimensions(L×W×H) | 4800*2700*1600 mm | |||||||
*Machine model, technical parameters | ||||||||||
Model | HW-600 | HW-900 | HW-1200 | HW-1600 | HW-1800 | |||||
Voltage | 380V/50HZ | |||||||||
Power | 9KW | 12KW | 14KW | 19KW | 22KW | |||||
Pressure Mold | Air Pressure Roller | |||||||||
Rubber Shaft Diameter | 100mm*2 | |||||||||
Temperature | 0-230(ASR+SSR) | |||||||||
Heater material | Elertric heat pipe And Aluminum alloy radiator | |||||||||
Hot Area Diameter | 600*1200 | 900*1200 | 1200*1200 | 1600*1200 | 1800*1200 | |||||
Max Fusing Width | 0-600 | 0-800 | 0-1200 | 0-1600 | 0-1800 | |||||
Dimension（m） | 2.62*1.18*1.28 | 2.62*1.48*1.28 | 2.62*1.78*1.28 | 2.62*2.18*1.28 | 2.62*2.38*1.28 | |||||
Wooden Box Size | 1.81*1.35*1.5 | 1.81*1.81*1.5 | 1.95*1.81*1.5 | 2.35*1.81*1.5 | 2.55*1.81*1.5 | |||||
Belt Automatic Adjustment | Automatic | |||||||||
Speed Range | 2-15m/min | |||||||||
Belt | Seamless belt | |||||||||
Speed Control System | Conversionand Gear motor | |||||||||
Internal Structure | Linear Structure,Clear and Sample | |||||||||
About safety | Full Range Use Scram Button | |||||||||
Company Profile
FAQ
Q1 :Our workers can't operate the machine, how to train the staff?
A1: We will send you the teaching video of the machine and 24-hour online service,we also support free training service, engineers can train your workers for free in our factory for 1-3 days.
Q2 : I don’t know which one is suitable for me ?
A2: Please tell me your
1) Your materials
2) Max size of your material
3) Max cut thickness
4) Popular cut thickness
Q3 :It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do?
A3: We support the production visualization service. The sales department who responds to your inquiry for the first time will be responsible for your follow-up work. You can contact him /her to go to the factory to check the production progress of the machine, or send you the sample pictures and videos you want. We support free sample service.
A1: We will send you the teaching video of the machine and 24-hour online service,we also support free training service, engineers can train your workers for free in our factory for 1-3 days.
Q2 : I don’t know which one is suitable for me ?
A2: Please tell me your
1) Your materials
2) Max size of your material
3) Max cut thickness
4) Popular cut thickness
Q3 :It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do?
A3: We support the production visualization service. The sales department who responds to your inquiry for the first time will be responsible for your follow-up work. You can contact him /her to go to the factory to check the production progress of the machine, or send you the sample pictures and videos you want. We support free sample service.
