CE certificate diameter 16 50mm UPVC PVC conduit and water convey Pipe Extrusion Line
- Category: Plastic Extruders >>>
- Supplier: Zhangjiagang Huade Machinery Technology Co. Ltd.
Share on (1600520060817):
Product Overview
Description
Title
PVC electric conduit pipe making machine
High Quality PVC Two Strands Pipe Extrusion Line
Product Description
High Quality PVC Conduit and Water Convey Pipe Extrusion Line

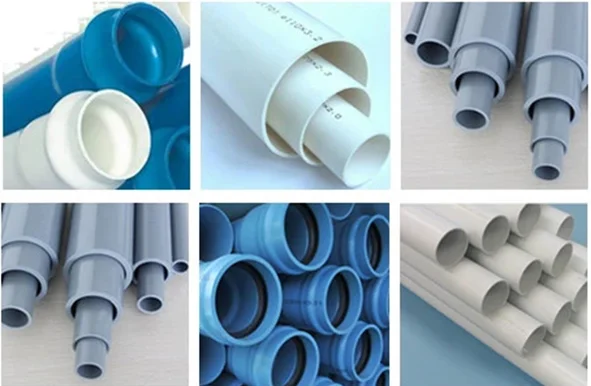

PVC pipe extrusion line is mainly used in the production of pressure water pipes, agriculture irrigation, building or city drainage and Sewage and constructional plumbing cable laying etc.
The unit consists of Conical twin screw extruder, PVC pipe mould-Vacuum calibration tank-Haul-off machine-Planetary Saw Cutting machine-Tripping table/Belling machine.
This model SJSZ65 extruder can manufacture pipe diameter range: Φ20mm-Φ110mm.
Diameter: | 16 20 25 32 40 50 63 75 90 110mm |
Material | PVC Powder+CaCo3+additive |
Color | Customised |
Capacity | 200-250kg/h |
Brand Name | HUADE |
Price | Reasonable and competitive |
Quality | High and Professional quality |
Inverter | ABB |
Detailed Image

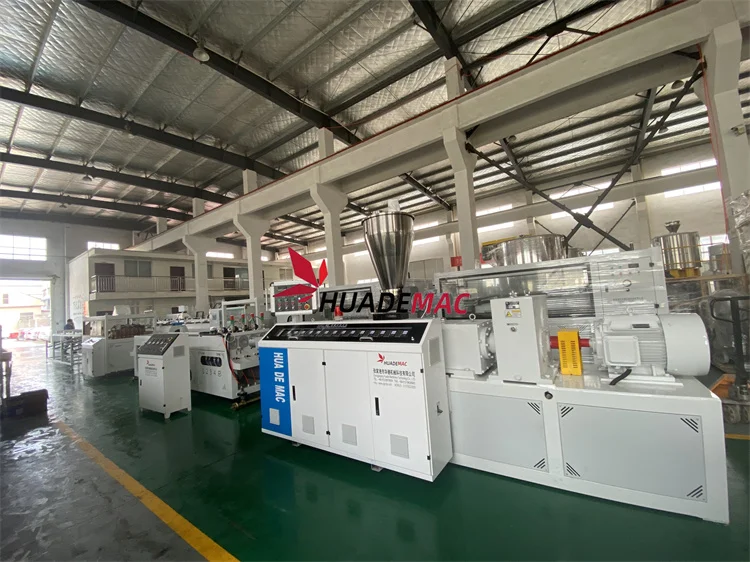

Twin screw extruder
Motor power: 37KW
World famous brand electrical component such as Siemens, Schneider, ABB etc;
High torque gearbox with adopts NSK/SKF bearing;
Siemens original motor achieved global after service;
Bimetallic screw and barrel
PLC intelligent control system
World famous brand electrical component such as Siemens, Schneider, ABB etc;
High torque gearbox with adopts NSK/SKF bearing;
Siemens original motor achieved global after service;
Bimetallic screw and barrel
PLC intelligent control system

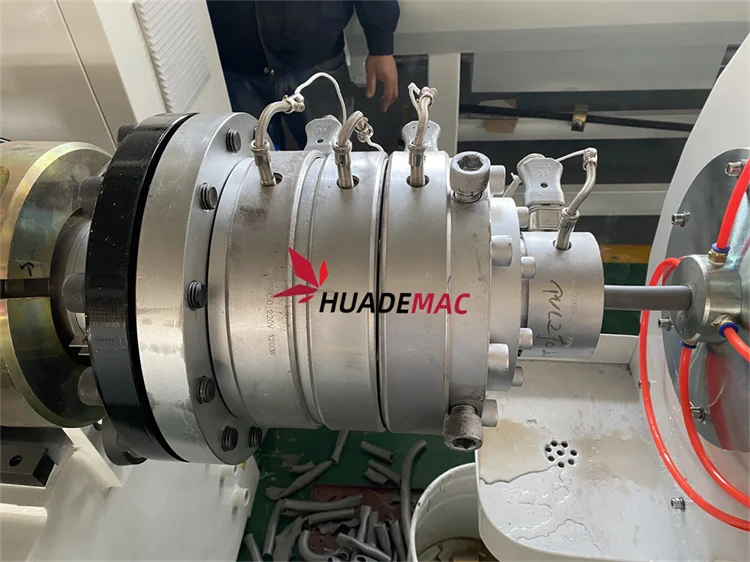

Doube strand extrusion die head
Each channel after heat treatment, mirror polishing and chroming to ensure material flow smoothly.
Die head is modular design,easy for changing pipe sizes, assembling, dismantle and maintenance.
Body made of 40Cr with inner surface Chrome plating
Pin and bush made of 40Cr with polished and Chrome plating
Calibration sleeves: stainless steel or cooper
Heating body: aluminum
Die head is modular design,easy for changing pipe sizes, assembling, dismantle and maintenance.
Body made of 40Cr with inner surface Chrome plating
Pin and bush made of 40Cr with polished and Chrome plating
Calibration sleeves: stainless steel or cooper
Heating body: aluminum

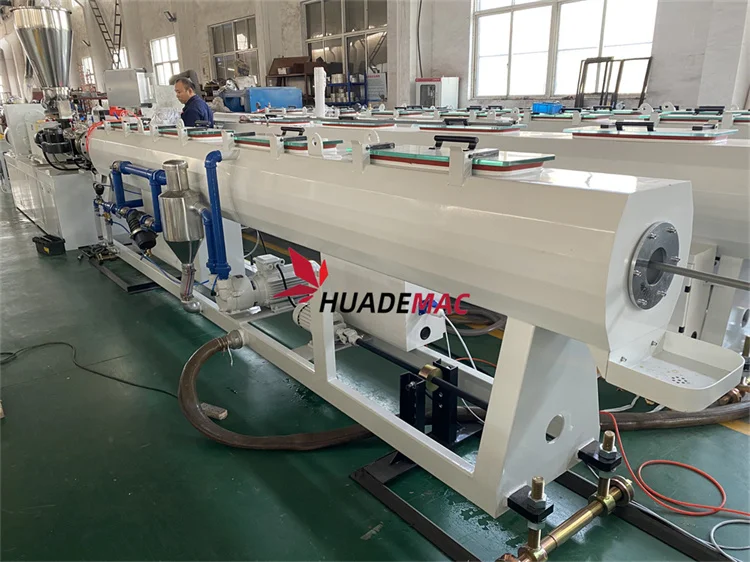

Vacuum calibration tank
Material: stainless steel SUS304
Vacuum pump 1X3kw
Vacuum pump 1X3kw
Water pump:1X3Kw
Vacuum pump connect type: piping coupling
Vacuum pump connect type: piping coupling
Traction Machine
Useful Haul-off length:1200mm
Haul-off motor power: 0.75wX2pcs motor
Haul-off speed:0.5-10m/min
Haul-off motor power: 0.75wX2pcs motor
Haul-off speed:0.5-10m/min

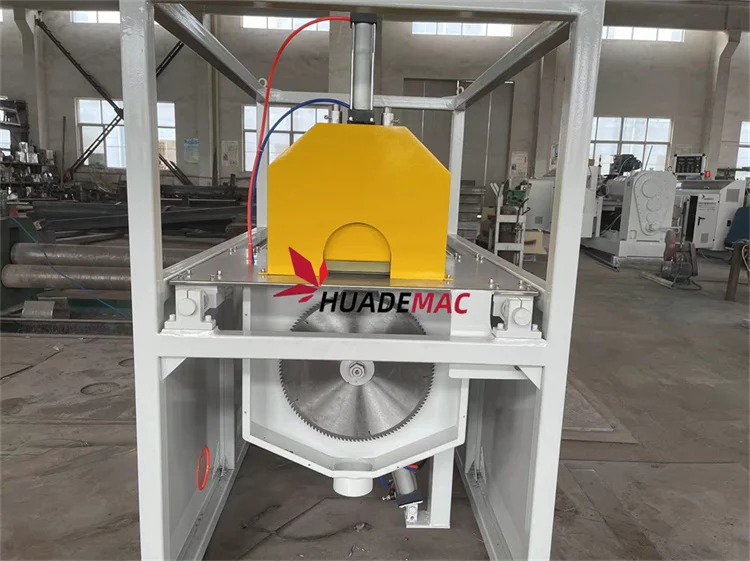

Cut Machine
Material of cutting blade: alloy steel
Cutting Motor power: 1.5KW
Electrical parts: Delixi or Schneider
Cutting Motor power: 1.5KW
Electrical parts: Delixi or Schneider
Features of the complete extrusion line
* Compact design takes up less room and enables a flexible layout of the assembly line.
* State-of-the art design gives the machines exclusive advantages of high productivity and superb cost efficiency.
* Customer-oriented design can meet specific requirement of different customers.
* All-around technical and comprehensive supports before and after sale services ensure a smooth and care-free operation of this line.
* A number of adoptions of automation can precisely control the process thus resulting in a solid quality of final product.
* Compact design takes up less room and enables a flexible layout of the assembly line.
* State-of-the art design gives the machines exclusive advantages of high productivity and superb cost efficiency.
* Customer-oriented design can meet specific requirement of different customers.
* All-around technical and comprehensive supports before and after sale services ensure a smooth and care-free operation of this line.
* A number of adoptions of automation can precisely control the process thus resulting in a solid quality of final product.
