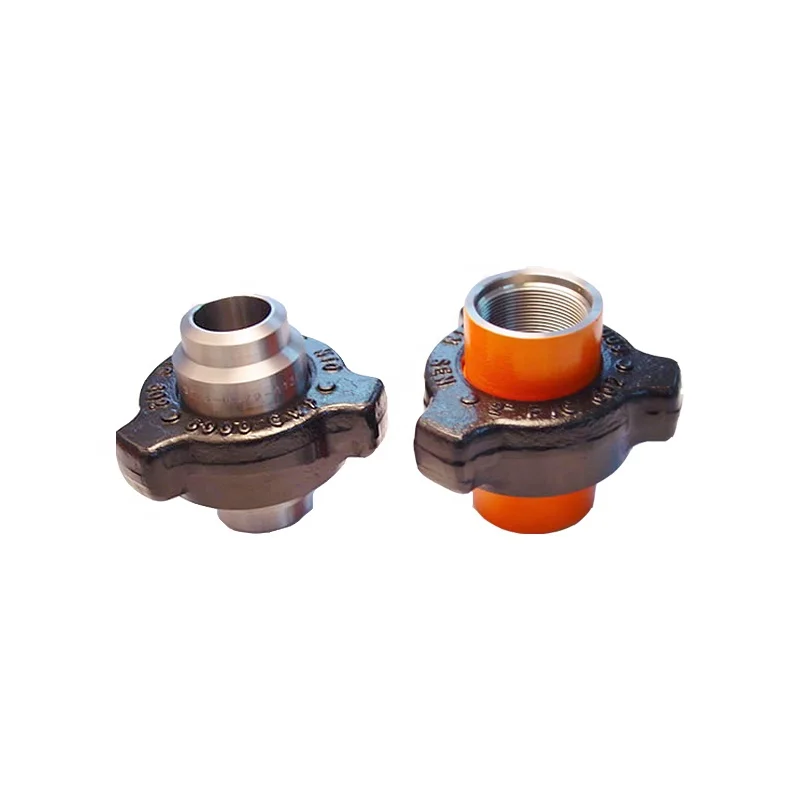

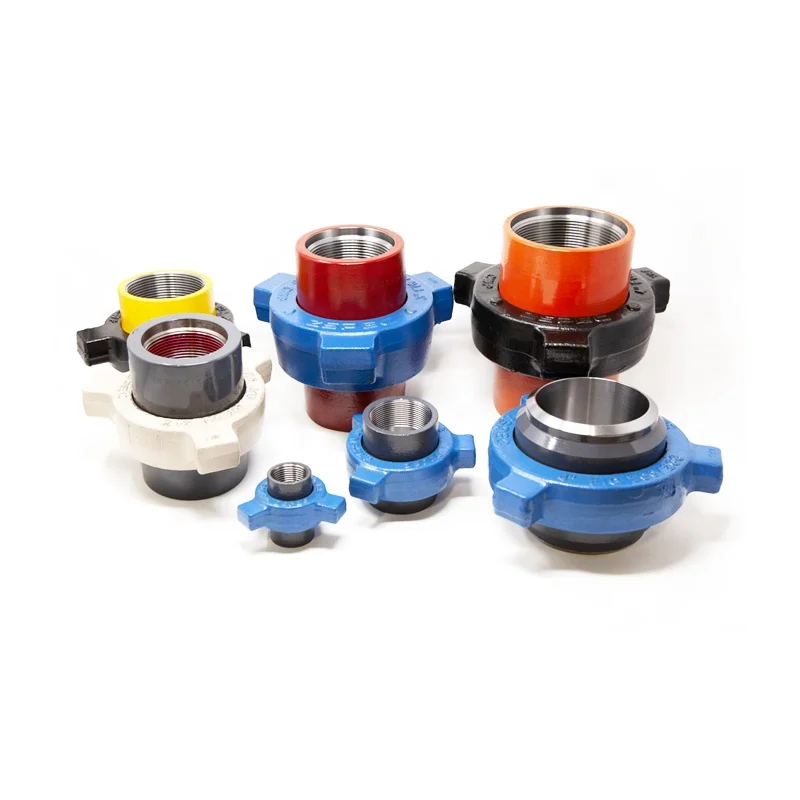

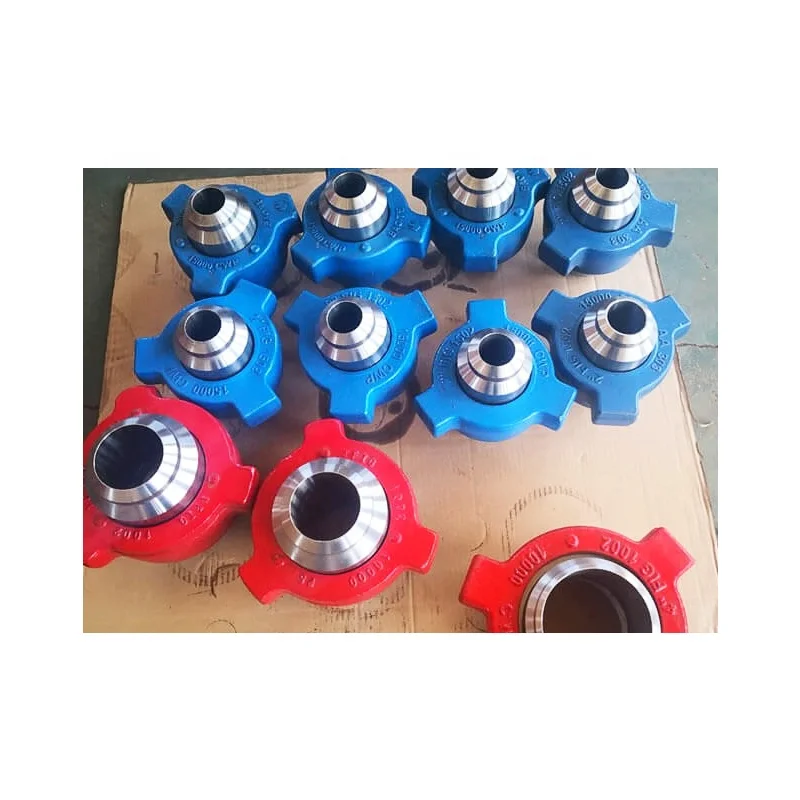

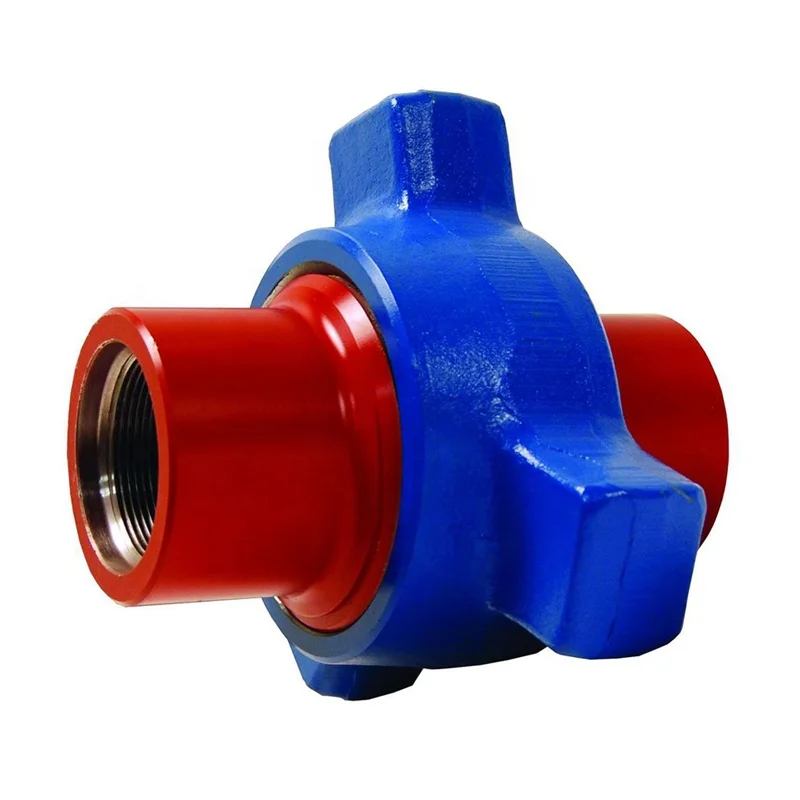

API Hammer Union FIG1502, 602, 100, 2002, etc. Pipe Fitting Connections Butt Welded and Threaded for connecting

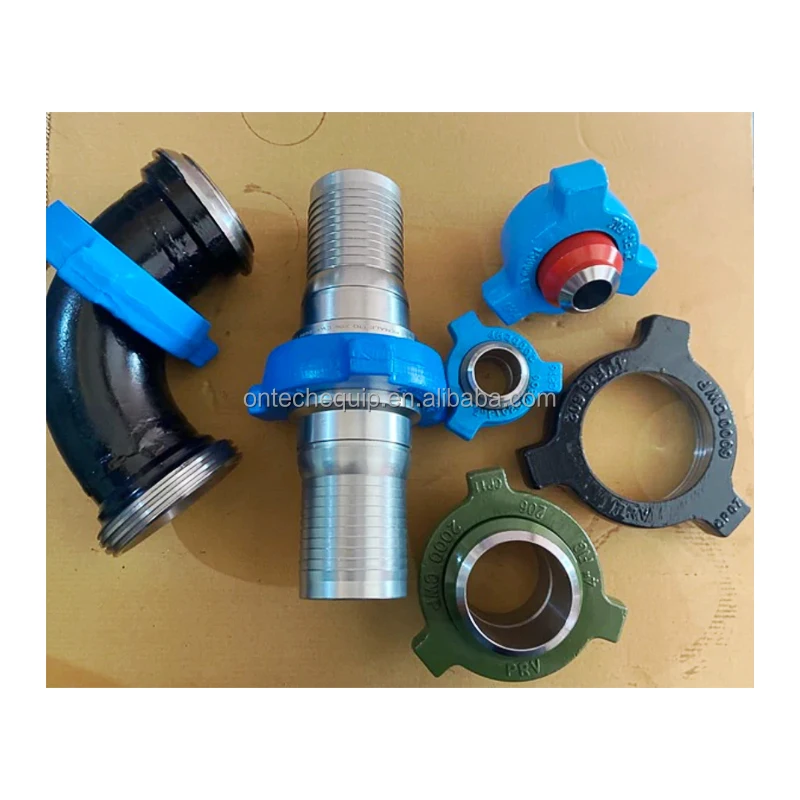

Product Description
High pressure union is forged and made of high strength alloy steel with imported world-class technology.

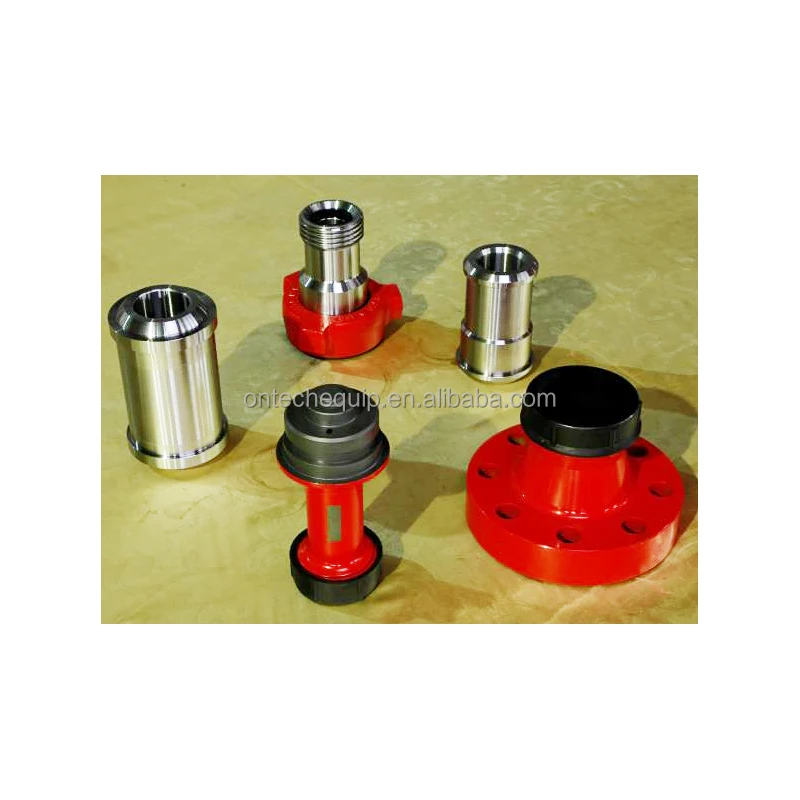

Strict heat treatment ensures uniform metallographic structure and bearing capacity in the connector. The materials used fully comply with ASTM and AISI of USA, and the technical indicates of the product with API Spec 16C standard. The product is tight and reliable, and provides easy mounting and dismantling and good exchangeability. The connector of the product allows connection for pipeline thread, oil tube thread and butt weld or pressureless seal end.
Hammer Union is mainly used in oil industry in high-pressure pipeline connection. Size 1”~5”, work the pressure 7mpa to 140mpa (1000psi - 20000psi), the API 6a and 16c certification, prevent H2S union according to the NACE standard MR0175.
- With self-locking type ACME threads design;
- Rapid tightening and remove;
- Made by international standard, and can be interchangeable with imported parts;
- Seal with high pressure resistance;
- Using cnc machine tool processing seiko degree is high;
- Type, specification identifies marks on the wing nut.

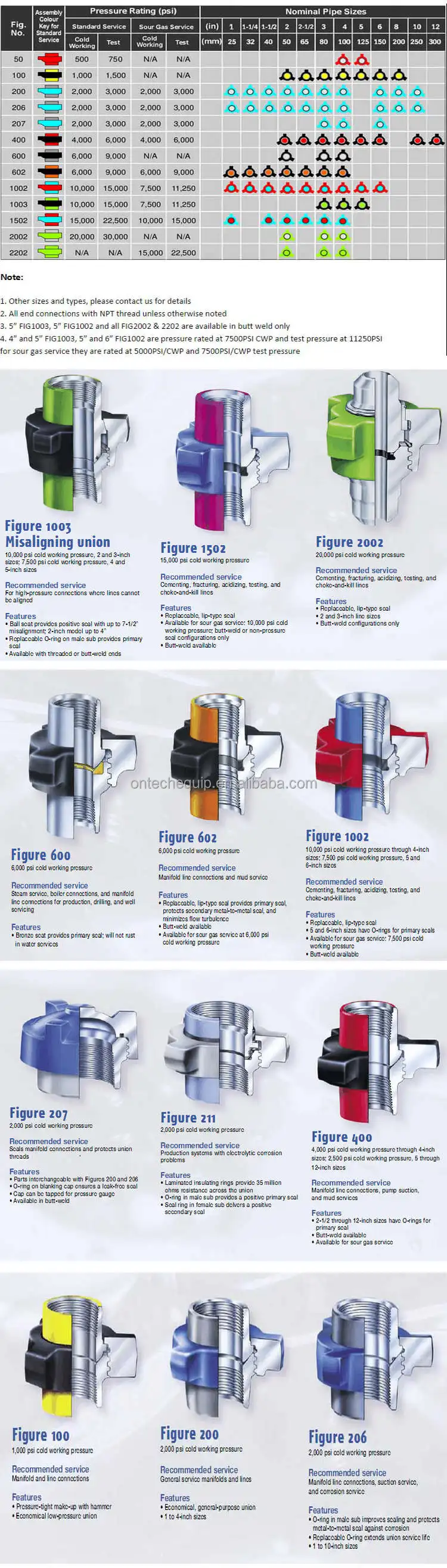

Technical Descript

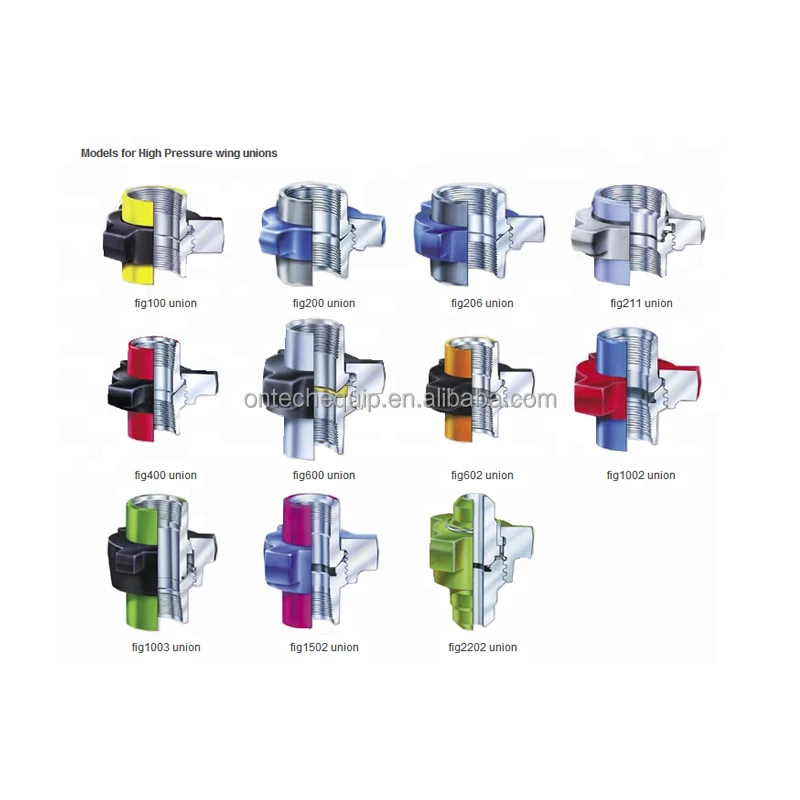

FIGURE 100
|  |
| Size (in.) | Length (in.) | Nut Radius (in.) | Weight (Kg.) |
| 2" | 35/8" | 229/32" | 2.6 |
| 2-1/2" | 49/32" | 35/8" | 5.2 |
| 3" | 51/8" | 4" | 6.2 |
| 4" | 53/4" | 411/16" | 10.2 |
| 5" | 633/64" | 59/16" | 13.8 |
| 6" | 67/8" | 67/8" | 23.2 |
| 8" | 75/16" | 713/16" | 32.2 |

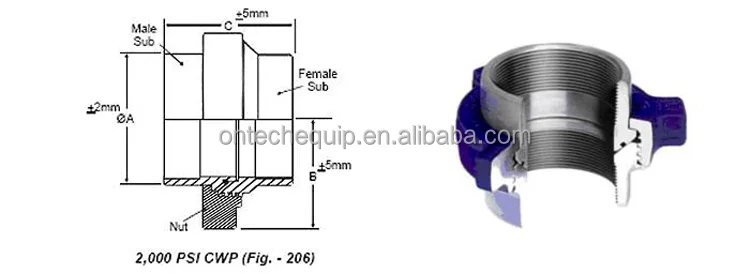

FIG206
|  |
| Size (in.) | Length (in.) | Nut Radius (in.) | Weight (Kg.) |
| 1" | 219/32" | 2" | 1 |
| 11/4" | 225/32" | 25/32" | 1.07 |
| 11/2" | 229/32" | 213/32" | 1.07 |
| 2" | 31/4" | 229/32" | 2.4 |
| 21/2" | 41/4" | 35/8" | 5.02 |
| 3" | 417/32" | 41/4" | 6.6 |
| 4" | 415/16" | 5" | 9.1 |
| 6" | 625/32" | 61/2" | 19.3 |
| 8" | 75/16" | 713/16" | 29.1 |
| 10" | 93/32" | 91/16" | 41.36 |

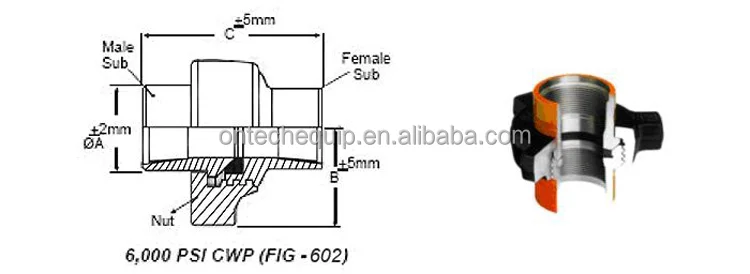

FIG602
|  |
| Size (in.) | Length (in.) | Nut Radius (in.) | Weight (Kg.) | Length | |
| Butt. Weld | |||||
| Total | CTR. BR. | Sch. 80 | |||
| 1" | 317/32" | 1/4" | 25/32" | 1.59 | 317/32" |
| 11/4" | 429/32" | 1/4" | 37/32" | 4.54 | 411/16" |
| 11/2" | 429/32" | 1/4" | 37/32" | 4.1 | 411/16" |
| 2" | 51/4" | 1/4" | 33/4" | 5.9 | 51/32" |
| 3" | 61/4" | 3/8" | 41/2" | 10.45 | 57/16" |
| 4" | 81/4" | 3/8" | 57/32" | 15 | 61/16" |

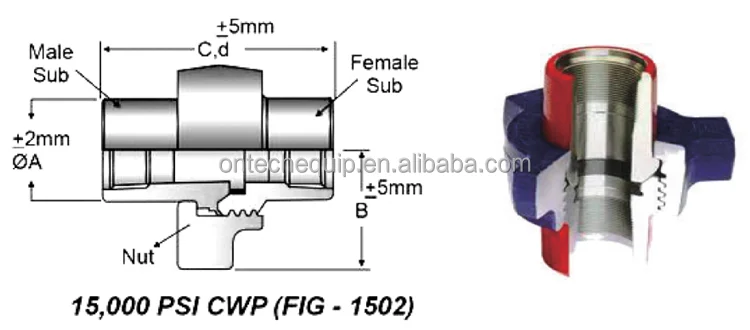

| FIG1502 Recommended for air, water, oil, gas and mud service to 15,000 PSI NSCWP. This unions has a replaceable lip-type seal ring of Buna-N specifically designed to minimize fluid flow turbulence. The lip-type ring also provides a pressure seal and protection for metal to metal seating surface and are recommended for manifold and truck mounting or other installations where high pressure is encountered. |  |
| Size (in.) | Length (in.) | Nut Radius (in.) | Weight (Kg.) | Length | |
| Butt. Weld | |||||
| Total | CTR. BR. | XX HVY | |||
| 1" | 43/8" | 1/4" | 23/4" | 3.82 | - |
| 2" | 7" | 1/4" | 4" | 9.54 | 61/4" |
| 3" | 75/8" | 3/8" | 413/16" | 14.1 | 51/4" |
| 4" | 81/2" | 1/2" | 61/16" | 34 | - |
| 5" | 97/64" | - | 645/64" | 44.4 | - |
