TUPO 9 S WALL RENDERING MACHINE FOR WALL
- Category: Engineering & Construction Machinery >>>
- Supplier: Guangdong Tupo Robot Engineering Co. Ltd.
Share on (1600520179087):
Product Overview
Description
Product Overview

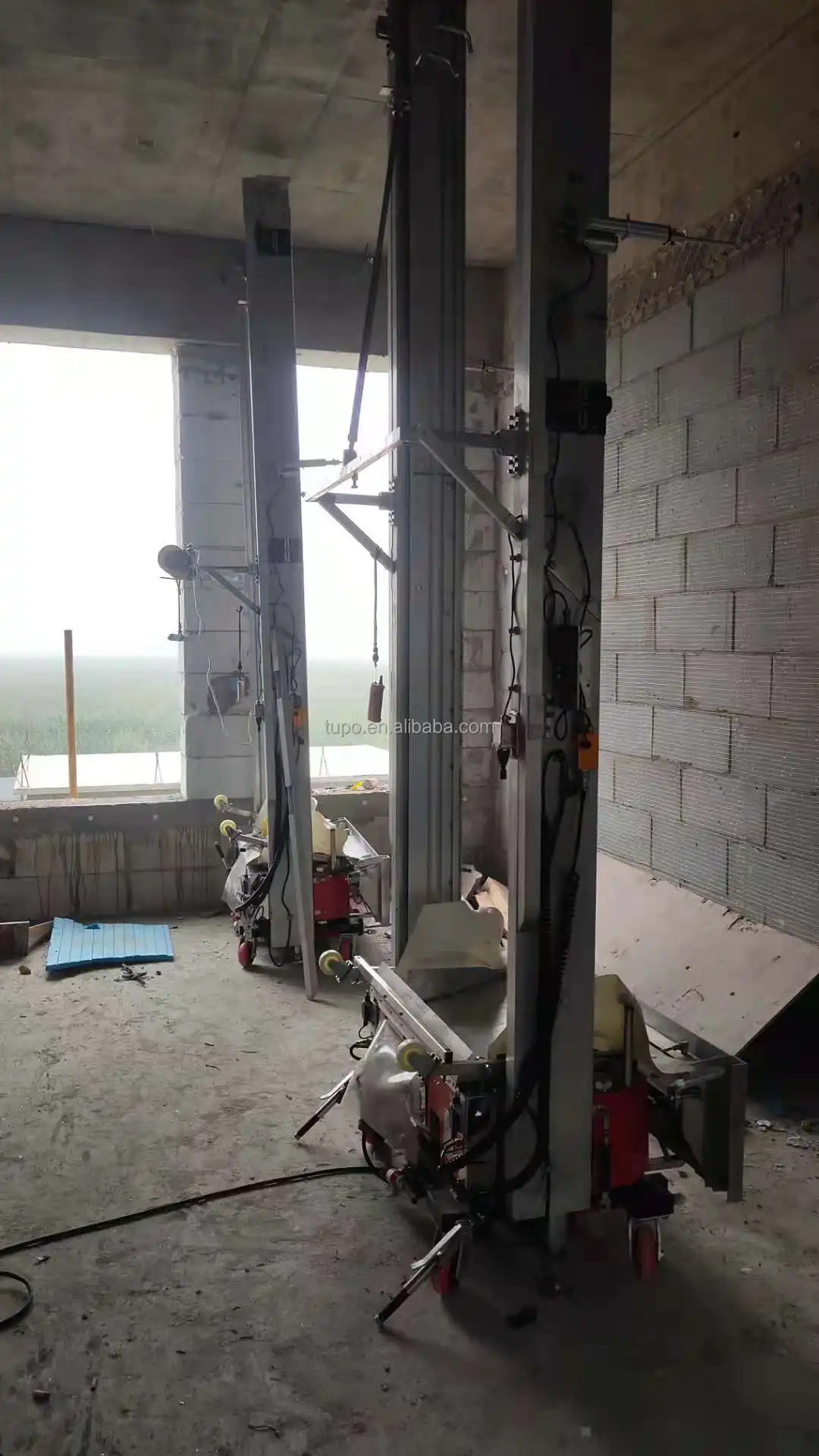

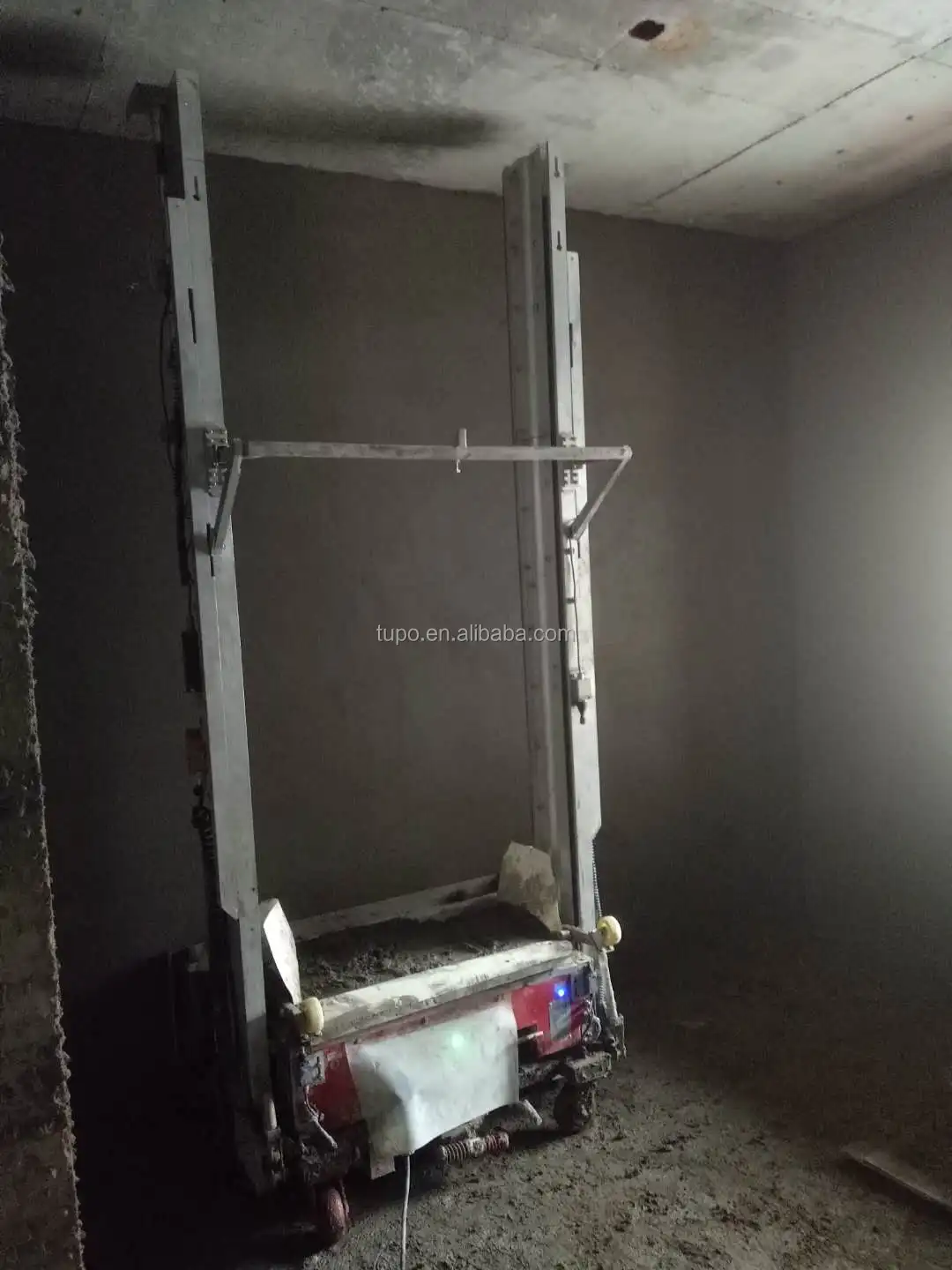

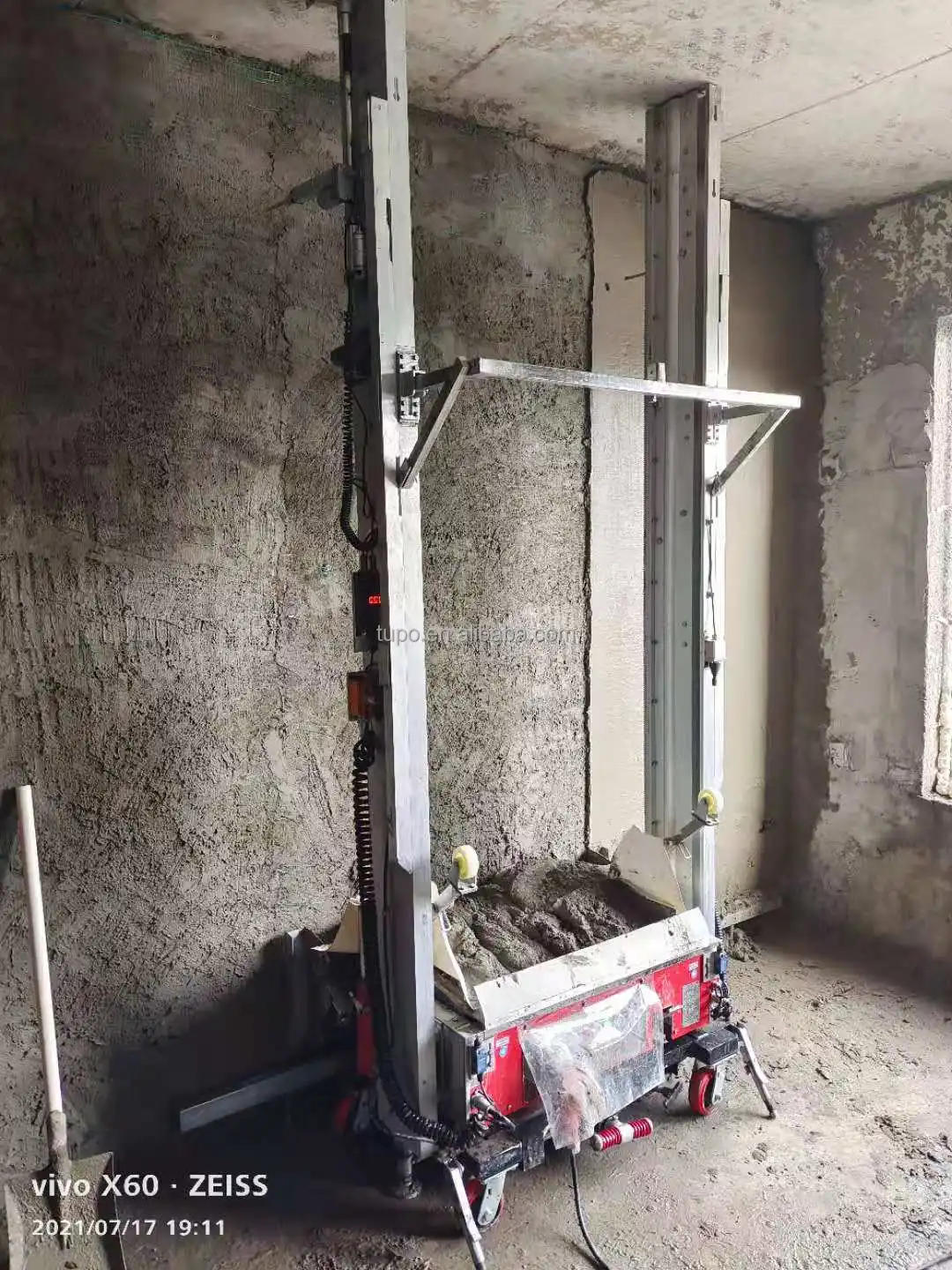

TUPO 9-S Auto wall rendering machine
Here let's see what the machine can help you to get:
1. The Productivity can reach 400-550 m2 per 8 hours (Depends on different structure of the building, this is real data from
our customer but not only by calculation.)
2. Plastering Thickness is from 5 mm to 30 mm. (Adjustable)
3. Plastering room height can be from 2.6 meter to 3.5meters. (Different models, the height is adjustable)
4. With the help of "Automatic positioning system", the machine can be aligned in 15 seconds.
5. Quality plastering.(flatness and verticality +/-1mm)
6. The machine is very easy to be moved even by only one worker, another worker to help loading the mortar.
7. Warranty: 2 Years warrantyof the main machine and life-long maintenance service.
8. Packing & Shipping: Reinforce wooden Carton, packing volume is 1.8CBM. Which port is the nearest from your address? We will
check ocean freight for you.
9. Delivery time: 7-10 working days
1. The Productivity can reach 400-550 m2 per 8 hours (Depends on different structure of the building, this is real data from
our customer but not only by calculation.)
2. Plastering Thickness is from 5 mm to 30 mm. (Adjustable)
3. Plastering room height can be from 2.6 meter to 3.5meters. (Different models, the height is adjustable)
4. With the help of "Automatic positioning system", the machine can be aligned in 15 seconds.
5. Quality plastering.(flatness and verticality +/-1mm)
6. The machine is very easy to be moved even by only one worker, another worker to help loading the mortar.
7. Warranty: 2 Years warrantyof the main machine and life-long maintenance service.
8. Packing & Shipping: Reinforce wooden Carton, packing volume is 1.8CBM. Which port is the nearest from your address? We will
check ocean freight for you.
9. Delivery time: 7-10 working days

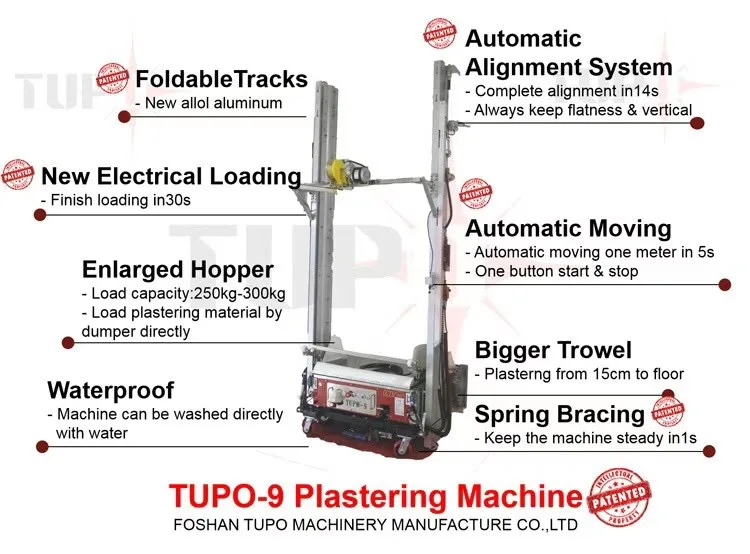

FEATURES AT A GLANCE
1. Plastering trowel height: 20cm, space leaving from gound is 28cm 2. With high precious positioning system 3. Specially for apartment & flat 4. Foldable standing racks to meet different plastering height 5.Rendering Thickness:5mm-30mm
6.Useful Rendering Width: 1100mm 7.Rendering Speed: 70-90sqm/hour 8.Dimension: 1200*550*650mm 9.Weight:150kg (main unit)
10.Electricity Phase: Three/Single Phase
11.Voltage: 380V/220V, 50/60Hz
12.Power: 1.5KW/2.6KW With AC servo motor PLC controlled
6.Useful Rendering Width: 1100mm 7.Rendering Speed: 70-90sqm/hour 8.Dimension: 1200*550*650mm 9.Weight:150kg (main unit)
10.Electricity Phase: Three/Single Phase
11.Voltage: 380V/220V, 50/60Hz
12.Power: 1.5KW/2.6KW With AC servo motor PLC controlled

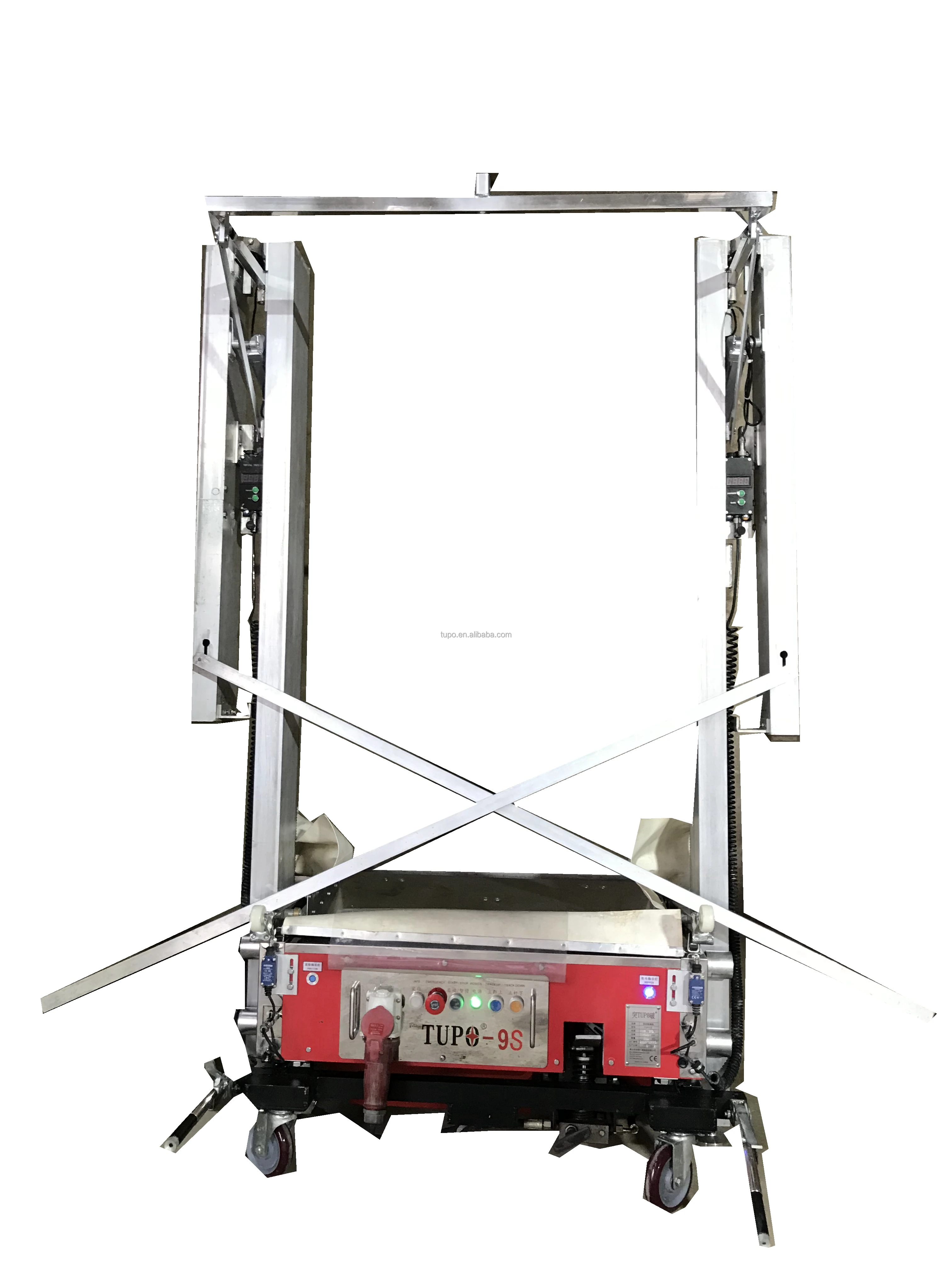

Front elevation

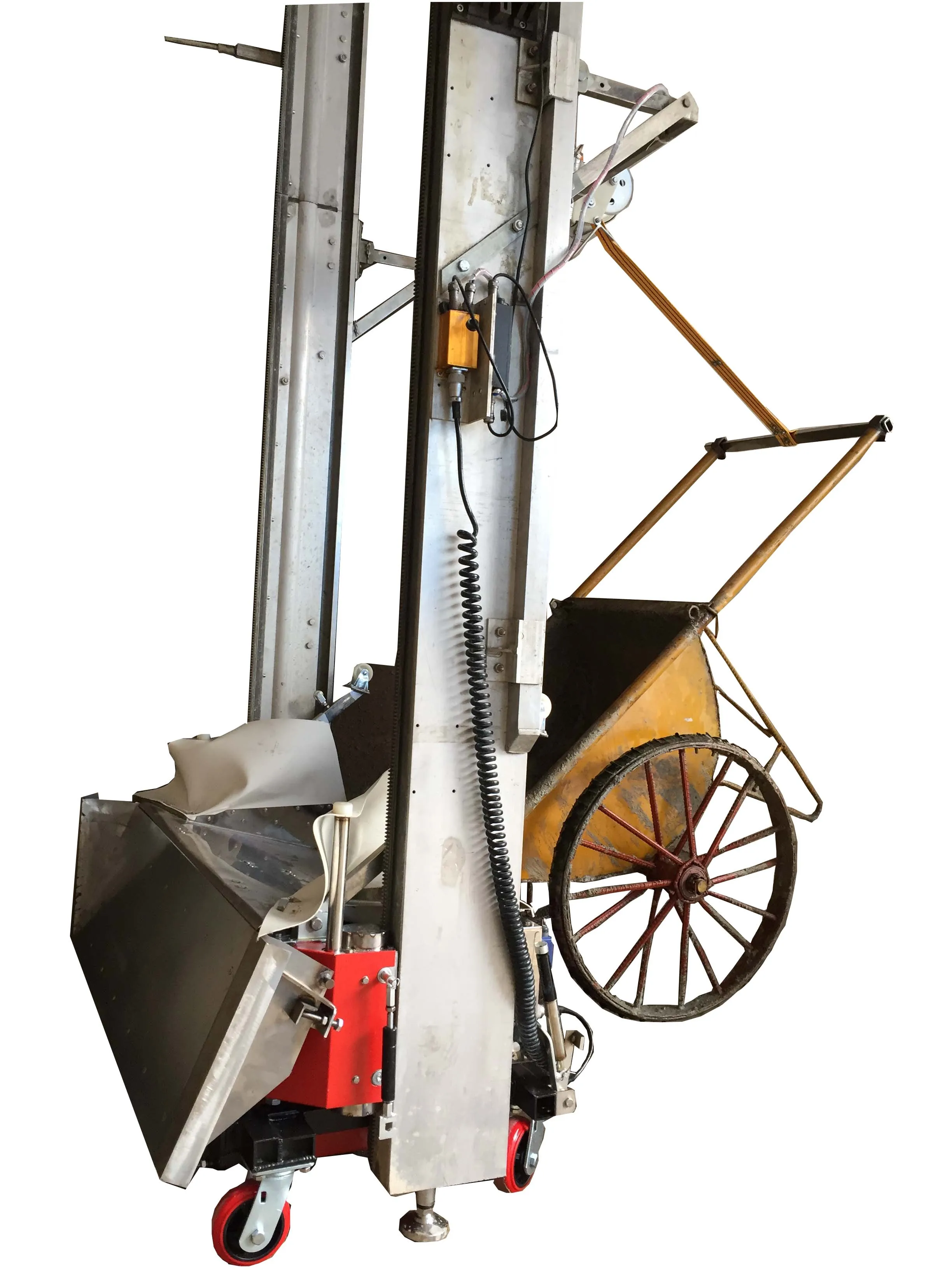

Right elevation

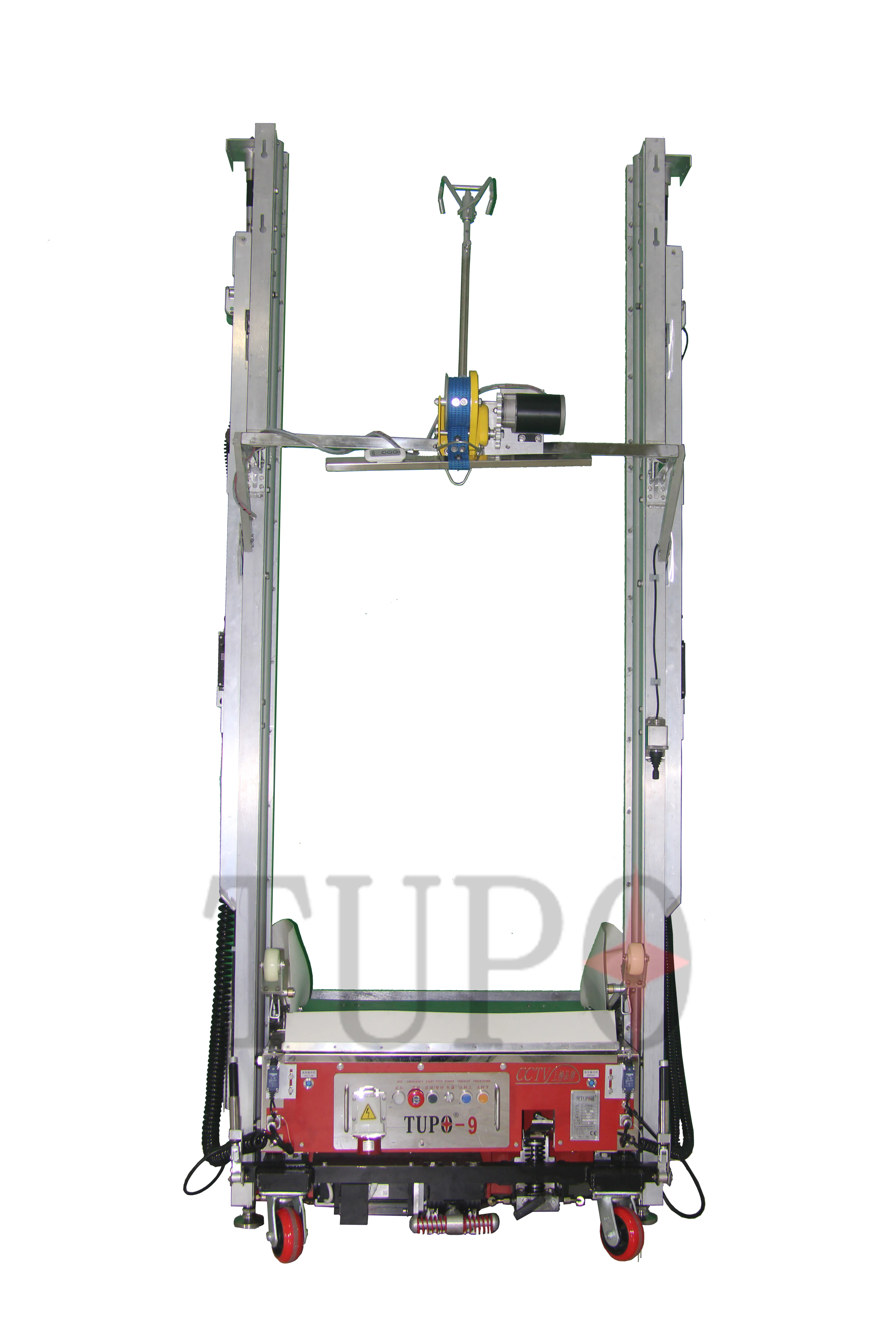

Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Power | 1.5KW/2.6KW | ||
2 | Hopper Load | 250KG-300KG | ||
3 | Operating weight | 140KG | ||
4 | Min. Plastering height | 2.6Meter | ||
5 | Max. Plastering height | 3.5Meter | ||
6 | Plastering speed | 70-90sqm/hour | ||
7 | Working plastering width | 1100mm | ||
8 | Plastering thickness | 5-30mm |

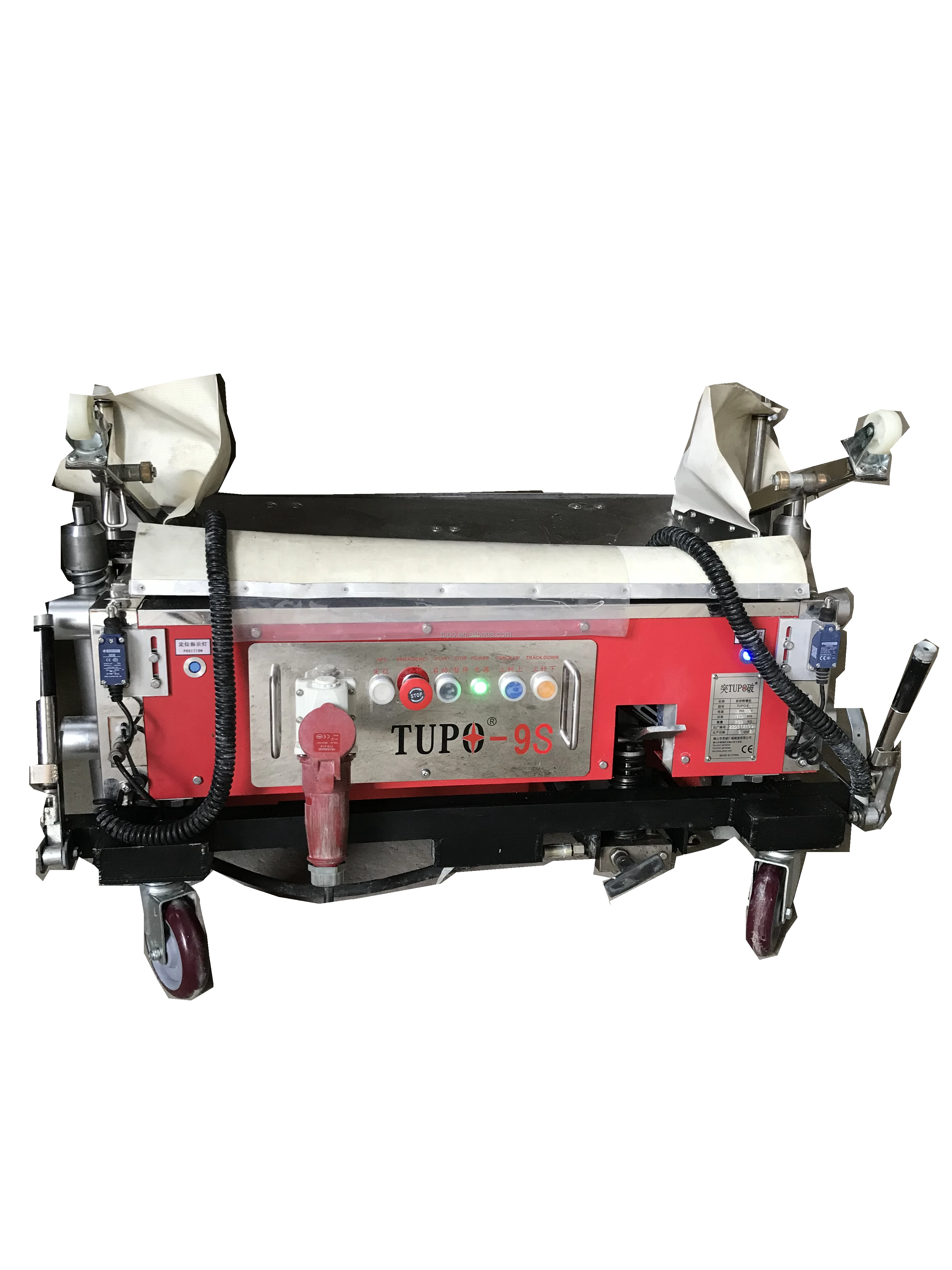

PRODUCT CONFIGURATION
Finland imported alignment system
High precious poistioning system
New Aluminum Magnesium Alloy Scraper
SALES AND SERVICE NETWORK

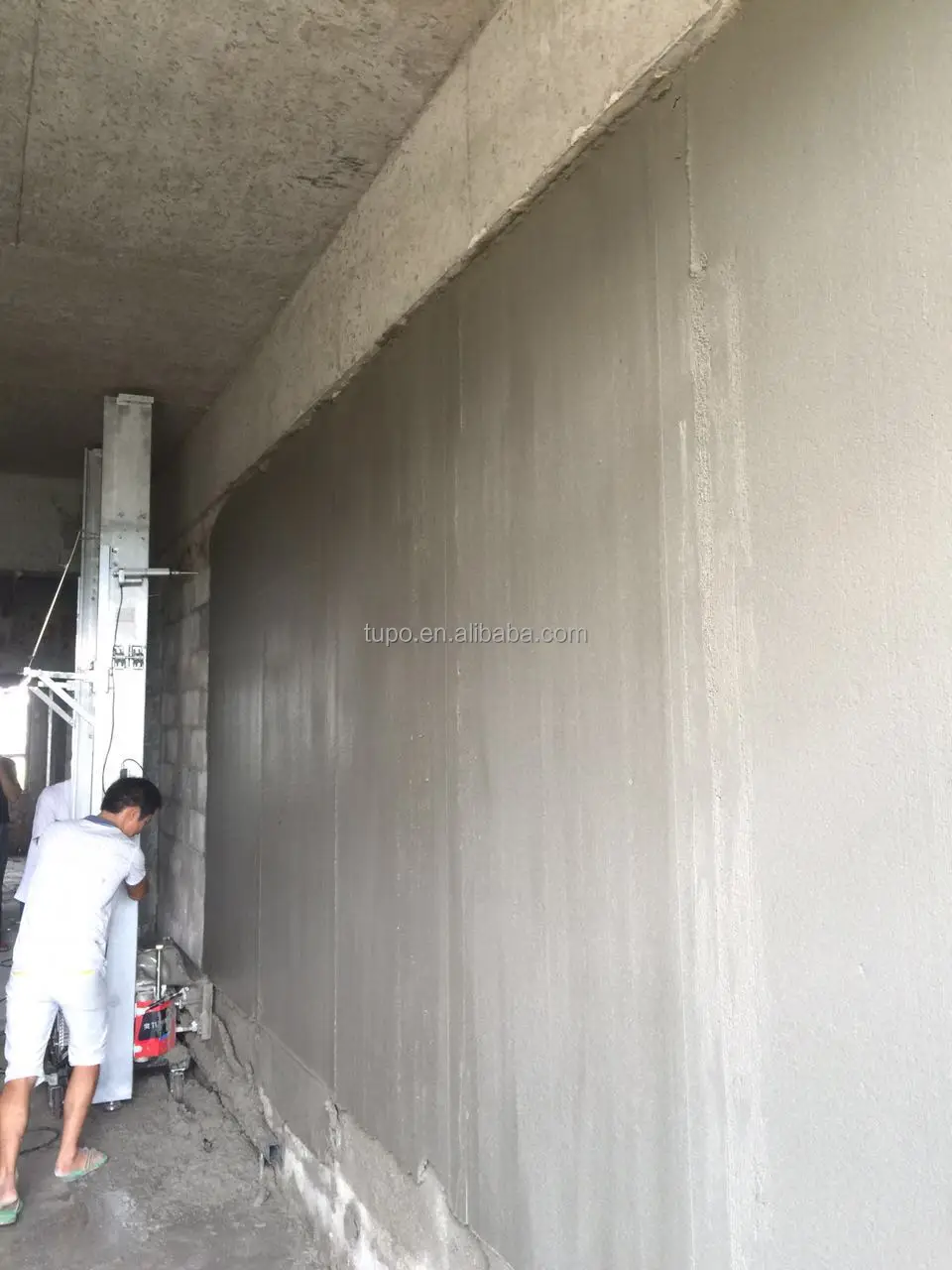

Successful Project
Project in Egypt
Project in UAE
Project in India
SIMILAR PRODUCTS
FAQ
Q1：How long is the production time of one machine?
A1：In 7 working days.

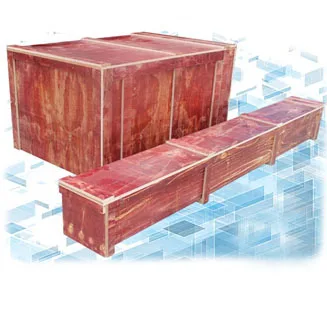

Sea shipment packing:
Reinforce wooden case, packing size:
1360*920*930mm
2890*520*440mm
Gross weight: 430KGS
