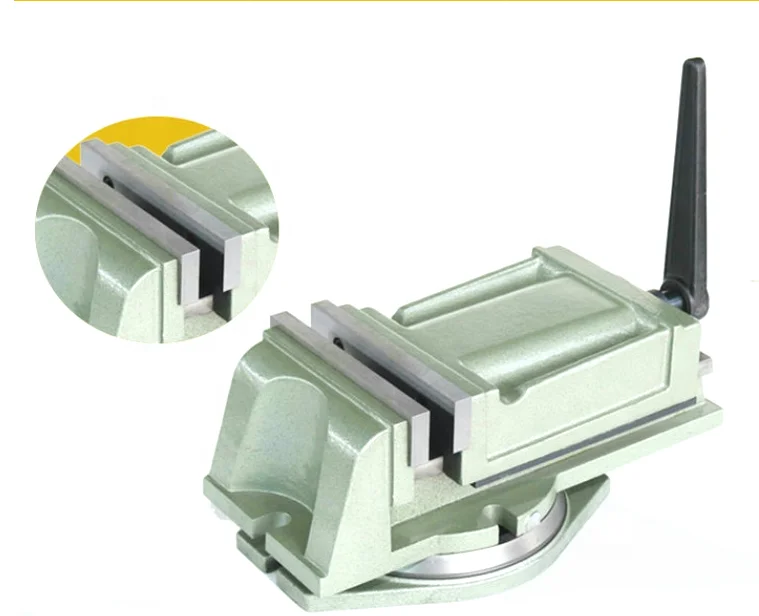

QH Series Machine vise for drilling machine,milling machine

Product Overview

Description

 QH Series Machine vise for drilling machine,milling machine:



1)The vise body are made from high quality cast irons

2)The accuracy of vice(parallelism and squareness) is 0.025mm/100mm.
3)It is often used on milling machine and drilling machine to process surface,slot,holes,etc.









model no.	Width of Jaw(mm)	Height of Jaw(mm)	Total height(mm)	Max opening(mm)	Max Clamping force(KN)	Positioning key width(mm)	bolt diameter(mm)	distance between two locked grooves of base	Weight(Kg)
QH1280	80	32	91	63	14	14	M10	76	6.5
QH12100	100	35	105	80	19	14	M10	92	9.5
QH12125	125	40	122	100	24	14	M12	111	15
QH12160	160	52	158	125	29	18	M16	158	33
QH12200	200	63	175	160	34	18	M16	178	48
