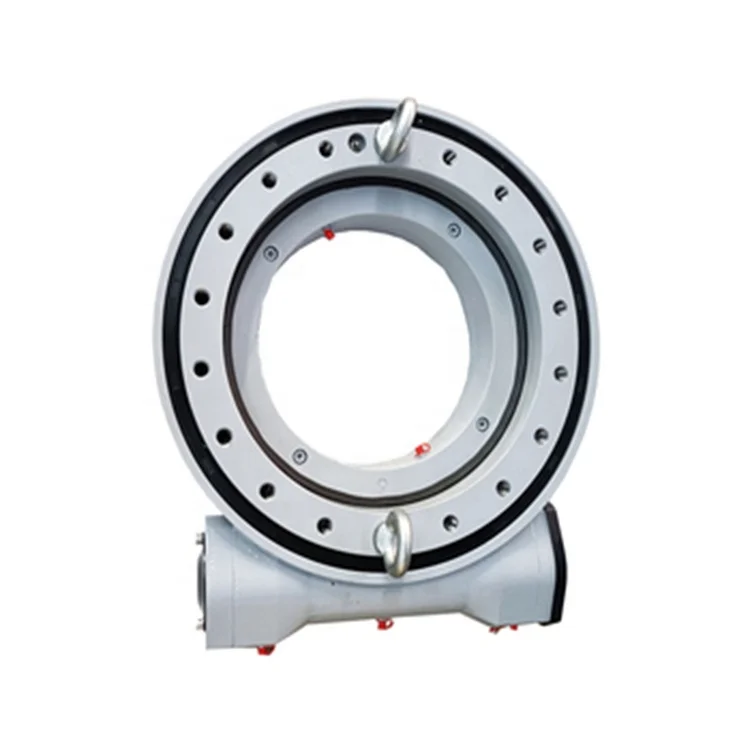

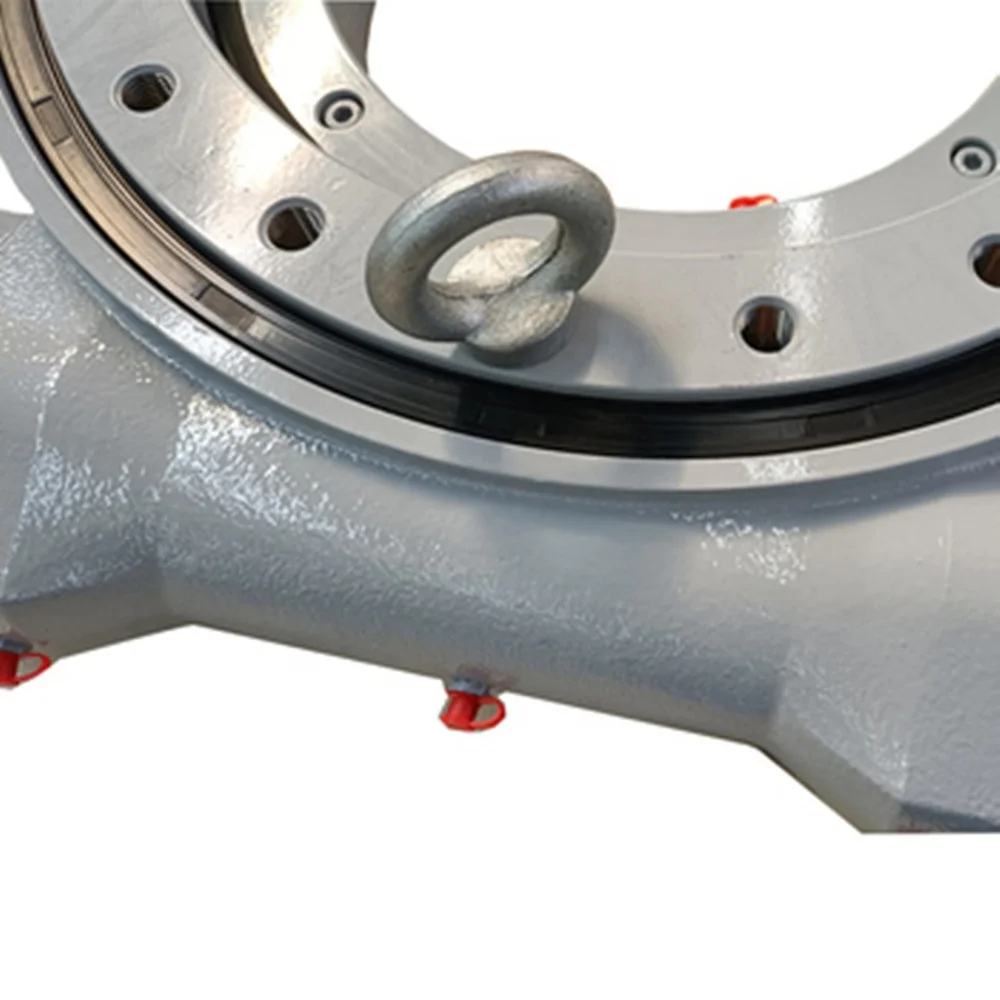

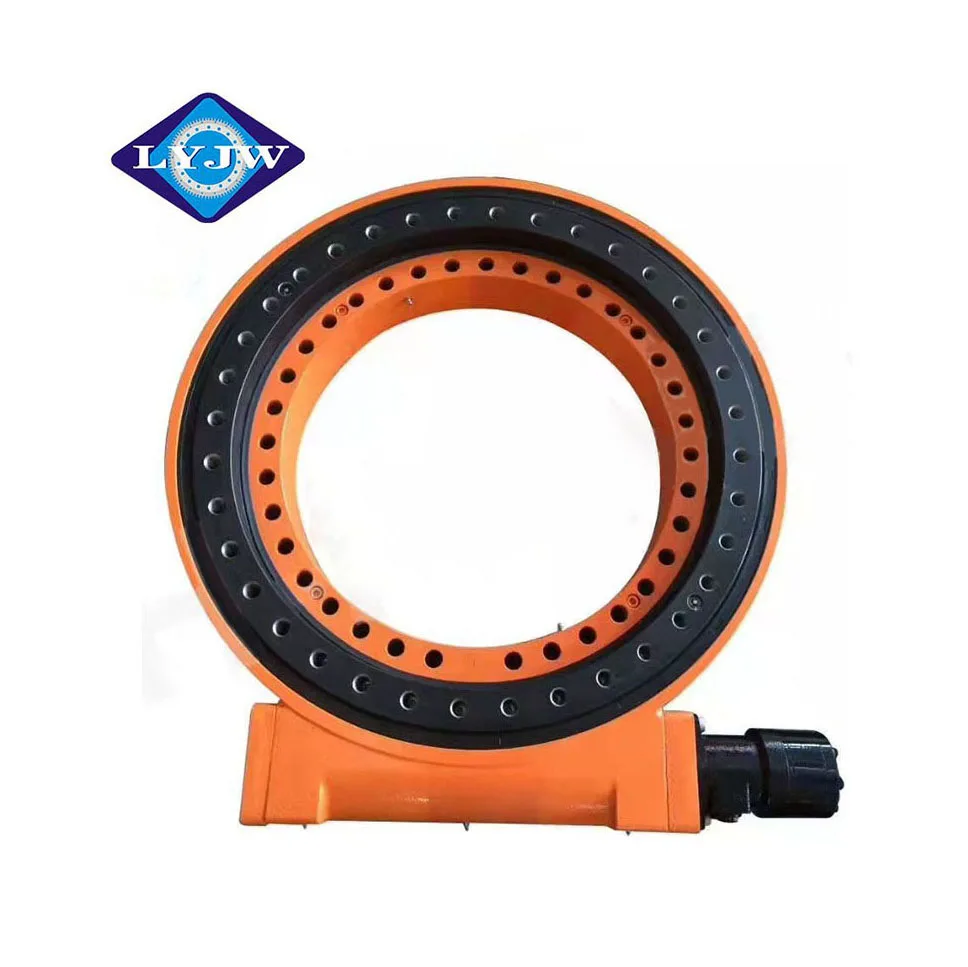

LYJW Slewing Drive 7 Inch SE7 Solar Tracking System Excavator Rotating Bucket Rotate Platform Hydraulic Electric Motor
- Category: >>>
- Supplier: Luoyang Jiawei Bearing Manufacturing Co. Ltd
Share on (1600520481711):
Product Overview
Description
Product Description
LYJW Slewing Drive 7 Inch SE7 Solar Tracking System Excavator Rotating Bucket Rotate Platform Hydraulic Electric Motor
Slewing drive has the advantage for saving space in facilities, max load capacity in a compact design, extensive lifespan, and
reduced maintenance costs.
Detail
1) Tilting Moment Torque: Torque is the load multiplied by distance between the position of load and the center of slewing
bearing. If the torque generated by load and distance is greater than the rated tilting moment torque, slewing drive will be
overturned.
2) Radial load: Load vertical to the axis of slewing bearing.
3) Axial load: Load parallel to the axis of slewing bearing.
4) Holding torque: It is the reverse torque. When the drive is rotating reversely, and parts are not damaged.
5) The maximum torque achieved is called holding torque.
6) Self-locking: Only when loaded, the slewing drive is not able to reverse rotate and thus called self-locking.
reduced maintenance costs.
Detail
1) Tilting Moment Torque: Torque is the load multiplied by distance between the position of load and the center of slewing
bearing. If the torque generated by load and distance is greater than the rated tilting moment torque, slewing drive will be
overturned.
2) Radial load: Load vertical to the axis of slewing bearing.
3) Axial load: Load parallel to the axis of slewing bearing.
4) Holding torque: It is the reverse torque. When the drive is rotating reversely, and parts are not damaged.
5) The maximum torque achieved is called holding torque.
6) Self-locking: Only when loaded, the slewing drive is not able to reverse rotate and thus called self-locking.

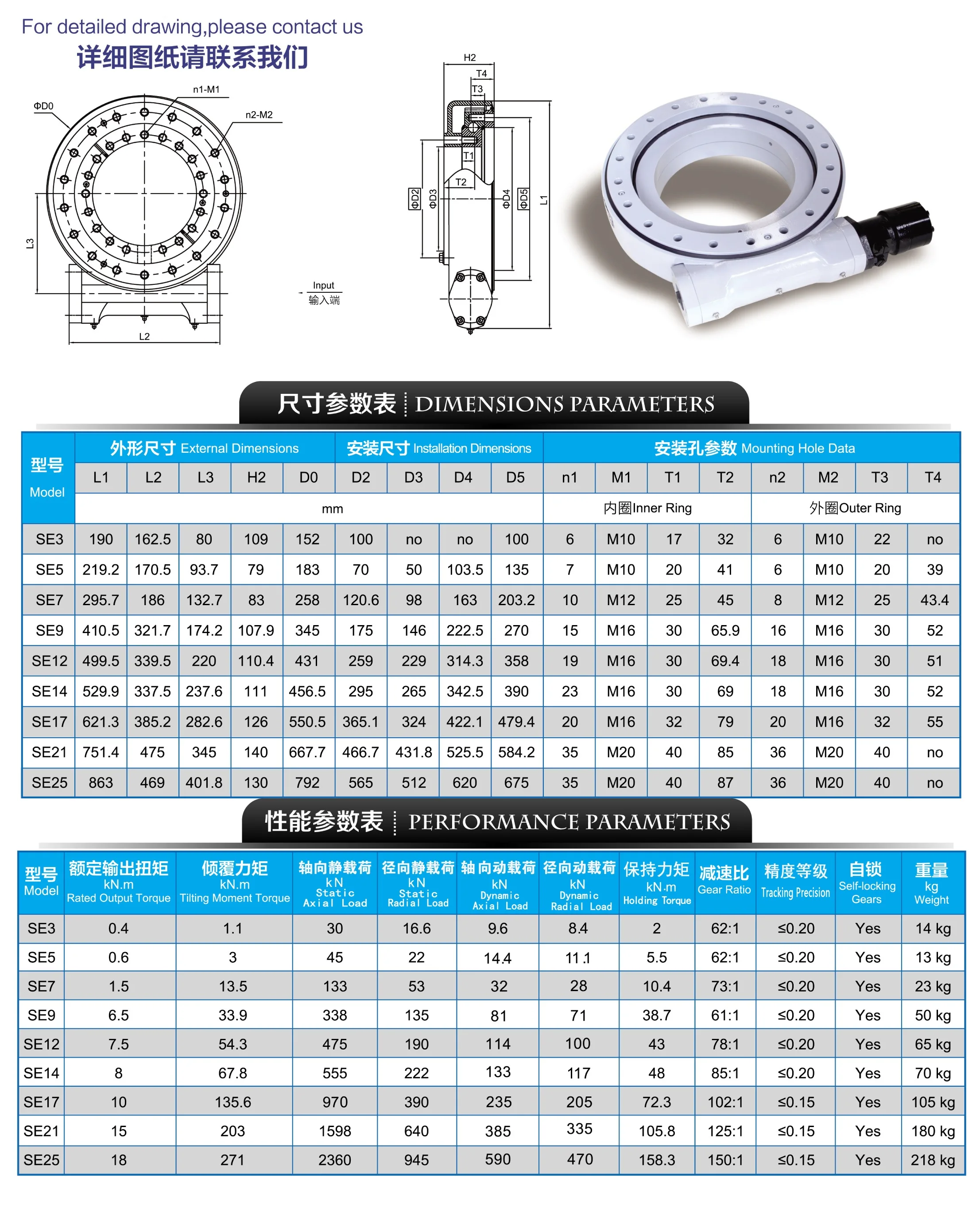

Specification
Product Name | LYJW Slewing Drive 7 Inch SE7 Solar Tracking System Excavator Rotating Bucket Rotate Platform Hydraulic Electric Motor |
Brand | LYJW |
Place of Origin | China |
Material | 50Mn/42CrMo |
Warranty | 12 months |
APPLICATION
Certification
OUR ADVANTAGE

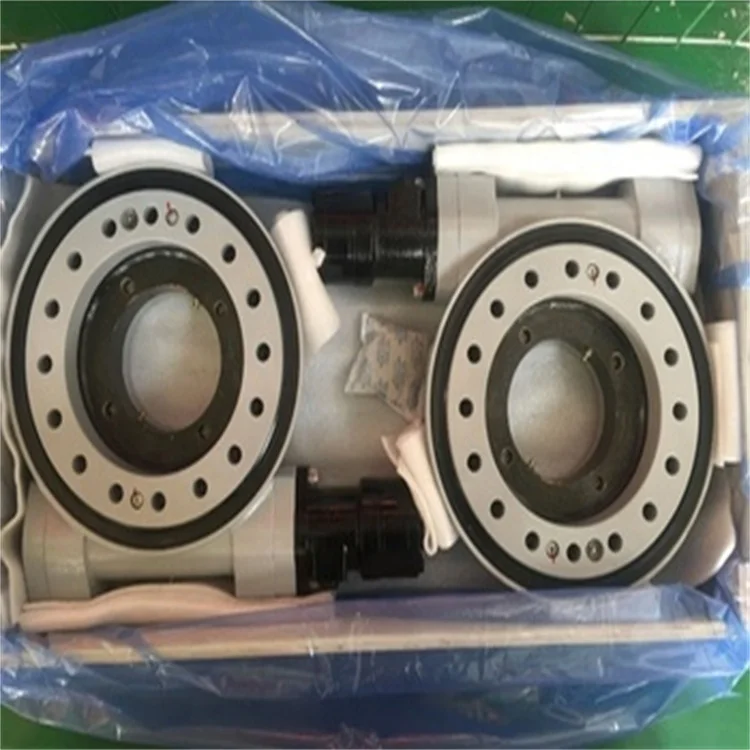

PACKAGING & SHIPPING
Contact Us
