ezcap234 Tape Digi 1 Portable Cassette to MP3 Converter Player

Product Overview

Description

ezcap234 Tape Digi 1 Portable Cassette to MP3 Converter Player



Digitizer All
ezcap234 TapeDigi 1 can digitizer your tape music, your location AM and FM radio programs, even your voice or abient sound, and save in Micro SD card. It includes speaker inside, you also can playback the recorded audio files directly to check the effect.



Digitizer Tapes to mp3, Save in Micro SD Card



Listen and Record AM FM Radio at Same Time



Voice Record and Playback Directly
Microphone inside, record your voice or ambient sound, save in Micro SD card. You also can playback the recorded audio directly.



Both Speaker Inside and AUX Jack
Includes both of inside speaker and AUX jack, allwo you listen music direcly or with headphone. Also can powered by AA battery or USB power.

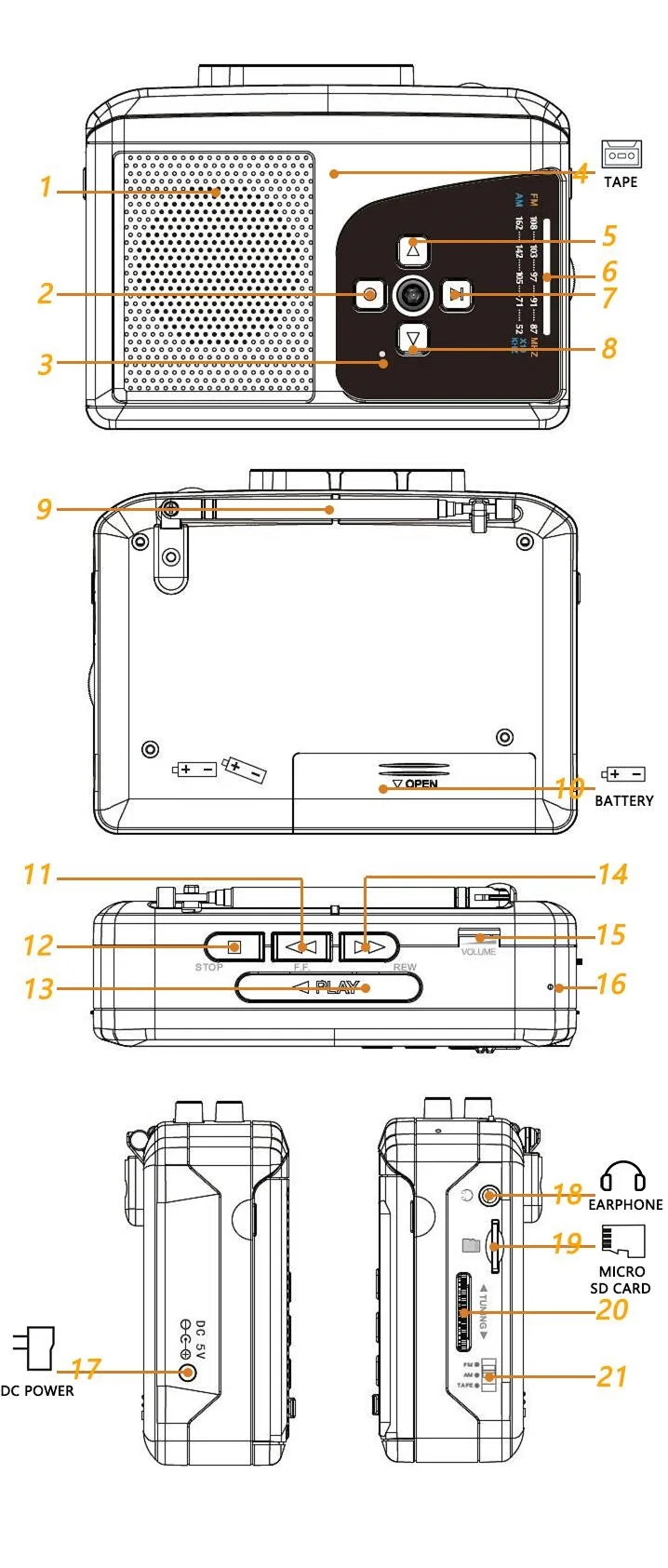

1. Speaker

2. Record / Stop button, press to start recording, press again to stop.

3. Indicator LED

4. Cassette door, open to insert tape.

5. UP button, press to play previous track in playback mode.

6. FM / AM adjustment frequency indicator.

7. Playback / Stop button, press to play the mp3 files in playback mode, press again to stop.

8. DOWN button.  Playback mode: press to play the next track. Standby mode: long time press to switch recording mode between Manual recording and Auto recording. Manual mode: press to save the recording file in Micro SD card, and start a new recording automatically.

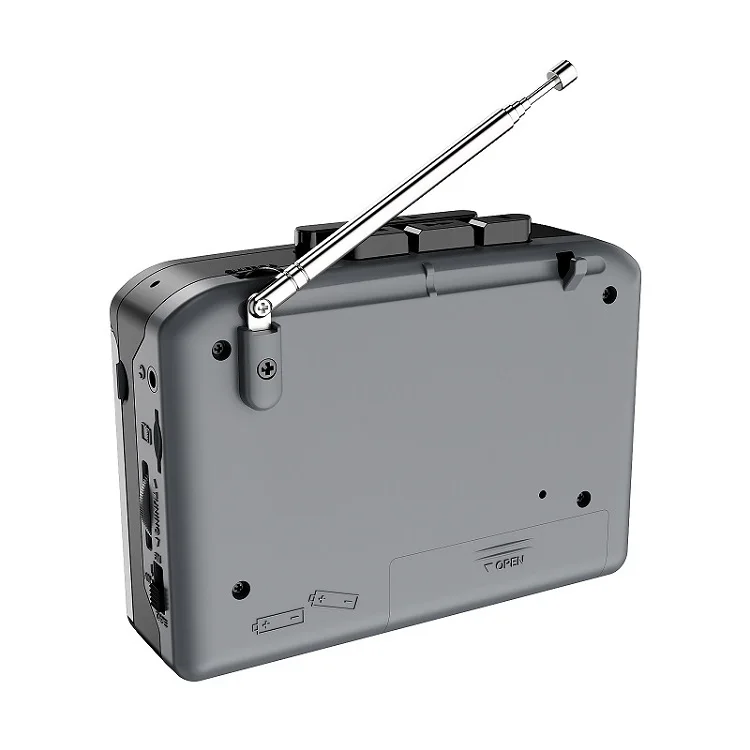

9. FM radio antenna. Pull out the antenna mast and adjust it to the suitable position to receive the best FM radio signal.

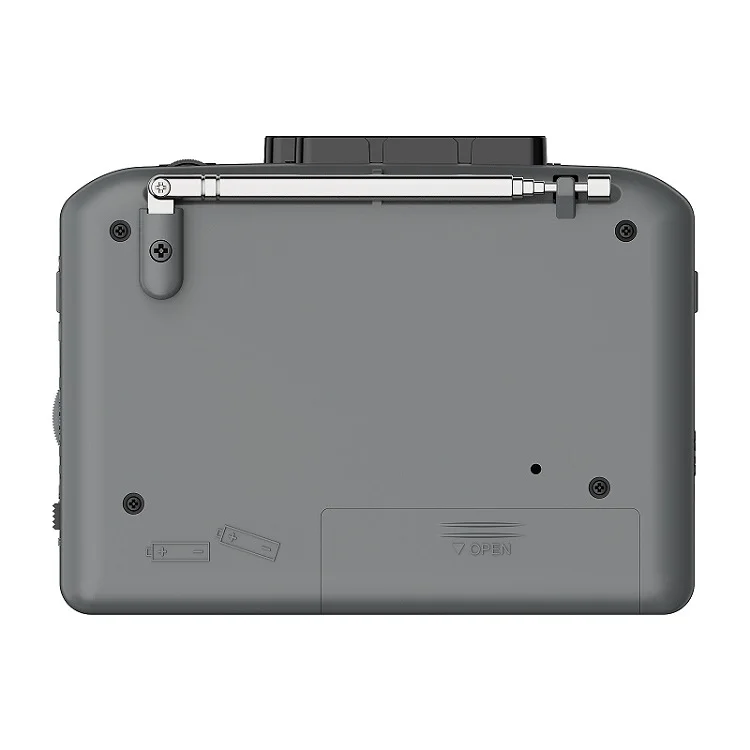

10. Battery compartment. Open it to insert two AA batteries.

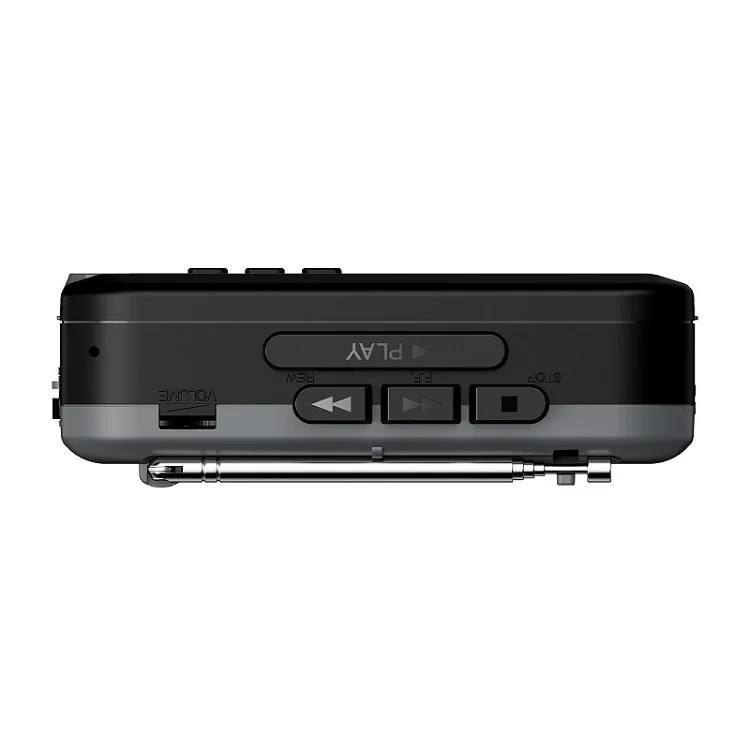

11. Fast forward button. Press to fast forward the tape in play tape mode.

12. Stop button. Press to stop playing tape, stop fast forward or fast rewind.

13. Play button, press to play tape.

14. Fast rewind button. Press to fast rewind the tape in play tape mode.

15. Volume adjustment knob.

16. Built-in microphone receiving hole.

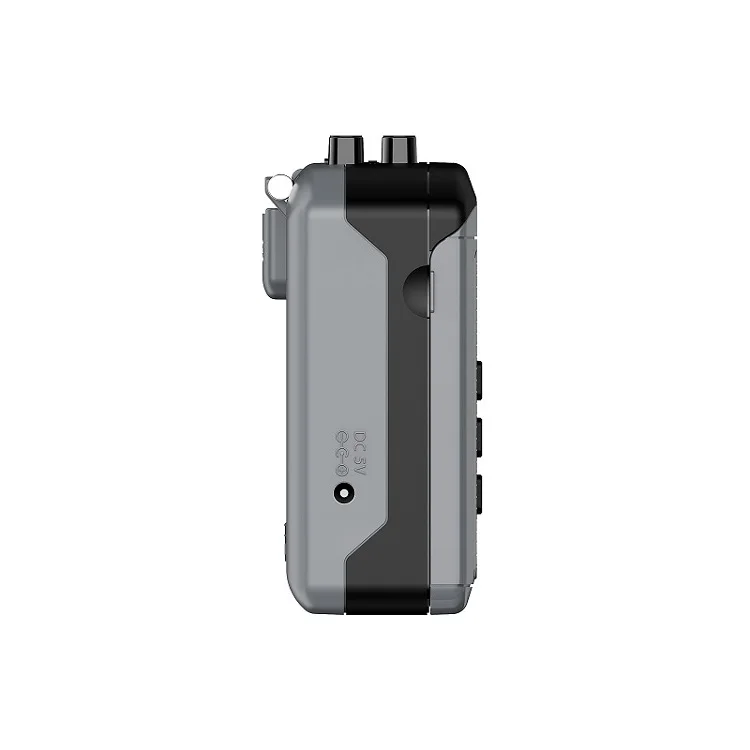

17. 5V DC jack. Connect to 5V DC adapter (not included) with included USB cable.

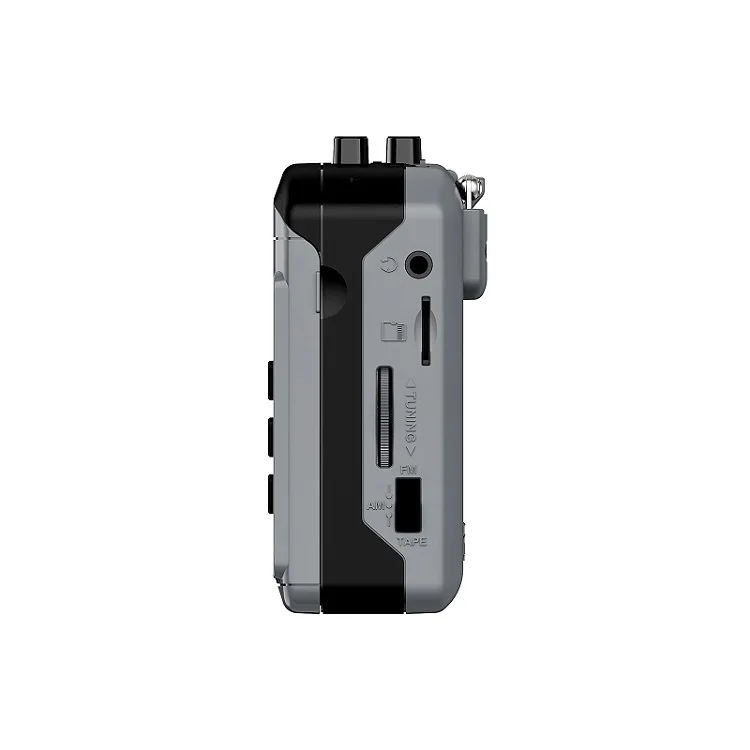

18. Earphone jack, 3.5mm TRS connector.

19. Micro SD card slot. Insert Micro SD card to save the recording mp3 files.

20. Radio tuning knob. Adjust it to search the different frequency radio shows.

21. FM / AM / TAPE switch. Toggle it to switch between playing FM, AM and TAPE.

SPECIFICATIONS

- Host Interface: Micro SD card
- Audio Input: Cassette Slot, Microphone inside
- Audio Output: Earphone (3.5mm stereo jack, as earphone port) , Speaker
- FM: 87-108MHz (76-108MHz for Japan), AM: 520-1610KHz (530-1710KHz for Japan)
- User Interface: REC and other buttons, Tape / Radio switcher, FM / AM switcher, Radio tuning knob, Volume control knob, LED indicator
- Storage Device: Micro SD card, max 32GB
- Recording Information: .mp3, 128Kbps
- Power Supply: 2 x AA battery, or DC 5V power
- Working Time: 1 hour with 2 x AA battery
- Speaker: 1W

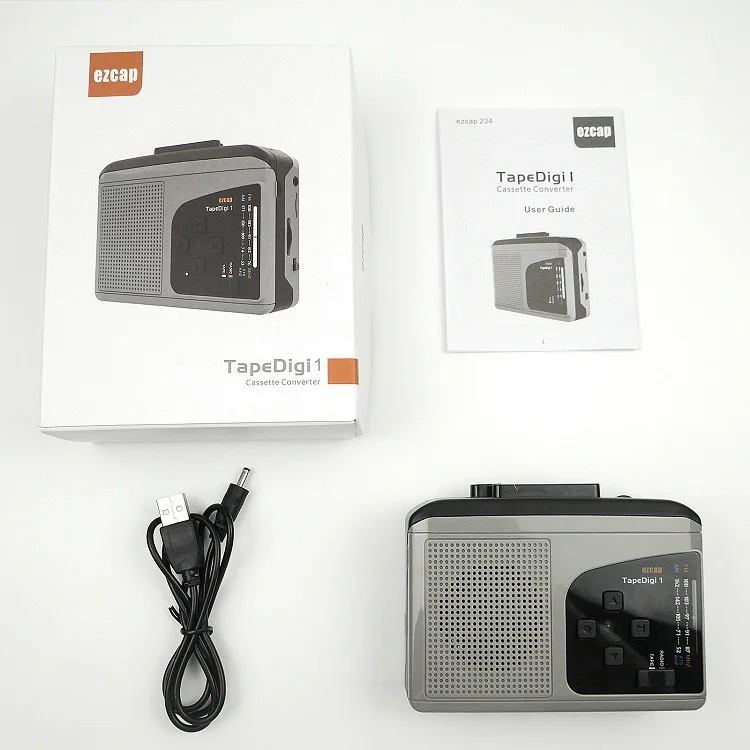

- Package Contents: ezcap234 TapeDigi 1 Cassette Converter micro SD, USB cable for power, Manual
- Dimension / Weight: 122(L) x 91(W) x 39(H) mm, 200g



Support Format	.mp3
Recording bit rate	128Kbps
Storage	Max 32GB Micro SD Card, FAT, FAT32, exFAT
Battery	2 X AA
Power Supply	DC 5V
Speaker	8Ω 1W
Output Power	Max 1W
Frequency response	100Hz - 18KHz
Dimensions	122 x 91 x 39mm
Weight	200g (without batteries and tape)





FEATURES
- Converts your precious cassette collection to MP3, save in Micro SD card, no computer required.
- Converts full tape music to MP3 files by auto partition each songs.
- Listen to FM/AM radio, and record radio to MP3 into Micro SD card.
- Microphone inside, can record voice and save in Micro SD card.
- With Playback, can check the recorded music on device directly.
- Flexible battery or USB-powered operation.
- Compact and portable design.
- Speaker inside.
- Can be used as personal cassette player.
